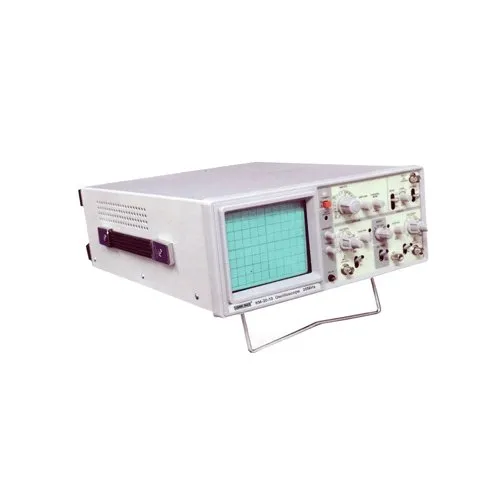

Kusam Meco KM-20-10 Analog Oscilloscope

Kusam Meco KM-20-10 Analog Oscilloscope
Kusam Meco KM-20-10 Analog Oscilloscope
Kusam Meco KM-20-10 Analog Oscilloscope

Click To Zoom

Kusam Meco KM-20-10 Analog Oscilloscope

Kusam Meco KM-20-10 Analog Oscilloscope

(Based On 10 Reviews)

The Kusam Meco KM 20-10 is a 20 MHz dual-trace analog oscilloscope. Featuring a 6-inch high-brightness CRT display, it offers excellent clarity for waveform observation. With high sensitivity triggering (down to 1mV/div) and X-Y mode, it's a reliable tool for electrical signal analysis, particularly for engineers familiar with analog technology, ensuring stable display of various signals.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 38,599.00

(GST inclusive price) i
  • Base Value: ₹ 32711
  • GST: (18) % ₹ 5888
  • Total Value ₹ 38599

₹50,050.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Dual channels / dual traces, X-Y mode
  • 6” display, high brightness oscilloscope tube
  • High sensitivity triggering, upto 1mV / division clearer display than ordinary oscilloscope.
  • TV synchronous separation circuit to observe stable TV signal.
  • Triggering mode : AUTO / NORM / AV-V / AV-H
  • Vertical : ALT / CHOP / ADD X-x10 / Y-x5; Polarity reversal; CH1 Sync output
  • Power Supply : AC 220V ADN (110V optional)



What's in the box?

  • Kusam Meco KM-20-10 Analog Oscilloscope
  • User Manual
  • Mains Power Cord.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

ELECTRICAL

  • CRT : 6 inches rectangular screen with internal graticule, 8*10 div (1 div = 1cm) Vertical deflection.
  • Display mode : CH1, CH2, CH3, ADD ALT & CHOP
  • Deflection factor : 5mV / div to 5V / div ± 3%, (1mV / div to 1V / div ± 5% at*5), 10steps.
  • Rise time : £ 17.5ns
  • Max. Input Voltage : 40V (DC+AC peak value) when £ 1KHz.
  • Input coupling : AC, DC, Grounding
  • Polarity selection : ± (CH2 only).

TRIGGERING SYSTEM

  • Triggering mode : NORM, AUTO, TV-V, TV-H
  • Triggering sourde : CH1, CH2, LINE, EXT
  • Sensitivity & Frequency : Auto : 20Hz-----100MHz (VERT)
                                                           Norm : 0.5div int, 0.8Vp---p EXT
                                                                           0.5div INT, 0.5vp-----PEXT
                                                                          TV-H : At least 1 div or 1V p-p
  • Input impedance : 1MW

X-Y OPERATION

  • X-Y phase difference : £3o, DC--50KHz

HORIZONTAL DEFLECTION

  • Display mode : 1, 10, X-Y
  • Time Base : 0.2ms / div to 0.5s / div, 20 range
  • Sweep expansion width : *10
  • Accuracy : ±3%

OTHERS

  • Calibration waveform : Frequency : 1KH 20% Voltage : 0.5v 1%
  • Power Supply : AC 220V / 110V ± 10%, 50 / 60Hz
  • Dimensions : 370 X 310 X 130mm
