Kusam Meco KM 582 Digital RCD (ELCB) Tester with Auto Ramp
Click To Zoom

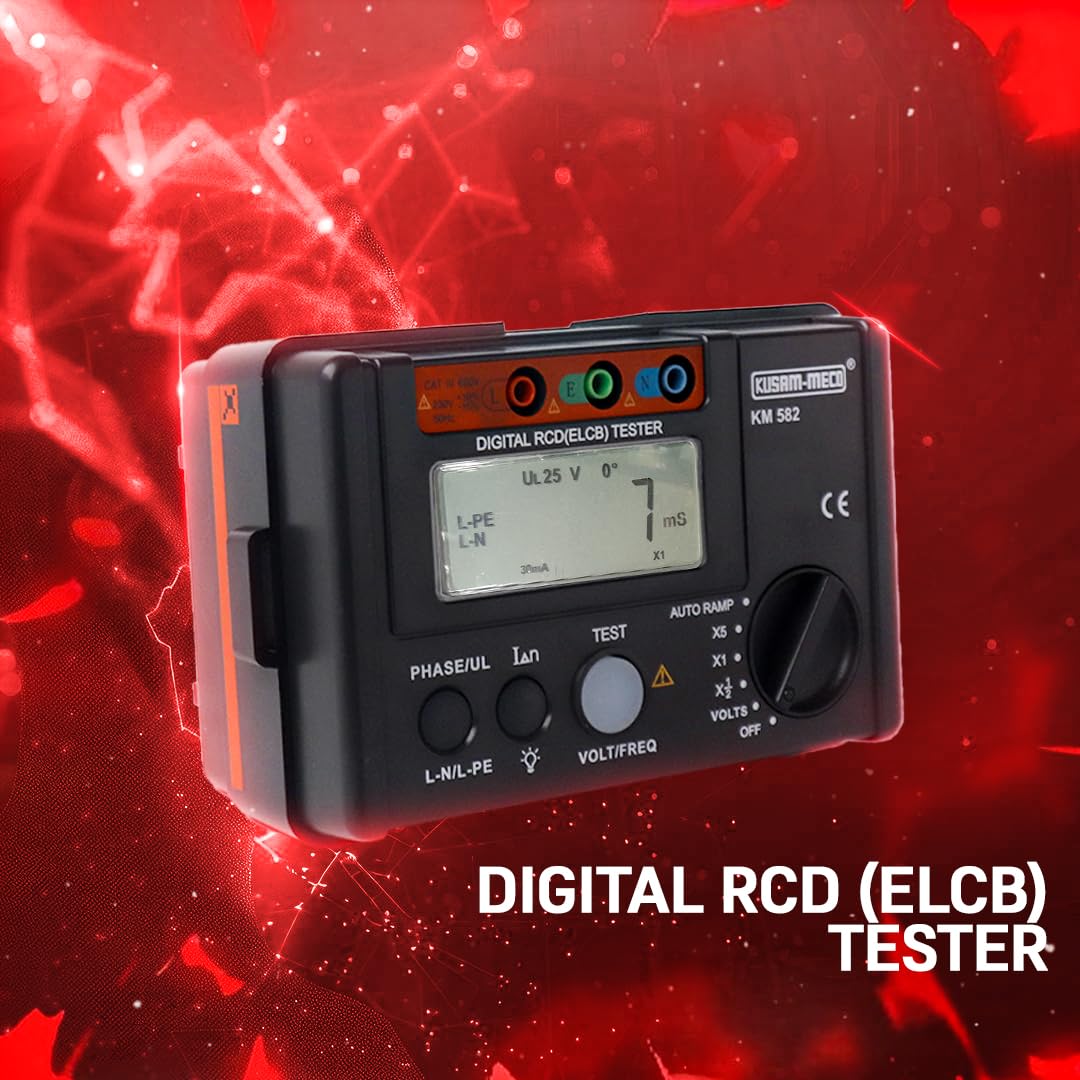

Kusam Meco KM 582 Digital RCD (ELCB) Tester with Auto Ramp
Kusam Meco KM 582 Digital RCD (ELCB) Tester with Auto Ramp
KM-582 is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with the supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 14,850
(GST inclusive price) i-
Base Value: ₹ 12584.7
-
GST: (18) % ₹ 2265.3
-
Total Value ₹ 14850
₹24,450.00
( - 23% OFF )
Description
Key Features
- Auto power off function
- LCD backlight
- Data Hold
- Auto ramp
- Buzzer indication to disconnect
- Over-range indication

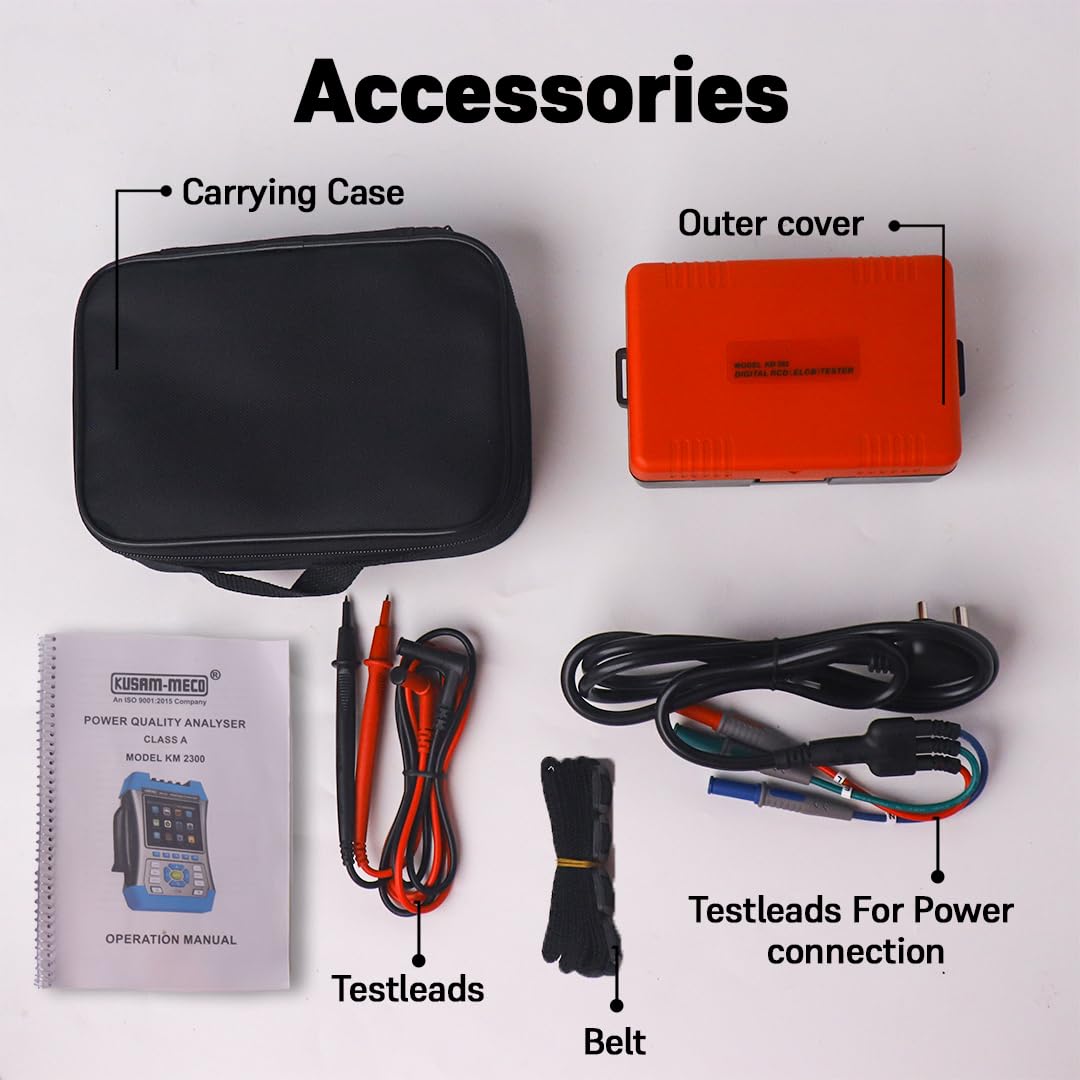

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Power | 1.5V battery (LR 6) x 6 |
| Display | 71mm x 34mm |
| Product net weight | 400gms Approx. |
| Product size | (W x H x D) 160mm x 100mm x 71mm |

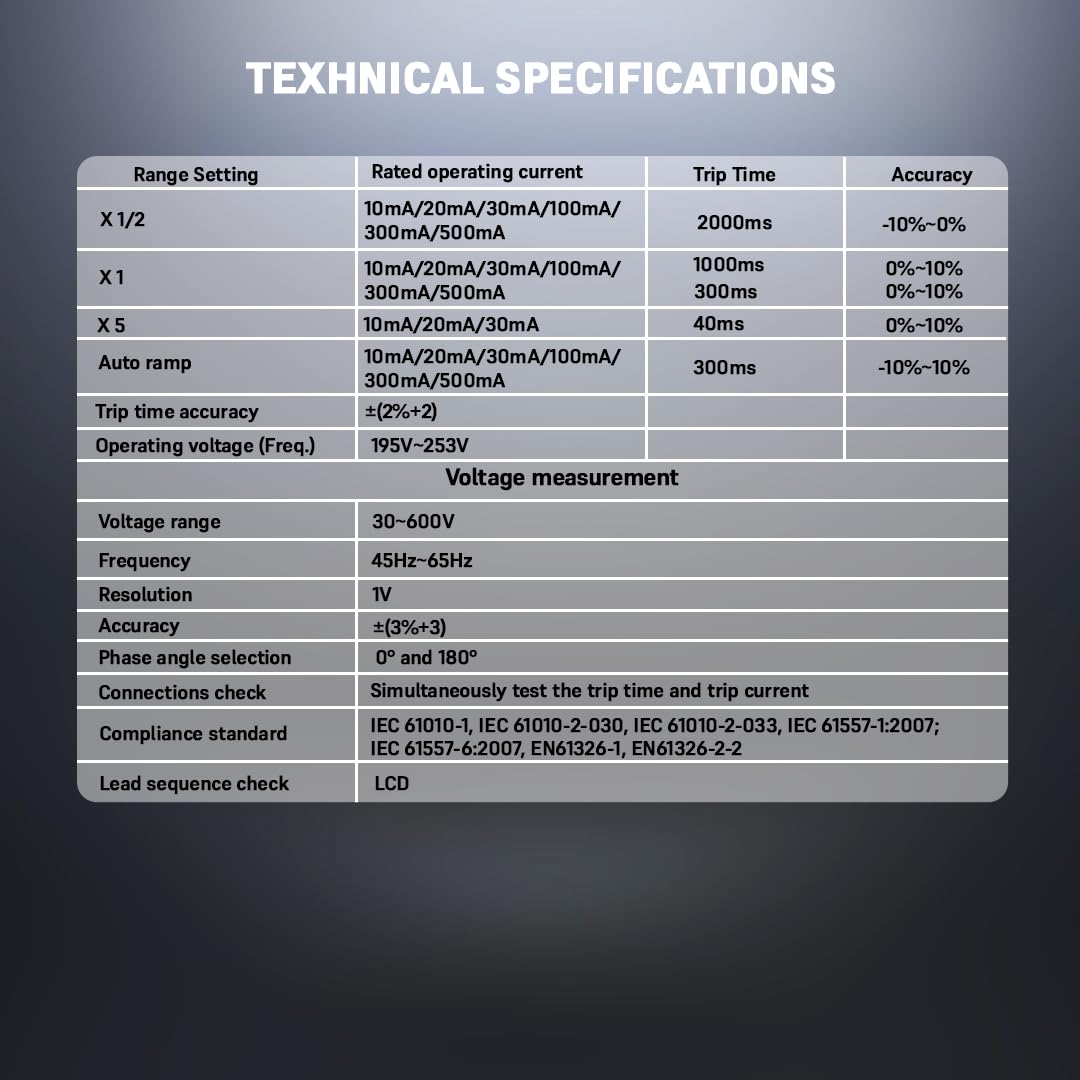

TECHNICAL
| Range Setting | Rated operating current | Trip Time | Accuracy |
| X 1/2 | 10mA/20mA/30mA/100mA/300mA/500mA | 2000ms | -10%~0% |
| X 1 | 10mA/20mA/30mA/100mA/300mA/500mA | 1000ms 300ms | 0%~10% 0%~10% |
| X 5 | 10mA/20mA/30mA | 40ms | 0%~10% |
| Auto ramp | 10mA/20mA/30mA/100mA/300mA/500mA | 300ms | -10%~10% |
| Trip time accuracy | ±(2%+2) | ||
| Operating voltage (Freq.) | 195V~253V | ||
| Voltage measurement | |||
| Voltage range | 30~600V | ||
| Frequency | 45Hz~65Hz | ||
| Resolution 1V | 1V | ||
| Accuracy | ±(3%+3) | ||
| Phase angle selection | 0° and 180° | ||
| Connections check | Simultaneously test the trip time and trip current | ||
| Compliance standard | IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007; IEC 61557-6:2007, EN61326-1, EN61326-2-2 | ||
| Lead sequence check | LCD | ||
