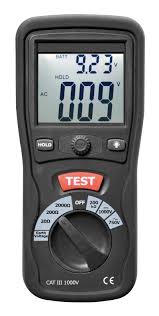

Kusam Meco KM-1521 Digital Earth Resistance Tester
Click To Zoom
Kusam Meco KM-1521 Digital Earth Resistance Tester
Kusam Meco KM-1521 Digital Earth Resistance Tester
Electronic Digital Earth Resistance Tester is direct replacement of the conventional hand generator type tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurement of ground resistivity. It can be used for measurements of the other low regular and liquid resistances. It can also be used for measurement of voltage AC, voltage DC and resistance. This instrument has wide application for testing earthing installation in power based industries, telecommunication networks and electrical traction systems etc.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 16,700
(GST inclusive price) i-
Base Value: ₹ 14152.5
-
GST: (18) % ₹ 2547.5
-
Total Value ₹ 16700
₹27,450.00
( - 23% OFF )
Description
Key Features
- Meets IEC10101, CAT III 1000V
- Display : 3½ Digit 2000 Counts Large dual display with back light
- Test hold function for easy operation
- Zero adjustment
- Sampling Rate: 2.5 times per second
- Low Battery Indication
- Test Frequency : 820Hz
- Leakage Current : 2mA
What's in the box?
|
Rating & Reviews
Rating
GENERAL
● Dimension : Approx. 200(L) x 92(W) x 50(H)mm
● Weight : Approx. 700gm.(including battery)
TECHNICAL
| Function | Range (Ω) | Max. Resolution (Ω) | Accuracy |
| Earth resistance | 20Ω | 0.01Ω | ±(2%rdg ± 10digits) |
| 200Ω | 0.1Ω | ±(2%rdg ± 3dgts) | |
| Earth Voltage | 200V | 0.1V | ±(3%rdg ± 3dgts) |
| AC Voltage (40Hz-400Hz, 820Hz) | 750V | 1V | ±(1.2%rdg ± 10dgts) |
| Input Impedance | 10MΩ | ||
| Overload Protection | 750Vrms | ||
| DC Voltage | 1000V | 1V | ±(0.8%rdg ± 3dgts) |
| Input Impedance | 10MΩ | ||
| Overload Protection | 1000Vrms | ||
| Resistance | 200kΩ | 0.1kΩ | ±(1.0%rdg ± 2dgts) |
| Overload Protection | 1000Vrms | ||
| Continuity Test | Continuity Test Active Sound Level : ≤ 40Ω, Test current ≤ 200mA | ||
| Operating Temp | 0ºC ~ 40ºC (< 80%R.H.)(32 ~ 104°F) | ||
| Storage Temperature | -10ºC ~ 60ºC (< 70%R.H.) (14 ~ 140°F) | ||
| Power Source | 1.5V “AA” battery x 6 | ||
