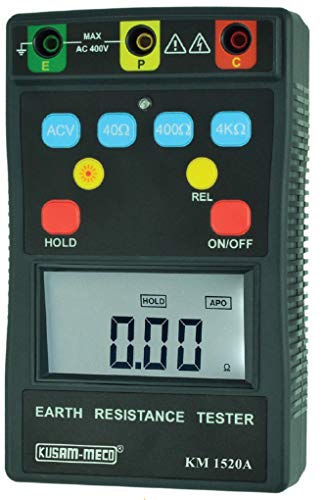

KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS

KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS
KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS

KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS

Click To Zoom

KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS

KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS

(Based On 10 Reviews)

“KUSAM-MECO” Digital Earth Resistance Tester is a very versatile & handy instrument for checking Earth Resistance. It consists of the indicator & set of 3 spikes (stake) and connecting wires. Earth Resistance is measured by putting the spikes in the earth at distance of 5-10m (as shown below) & switching ON the instrument indicates the Earth Resistance directly in ohms.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 26,300

(GST inclusive price) i
  • Base Value: ₹ 22288.1
  • GST: (18) % ₹ 4011.9
  • Total Value ₹ 26300

₹43,200.00

( - 23% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Earth Resistance Measuring range : 0-40 Ω / 400 Ω / 4000 Ω
  • Measure Earth Voltage (VAC) : 0-400V
  • Low 2mA measuring current permits earth resistance to test without tripping earth leakage current circuit breakers in the circuit.
  • Capable of measuring earth voltage(Vac).
  • Auto power off function. The timer operates automatically about three to five minutes after the”PUSH BUTTON SWITCH” and “Timer ON BUTTON” are pressed together This will keep the test “ON” for about three to five Minutes. Then auto power off.
  • Battery operated.
  • Operating Temperature & Humidity : 0 ~ 40°C; 80% RH Max.
    Data Hold function.
  • Small and light weight
  • EN61010-1 CAT IV 400V.
  • Display Back-light
  • External probe
  • CE-Mark approval



What's in the box?

  • KUSAM MECO KM 1520A DIGITA EARTH RESISTANCE TESTERS
  • Test leads(AL-36:red-15m
  • yellow-10m, green-5m)
  • Auxillary earth bars (2 nos.) Heavy-duty case
  • Instruction manual
  • Batteries

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

• Measurement Ranges :
  Earth Resistance : 0-40Ω / 0-400Ω / 0-4000Ω
  Earth Voltage : 0-400V AC (40-500Hz)
• Accuracy :
  Earth Resistance : ±(2%rdg + 3dgts)
  Earth Voltage : ±(2%rdg + 3dgts)
• Earth Resistance Resolution : 0-40Ω (0.01Ω); 0-400Ω (0.1Ω); 0-4000Ω (1Ω)
• Display : 3¾ Digit 4000 counts LCD Back-light display.
• Measurement System : Earth resistance by constant current inverter 820Hz approx. 2mA
• Low Battery Indication : “B” symbol appears on the display
• Data Hold Indication : “DH” symbol appears on the display
• Over Range Indication :"1" (MSD)
• Open Circuit Indication : LED will be unlit
• Power Supply : 1.5 V X 6.Type AA batteries.
• Dimensions : 163(L) X 102(W) X 50(D)mm
• Weight : 480g approx.(battery included)
