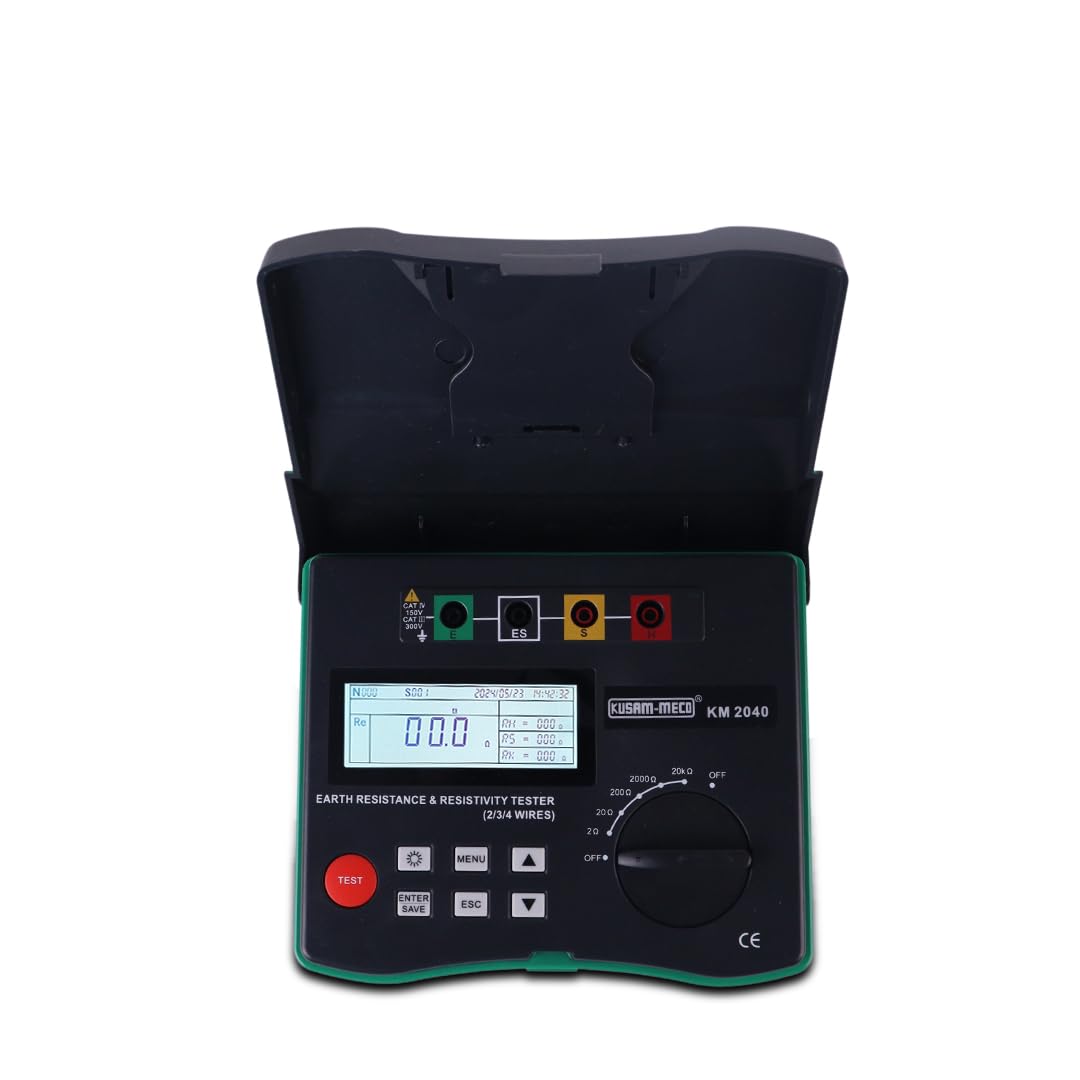

The KM 2040 is a compact, high-precision Earth Resistance and Soil Resistivity Tester supporting 4-terminal measurements. It features a wide measuring range (up to 209.9kΩ), FFT filtering for noise reduction, selectable test frequencies, and 1000-set memory. Ideal for field and industrial use, it’s lightweight, battery-operated, and complies with IEC61010-1 safety standards.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 22,500

(GST inclusive price) i
  • Base Value: ₹ 19067.8
  • GST: (18) % ₹ 3432.2
  • Total Value ₹ 22500

₹36,595.00

( - 22% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

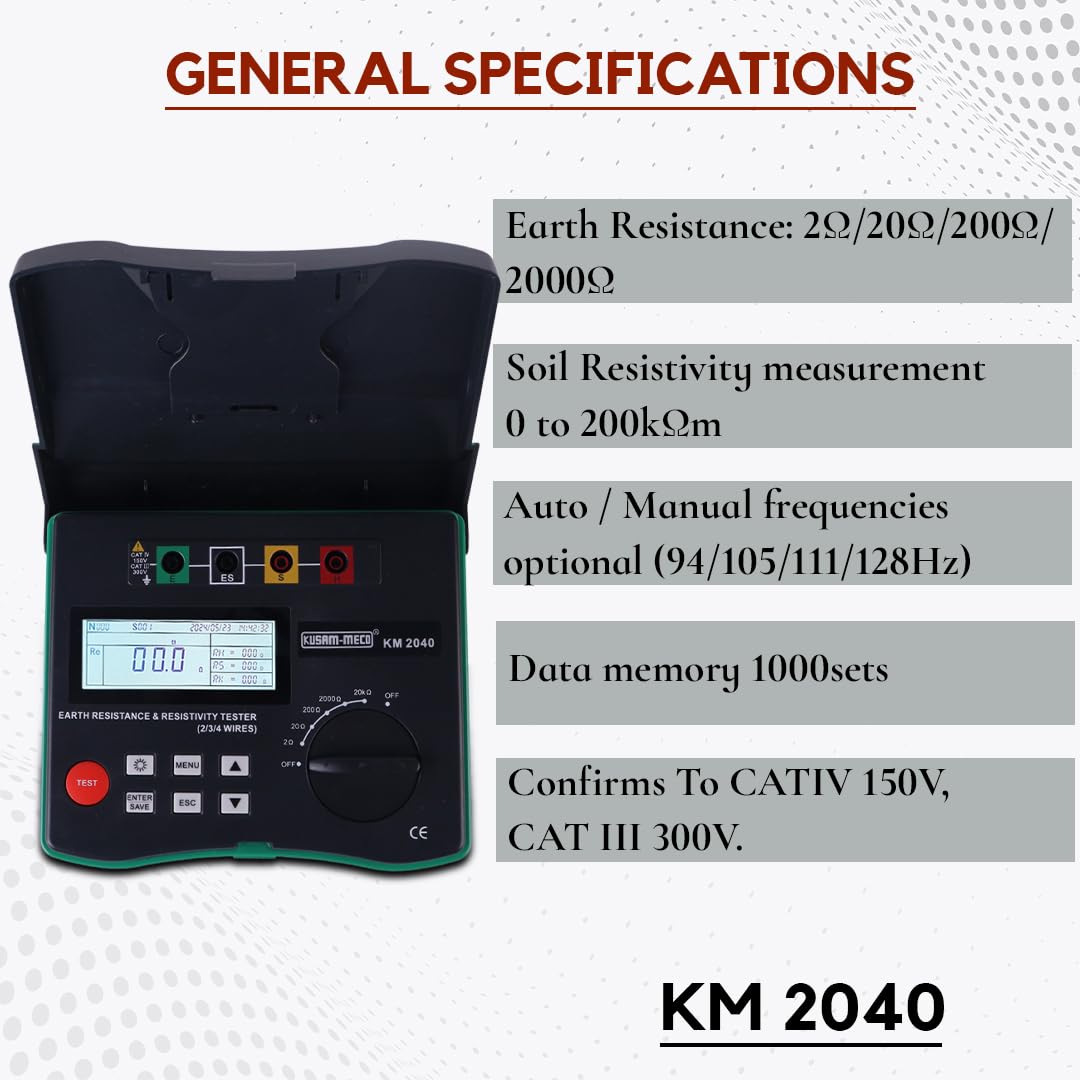

  • 4 pole Earth Resistance Measurement upto 209.9k ohms with resolution 0.001 ohm.
  • Soil Resistivity measurement 0 to 209.9kΩm.
  • Advance filtering method based on FFT (fast fourier transform) reduces noise interference.
  • Rich test results displayed include resistance of earth spikes, frequency of test current, detected voltage & frequency of interference, residual resistance Rk, etc.
  • Auto / Manual frequencies optional (94/105/111/128Hz).
  • Compensation for residual resistance Rk.
  • Data memory 1000sets.
  • Confirms to CATIV 150V, CAT III 300V

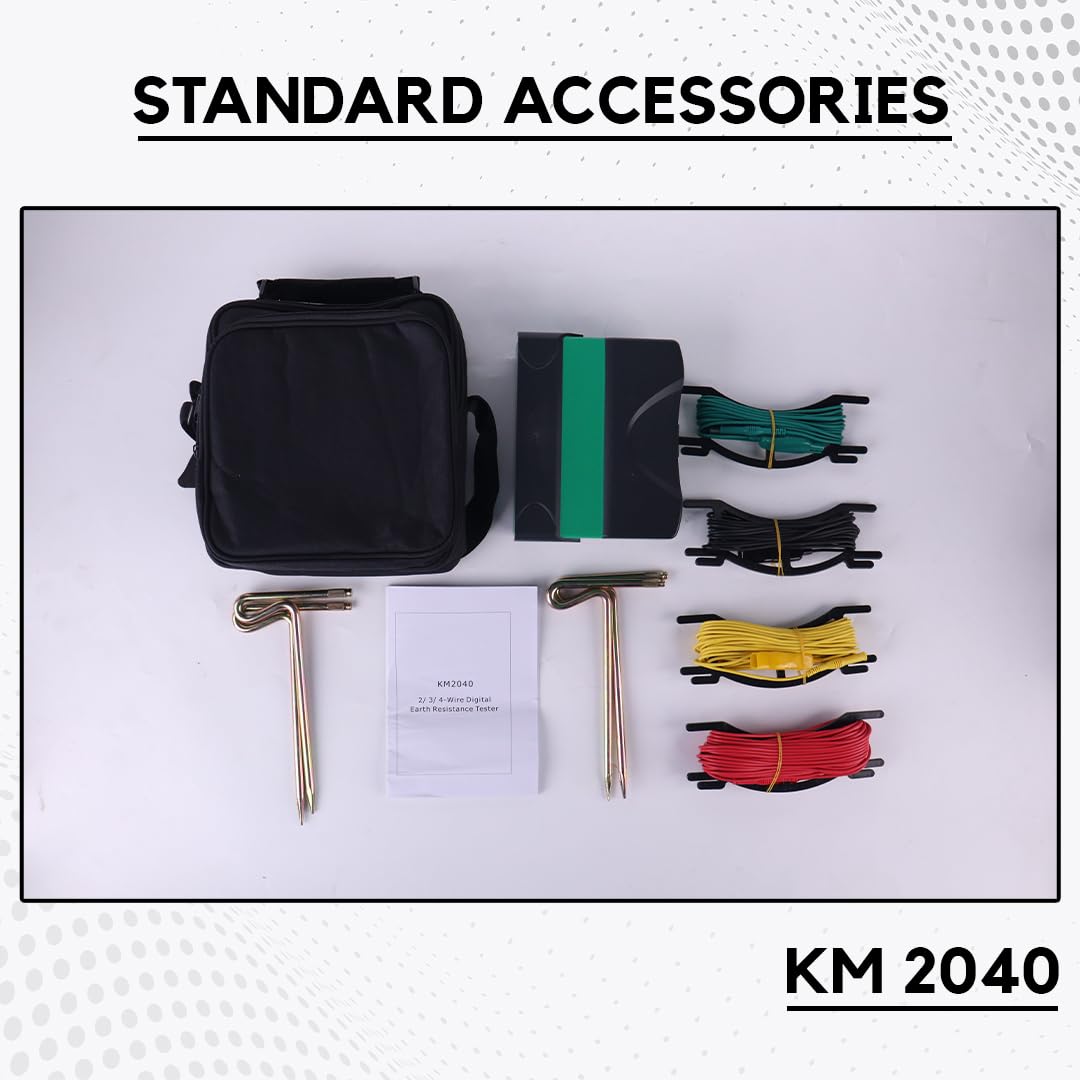

What's in the box?

  • Kusam Meco KM 2040 - Digital Earth Tester
  • 4 terminal earth wires & spikes
  • Instruction Manual
  • Battery
  • Carrying Case.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

  • Frequency : 40 ~ 500Hz
  • Measuring Current Im : max. 10mA
  • Measuring Voltage Um : 10Vrms 125Hz
  • Compensation of Lead Resistance Rk : 2Ω : max. 2Ω / 20Ω : max. 9Ω
  • Memory Capacity : 1000 groups.
  • Display : LCD segment
  • Power : AA 1.5V X 8 batteries.
  • Weight : approx. 900g.
  • Dimension : 190 x 155 x 75 mm



TECHNICAL

Earth Resistance2Ω : 0.05 ~ 2.09Ω / 20Ω : 0.05 ~20.9Ω / 200Ω : 0.3 ~ 209Ω /
2000Ω : 3 ~2.09kΩ / 20kΩ : 0.03k ~ 20.9kΩ / 200kΩ : N/A
Accuracy± (3%rdg + 5dgt)
Auxillary earth resistance Rh, Rs8% of Re + Rh + Rs
Soil Resistivity Voltage2Ω : 0.3 ~ 393.7Ωm / 20Ω : 3 ~ 3937Ωm / 200Ω : 0.03 ~ 39.37kΩm /
2000Ω : 0.3k ~ 393.7kΩm / 20kΩ : 3k ~ 1999kΩm / 200kΩ
