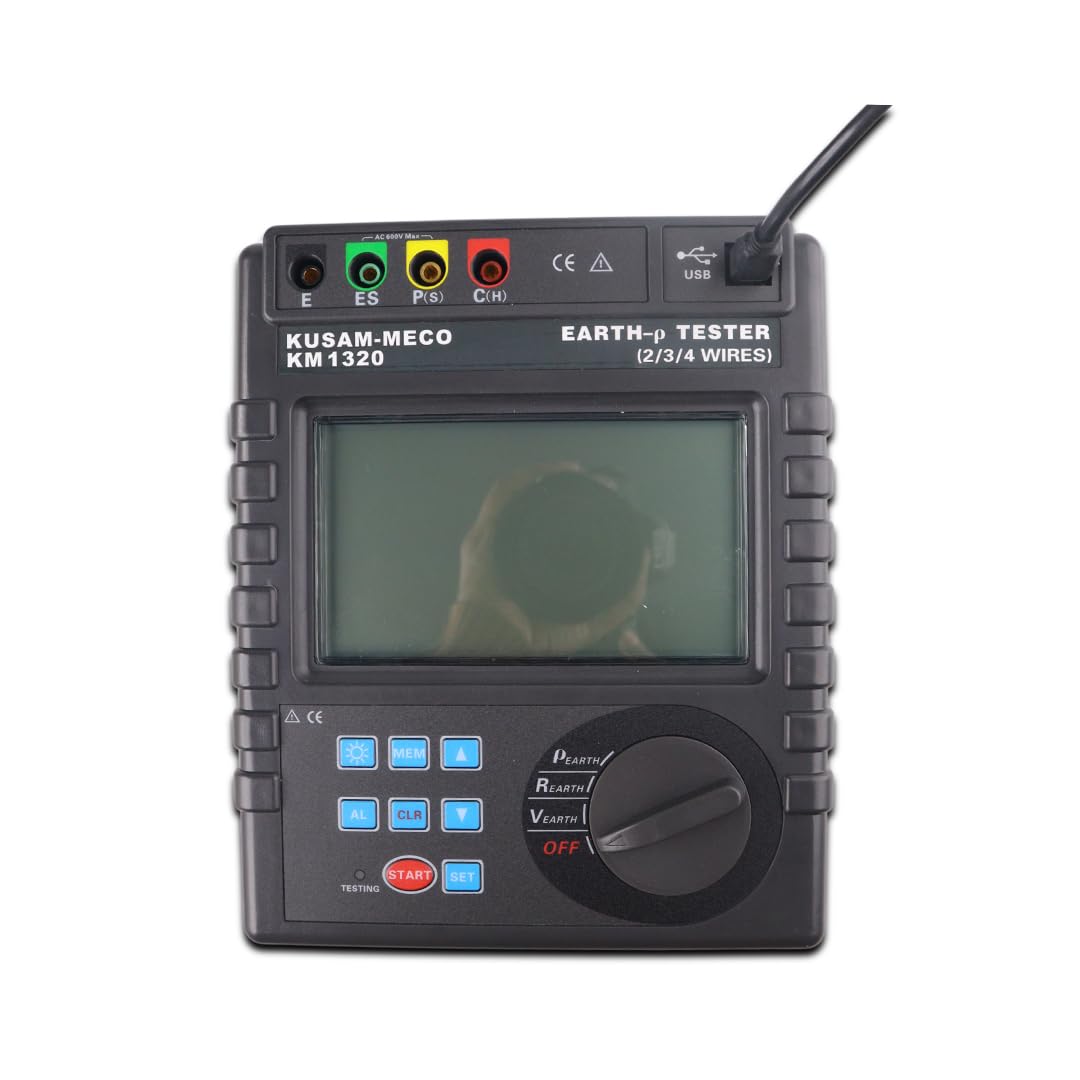

Kusam Meco KM 1320 Earth Resistance Soil Resistivity Tester
Click To Zoom
Kusam Meco KM 1320 Earth Resistance Soil Resistivity Tester
Kusam Meco KM 1320 Earth Resistance Soil Resistivity Tester
The KM 1320 is a high-precision Earth Resistance and Soil Resistivity Tester designed for measuring earth resistance, soil resistivity, earth voltage, and AC voltage using 2-pole, 3-pole, and 4-pole methods. It features advanced digital and microprocessor technology with FFT and AFC for excellent anti-interference, stability, and accuracy. Widely used in power, telecom, construction, and industrial applications, it includes a large LCD with backlight, data storage for 300 sets, and PC connectivity via monitoring software for real-time data, analysis, and reporting.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 42,500
(GST inclusive price) i-
Base Value: ₹ 36016.9
-
GST: (18) % ₹ 6483.1
-
Total Value ₹ 42500
₹69,390.00
( - 22% OFF )
Description
Key Features
- Multiple Test Methods – Supports 2, 3, and 4-pole measurements.
- Wide Measurement Range – Earth resistance up to 30kΩ, soil resistivity up to 9000kΩ·m.
- Auto Frequency Control – Ensures accurate readings with selectable test frequencies.
- Backlit LCD Display – Large, clear screen with bar graph.
- 300-Set Data Logger – Stores readings for later analysis.
- RS232 Interface – PC connectivity for data transfer.
- Auto Range Selection – Simplifies measurement process.
- Portable Design – Compact and field-friendly (4.5kg).

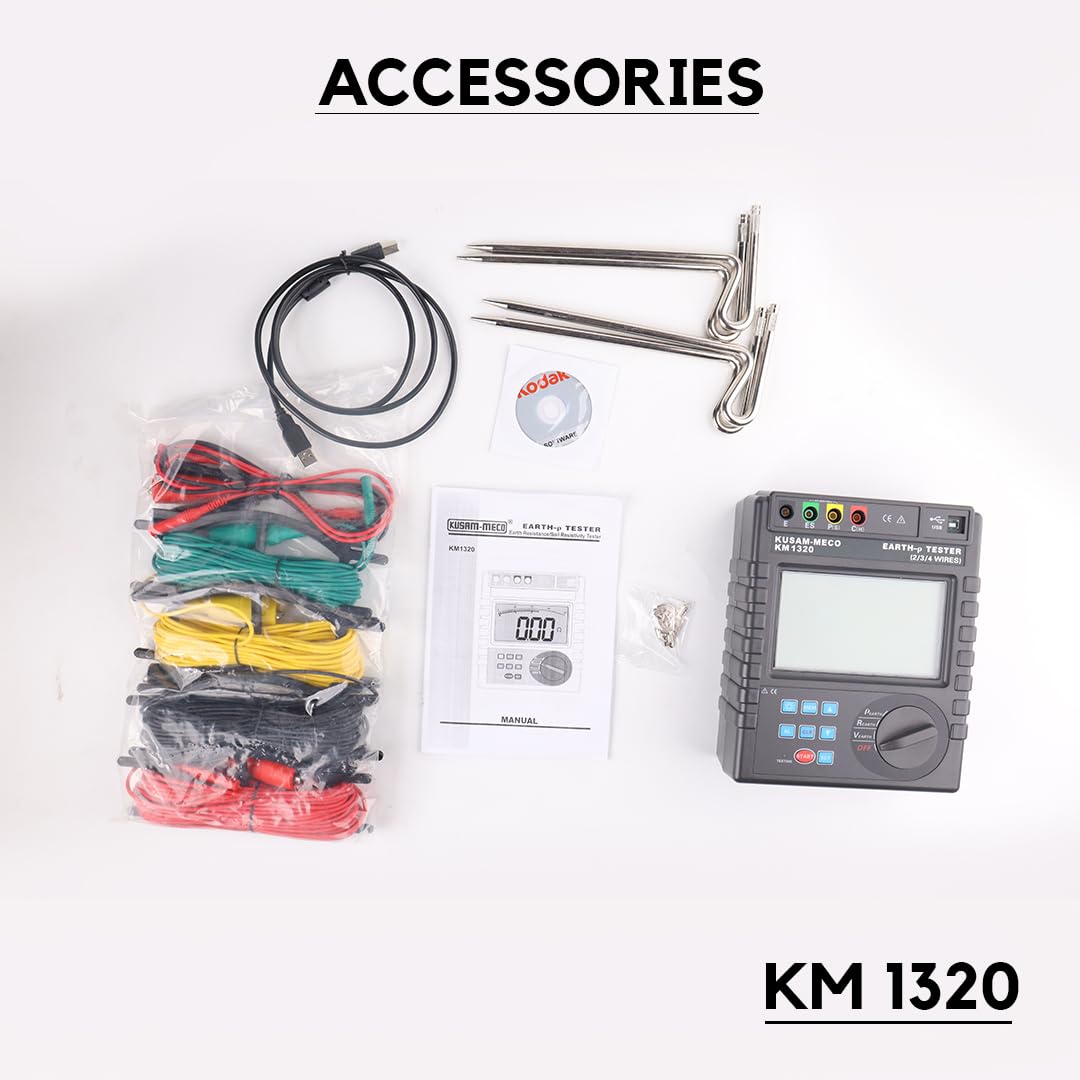

- Complete Accessories – Includes test wires, rods, cables, software, and case.
- Long Battery Life – Up to 300 hours standby on 6 × 1.5V batteries.
What's in the box?
|
Rating & Reviews
Rating

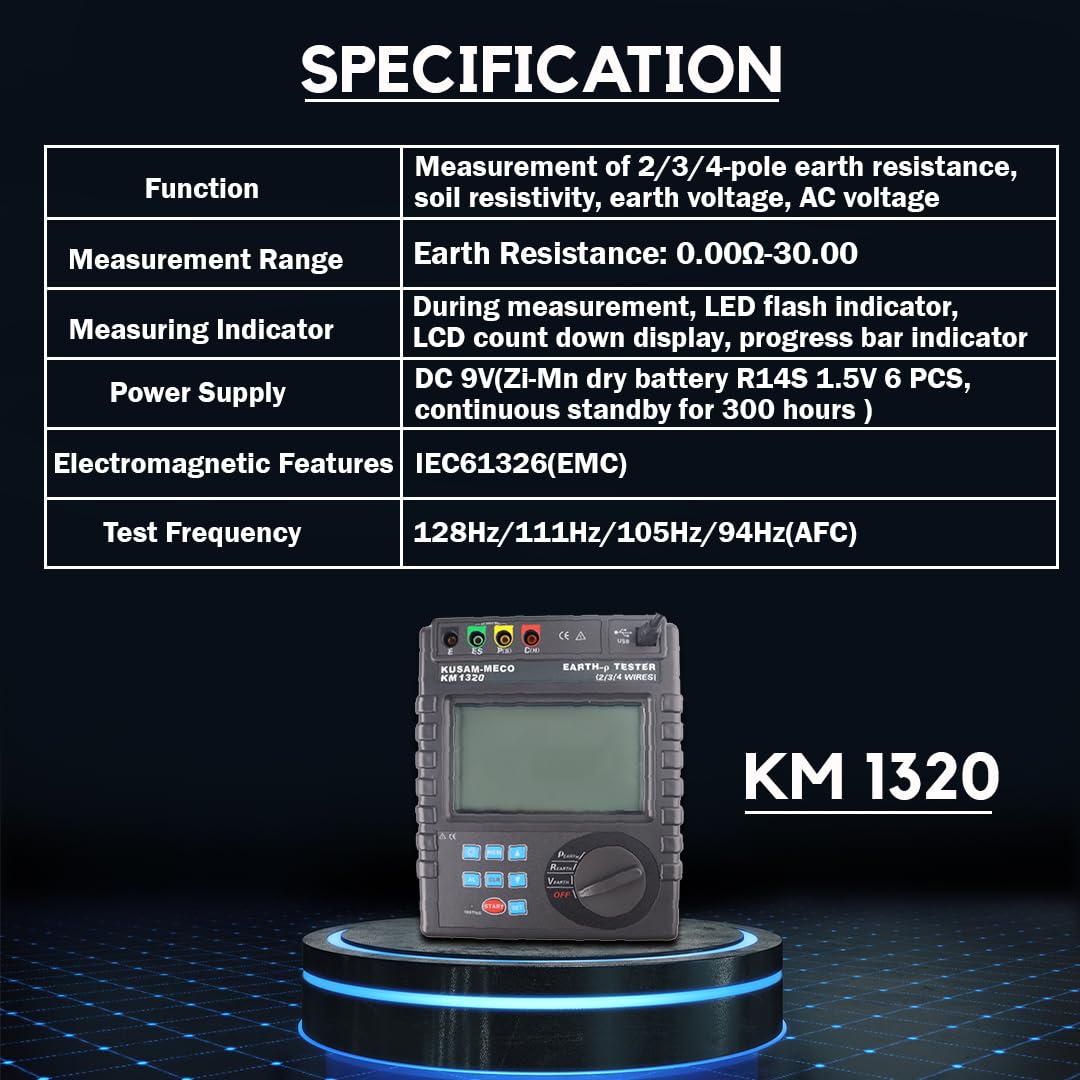

GENERAL
• Function : Measurement of 2/3/4-pole earth resistance, soil resistivity, earth voltage, AC voltage
• Measurement Range :
Earth Resistance: 0.00Ω-30.00k Ω
Soil Resistivity: 0.00Ω-9000k Ω
• Measuring Mode : Precise 4-pole measurement, 3-pole measurement, simple 2-pole measurement
• Measuring Method : Earth Resistance: rated current change-pole method, measurement current 20mA Max Soil Resistivity: 4-pole measurement Earth Voltage: average rectification(between P(S)-ES)
• Test Frequency : 128Hz/111Hz/105Hz/94Hz(AFC)
• Short-circuit Test Current : AC 20mA max
• Open-circuit Test Current : AC 40V max
• Test Voltage Wave : Sine wave
• Electrode Distance Range : Can be set 1m-100m
• Shift :
Earth Resistance: 0.00Ω-30.00kΩ, automatic shift
Soil Resistivity: 0.00Ω-9000kΩ, automatic shift
• Backlight : Blue screen backlight, suitable for dim places
• Display Mode : 4-digital super-large LCD display, blue screen backlight
• Measuring Indicator : During measurement, LED flash indicator, LCD count down display, progress bar indicator
• LCD Frame Dimension : 128 mm × 75 mm
• LCD Window Dimension : 124 mm × 67 mm
• Standard Test Wire : 4 wires: each for red 20m, black 20m, yellow 10m, and green 10m
• Simple Test Wire : 2 wires: each for red 1.6m and black 1.6m
• Auxiliary Earthing Rod : 4 rods: Φ10mm ×150mm
• Measuring Rate :
Earth voltage: about 3 times/second
Earth resistance, soil resistivity: about 5 seconds/time
• Line Voltage : below AC 600V

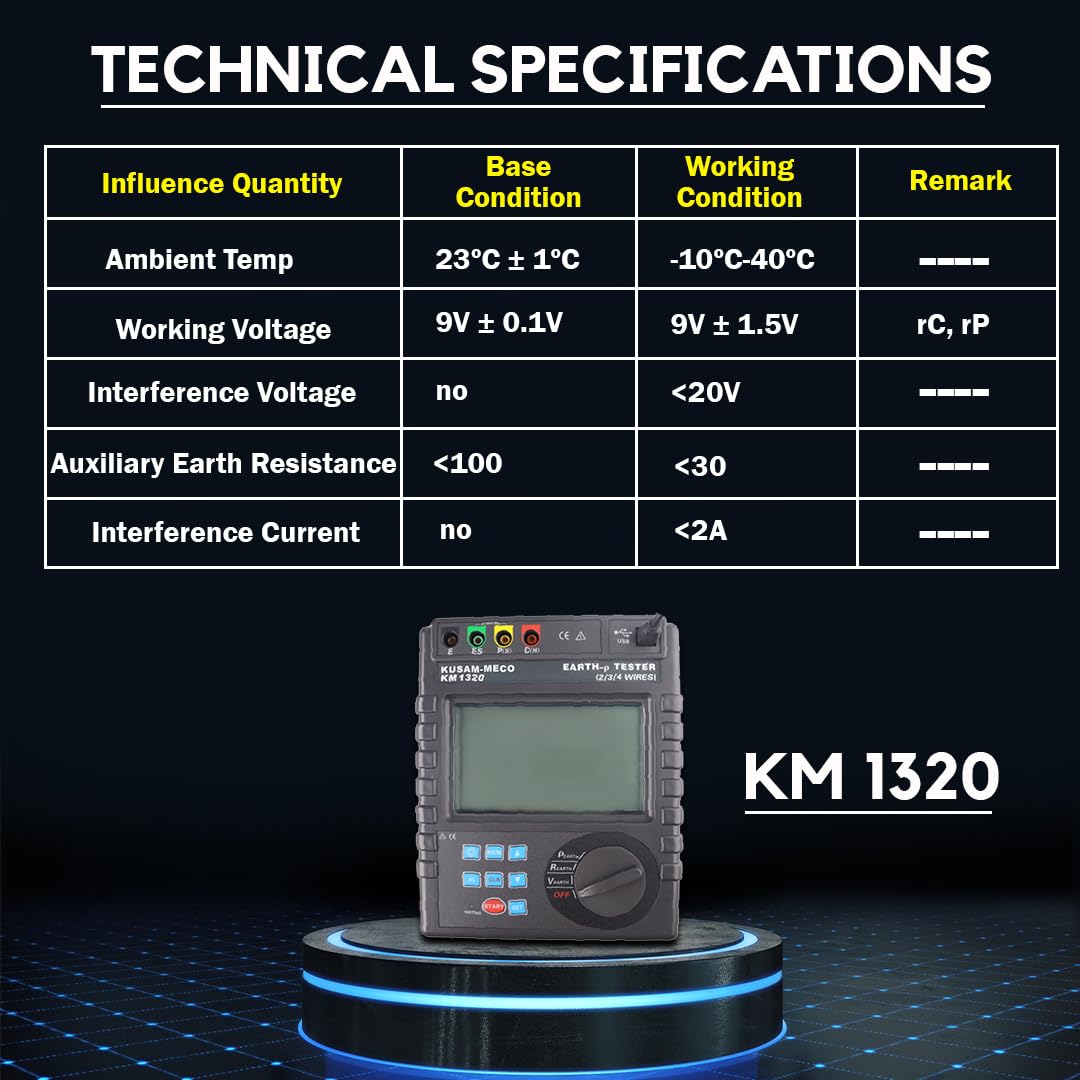

TECHNICAL
| Influence Quantity | Base Condition | Working Conditions |
| Ambient Temp | 23°C±1°C | -10°C-40°C |
| Ambient Humidity | 40%-60% | ＜80% |
| Working Voltage | 9V±0.1V | 9V±1.5V |
| Auxiliary Earth Resistance | ＜100Ω | ＜30kΩ |
| Interference Voltage | no | ＜20V |

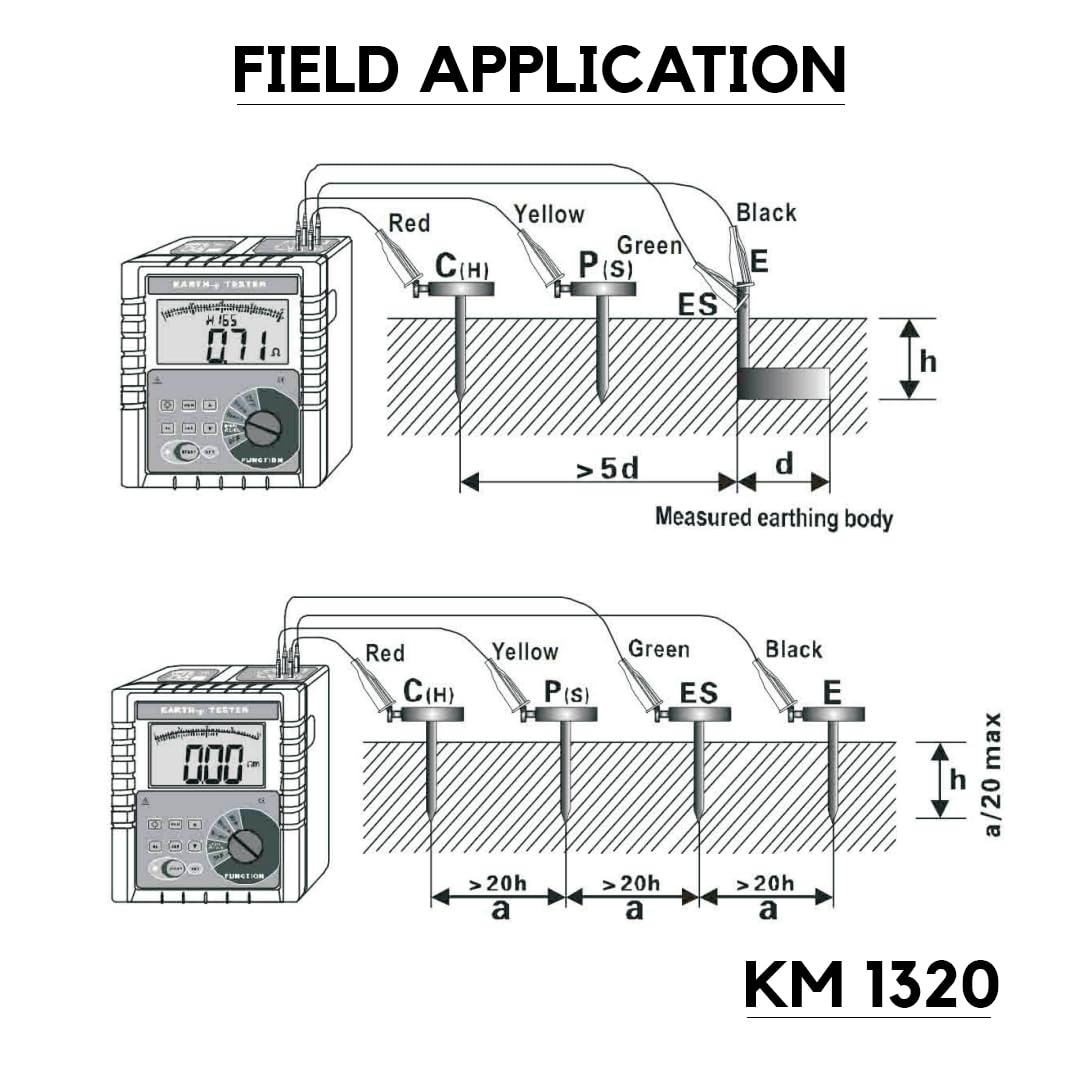

| Electrode Distance when measuring R | a＞5d | a＞5d |
| Electrode Distance when measuring ρ | a＞20h | a＞20h |
