Kusam Meco KM 2805 Mk1 Digital Insulation Resistance Tester (5KV, 1T Ohms with PI & DAR)
Click To Zoom

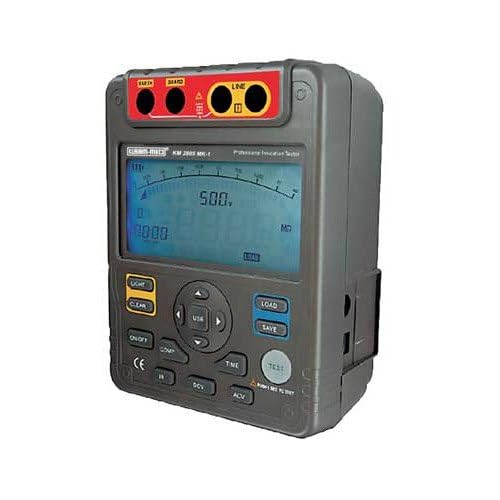

Kusam Meco KM 2805 Mk1 Digital Insulation Resistance Tester (5KV, 1T Ohms with PI & DAR)
Kusam Meco KM 2805 Mk1 Digital Insulation Resistance Tester (5KV, 1T Ohms with PI & DAR)
Model - KM 2805 MK-1 insulation resistance tester is a handheld instrument designed primarily to make resistance / insulation resistance measurement
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 37,650
(GST inclusive price) i-
Base Value: ₹ 31906.8
-
GST: (18) % ₹ 5743.2
-
Total Value ₹ 37650
₹61,995.00
( - 23% OFF )
Description
Key Features
- Test voltages up to 5 kV
- Measures insulation resistance up to 1 TΩ
- Selectable voltages: 500V, 1kV, 2.5kV, 5kV
- Auto-ranging for accurate readings
- Stores up to 18 test results
- Measures PI (Polarization Index)
- Measures DAR (Dielectric Absorption Ratio)
- USB interface for data transfer
- Backlit LCD display
- Auto discharge for user safety

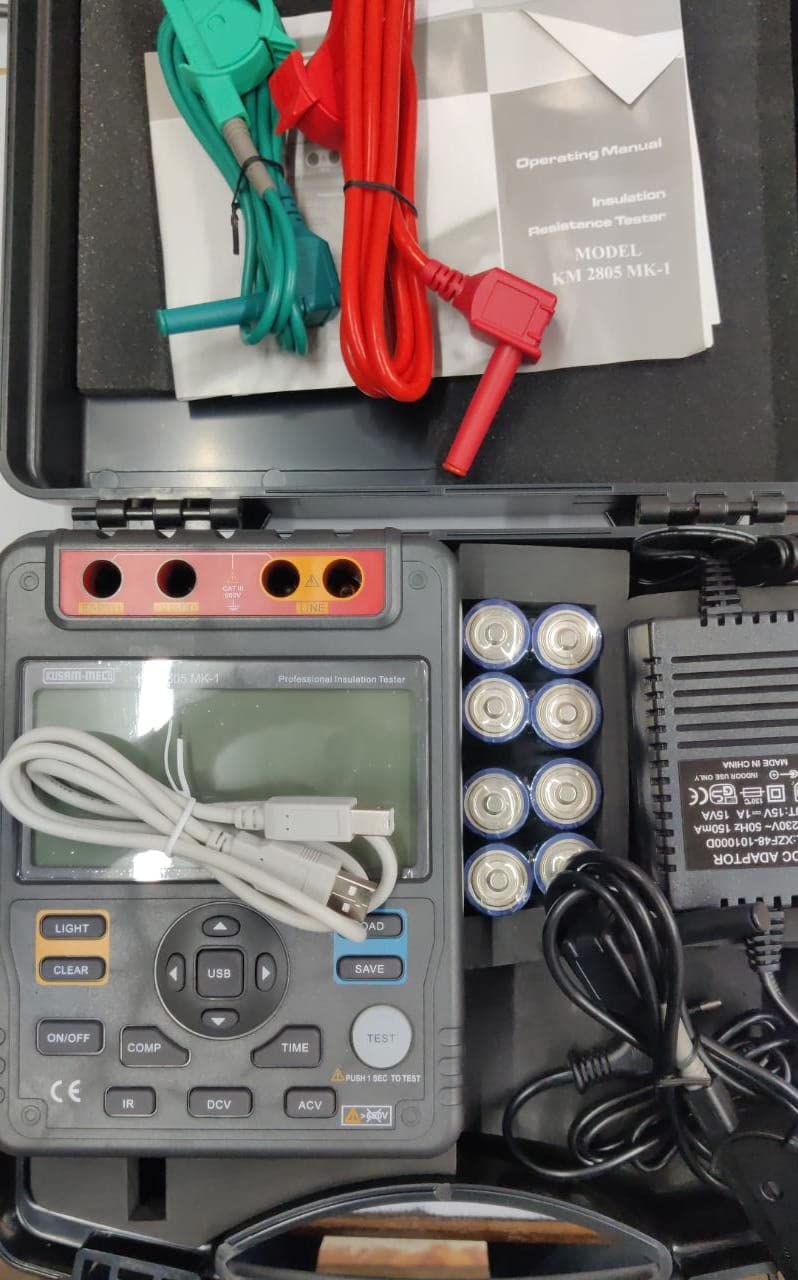

What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Range | Auto ranging. |
| Overloading | Display OL on Insulation Resistance range |
| Battery Indicator | Displays Battery Condition |
| Icon Display | Equips with function and battery indicator icons. |
| Current Consumption | Maximum : around 1.0A, Average : around 20mA |
| Display Backlight | Bright backlight for clear readings in poorly lighted areas. |
| Computer Connection | Via USB interface. |
| Data Logging and Recall | 18 points |
| Autorange | The Meter automatically selects best range |
| Warning | And red light will on. |
| Voltage | Auto discharge Voltage function |
| Compare Measurement | Use the compare function to set a pass/fail compare level for the insulation measurements. |
| PI Measurement | Polarization Index is the ratio of insulation resistance.You can pre-set two points of time and automatically carry out the measurement |
| Time | To carry out measurement by setting specified time within15 Minutes |
PHYSICAL
| Display (LCD) | |
| Operating Temperature | |
| Storage Temperature | -20°C~ 60°C (-4°F~ 152°F) |
| Relative Humidity | £85% @ 0°C~ 40°C below ; £90% @ -20°C ~ 60°C. |
| Battery Type | 8 pcs of 1.5V (LR 14) Batteries or power adaptor (input voltage 230, 50/60Hz, 150 mA, input DC15V, 1.0A). (optionally available at extra cost.) |
| Dimensions | 202(H) x 155(W) x 94(L) mm |
| Weight Approx. | 2kg (including battery). |

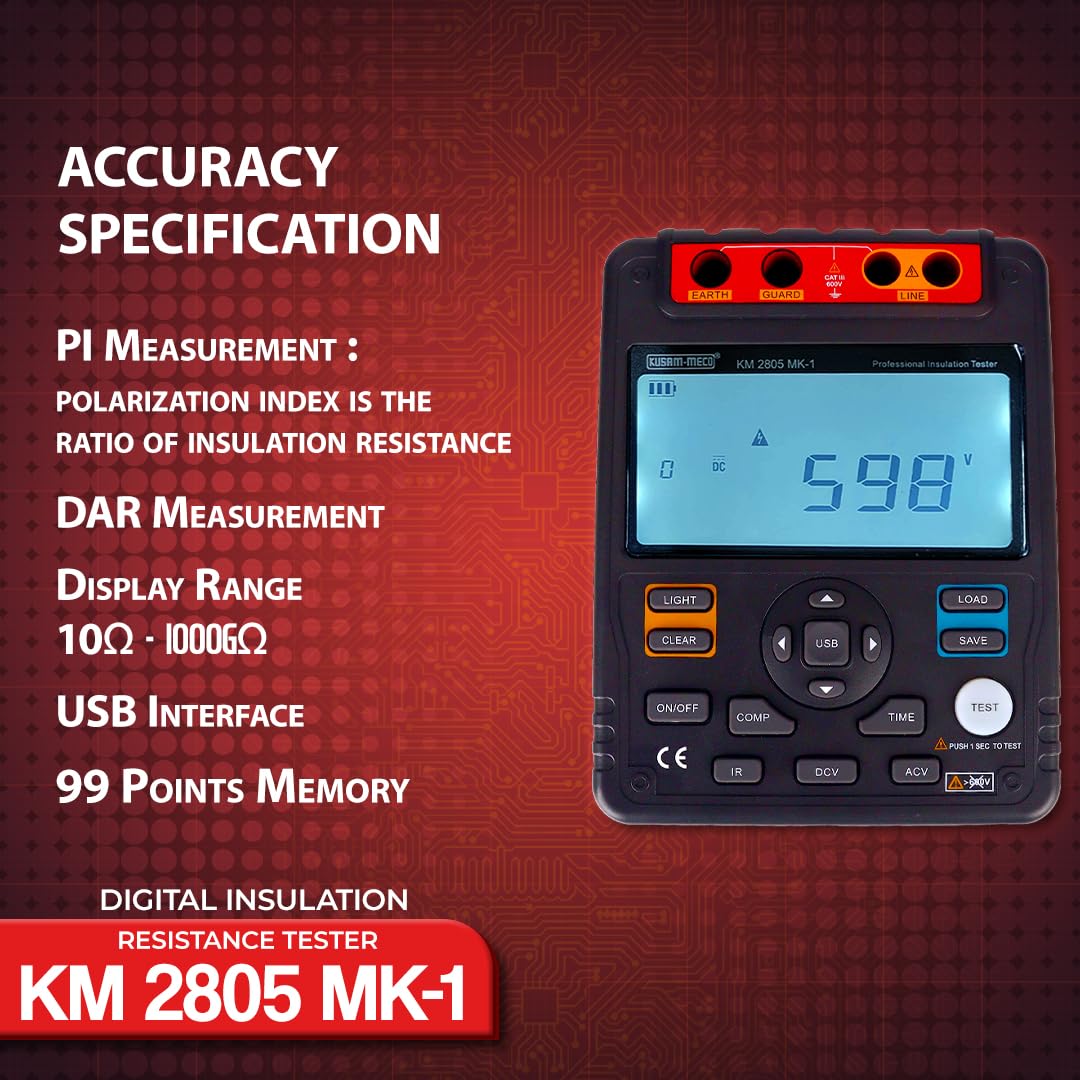

| ACCURACY SPECIFICATION | |
| Accuracy | ± (% of reading ) + (number of least significant digits ). |
| Operating Temperature | 18°C ~ 28°C |
| Relative Humidity | 45 ~ 75% RH |
| VOLTAGE MEASUREMENT | ||
| Measurement Range | DC Voltage | AC Voltage |
| Resolution | 1mV | |
| Accuracy | ± (2% + 3) | |

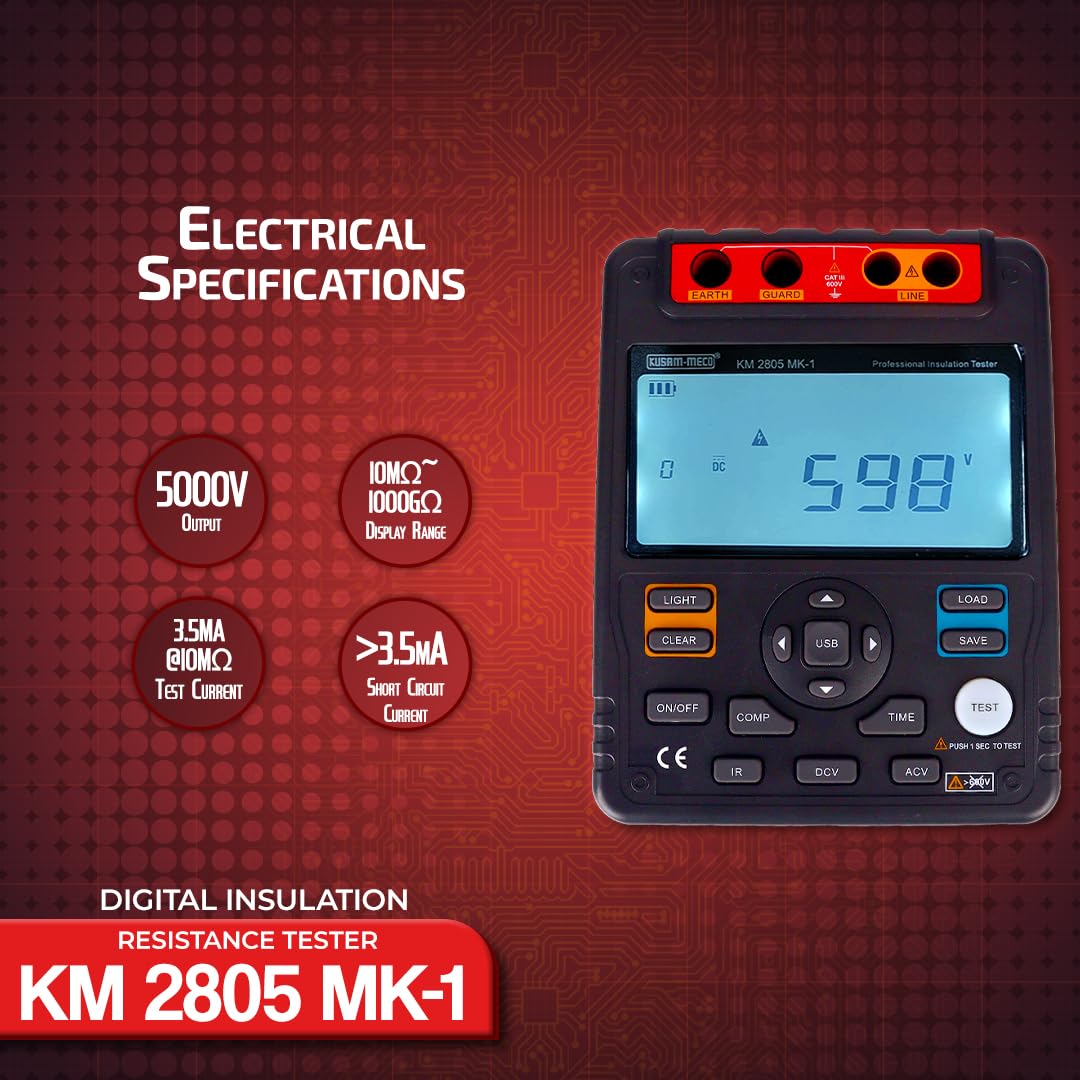

| INSULATION RESISTANCE MEASUREMENT | ||||
| Output Voltage | 500V | 1000V | 2500V | 5000V |
| Display Range | 1MW ~ 5.5GW | 2MW ~ 40GW | 5MW ~ 100GW | 10MW ~ 1000GW |
| Open Circuit Voltage | DC 500V 0% ~ +20% | DC1000V 0% ~ +20% | DC 2500V 0% ~ +20% | DC5000V 0% ~ +20% |
| Test Current | 3.5mA @1MW | 3.5mA @2MW | 3.5mA @5MW | 3.5mA @10MW |
| Short Circuit Current | >3.5mA | |||
| Accuracy | 0.0MW~ 99.9M W W:±(3%+5) 100MW~ 9.99G W:±(5%+5) 10.0GW~ 20.0G :±(10%+5) | 0.0MW~ 99.9M W W:±(3%+5) 100MW~ 9.99G W:±(5%+5) 10.0GW~ 40.0G :±(10%+5) | 0.0MW~ 99.9M W W:±(3%+5) 100MW~ 9.99G W:±(5%+5) 10.0GW~ 100.0G :±(10%+5) | 0.0MW~ 99.9M W W:±(3%+5) 100MW~ 9.99G W:±(5%+5) 10.0GW~ 99.9G :±(10%+5) Above 100GW: [±(20%+5) Humidity :below 50%] |
