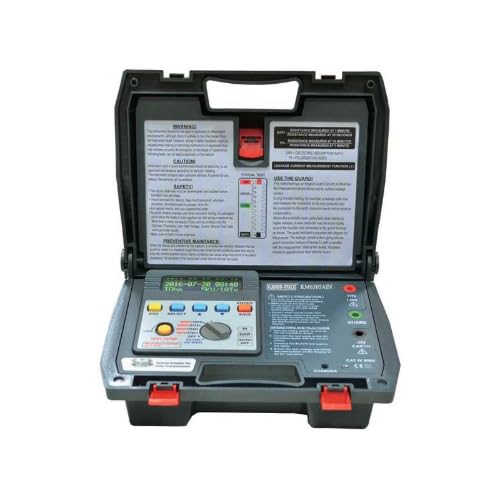

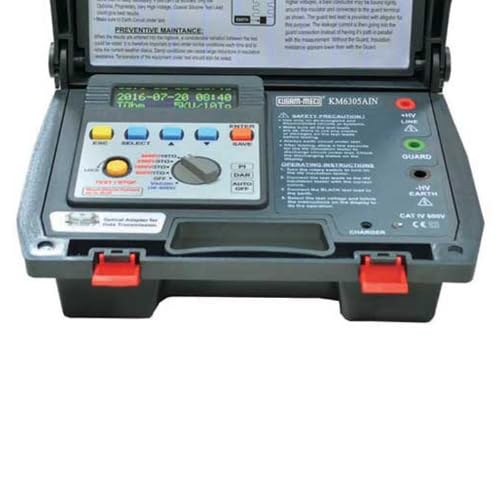

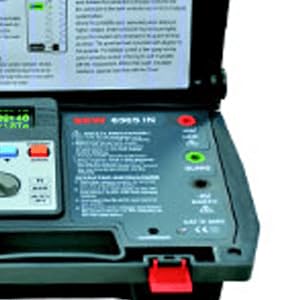

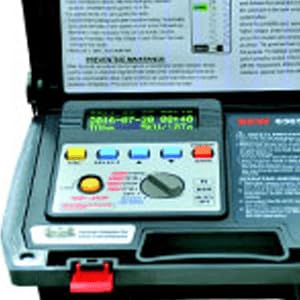

Kusam Meco KM 6305 IN DIGITAL 5KV HIGH VOLTAGE INSULATION TESTER
Click To Zoom
Kusam Meco KM 6305 IN DIGITAL 5KV HIGH VOLTAGE INSULATION TESTER
Kusam Meco KM 6305 IN DIGITAL 5KV HIGH VOLTAGE INSULATION TESTER
The Kusam-Meco KM 6305 IN is a high-precision 5 kV Digital High Voltage Insulation Resistance Tester, engineered for comprehensive insulation testing in industrial and electrical applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 1,19,200
(GST inclusive price) i-
Base Value: ₹ 101016.9
-
GST: (18) % ₹ 18183.1
-
Total Value ₹ 119200
₹1,96,299.00
( - 23% OFF )
Description
Key Features
- Measures insulation resistance up to 10 TΩ
- Selectable test voltages: 500V, 1000V, 2500V, 5000V DC
- Microprocessor-controlled for high accuracy
- Includes PI (Polarization Index) & DAR (Dielectric Absorption Ratio)
- Auto-ranging insulation resistance measurement
- Memory storage for test data recall
- USB to RS-232 optical data transmission
- Overload protection and safety alerts
- Rechargeable battery operated
- Large backlit LCD display with bar graph
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Microprocessor-controlled.
• Tests insulation resistance up to 10 TΩ
• 4 Insulation test voltages : 500V, 1000V, 2500V, 5000V.
• AC / DC Voltmeter.
• Short-circuit current up to 5mA
• PI (Polarization Index) indication.
• DAR (Dielectric Absorption
Ratio) indication.
• Auto-ranging on all insulation ranges.
• Optical USB to RS-232 data transmission
• Well isolated from contact
• Well protected from surges.
• 2 built-in optical LEDs for data transfer.
• Visual & audio warning of external voltage presence (>30Vac or >30Vdc)
• Auto-hold function to freeze reading
• Overload protection
• Adjustable testing duration : 1 ~ 30 minutes.
• Internal memory for data storage.
• Displays testing duration for insulation measurement.
• Auto-off function.
• 200 measurement results can be saved in memory & recalled on display.
• Power Supply : Rechargeable Battery
• Adaptor :
Input : 100 ~ 240Vac, 0.4A, 50-60Hz
Output : 24Vdc, 0.62A
• Dimension : 330(L) x 260(W) x 160(D)mm
• Weight : Approx.3760g.
TECHNICAL
| TEST VOLTAGE | 500V | 1000V | 2500V | 5000V |
| INSULATION RESISTANCE | 1TΩ | 2TΩ | 5TΩ | 10TΩ |
| ACCURACY | ±(5.0%rdg + 5dgts) | |||
| 0 ~ 100GΩ | 0 ~ 200GΩ | 0 ~ 500GΩ | 0 ~ 1000GΩ | |
| ± 12%rdg | ||||
| 100G ~ 1TΩ | 200G ~ 2TΩ | 500G ~ 5TΩ | 1000G ~ 10TΩ | |
| RESOLUTION | 1000MW : 1MΩ | 10GW : 0.01GΩ | ||
| 100GW : 0.1GΩ | 1TW : 1GΩ | |||
| 10TW : 10GΩ | ||||
| VOLTMETER | AC Voltage | 30 ~ 600V | DC Voltage | 30 ~ 600V |
| Accuracy | ±(2.0%rdg + 3dgts) | Resolution | 1V | |
| CURRENT MEASUREMENT | : 0.5nA ~ 0.55mA (Depending on the insulation resistance) | |||
