Kusam Meco km 8002 Digital Multi meter
Click To Zoom

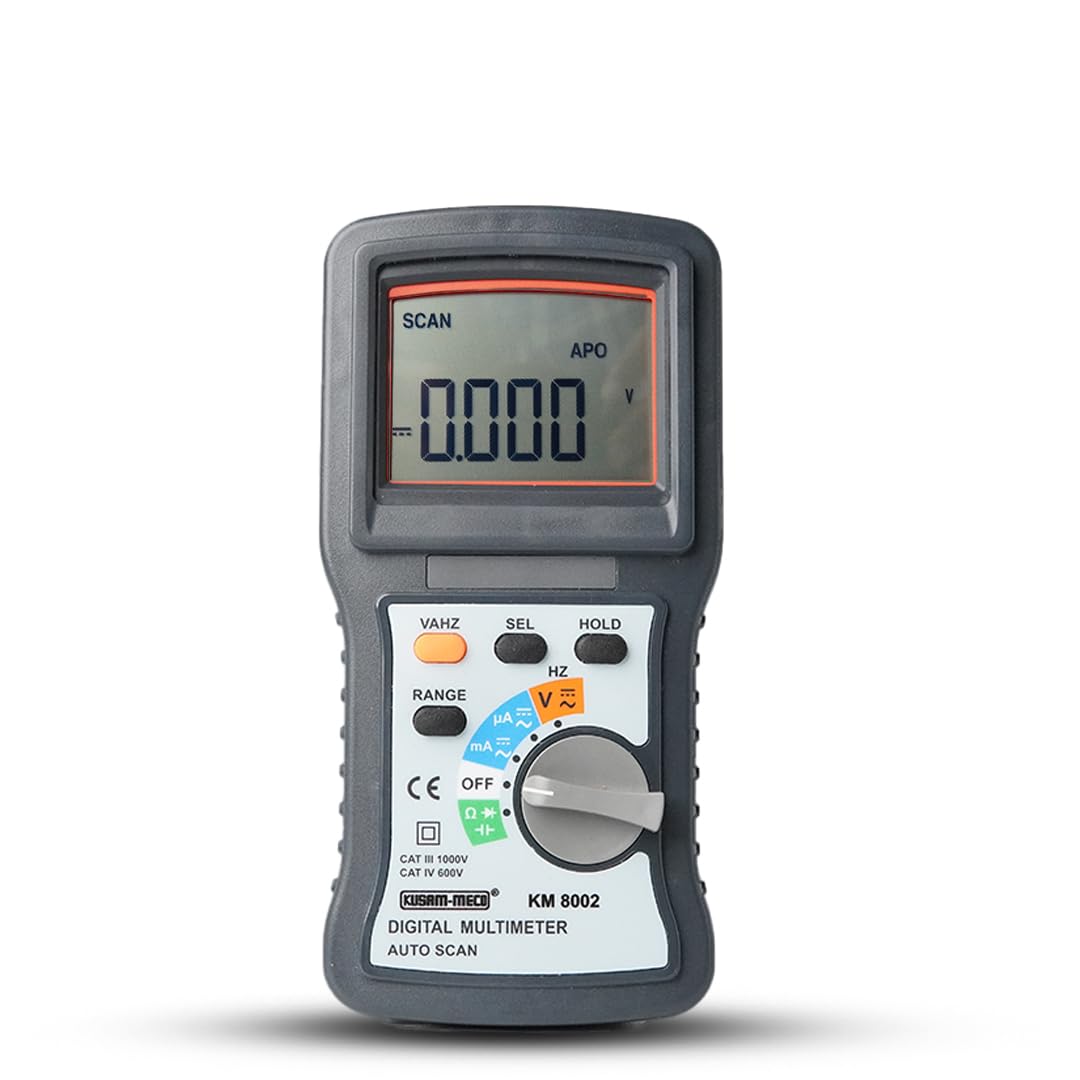

Kusam Meco km 8002 Digital Multi meter
Kusam Meco km 8002 Digital Multi meter

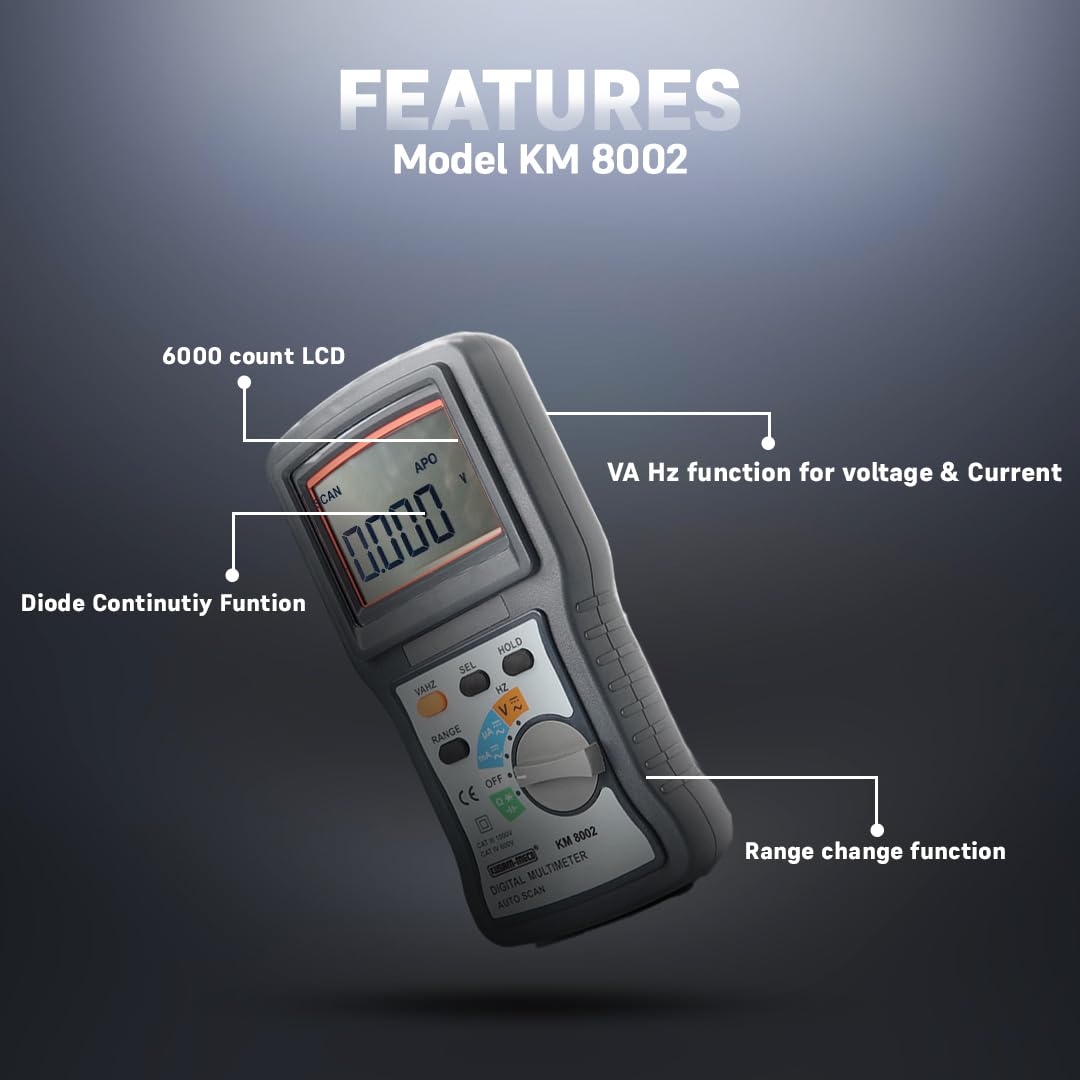

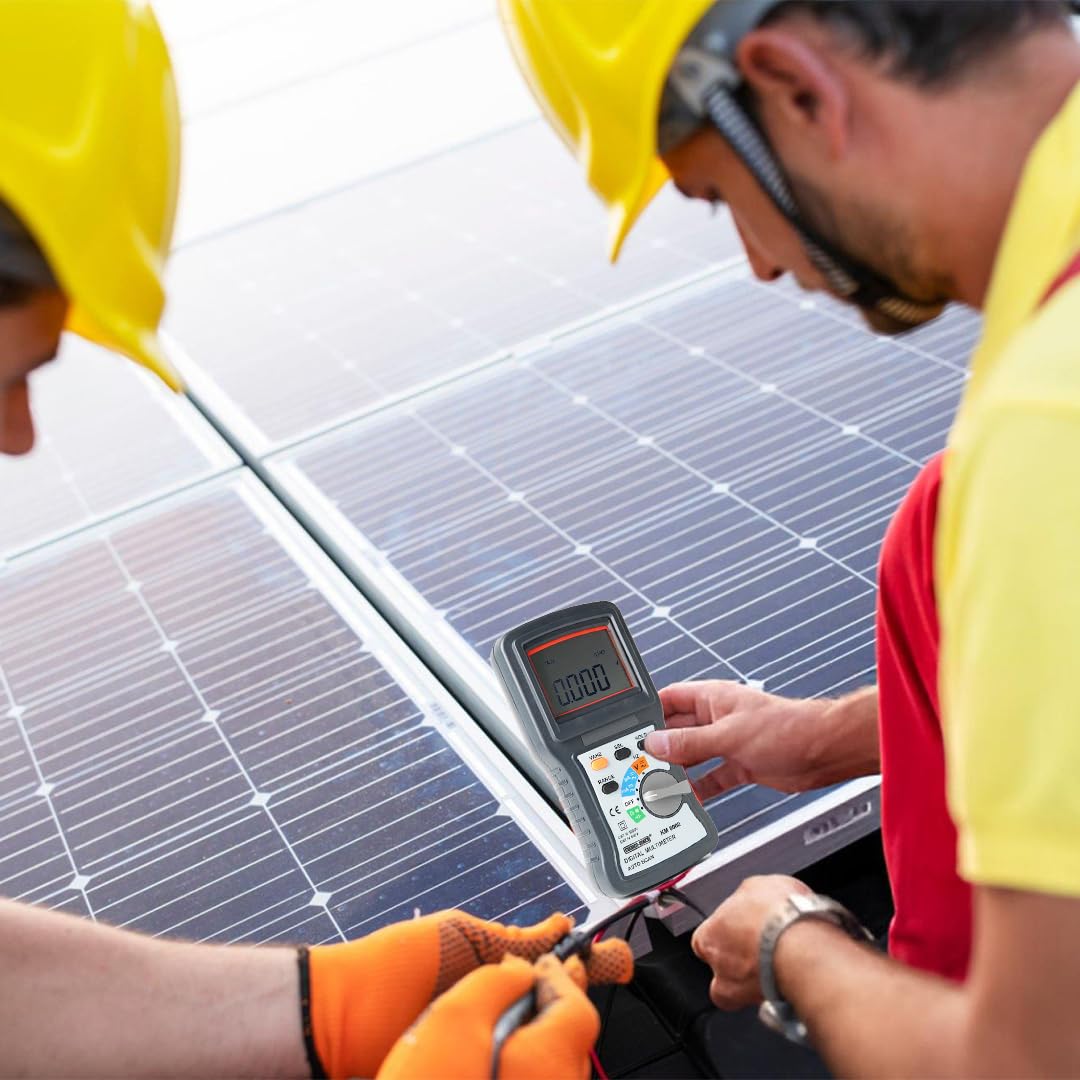

The Kusam Meco KM 8002 is a high-performance digital multimeter tailored for professionals working with solar power systems and high-voltage electrical equipment. It offers precise measurements and robust features suitable for both field and laboratory applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 19,999.00
(GST inclusive price) i₹26,000.00
( - 23% OFF )
Description

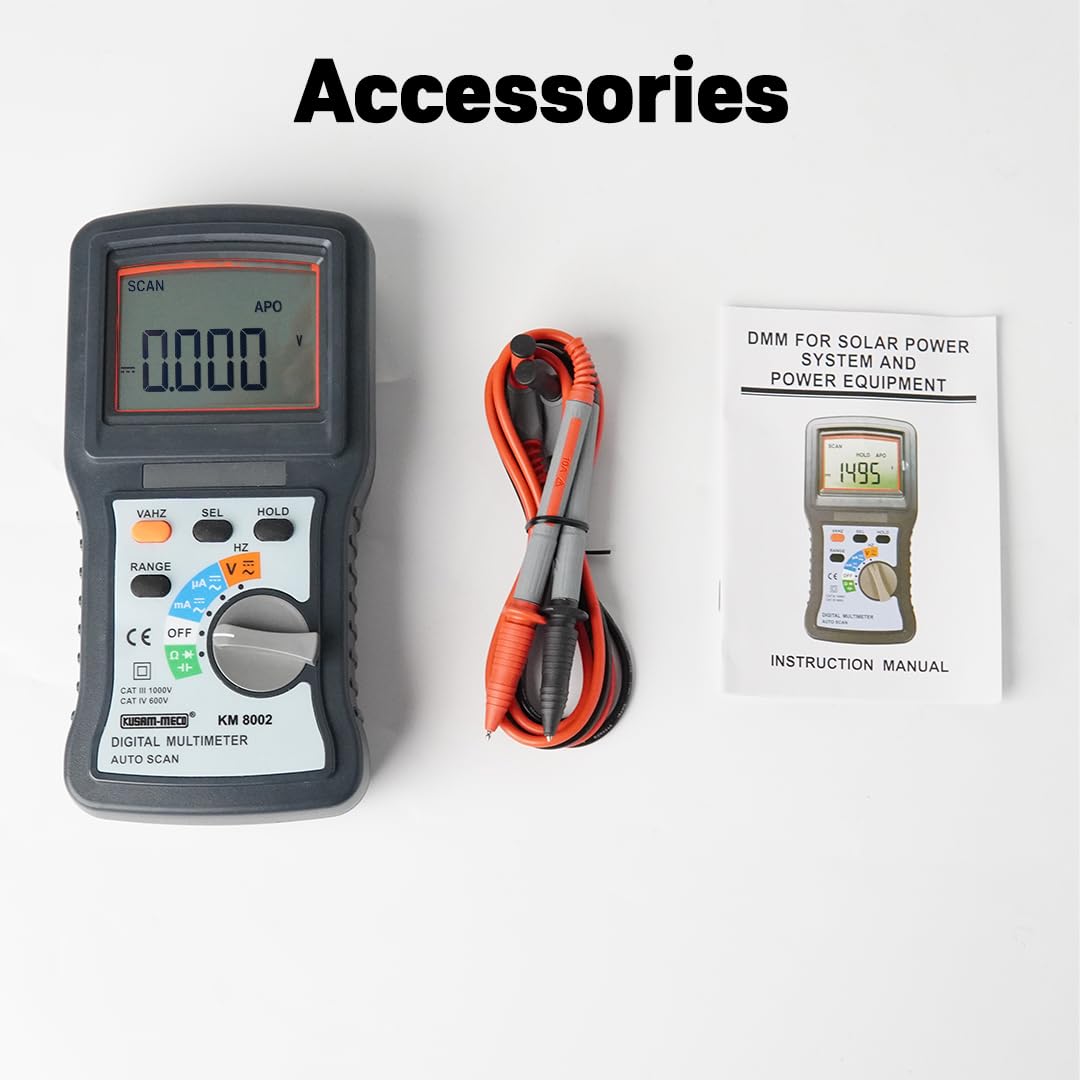

What's in the box?
|
Rating & Reviews
Rating

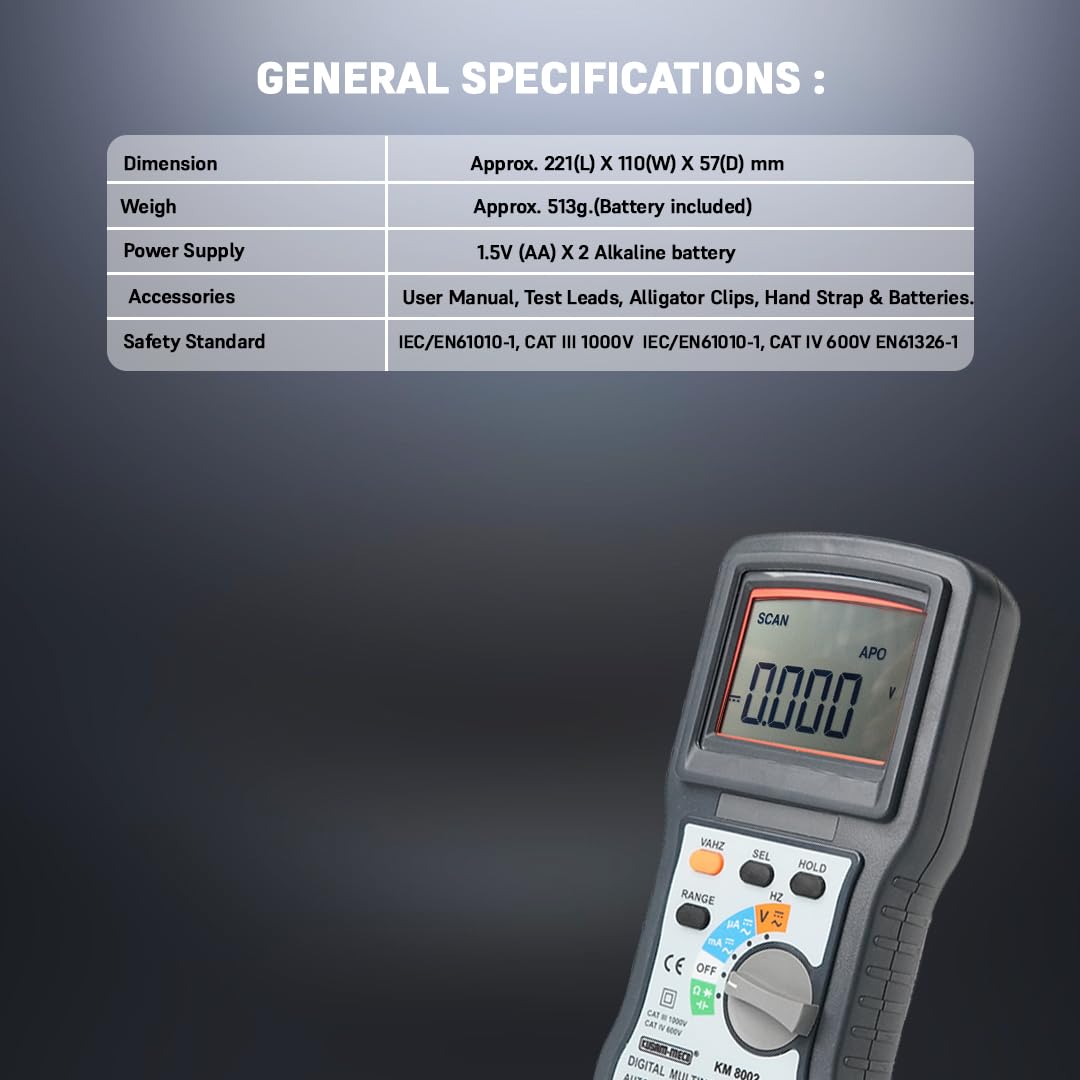

• Dimension : Approx. 221(L) X 110(W) X 57(D) mm
• Weight : Approx. 513g.(Battery included)
• Power Supply : 1.5V (AA) X 2 Alkaline battery.
• Safety Standard : IEC/EN61010-1, CAT III 1000V IEC/EN61010-1, CAT IV 600V N61326-1
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600mV | 1mV | ±(0.5%rdg+5dgt) |
| 6V | 1mV | |
| 60V | 10mV | |
| 600V | 100mV | |
| 1000V for CE | 1V | |
| 1500V for general | 1V | |
| AC Voltage | ||
| Range | Resolution | Accuracy |
| 600mV | 1mV | ±(1.0%rdg+5dgt) |
| 6V | 1mV | |
| 60V | 10mV | |
| 600V | 100mV | |
| 750V | 1V | |
| DC mA / µA | ||
| Range | Resolution | Accuracy |
| 600µA | 0.1µA | ±(1.2%rdg+5dgt) |
| 6000µA | 1µA | |
| 60mA | 0.01mA | |
| 600mA | 0.1mA | |
| AC mA / µA | ||
| Range | Resolution | Accuracy |
| 600µA | 0.1µA | ±(1.5%rdg+3dgt) |
| 6000µA | 1µA | |
| 60mA | 0.01mA | |
| 600mA | 0.1mA | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 0.1 Ω | ±(1.2%rdg+3dgt) |
| 6.000 kΩ | 1 Ω | |
| 60.00 kΩ | 10 Ω | |
| 600.0 kΩ | 100 Ω | |
| 6.000 MΩ | 1 kΩ | ±(2.3%rdg+4dgt) |
| 60.00 MΩ | 10 MΩ | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 6nF | 1pF | ±(3%rdg+10dgt) |
| 60nF | 10pF | |
| 600nF | 100pF | |
| 6µF | 1nF | |
| 60µF | 10nF | |
| 600µF | 100nF | |
| 6mF | 1µF | |
| 60mF | 10µF | |
| Frequency | ||
| Range | Resolution | Accuracy |
| 6kHz | 1Hz | ±(0.5%rdg+2dgt) |
| 60kHz | 10Hz | |
| 100kHz | 100Hz | |
| DIODE TESTER | |
| Range | Accuracy |
| 2V | ±(1.5%rdg+3dgt) |
| Continuity | |
| Range | Audible threshold |
| 600Ω | Less than 30 Ω |
