Kusam Meco KM 2008 Leakage Current Clamp meter
Click To Zoom

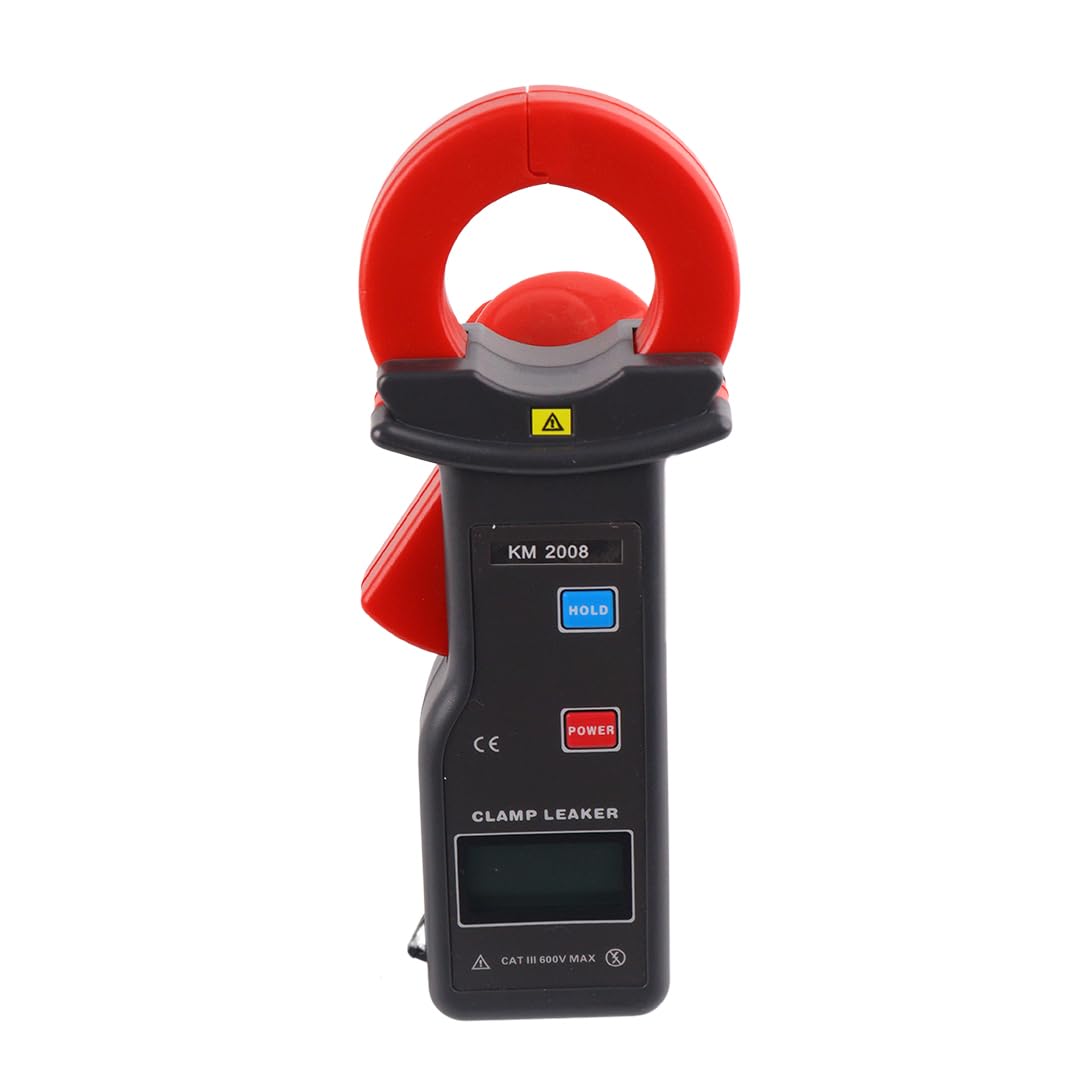

Kusam Meco KM 2008 Leakage Current Clamp meter
Kusam Meco KM 2008 Leakage Current Clamp meter
The Kusam Meco KM 2008 is a digital clamp meter used for measuring AC/DC current, voltage, resistance, continuity, and other basic electrical parameters. It features a clamp-style design for non-contact current measurements, making it ideal for electricians and technicians.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 16,850
(GST inclusive price) i-
Base Value: ₹ 14279.7
-
GST: (18) % ₹ 2570.3
-
Total Value ₹ 16850
₹27,100.00
( - 22% OFF )
Description

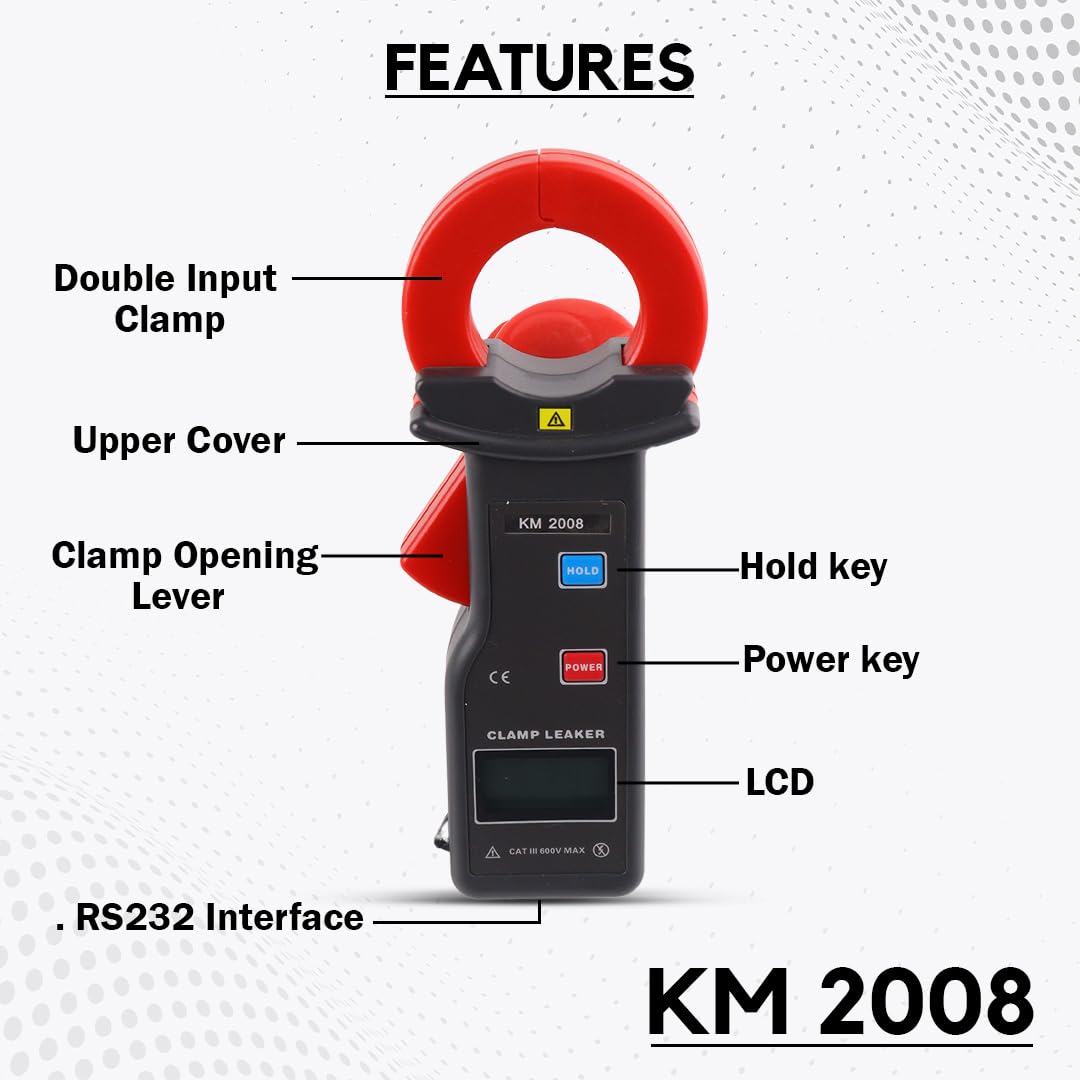

Key Features
- Measures AC current up to 300A
- 40mm jaw opening
- AC voltage measurement up to 600V
- Data hold function
- Peak hold feature
- Stores up to 99 readings
- RS232 PC interface
- Auto power-off
- Compact and lightweight
- 9V battery with low battery warning
What's in the box?
|
Rating & Reviews
Rating
GENREAL

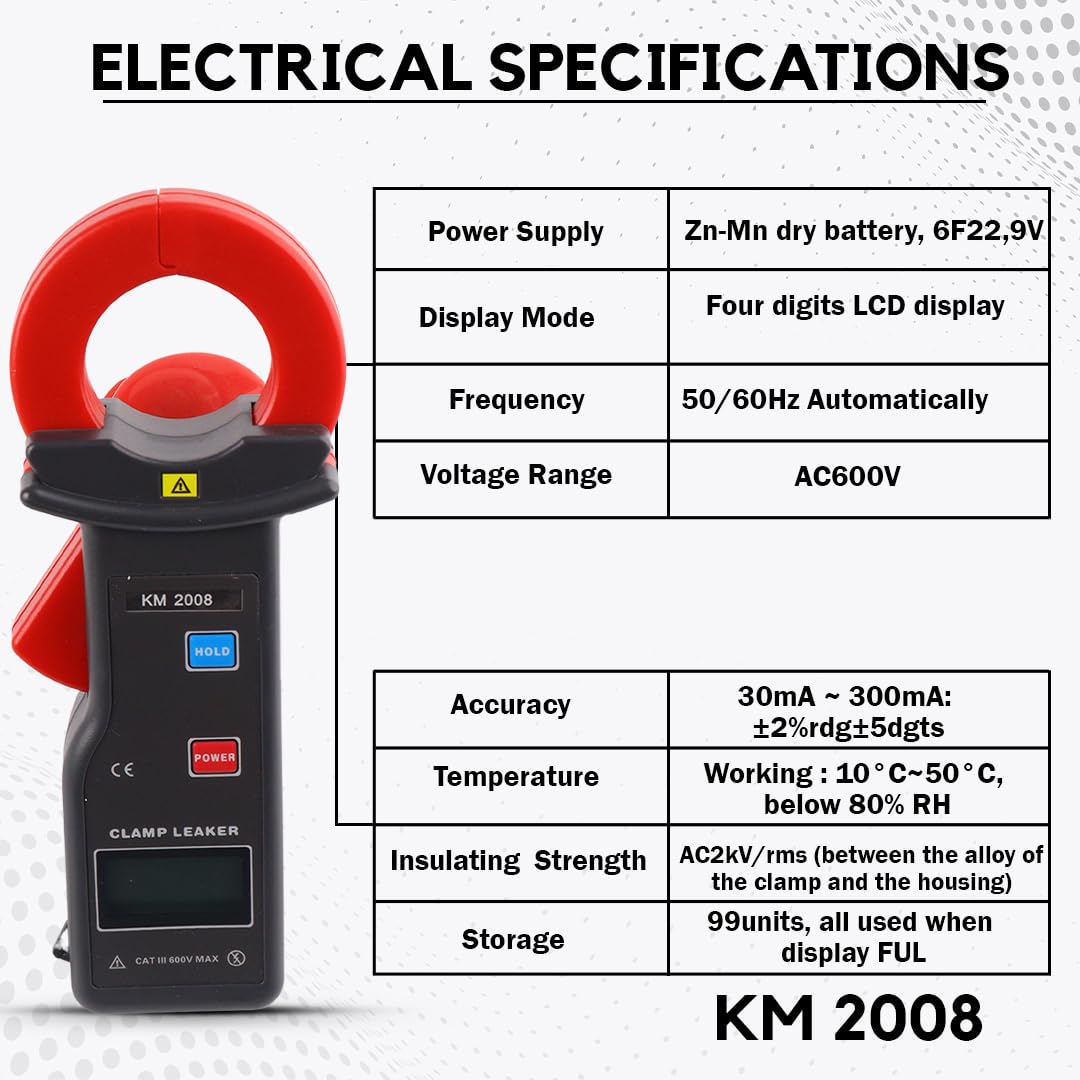

• Sensing : Average sensing
• Jaw Opening Size : 40mm

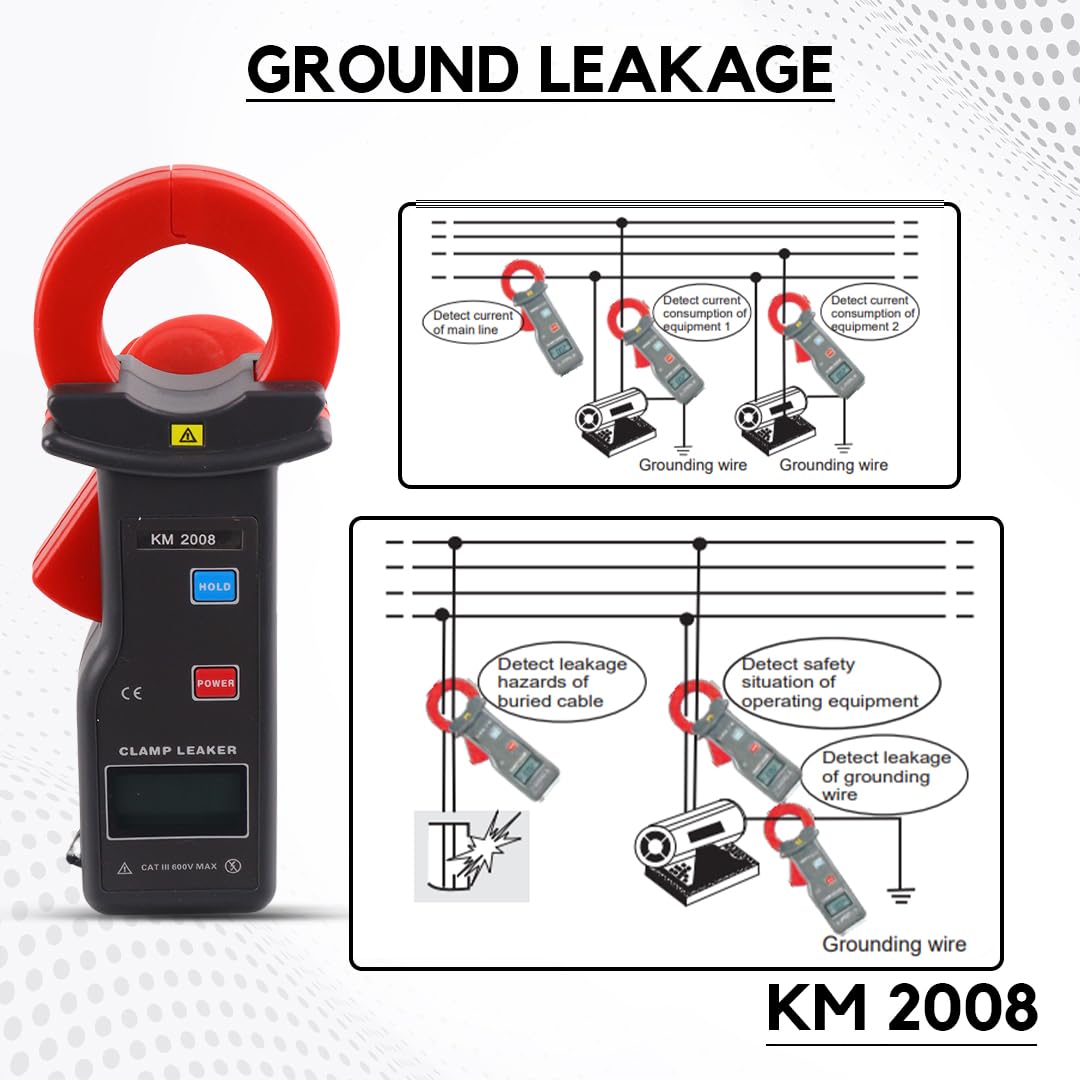

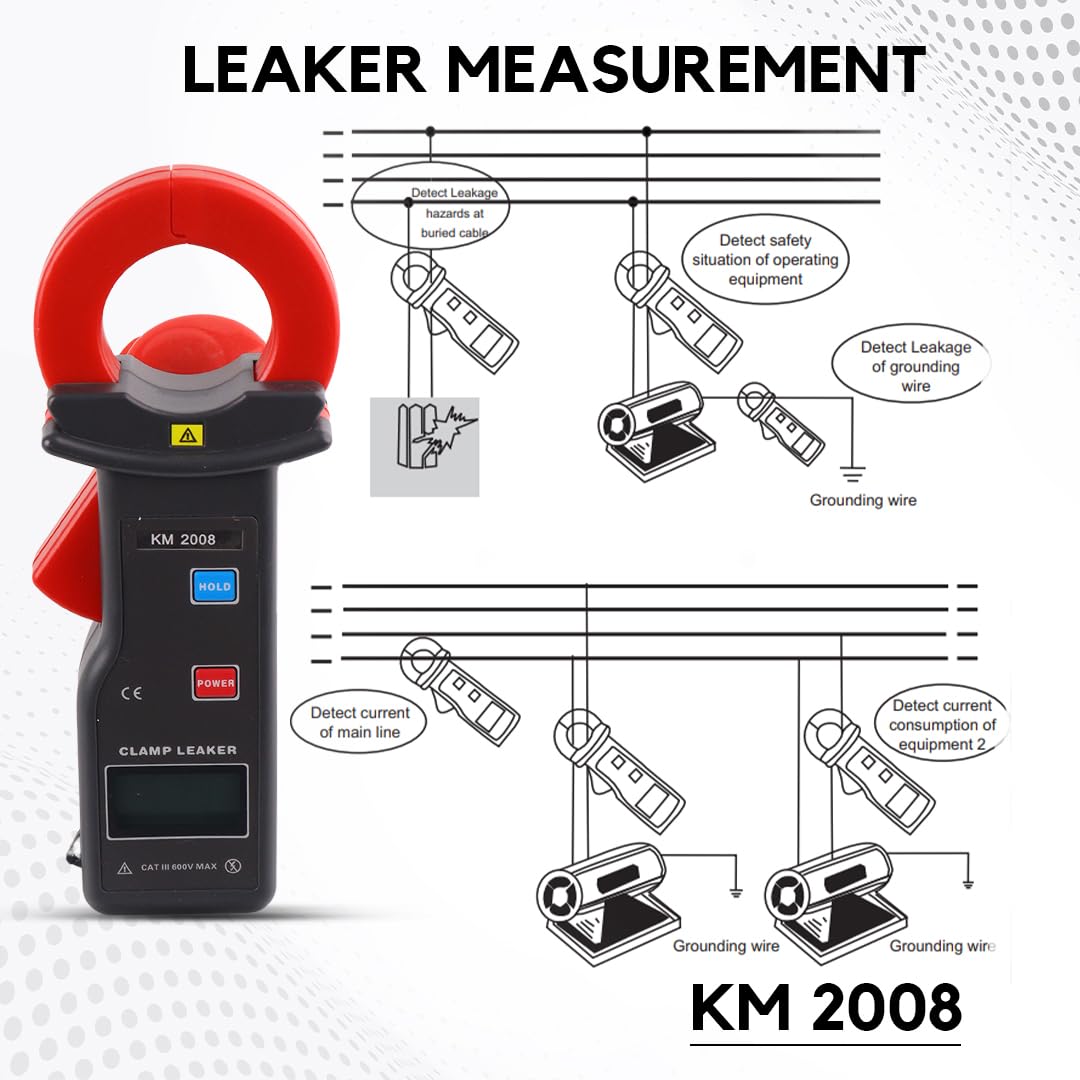

• Function : Measurement of AC leakage current, AC Current upto 300A & On-line measurement.
• Display Size : 32mm x 15mm
• Test Mode : Clip-on CT, Integral mode.
• Display Mode : Four Digit LCD display.
• LCD Dimension : 35mm x 21.5mm
• Sampling Rate : About 2times/s
• Range : 0.00mA ~300.0A
• Frequency : 50 / 60Hz; Automatically
• Resolution : 10 µA
• Line voltage : Line test under AC600V
• Data Hold : Display shows “DH” symbol.
• Out of Range : Display shows “OL” symbol.
• Data Storage : 99 groups, all used when display “FULL”
• Power Consumption : about 5mW
• Peak Hold : Push “HOLD” without release, the meter will show the peak value during the pushing period.
• Battery Voltage : "
" indicating the battery voltage is lower then 7.2V. Then the battery have to be changed.
• Operating Temperature and Humidity : 0 °C ~ 40 °C : below 80% R.H.
• Storage Temperature and Humidity : -10 °C ~ 60 °C : below 70% R.H.
• Insulation Strength : AC 2kV/rms (between the alloy of the clamp & housing)
• Auto Power Off : 5 minutes after power on, it will power off automatically to lower the power consumption.
• RS 232 Interface : Data store in the memory of the meter via RS232 upload to PC, or on-line monitoring.
• Power : Standard 9V battery.
• Dimension : 175(W) x 70(H) x 38(T)mm
• Weight : Approx. 120g (with battery)
TECHNICAL
| FREQUENCY (50/60Hz) | ||
| Range | Resolution | Accuracy |
| 0.00mA ~ 60.00A | 10 mA | ±(1.5% rdg + 5 dgts) |
| 60.00A ~ 199.9A | 10 mA | ±(2% rdg + 5 dgts) |
| 200.0A ~ 300.0A | 100 mA | ±(4% rdg + 5 dgts) |
