KUSAM-MECO KM 9999A+ AC/DC Digital Clamp meter
Click To Zoom
KUSAM-MECO KM 9999A+ AC/DC Digital Clamp meter
KUSAM-MECO KM 9999A+ AC/DC Digital Clamp meter
The Kusam Meco KM 9999A+ is a 1000A AC/DC TRMS Digital Clampmeter designed for comprehensive electrical measurements.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 7,799.00
(GST inclusive price) i₹10,850.00
( - 28% OFF )
Description

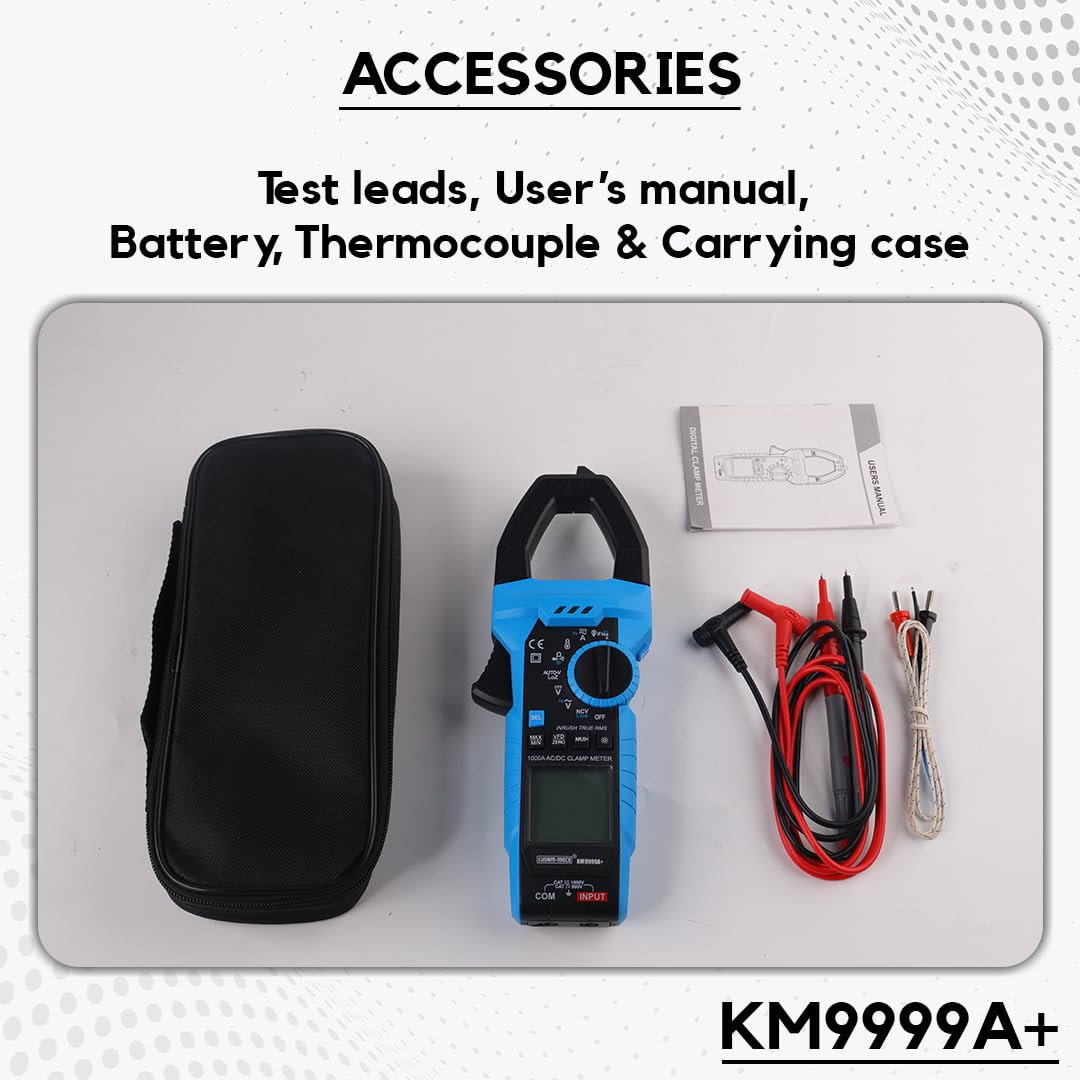

What's in the box?
|
Rating & Reviews
Rating

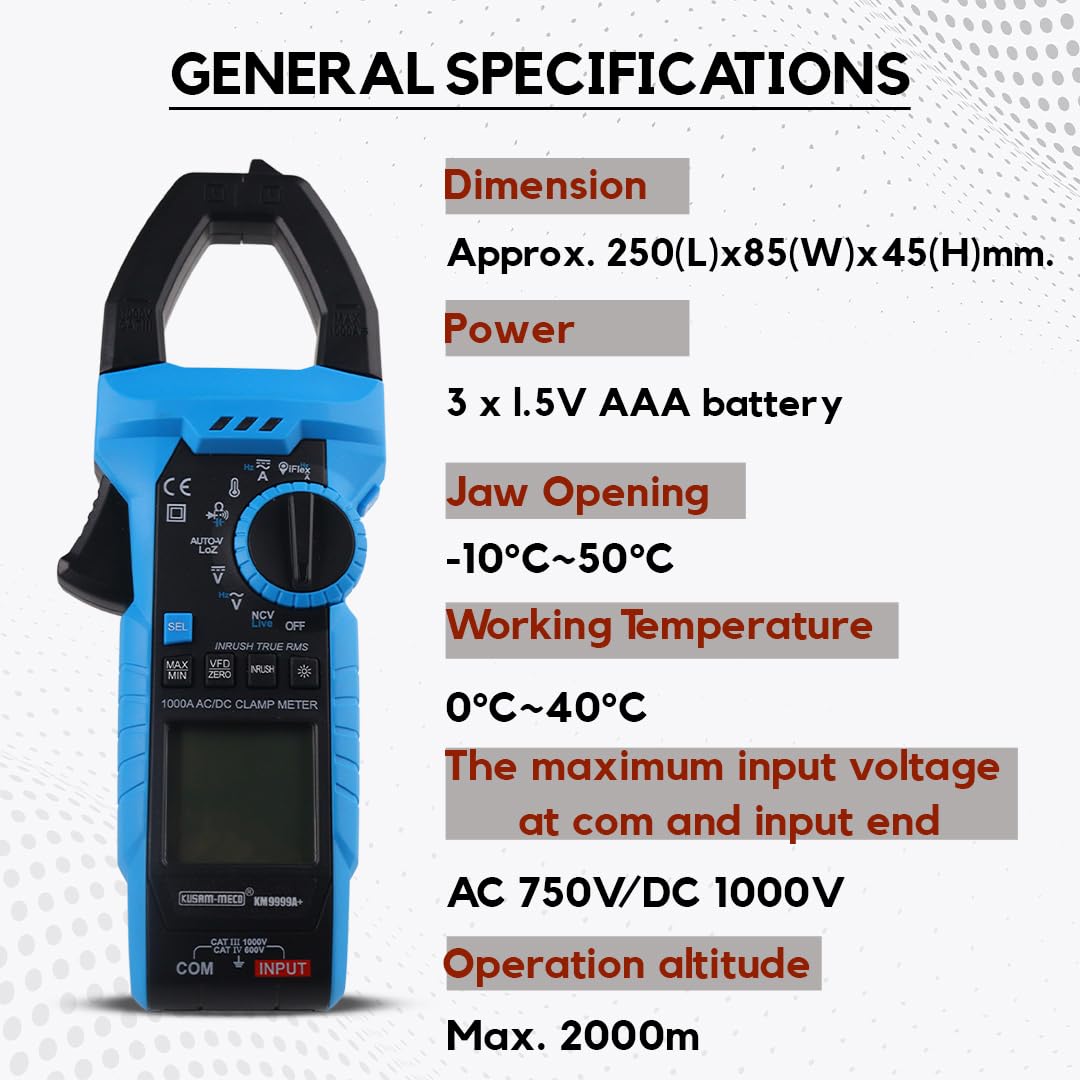

• Test parameters : L / Q, C / D, R / Q, / Z. / ?, C / R, L / R
• Sensing : True RMS sensing
• Display : 3-5/6 Digit 5999 counts backlight LCD display
• Jaw Opening : 42 mm Max.
• Length of iFlex clamp : 1.8m
• Size of iFlex clamp : 7.5mm
• Full-range overload protection voltage : 1000V
• Automatic range
• Operation altitude : Max. 2000m
• The maximum input voltage at com and input end : AC 750V/DC 1000V
• Overrange display : OL or OL
~Sampling time: About 3 time/second
~Working Temperature : 0 °C~40 °C
~Storage Temperature : -10 °C~50 °C
• Power : 3 x l.5V AAA battery.
• Dimension : Approx. 250(L)x85(W)x45(H)mm.
• Weight : Approx. 368 gm (excluding battery)

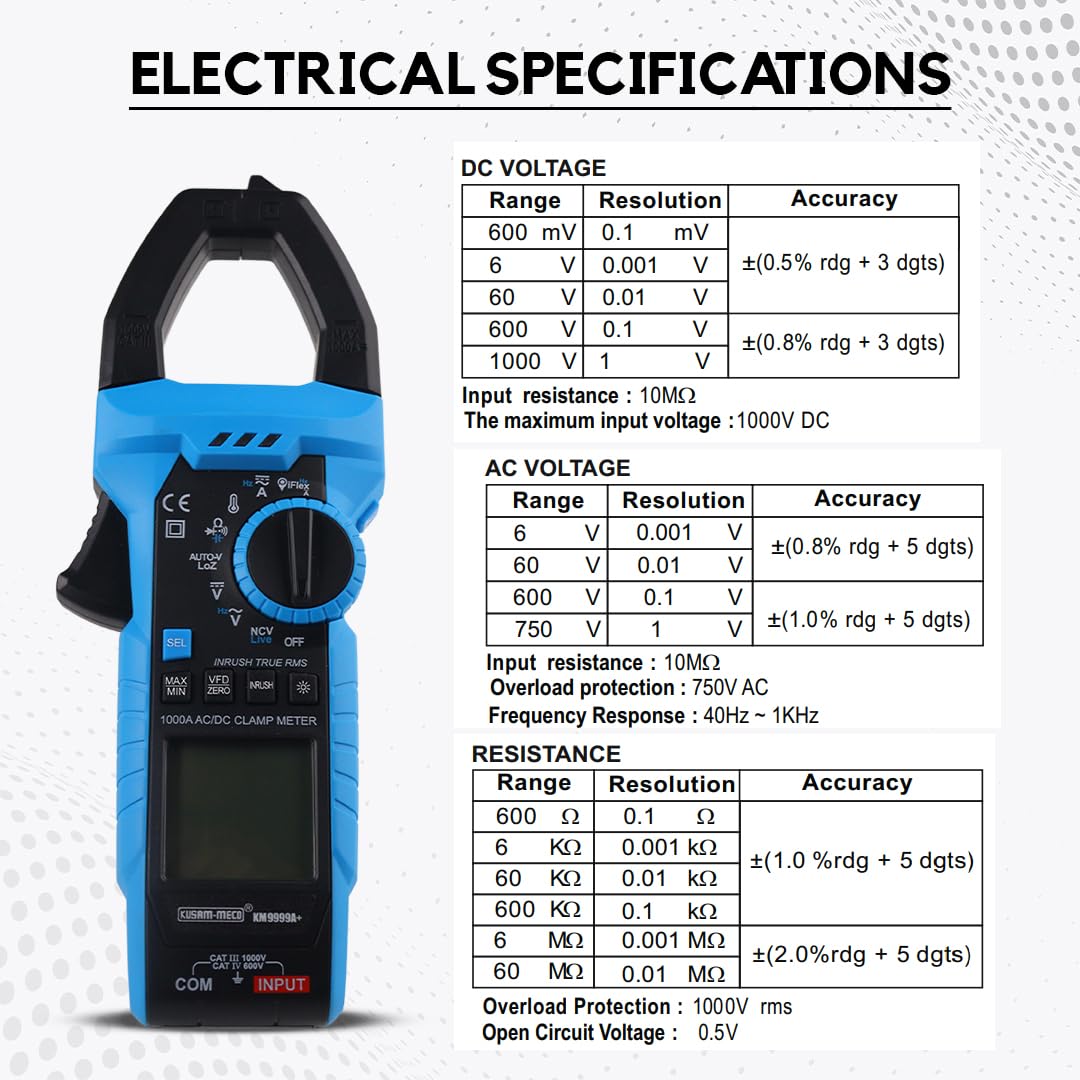

| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600 mV | 0.1 mV | ±(0.5% rdg + 3 dgts) |
| 6 V | 0.001 V | |
| 60 V | 0.01 V | |
| 600 V | 0.1 V | ±(0.8% rdg + 3 dgts) |
| 1000 V | 1 V | |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 6 V | 0.001 V | ±(0.8% rdg + 5 dgts) |
| 60 V | 0.01 V | |
| 600 V | 0.1 V | ±(1.0% rdg + 5 dgts) |
| 750 V | 1 V | |
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.1 A | ± (2.0% rdg + 5 dgts) |
| 600A | 1 A | ± (2.5% rdg + 5 dgts) |
| 1000A | 1 A | |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.1 A | ± (2.0% rdg + 5 dgts) |
| 600A | 1 A | ± (2.5% rdg + 5 dgts) |
| 1000A | 1 A | |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 0.1 Ω | ±(1.0 %rdg + 5 dgts) |
| 6.000 kΩ | 0.001 kΩ | |
| 60.00 kΩ | 0.01 kΩ | |
| 600.0 kΩ | 0.1 kΩ | |
| 6.000 MΩ | 0.001 MΩ | ±(2.0%rdg + 5 dgts) |
| 60.00 MΩ | 0.01 MΩ μA | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 600 nF | 0.1 nF | ±(4.0%rdg + 5 dgts) |
| 6 μF | 0.001 μF | |
| 60 μF | 0.01 μF | |
| 600 μF | 0.1 μF | |
| 6 mF | 0.001 mF | |
| 60 mF | 0.01 mF | ±(5.0%rdg + 10 dgts) |
| AUTO-V LoZ DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 1000 V | 1 V | ±(1.0% rdg + 5 dgts) |
| AUTO-V LoZ AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 750 V | 1 V | ±(1.2% rdg + 5 dgts) |
