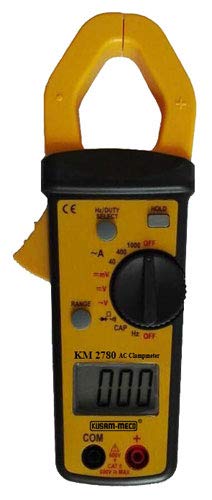

KUSAM MECO KM 2780 PROFESSIONAL GRADE DIGITAL CLAMP METERS
Click To Zoom
KUSAM MECO KM 2780 PROFESSIONAL GRADE DIGITAL CLAMP METERS
KUSAM MECO KM 2780 PROFESSIONAL GRADE DIGITAL CLAMP METERS
The Kusam Meco KM 2780 is a professional-grade digital clamp meter designed for versatile electrical measurements
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 3,950
(GST inclusive price) i-
Base Value: ₹ 3347.5
-
GST: (18) % ₹ 602.5
-
Total Value ₹ 3950
₹6,450.00
( - 23% OFF )
Description
Key Features
- AC/DC Current up to 1000A
- AC/DC Voltage up to 1000V
- 40mm Jaw Opening
- 3½ Digit LCD (3999 Count)
- Resistance, Frequency & Diode Testing
- Data Hold Function
- Auto Polarity Indication
- Overload Protection
- CAT III Safety Rating
- Sampling Rate: 2.5 times/sec
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Display : 3 ½ digits LCD,3999 counts max.
• Jaw size : Φ 40mm
• Overload protection : LCD will show a "OL" in the highest position accompanied. (Except for ranges of 1000A AC, & 1000VDC or 750VAC)
• Measurement Categories III
• Pollution Degree 2
• Altitude upto 2000 meters
• Sampling rate : 2.5 times/sec (Digital display)
• Polarity : Automatic polarity "-" display for negative input.
• Operating Temperature & Humidity : 0 ~ 40 °C (R.H. <80% noncondensing)
• Storage Temperature & Humidity : -10 °C ~ 60 °C (R.H. <80% noncondensing)
• Low Battery Indication.
• Auto Power Off.
• Diode & Continuity test
• Power Supply : 1.5V x 2 AAA Battery.
• Dimension : 228(L) x 75(W) x 36(H)mm.
• Weight : Approx. 465g. (including Battery)
TECHNICAL
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 40Hz ~ 65Hz | ||
| 40 A | 0.01A | ± (2%rdg + 5dgts) |
| 400 A | 0.1A | |
| 1000 A | 1 A | |
| DCmV VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ± (1.0%rdg + 2dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 40Hz ~ 450Hz | ||
| 400 mV | 0.1 mV | ± (1.8%rdg + 5dgts) |
| 4 V | 1 mV | ± (1.0%rdg + 5dgts) |
| 40 V | 0.01 V | |
| 400 V | 0.1 V | |
| 40Hz ~ 100Hz | ||
| 750 V | 1 V | ± (1.5%rdg + 5dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 4 V | 0.001 V | ± (0.8%rdg + 2dgts) |
| 40 V | 0.01 V | |
| 400 V | 0.1 V | |
| 1000 V | 1 V | ± (1.0%rdg + 2dgts) |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 400 Ω | 0.1 Ω | ± (1.2%rdg + 5dgts) |
| 4 Ω | 1 Ω | ± (1.0%rdg + 2dgts) |
| 40 KΩ | 10 Ω | |
| 400 KΩ | 100 Ω | |
| 4 MΩ | 1 KΩ | |
| 40 MΩ | 10 KΩ | ± (2.0%rdg + 5dgts) |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 10 Hz | 0.001Hz | Unspecified |
| 100 Hz | 0.01Hz | ± (0.5%rdg + 3dgts) |
| 1 KHz | 0.1Hz | |
| 10 KHz | 1Hz | |
| 100 KHz | 10Hz | |
| 1 MHz | 100Hz | |
| 10 MHz | 1KH | Unspecified |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 40 nF | 0.01 nF | ± (2.5%rdg + 10dgts) |
| 400 nF | 0.1 nF | ± (2.0%rdg + 4dgts) |
| 4 μF | 1 nF | |
| 40 μF | 10 nF | |
| 100 μF | 100 nF | Unspecified |
