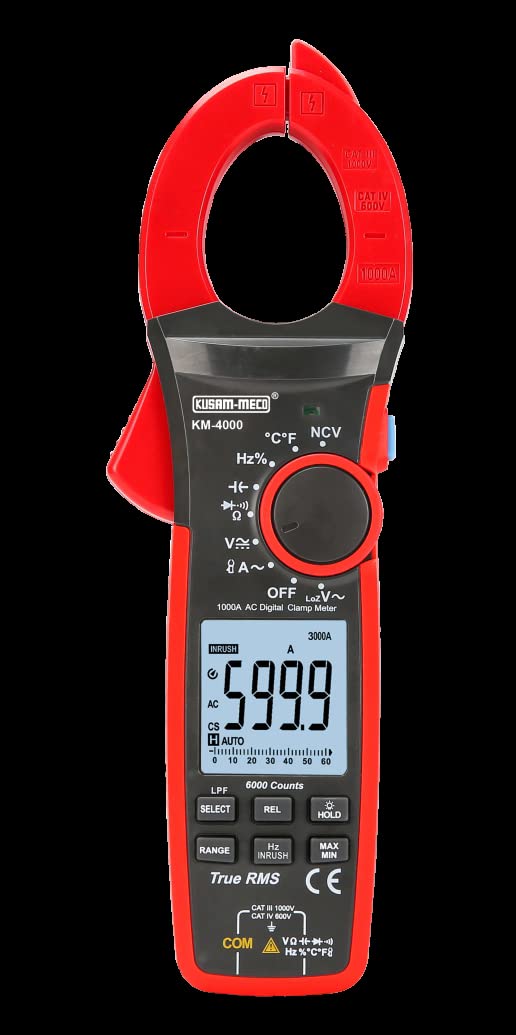

Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER

Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER
Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER

Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER

Click To Zoom

Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER

Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER

(Based On 10 Reviews)

The Kusam Meco KM 4000 is a high-performance True RMS digital clamp meter designed for professionals requiring accurate and versatile electrical measurements. It offers a 6000-count LCD display and supports both AC and DC measurements up to 1000A. Key features include non-contact voltage (NCV) detection, low impedance (LoZ) mode to eliminate ghost voltages, inrush current measurement, and a temperature range from -40°C to 1000°C. The device is CAT III 1000V / CAT IV 600V rated, ensuring safety in high-voltage environments. Additionally, it includes a flashlight, backlit display, and supports an optional flexible current probe for measurements up to 3000A AC. The KM 4000 is powered by three 1.5V batteries and comes with test leads, a temperature probe, and a user manual.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 9,500

(GST inclusive price) i
  • Base Value: ₹ 8050.8
  • GST: (18) % ₹ 1449.2
  • Total Value ₹ 9500

₹15,620.00

( - 24% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • True RMS
  • 6000 Counts display
  • Flashlight
  • LPF ACV
  • NCV (audible/visual alarm)
  • LoZ ACV
  • Data hold/backlight
  • 31 Analog Bar Graph
  • Max/Min/ relative mode
  • Jaw opening: 42mm
  • Diode/ Continuity test
  • CAT lll 1000; CAT IV 600V

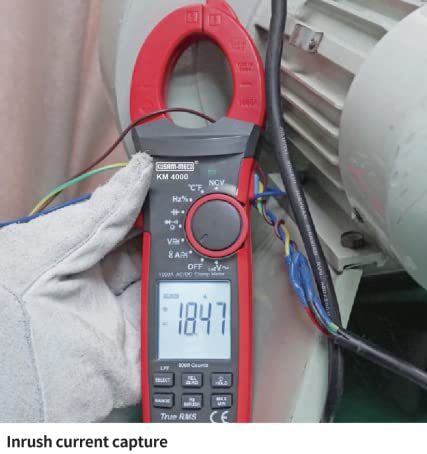

  • Inrush current
  • Optional Flex Clamp (3000A) (KM-CCT3K).



What's in the box?

  • Kusam Meco KM 4000 1000A AC TRUE RMS DIGITAL CLAMP METER
  • Test leads
  • batteries
  • point contact
  • temperature probe
  • Manual

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

Power1.5V battery x 3
Display43mm x 45mm
Weight465gms Approx.
Dimension (W x H x D)272mm x 81mm x 43.5mm



TECHNICAL

CAPACITANCE
RangeResolutionAccuracy
AC current (A) ( 40Hz~400Hz)1000A±(2%+5)
Inrush current (A)1000A±(10%+10)
AC Voltage (V)( 40Hz~400Hz)1000V±(1.2%+3)
DC Voltage (V)1000V±(0.5%+5)
Low pass filter (LPF ACV)1000V±(2%+5)
LoZ ACV1000V±(2%+5)
Resistance (Ω)60MΩ±(1%+2)
Capacitance (F)60mF Â±(4%+5)
Temperature-40℃~1000℃±(1%+2)
-40℃~1832°F±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz Â±(0.1%+3)
Duty cycle(%) 10%~90% Â±(2.6%+7)
