Kusam Meco KM 2775 AC/DC DIGITAL CLAMPMETER
Click To Zoom
Kusam Meco KM 2775 AC/DC DIGITAL CLAMPMETER
Kusam Meco KM 2775 AC/DC DIGITAL CLAMPMETER
The Kusam Meco KM 2775 is a high-performance digital clamp meter designed for professionals requiring precise AC/DC current measurements up to 2000A.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 20,800
(GST inclusive price) i-
Base Value: ₹ 17627.1
-
GST: (18) % ₹ 3172.9
-
Total Value ₹ 20800
₹34,155.00
( - 23% OFF )
Description

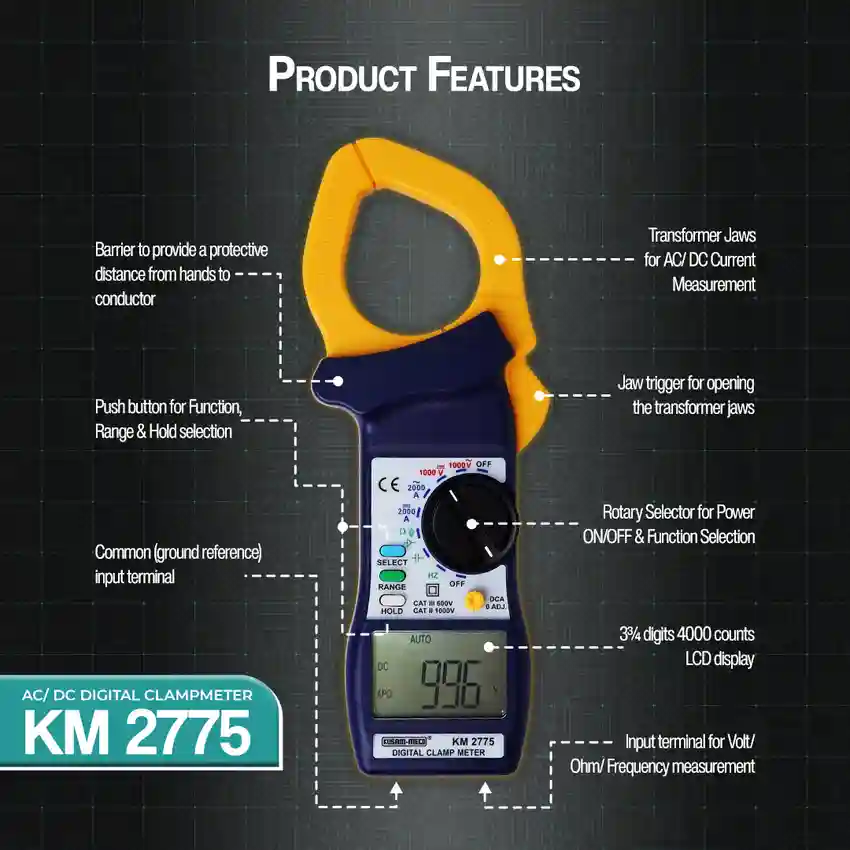

Key Features
- Auto Ranging
- Full Automatic measurement
- Range change function
- Data Hold function freezes the reading
- Continuity & Diode Measurements.
- Auto Power Off.
- Low Battery Indication
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : Average Sensing.

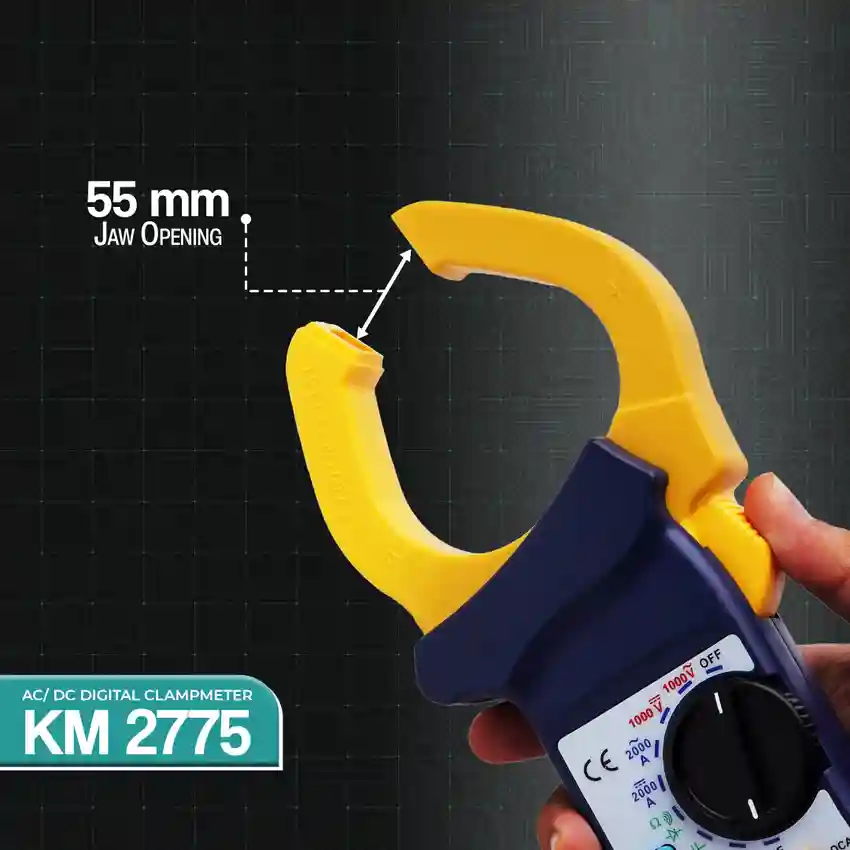

• Jaw opening size : 55mm Max.
• Display : 3 ¾ digits 4000 counts LCD display
• Sample Rate : Approx. 2 times per second
• Response Time : Approx. 1 second
• Low Battery : "
" sign appears on the display when the battery Voltage drops below accurate operating level.
• Over range indication : "O.L" indicated
• Operating Principle : Dual slope integration
• Storage Temperature : -20° C to 60° C, <80% R.H.
• Temperature & Humidity for Guaranteed accuracy @ -10° C to 50° C at <80% R.H.
• Power Supply : Standard 9V battery
• Dimension : 260(L) X 95(W) X 43(D) mm
• Weight : Approx. 515 gm (battery included)

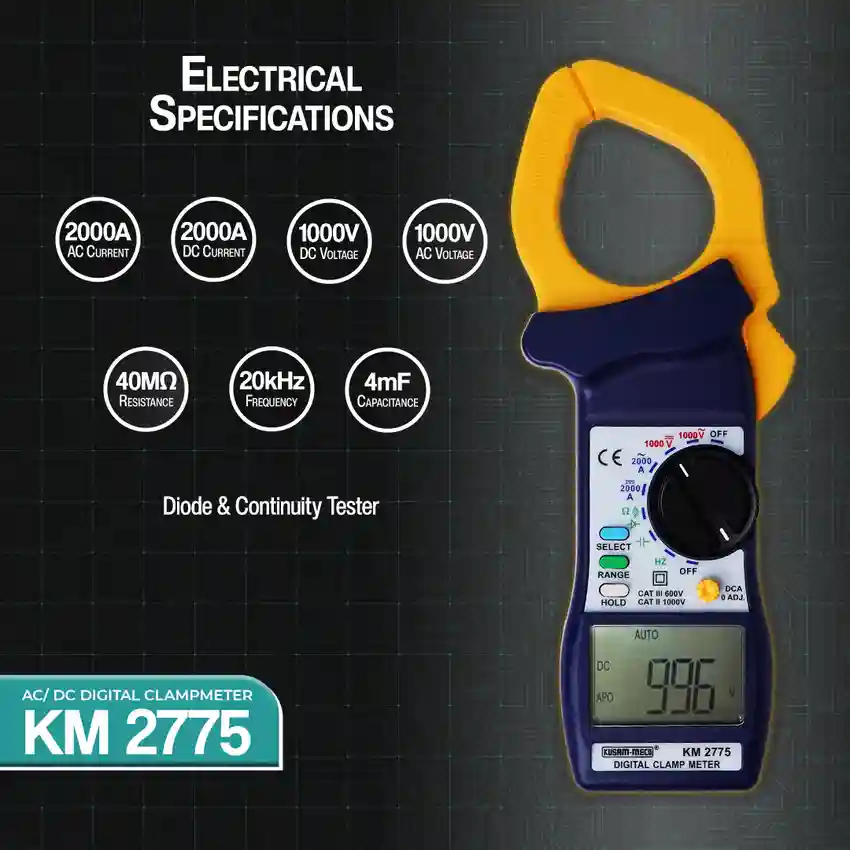

TECHNICAL
| AC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 A | 0.1 A | ±(2.0%rdg + 4dgts) |
| 2000 A | 1 A | ±(2.0%rdg + 4dgts) |
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 400 A | 0.1 A | ±(1.5%rdg + 4dgts0 |
| 2000 A | 1 A | ±(1.5%rdg + 4dgts0 |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(2.0%rdg + 3dgts) |
| 4 V | 1 mV | ±(1.5%rdg + 3dgts) |
| 40 V | 10 mV | ±(1.5%rdg + 3dgts) |
| 400 V | 100 mV | ±(1.5%rdg + 3dgts) |
| 1000 V | 1 V | ±(1.5%rdg + 3dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(1.0%rdg + 3dgts) |
| 4 V | 1 mV | ±(1.0%rdg + 3dgts) |
| 40 V | 10 mV | ±(1.0%rdg + 3dgts) |
| 400 V | 100 mV | ±(1.0%rdg + 3dgts) |
| 1000 V | 1 V | ±(1.0%rdg + 3dgts) |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 4 nF (30p~4nF) | 1 pF | ±(3.0%rdg + 5dgts) |
| 40 nF | 10 pF | ±(2.0%rdg + 5dgts) |
| 400 nF | 100 pF | ±(2.0%rdg + 5dgts) |
| 4 mF | 1 nF | ±(2.0%rdg + 5dgts) |
| 40 mF | 10 nF | ±(2.5%rdg + 5dgts) |
| 400 mF | 100 nF | ±(2.5%rdg + 5dgts) |
| 4 mF | 1 mF | ±(2.5%rdg + 5dgts) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400 Ω | 0.1 Ω | ±(1.5%rdg + 3dgts) |
| 4 KΩ | 1 Ω | ±(1.5%rdg + 3dgts) |
| 40 KΩ | 10 Ω | ±(1.5%rdg + 3dgts) |
| 400 KΩ | 100 Ω | ±(1.5%rdg + 3dgts) |
| 4 MΩ | 1 KΩ | ±(1.5%rdg + 3dgts) |
| 40 MΩ | 10 KΩ | ±(2.0%rdg + 4dgts) |
| DIODE TESTER | ||
| Range | Resolution | Accuracy |
| 2.000 V | 1 mV | ±(1.5%rdg + 5dgts) |
| FREQUENCY | ||
| Range | Resolution | Accuracy |
| 4 KHz | 1 Hz | ±(0.3%rdg + 2dgts) |
| 20 KHz | 10 Hz | ±(0.3%rdg + 2dgts) |
| FREQUENCY | |
| Range | Audible Threshold |
| 400 W | Less than 25W |
