Kusam Meco KM 2799 Dual LCD Display Digital Clamp + Multi Meter
Click To Zoom
Kusam Meco KM 2799 Dual LCD Display Digital Clamp + Multi Meter
Kusam Meco KM 2799 Dual LCD Display Digital Clamp + Multi Meter
Kusam-Meco KM 2799 is a True RMS digital clamp meter designed for precise AC/DC current measurements up to 600A. It features a 3¾ digit dual LCD display with 4000 counts, auto-ranging, and overload protection. The meter includes functions such as data hold, maximum hold, and continuity buzzer, making it ideal for HVAC and electrical applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 11,500
(GST inclusive price) i-
Base Value: ₹ 9745.8
-
GST: (18) % ₹ 1754.2
-
Total Value ₹ 11500
₹18,750.00
( - 23% OFF )
Description
Key Features
- For HVAC application
- Fully auto ranging on all functions.
- Overload protection on all ranges.
- Data - Hold, Max. Hold function
- Simultaneous A + V, A + W, A + °C
- Diode test & fast audible continuity
- Auto power off
OPTIONAL ACCESSORIES
- Banana pins to type-K socket plug adapter Bk32
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : Average sensing.

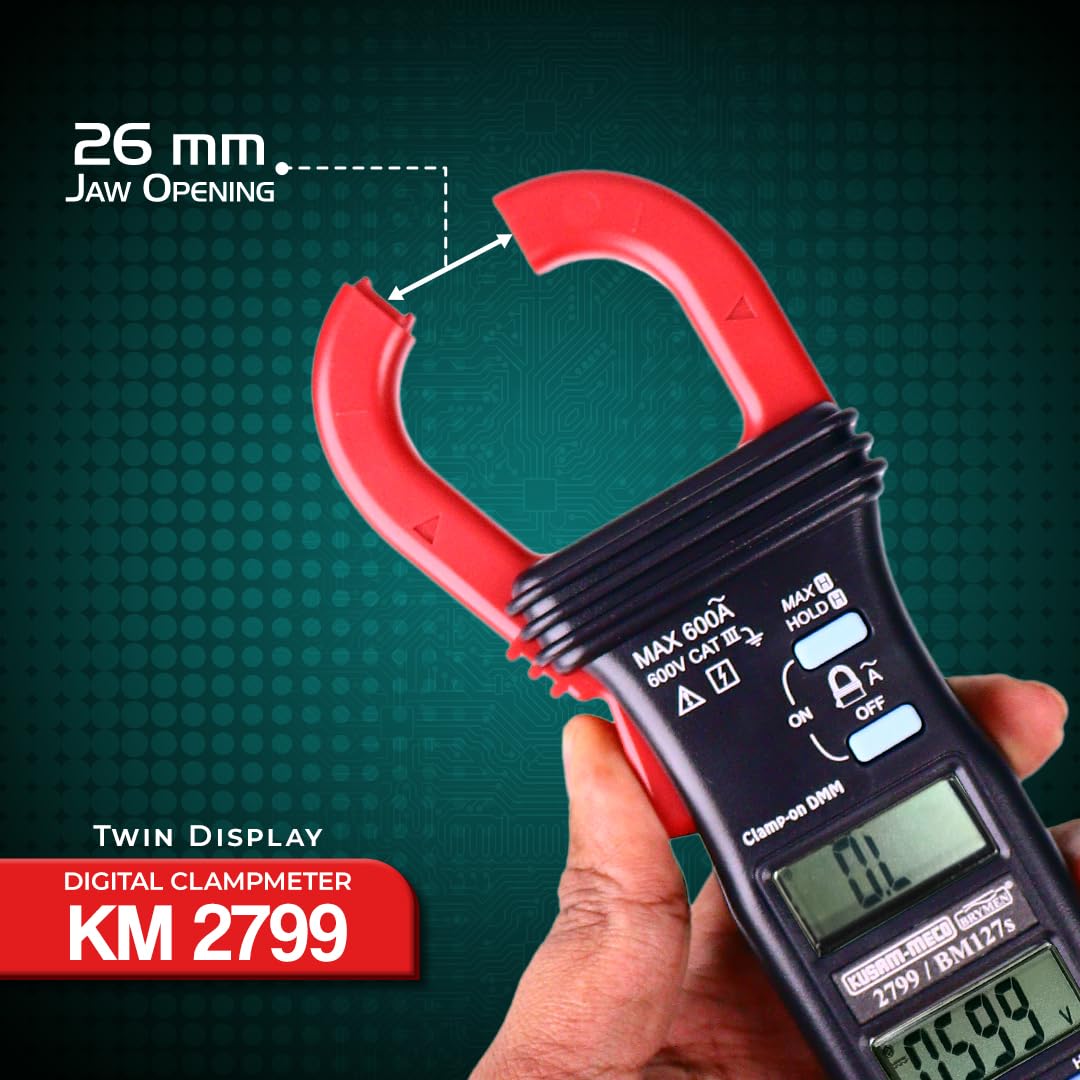

• Jaw Opening Size : 26mm Max.
• Display : 3¾ digits 4000 counts LCD displays
• Update Rate : 3 per second nominal
• Polarity : Automatic
• Low Battery : Below approx. 2.4V
• Operating Temperature : 0 °C to 40 °C,<80% R.H.
• Storage Temperature : -20 °C to 60 °C,<80% RH (with battery removed)
• Temperature Coefficient : Nominal 0.15x (specified accuracy)/ °C @(0 °C-18 °C or 28 °C-40 °C)or otherwise specified
• Altitude : Operating below 2000m
• Power supply : Standard 3V coin batteries x 2
• Power Consumption : 2.8 mA typical except that 3.3mA typical for ACA function
• APO Timing : Idle for 30 minutes
• APO Consumption : 5 µA typical except that 40 µA typical on Voltage function
• Dimension : 190(L)mm x 63(W)mm x 32(H)mm
• Weight : 139gm approx.
TECHNICAL
| AC CURRENT (Clamp-on) (50Hz / 60Hz) | ||
| Range | Resolution | Accuracy |
| 40.00 A | 10 mA | ±(1.5%rdg + 8dgts) |
| 400.0 A | 100 mA | |
| 600 A | 1 A | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.0 mV | 100 V | ±(0.3%rdg + 4dgts) |
| 4.000 V | 1 mV | ±(0.5%rdg + 3dgts) |
| 40.00 V | 10 mV | |
| 400.0 V | 100 mV | |
| 600 V | 1 V | ±(1.0%rdg + 4dgts) |
| AC VOLTAGE (50 Hz~500 Hz) | ||
| Range | Resolution | Accuracy |
| 4.000 V | 1 mV | ±(1.5%rdg + 5dgts) |
| 40.00 V | 10 mV | |
| 400.0 V | 100 mV | |
| 600 V | 1 V | ±(2.0%rdg + 5dgts) |
| AC A (Via Socket) | ||
| Range | Burden Voltage | Accuracy |
| 50Hz - 500Hz | ||
| 400.0 A | 2.8 mV/ A | ±(2.0%rdg + 5dgts) |
| 2000 A | ±(1.5%rdg + 5dgts) | |
| DC A(Via Socket) | ||
| Range | Burden Voltage | Accuracy |
| 50Hz - 500Hz | ||
| 400.0 A | 2.8 mV/ A | ±(2.0%rdg + 4dgts) |
| 2000 A | ±(1.2%rdg + 3dgts) | |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 400.0 | 100 m | ±(0.8%rdg + 8dgts) |
| 4.000 k | 1 | ±(0.6%rdg + 4dgts) |
| 40.00 k | 10 | |
| 400.0 k | 100 | |
| 4.000 M | 1 k | ±(1.0%rdg + 4dgts) |
| 40.00 M | 10 k | ±(2.0%rdg + 4dgts) |
| FREQUENCY | ||
| Function | Sensitivity (Sine RMS) | Range |
| 400.0 mV | 150 mV | 10Hz -- 2KHz |
| 4.000 V | 3.2 V | 5Hz -- 40KHz |
| 40.00 V | 25 V | 5Hz -- 100KHz |
| 400.0 V | 100 V | 5Hz -- 100KHz |
| 600 V | 400 V | 5Hz -- 25KHz |
| 400.0 A | 500 A | 10Hz -- 30KHz |
| 2000 A | 500 A | 10Hz -- 30KHz |
| CAPACITANCE | |
| Range | Accuracy |
| 500.0nF, 5.000 F | ±(3.5%rdg + 6dgts) |
| 50.00 F, 500.0 F | |
| 3000 F | |
| DIODE TESTER | |
| Open Circuit Voltage | Test Current (Typical) |
| < 1.6 VDC | 0.25 mA |
