Kusam Meco KM 035 AC/DC True RMS digital clamp meter
Click To Zoom
Kusam Meco KM 035 AC/DC True RMS digital clamp meter
Kusam Meco KM 035 AC/DC True RMS digital clamp meter
Kusam-Meco KM 035 is a True RMS digital clamp meter designed for precise AC/DC current measurements up to 600A. It features AmpTip™ technology for accurate low-current readings, EF-Detection (non-contact voltage detection) for enhanced safety, and a backlit LCD display for clear visibility. The meter also includes MAX/MIN recording modes, peak hold, and auto-ranging, making it ideal for industrial and electrical applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 11,600
(GST inclusive price) i-
Base Value: ₹ 9830.5
-
GST: (18) % ₹ 1769.5
-
Total Value ₹ 11600
₹19,080.00
( - 23% OFF )
Description
Key Features
- AmpTip ™ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
- MAX / MIN Recording mode.
- MAX / MIN Crest (Peak-Hold) mode.
- Relative-zero mode.
- Display Hold
- EF-Detection (NCV).
- Back-lighted easy-to-read LCD display
- Fully Autoranging
- BeepLit &trade Feature
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Basic accuracy (DCV) : 1.0%
• Sensing : True RMS

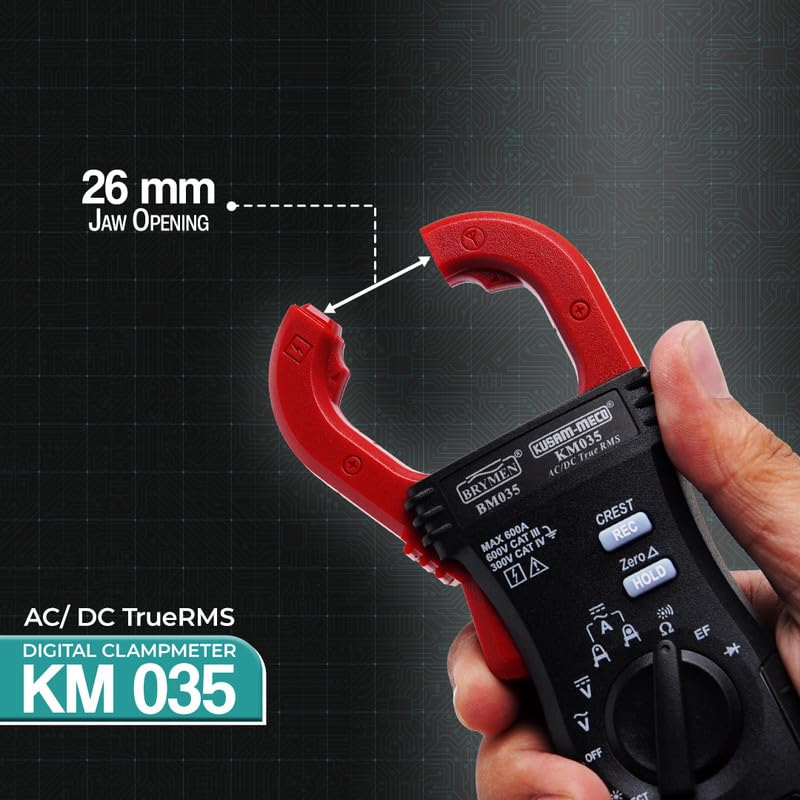

• Jaws Opening size : 26mm Max.
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Operating Temperature : 0ºC to 40ºC
• Relative Humidity : Maximum relative humidity 80% for temperature up to 31ºC decreasing linearly to 50% relative humidity at 40ºC
• Altitude : Operating below 2000m
• Storage Temperature : -20°C ~ 60°C, \ <80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 0.1 x (specified accuracy) / °C @ (0°C –– 18°C or 28°C –– 40°C),or otherwise specified
• Power Supply : Standard 1.5V AAA Size Battery X 2
• Power Consumption : typical 14mA
• Low Battery : Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions
• APO timing : Idle for 32 minutes
• APO Consumption : typical 5A
• Dimension : 188(L) x 66(W) x 32(H)mm
• Weight : approx 202 gms.
TECHNICAL
| REGULAR AC CLAMP-ON CURRENT | ||
| Range | Resolution | Accuracy |
| DC, 50Hz ~ 100Hz | ||
| 600.0 A | 0.1 A | ±(1.5%rdg + 5dgts) |
| 100Hz ~ 400Hz | ||
| 600.0 A | 0.1 A | ±(2.0%rdg + 5dgts) |
| REGULAR DC CLAMP-ON CURRENT | ||
| Range | Resolution | Accuracy |
| 600.0 A | 0.1 A | ±(2.0%rdg + 5dgts) |
| AmpTip Clamp-on AC Current : | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 60.00 A | 0.01 A | ±(1.0%rdg + 5dgts) |
| TM CLAMP-ON AmpTip DC CURRENT | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 60.00 A | 0.01 A | ±(1.0%rdg + 5dgts) |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600.0 A | 0.1 A | ±(1.0%rdg + 5dgts) |
| AC VOLTAGE (with Digital Low-Pass Filter) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 600.0 A | 0.1 A | ±(1.5%rdg + 5dgts) |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 0.1 Ω | ±(1.0%rdg + 5dgts) |
| 6.000 kΩ | 1 Ω | |
| DIODE TESTER | ||
| Range | Resolution | Accuracy |
| 3.000 V | 1 mV | ±(1.5%rdg + 5dgts) |
| TM BeepLit CONTINUITY TESTER | |
| Continuity Threshold | Between 30W & 480W |
| Continuity ON Response Time | 15ms approx. |
| Audible Indication | Beep sound |
| Visible Indication | LCD Backlight |
| CREST (Peak-Hold) | |
| Applicability | Voltage & Non-invasion Current functions |
| Accuracy | Add ± 250 digits to specified accuracy for changes > 5ms in duration. |
