Kusam Meco KM 078 ul ' APPROVED DIGITAL CLAMP METER
Click To Zoom
Kusam Meco KM 078 ul ' APPROVED DIGITAL CLAMP METER
Kusam Meco KM 078 ul ' APPROVED DIGITAL CLAMP METER
Kusam-Meco KM 078 is a True RMS digital clamp meter designed for precise AC/DC current measurements up to 600A. It features AmpTipâ„¢ technology for accurate low-current readings in tight spaces, VFD-V & Hz functions for testing variable frequency drives, and non-contact voltage (NCV) detection for safe live-wire identification. The meter also includes MAX/MIN/AVG recording modes, a backlit LCD display, and auto-ranging for user-friendly operation.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 15,000
(GST inclusive price) i-
Base Value: ₹ 12711.9
-
GST: (18) % ₹ 2288.1
-
Total Value ₹ 15000
₹24,550.00
( - 23% OFF )
Description
Key Features
- AmpTip â„¢ low-current range calibrated at Jaw-tip for slim-conditions for accurate readings
- MAX/MIN/AVG Recording mode (Auto ranging)
- VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives
- Display Hold & Non-Contact EF-Detection (NCV)
- Back-lighted easy-to-read LCD display
- Fast 80ms Peak-RMS mode to capture in-rush currents
- Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : AC+DC; True RMS

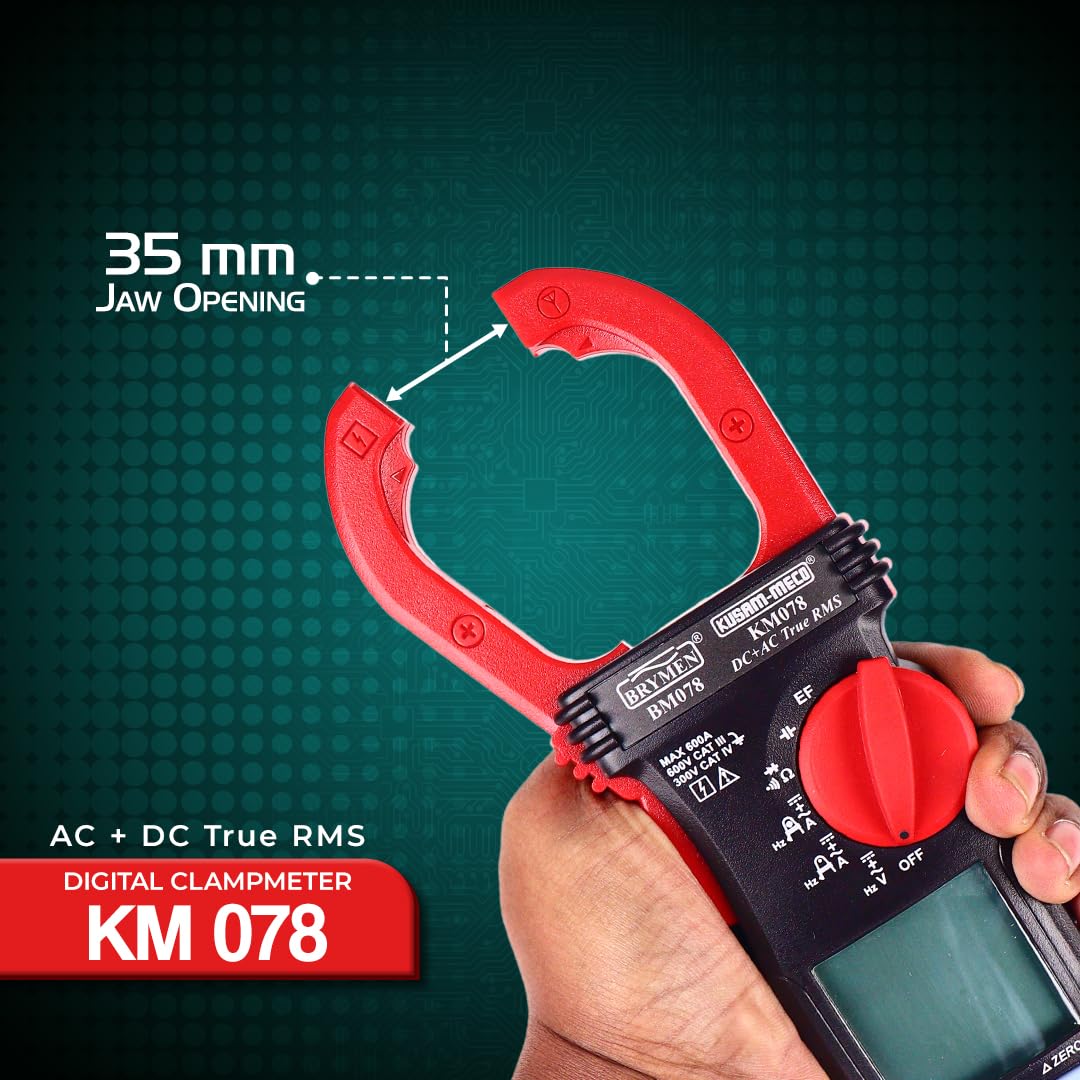

• Jaws Opening size : 35mm Max.
• Display : 3-5/6 digits 6000 counts
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Operating Temperature :0°C to 40°C
• Relative Humidity :Maximum relative humidity 80% for temperature up to 31 °C decreasing linearly to 50% relative humidity at 40ºC
• Altitude : Operating below 2000m
• Storage Temperature : -20 °C ~ 60 °C, / < 80% R.H. (with battery removed)
• Temperature Coefficient : Nominal 0.15 x (specified accuracy) / ° C @ (0 ° C- 18 ° C or 28 ° C - 40 ° C), or otherwise specified
• Power Supply : Standard 1.5V AAA Size Battery X 2
• Power Consumption : typical 13mA
• Low Battery :
Below approx. 2.85V for Capacitance & Hz
Below approx. 2.5V for other functions
• APO timing : Idle for 32 minutes
• APO Consumption : typical 5 µA
• Dimension : 223(L) x 76(W) x 37(H)mm
• Weight : approx 234 gms.

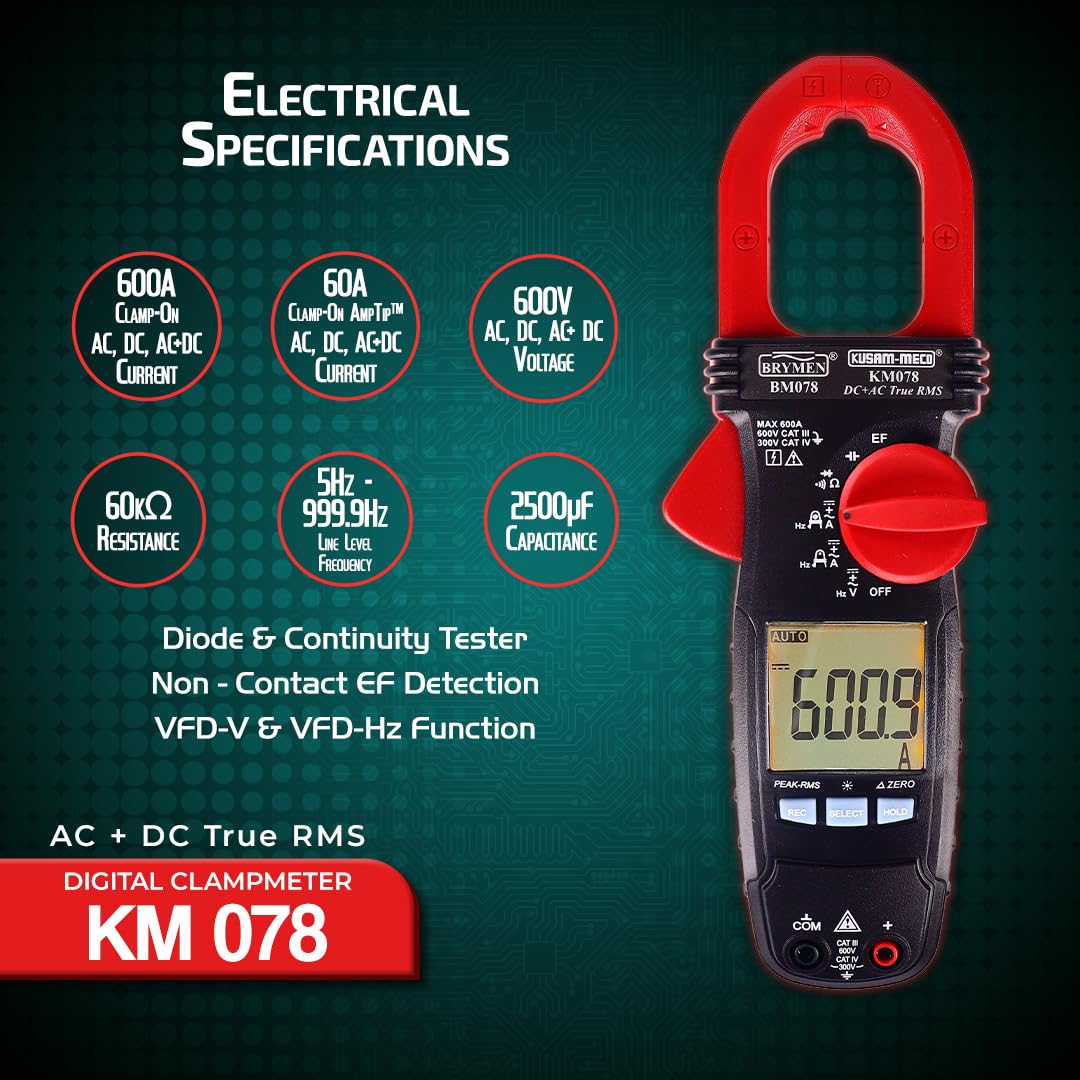

TECHNICAL
| REGULAR CLAMP-ON DC + AC CURRENT | ||
| Range | Resolution | Accuracy |
| DC, 50Hz ~ 100Hz | ||
| 60.00 A | 0.01 A | ±(2.2%rdg + 7dgts) |
| 600.0 A | 0.1 A | |
| 100Hz ~ 400Hz | ||
| 60.00 A | 0.01 A | ±(2.7%rdg + 7dgts) |
| 600.0 A | 0.1 A | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 600.0 A | 0.1 A | ±(1.0%rdg + 5dgts) |
| AmpTip Clamp-on AC Current : | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 60.00 A | 0.01 A | ±(1.5%rdg+5dgts) |
| TM AMPTIP CLAMP-ON DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60.00 A | 0.01 A | ±(2.0%rdg + 5dgts) |
| TM AMPTIP CLAMP-ON DC+ACA CURRENT | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 60.00 A | 0.01 A | ±(2.0%rdg + 7dgts) |
| AC VOLTAGE (with Digital Low-Pass Filter) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 600.0 A | 0.1 A | ±(1.0%rdg + 5dgts) |
| DC + AC VOLTAGE (with Digital Low-pass Filter) | ||
| Range | Resolution | Accuracy |
| 50Hz ~ 60Hz | ||
| 600.0 A | 0.1 A | ±(1.2%rdg + 7dgts) |
| RESISTANCE (OHMS) | ||
| Range | Resolution | Accuracy |
| 600.0 Ω | 0.1 Ω | ±(1.0%rdg + 5dgts) |
| 6.000 kΩ | 1 Ω | |
| 60.00 kΩ | 10 Ω | |
| ~Hz LINE LEVEL FREQUENCY | ||
| Function | Sensitivity (Sine RMS) | Range |
| 600 V | 50 V | 5.00Hz~999.9Hz |
| 60 A (AmpTip) | 40 A | 50.00Hz~400.0Hz |
| 60 A | 40 A | 50.00Hz~400.0Hz |
| 600 A | ||
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 200.0μF | 0.1 μF | ±(2.0%rdg + 4dgts) |
| 2500μF | 1 μF | |
| DIODE TESTER | ||
| Range | Resolution | Accuracy |
| 2.000 V | 1 mV | ±(1.5%rdg + 5dgts) |
