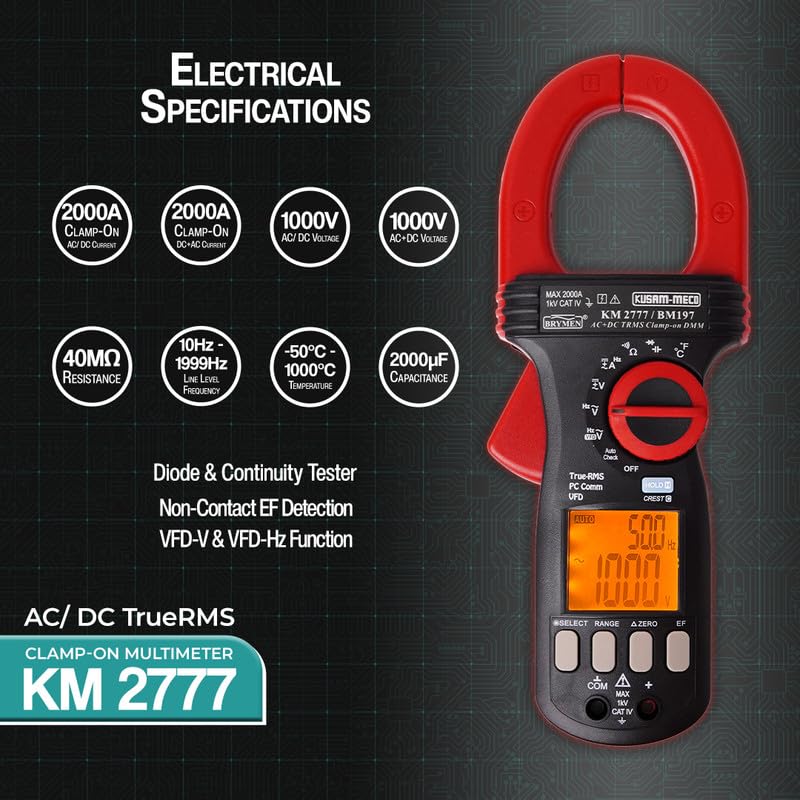

Kusam-Meco KM 2777 is a True RMS digital clamp meter with a high current range up to 2000A AC/DC. It features auto-ranging, peak hold, VFD measurements, and NCV detection, making it ideal for industrial and electrical testing.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 22,500

(GST inclusive price) i
  • Base Value: ₹ 19067.8
  • GST: (18) % ₹ 3432.2
  • Total Value ₹ 22500

₹37,005.00

( - 24% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • AutoCheck Voltage & Ohms
  • VFD-V & VFD-HZ function
  • 5ms CREST-MAX capture mode (Peak Hold)
  • Autoranging Relative -Zero mode
  • Display Hold function
  • EF-Detection (NCV)
  • Backlight LCD Display
  • Auto Power Off
  • Diode Test & Continuity Test
  • PC Interface (Optional)



Optional Accessories

  • USB interface kit BRUA-19X
  • KB32 banana plug to type-K socket plug adaptor



What's in the box?

  • Kusam-meco KM 2777 Digital Clamp Multimeter
  • Test leads (pair)
  • user’s manual
  • Bkp60 banana plug K-type Thermocouple x 1
  • carrying case.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

• Sensing : TRMS sensing

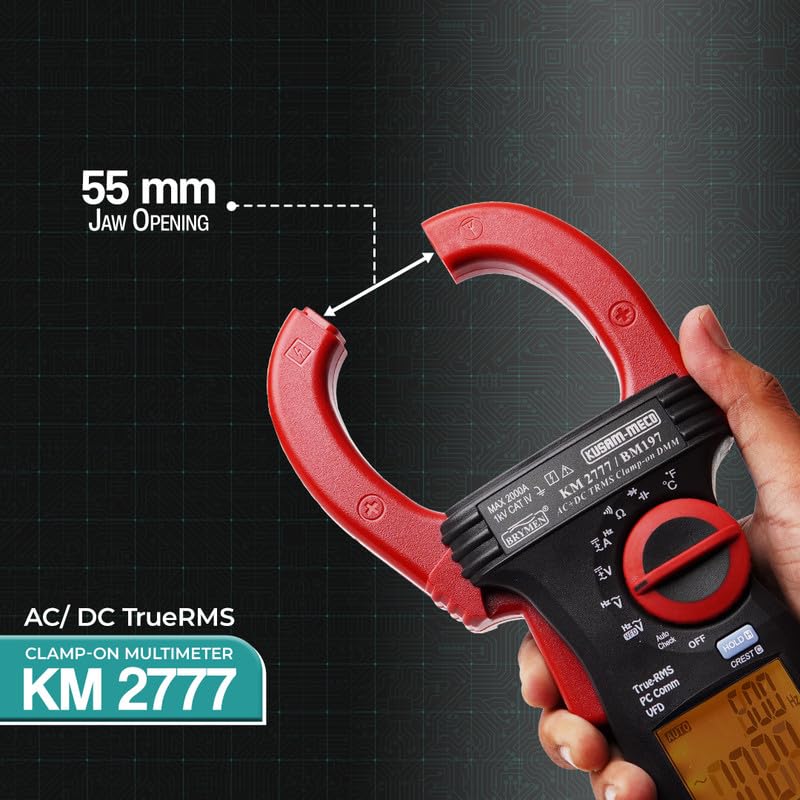

• Jaw Opening : 55mm max.
• Display : 3-5/6 digits 6000 counts &  3½ digits 1,999 counts for Hz.
• Update Rate : 5 per second nominal
• Polarity : Automatic
• Low Battery : Below approx 2.4V
• Operating Temperature : 0 °C to 40 °C
• Relative Humidity : Maximum 80% R. H.for temperature upto 31 °C decreasing linearly   to 50% Relative Humidity at 40 °C
• Storage Temperature : -20 °C to 60 °C,   < 80% R.H. (With battery removed)
• Altitude : Operating below 2000m
• Temperature Coefficient : nominal 0.15 x (specified accuracy) /   °C @ (0 °C - 18 °C or 28 °C- 40 °C), or otherwise specified
• Power supply : Standard 1.5V AAA Battery x 2.
• Power Consumption : Typical 14mA for Current function,& 5.2mA for others.
• APO Timing : Idle for 34 minutes
• APO Consumption : 10 µA typical
• Dimension : 264(L) x 97(W) x 43(H) mm
• Weight : Approx. 608gm.



TECHNICAL

ACA CURRENT(Clamp on)
RangeResolutionAccuracy
50Hz – 60Hz
200.0 A100 mA±(2.0%rdg + 5dgts)
0 ~ 500 A1 A±(2.5%rdg + 5dgts)
500~2000 A1 A±(3.0%rdg + 5dgts)
40Hz~50Hz & 60Hz~400Hz
200.0 A100 mA±(2.5%rdg + 5dgts)
0 ~ 500 A1 A±(3.0%rdg + 5dgts)
500~1000 A1 A±(3.5%rdg + 5dgts)
1000~2000 A1 AUnspecified
DCA CURRENT(Clamp on)
RangeResolutionAccuracy
200.0 A100 mA±(2.0%rdg + 5dgts)
0 ~ 500 A1 A±(2.0%rdg + 5dgts)
500~2000 A1 A±(2.5%rdg + 5dgts)
DC + ACA CURRENT(Clamp on)
RangeResolutionAccuracy
DC, 50Hz – 60Hz
200.0 A100 mA±(3.0%rdg + 8dgts)
2000 A1 A
40Hz~50Hz & 60Hz~400Hz
200.0 A100 mA±(3.5%rdg + 8dgts)
0 ~ 1000 A1 A
1000~2000 A1 AUnspecified
DC VOLTAGE
RangeResolutionAccuracy
6.000 V1 mV±(0.5%rdg + 5dgts)

60.00 V10 mV
600.0 V100 mV
1000 V1 V
AC + DC VOLTAGE
RangeResolutionAccuracy
DC, 50Hz ~400Hz
6.000 V1 mV±(1.4%rdg + 7dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
VFD_ ACV (with Low Pass Filter)
RangeResolutionAccuracy
10Hz ~ 20Hz
6.000 V1 mV±(4%rdg + 80dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
20Hz ~ 200Hz
6.000 V1 mV±(2%rdg + 60dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
200Hz~420Hz
6.000 V1 mV±(7%rdg + 80dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
TM AUTOCHECK _ACV
RangeResolutionAccuracy
50Hz ~ 60Hz
6.000 V1 mV±(1.5%rdg + 5dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
TM AUTOCHECK _DCV
RangeResolutionAccuracy
6.000 V1 mV±(1.3%rdg + 5dgts)
60.00 V10 mV
600.0 V100 mV
1000 V1 V
CAPACITANCE
RangeResolutionAccuracy
60.00nF10 pF±(2.0%rdg + 5dgts)
600.0nF100 pF
6.000μF1 nF
60.00μF10 nF±(3.5%rdg + 5dgts)
600.0μF100 nF
2000μF1 μF±(4.0%rdg + 5dgts)
RESISTANCE (OHMS)
RangeResolutionAccuracy
600.0 Ω 0.1 Ω±(0.5%rdg + 5dgts)
6.000 kΩ 1 Ω
60.00 kΩ10 Ω
600.0 kΩ100 Ω±(0.8%rdg + 5dgts)
6.000 MΩ1 KΩ±(1.2%rdg + 5dgts)
60.00 MΩ10 KΩ±(2.3%rdg + 5dgts)
~Hz LINE LEVEL FREQUENCY
FunctionSensitivity (Sine RMS)Range
6 V2 V40Hz ~ 1999Hz
60 V20 V40Hz ~ 1999Hz
600 V100 V40Hz ~ 1999Hz
1000 V600 V40Hz ~ 1999Hz
200 A10 A 20Hz ~ 400Hz
2000 A40 A20Hz ~ 400Hz
VFD 6 V1 V ~ 2 V10Hz ~ 400Hz
VFD 60 V6 V ~ 20 V10Hz ~ 400Hz
VFD 600 V60 V ~ 200 V10Hz ~ 400Hz

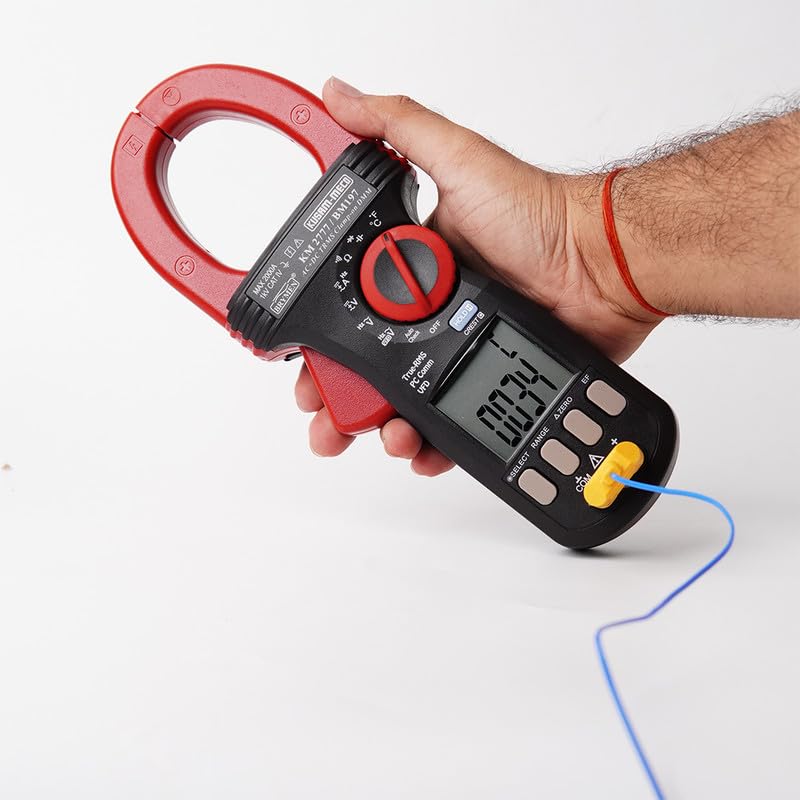

TEMPERATURE
RangeResolutionAccuracy
-50°C ~ 1000°C1°C±(0.3%rdg + 4dgts)
-58°F ~ 1832°F1°F±(0.3%rdg + 6dgts)
AUDIBLE CONTINUITY TESTER
Audible Threshold Response Time
between 10Ω  and 200Ω 32ms approx.
DIODE TESTER
RangeTest Current (Typical)Open Circuit Voltage
1.000V 0.56mA <1.8V DC typical
