Kusam Meco KM 805S Autoranging Digital Multimeter
Click To Zoom

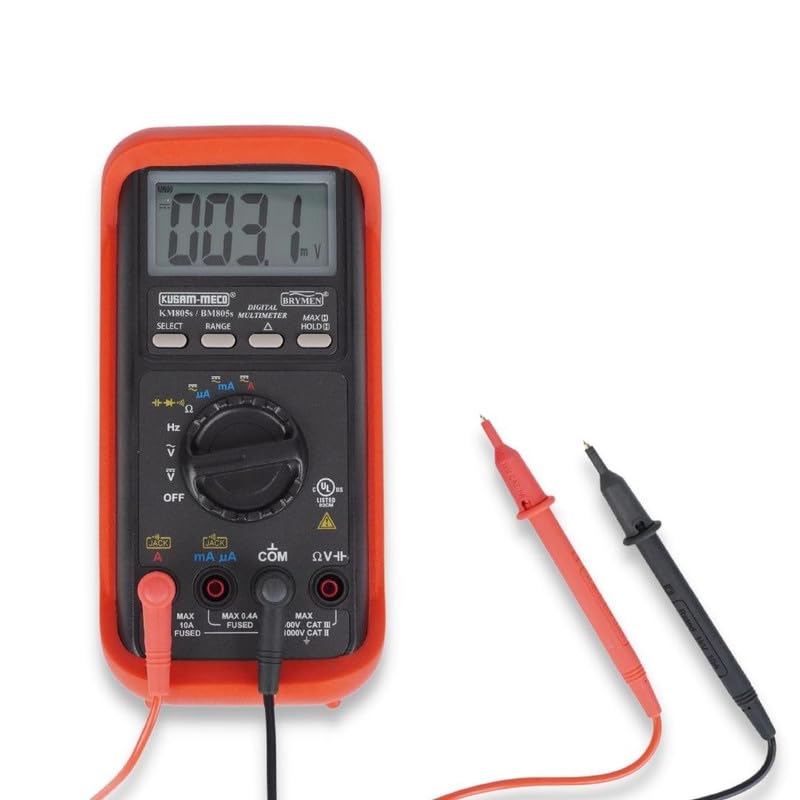

Kusam Meco KM 805S Autoranging Digital Multimeter
Kusam Meco KM 805S Autoranging Digital Multimeter
The Kusam-Meco KM 805S is a versatile and reliable True RMS digital multimeter designed for professionals and DIY enthusiasts. With a 4000-count display, auto-ranging functionality, and a splash-proof, fire-retardant casing, it ensures accurate measurements in various environments.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 9,000
(GST inclusive price) i-
Base Value: ₹ 7627.1
-
GST: (18) % ₹ 1372.9
-
Total Value ₹ 9000
₹14,800.00
( - 22% OFF )
Description
Key Features
- Basic Accuracy : 0.5% DCV
- 25ms Max Hold
- Fully Autoranging
- Data Hold
- Relative Zero Mode
- Jack Beep audible warning against improper plug in
- Diode Test
- Fast audible Continuity Test
- Fire retarded case
- Splash proof construction.
- Auto power off
What's in the box?
|
Rating & Reviews
Rating
GENERAL
• Sensing : Average sensing
• Display : 3-3/4 digits 4000 counts large easy to read LCD display
• Update Rate : 3 per second nominal
• Polarity : Automatic
• Operating Temperature : 0 °C to 40 °C
• Relative Humidity : Maximum 80% R. H. For temperature upto 31 °C decreasing linearly to 50% Relative Humidity at 40 °C
• Altitude : Operating below 2000m
• Pollution degree : 2
• Storage Temperature : -20 °C to 60 °C, < 80% R.H. (With battery removed)
• Temperature Coefficient : nominal 0.15 x (specified accuracy) / °C @ (0 °C -18 °C or 28 °C-40 °C),
or otherwise specified
• Low Battery : Below approx 2.4V
• Power supply : Standard 1.5V AAA Battery x 2.
• Power Consumption : 3.2mA typical
• Sleep mode Timing : Idle for 30 minutes
• Sleep mode Consumption : 300 μ A typical
• Dimension : 186(L) x 87(W) x 35.5(H) mm ; 198(L) x 97(W) x 55 (H) mm with Holster.
• Weight : Approx. 296 gms; 396gm with holster.
TECHNICAL
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.00 mV | 100 μΑ | ±(0.3%rdg + 4dgts) |
| 4.0000 V | 1 mV | ±(0.5%rdg + 3dgts) |
| 40.000 V | 10 mV | ±(0.5%rdg + 3dgts) |
| 400.00 V | 100 mV | ±(0.5%rdg + 3dgts) |
| 1000.0 V | 1 mV | ±(1.0%rdg + 4dgts) |
| AC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 400.00 mV | 100 μΑ | ±(4.0%rdg + 5dgts) |
| 4.0000 V | 1 mV | ±(1.5%rdg + 5dgts) |
| 40.000 V | 10 mV | ±(1.5%rdg + 5dgts) |
| 400.00 V | 100 mV | ±(1.5%rdg + 5dgts) |
| 1000.0 V | 1 mV | ±(4.0%rdg + 5dgts) |
| DC CURRENT | |||
| Range | Resolution | Accuracy | Burden Voltage |
| 400.00 μΑ | 0.1 μΑ | ±(2.0%rdg + 5dgts) | 0.15 mV/mA |
| 4000.0 μΑ | 1 μΑ | ±(1.2%rdg + 3dgts) | 0.15 mV/mA |
| 40.000 mA | 0.01 mA | ±(2.0%rdg + 5dgts) | 3.3 mV/mA |
| 400.00 mA | 0.1 mA | ±(1.2%rdg + 3dgts) | 3.3 mV/mA |
| 4.0000 A | 0.001 A | ±(2.0%rdg + 5dgts) | 0.03V/A |
| 10.000 A | 0.01 A | ±(1.2%rdg + 3dgts) | 0.03V/A |
| AC CURRENT | |||
| 50Hz – 500Hz | |||
| Range | Resolution | Accuracy | Burden Voltage |
| 400.00 μΑ | 0.1 μΑ | ±(2.0%rdg + 6dgts) | 0.15 mV/mA |
| 4000.0 μΑ | 1 μΑ | ±(1.5%rdg + 4dgts) | 0.15 mV/mA |
| 40.000 mA | 0.01 mA | ±(2.0%rdg + 6dgts) | 3.3 mV/mA |
| 400.00 mA | 0.1 mA | ±(1.7%rdg + 4dgts) | 3.3 mV/mA |
| 4.0000 A | 0.001 A | ±(2.0%rdg + 6dgts) | 0.03V/A |
| 10.000 A | 0.01 A | ±(1.8%rdg + 4dgts) | 0.03V/A |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 500.0 nF | 0.1 pF | 3.5%*** + 6dgts |
| 5.000 μF | 1 nF | |
| 50.00 μF | 10 nF | |
| 500.0 μF | 100 nF | |
| 9999 μF | 1 μF | |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 400.00 Ω | 100 mΩ | ±(0.8%rdg + 6dgts) |
| 4.0000 kΩ | 1 Ω | ±(0.6%rdg + 4dgts) |
| 40.000 kΩ | 10 Ω | |
| 400.00 kΩ | 100 Ω | |
| 4.0000 MΩ | 1 kΩ | ±(1.0%rdg + 4dgts) |
| 40.000 MΩ | 10 kΩ | ±(2.0%rdg + 4dgts) |
| T1-T2 DUAL TYPE-K TEMPERATURE | |
| Range | Accuracy |
| -20°C ~ 300°C | 2% + 3°C |
| -4°F ~ 572°F | 2% + 6°F |
| AUDIBLE CONTINUITY TESTER |
| Audible Threshold |
| between 10Ω and 120Ω |
