Kusam Meco KM 869 Autoranging True Rms Digital Multimeter

Kusam Meco KM 869 Autoranging True Rms Digital Multimeter

(Based On 10 Reviews)

The Kusam Meco KM 869 is a professional digital multimeter that provides precise electrical measurements. It accurately measures AC voltage and current (True RMS), even on complex signals. It's easy to use with autoranging and is well-suited for industrial, electrical, and HVAC tasks.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 32,800

(GST inclusive price) i
  • Base Value: ₹ 27796.6
  • GST: (18) % ₹ 5003.4
  • Total Value ₹ 32800

₹53,900.00

( - 25% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Beep-JackAudible & Visible Input Warning 19 FUNCTIONS 59 RANGES
  • 41 Segment Analog Bar-graph
  • Relative Zero Mode
  • PC Interface Capability
  • VFD-V & VFD-Hz readings
  • Crest (Instantaneous Peak Hold) function
  • T1-T2 differential Temperature readings.
  • 500,000 counts stable DCV mode
  • %4-20mA Loop current readings.
  • DC Voltage Basic Accuracy 0.02%
  • AC; AC+DC True RMS Conversion AC. AC+DC Voltage Bandwidth upto 100kHz (V) & 10kHz (A)
  • 5-4/5 Digit 500,000 counts large easy to read LCD Dual display with white Backlight
  • Fast Measurements, 5/sec; Fully Auto-Ranging
  • Record MAX, MIN & AVG. Readings
  • MAX & MIN readings & Data Hold Function

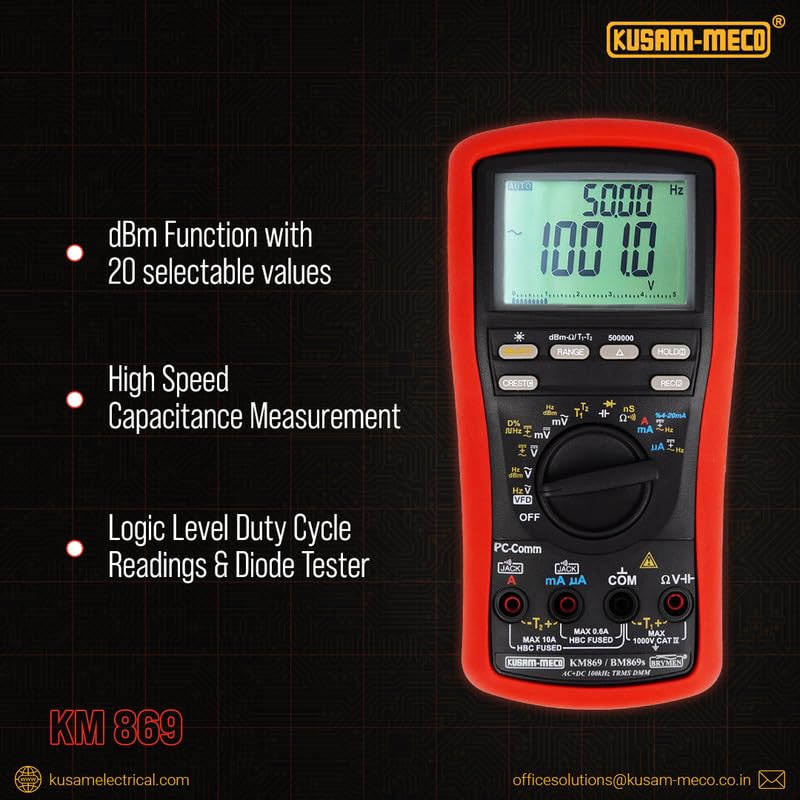

  • dBm function with 20 selectable values
  • High speed Capacitance measurement
  • 1000V General Input Protection
  • Logic & Line Level Frequency
  • Logic Level Duty Cycle Readings & Diode Tester
  • Fast Audible Continuity & Diode tester
  • Auto Power Off



OPTIONAL ACCESSORIES

  • PC interface kit, Bkb32 banana pins to K-type socket
  • plug adaptor & Magnetic Hanger.
  • Current Clamp CA300, Current Clamp Adaptor CA500,CA1000, CA2000, High Voltage Probe PD-28





What's in the box?

  • Kusam Meco KM 869 Autoranging True Rms Digital Multimeter
  • Test lead (pair)
  • Holster
  • Battery installed
  • User Manual
  • Carrying case
  • One BKP60 banana plug type-K Thermocouple.

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

GENERAL

SensingAC, AC+DC True RMS
Display

4-4/5 Digits 50,000 counts fast mode. Selectable stable mode

5-4/5 Digits 500,000 counts for DC Voltage & 5 digits 99,999 counts for Hz

PolarityAutomatic
Update Rate4-4/5 Digits fast mode : 5 per second nominal;
5-4/5 Digits stable mode : 1.25 per second nominal;
41 Segments Bar-graph : 60 per second max
Operating Temperature0°C to 45°C
 Relative HumidityMax. 80% R.H. for Temperature
up to 31°C decreasing linearly to 50% R.H. at 45°C
Pollution degree2
 Storage Temperature-20°C to 60°C, <80% R.H.
(with battery removed)
AltitudeOperating below 2000m
Temperature Coefficientnominal 0.15 x ( specified
accuracy)/°C @ (0C ~ 18°C or 28°C ~ 45°C), or otherwise specified
Power Consumption6.5mA typical; 8mA for VFD ranges
Low BatteryBelow approx 7V
APO TimingIdle for 17 minutes
APO Consumption70mA typical
Power SupplySingle 9V battery
WeightApprox. 635gm with holster
Dimension208(L) x 103(W) x 64.5(H) mm with holster.



ELECTRICAL

DC VOLTAGE
RangeResolutionAccuracy
500.00 mV10 μΑ Â±(0.02%rdg+2dgts)
5.0000 V100 μΑ Â±(0.02%rdg+2dgts)
50.000 V1 mV±(0.03%rdg+2dgts)
500.00 V10 mV±(0.04%rdg+2dgts)
1000.0 V100 mV±(0.15%rdg+2dgts)
AC AC AC, DC & AC+ DC VOLTAGE
RangeResolutionAccuracy
20Hz ~ 45Hz
500.00 mV10 μΑ Â±(1.5%rdg+40dgts)
5.0000 V100 μΑ Â±(1.5%rdg+40dgts)
50.000 V1 mV±(1.5%rdg+40dgts)
500.00 V10 mVUnspec’d
1000.0 V100 mVUnspec’d
DC, 45Hz ~ 300Hz
500.00 mV10 μΑ Â±(0.3%rdg+20dgts)
5.0000 V100 μΑ Â±(0.8%rdg+30dgts)
50.000 V1 mV±(0.8%rdg+30dgts)
500.00 V10 mV±(0.5%rdg+40dgts)
1000.0 V100 mV±(0.5%rdg+40dgts)
300Hz ~ 5kHz
500.00 mV10 μΑ Â±(0.3%rdg+20dgts)
5.0000 V100 μΑ Â±(0.5%rdg+40dgts)
50.000 V1 mV±(0.5%rdg+40dgts)
500.00 V10 mV±(0.5%rdg+40dgts)
1000.0 V100 mV±(0.8%rdg+40dgts)
(300Hz ~ 1kHz)
5kHz ~ 20kHz
500.00 mV10 μΑ Â±(0.5%rdg+30dgts)
5.0000 V100 μΑ Â±(0.8%rdg+40dgts)
50.000 V1 mV±(0.8%rdg+40dgts)
500.00 V10 mV±(0.5%rdg+40dgts)
1000.0 V100 mVUnspec’d
20kHz ~ 100kHz
500.00 mV10 μΑ Â±(2.5%rdg+40dgts)
5.0000 V100 μΑ Â±(4.0%rdg+40dgts)
50.000 V1 mV±(4.0%rdg+40dgts)
500.00 V10 mVUnspec’d
1000.0 V100 mVUnspec’d
DC CURRENT
RangeResolutionAccuracyBurden Voltage
500.00 μΑ 10 nA±(0.15%rdg+20dgts)0.15 mV/mA
5000.0 μΑ 100 nA±(0.1%rdg+20dgts)0.15 mV/mA
50.000 mA1 μΑ Â±(0.15%rdg+20dgts)3.3 mV/mA
500.00 mA10 μΑ Â±(0.15%rdg+30dgts)3.3 mV/mA
5.0000 A100 mA Â±(0.5%rdg+20dgts)45 mV/A
10.000 A1 mA±(0.5%rdg+20dgts)45 mV/A
AC AC AC, DC & AC+DC CURRENT
RangeResolutionAccuracyBurden Voltage
DC, 50Hz ~ 60Hz
500.00 μΑ 10 nA±(0.5%rdg+50dgts)0.15 mV/mA
5000.0 μΑ 100 nA±(0.5%rdg+50dgts)0.15 mV/mA
50.000 mA1 μΑ Â±(0.5%rdg+50dgts)3.3 mV/mA
500.00 mA10 μΑ Â±(0.5%rdg+50dgts)3.3 mV/mA
5.0000 A100 mA Â±(0.5%rdg+50dgts)45 mV/A
10.000 A1 mA±(0.5%rdg+50dgts)45 mV/A
40Hz ~ 1kHz
500.00 μΑ 10 nA±(0.7%rdg+50dgts)0.15 mV/mA
5000.0 μΑ 100 nA±(0.7%rdg+50dgts)0.15 mV/mA
50.000 mA1 μΑ Â±(0.7%rdg+50dgts)3.3 mV/mA
500.00 mA10 μΑ Â±(0.7%rdg+50dgts)3.3 mV/mA
5.0000 A100 mA Â±(0.7%rdg+50dgts)45 mV/A
10.000 A1 mA±(0.7%rdg+50dgts)45 mV/A
1kHz ~ 10kHz
500.00 μΑ 10 nA±(2.0%rdg+50dgts)0.15 mV/mA
5000.0 μΑ 100 nA±(2.0%rdg+50dgts)0.15 mV/mA
50.000 mA1 μΑ Â±(2.0%rdg+50dgts)3.3 mV/mA
500.00 mA10 μΑ Â±(2.0%rdg+50dgts)3.3 mV/mA
5.0000 A100 mA Unspec’d45 mV/A
10.000 A1 mAUnspec’d45 mV/A
~Hz LINE LEVEL FREQUENCY
AC Function RangeSensitivity (Sine RMS)Range
500 mV100 mV10Hz ~ 200kHz
5 V0.5 V10Hz ~ 200kHz
50 V5 V10Hz ~ 100kHz
500 V50 V10Hz ~ 100kHz
1000 V500 V10Hz ~ 10kHz
VFD 5 V0. 5V ~ 2 V*10Hz ~ 440Hz
VFD 50 V5V ~ 20 V*10Hz ~ 440Hz
VFD 500 V50V ~ 200V*10Hz ~ 440Hz
500 mA50 mA10Hz ~ 10kHz
5000 mA500 mA10Hz ~ 10kHz
50 mA5 mA10Hz ~ 10kHz
500 mA50 mA10Hz ~ 10kHz
5 A1 A10Hz ~ 3kHz
10 A10 A10Hz ~ 3kHz
VFD AC VOLTAGE
RangeResolutionAccuracy
5Hz~20Hz
5.0000 V100 mV±(3%rdg+80dgts)
50.000 V1 mV±(3%rdg+80dgts)
500.00 V10 mV±(3%rdg+80dgts)
1000.0 V100 mV±(3%rdg+80dgts)
20Hz~200Hz
5.0000 V100 mV±(2%rdg+50dgts)
50.000 V1 mV±(2%rdg+50dgts)
500.00 V10 mV±(2%rdg+50dgts)
1000.0 V100 mV±(2%rdg+50dgts)
200Hz~440Hz
5.0000 V100 mV±(6%rdg+80dgts)
50.000 V1 mV±(6%rdg+80dgts)
500.00 V10 mV±(6%rdg+80dgts)
1000.0 V100 mV±(6%rdg+80dgts)
OHMS
RangeResolutionAccuracy
500.00 Ω10 mΩ±(0.07%rdg+10dgts)
5.0000 kΩ100 mΩ±(0.07%rdg+2dgts)
50.000 kΩ1 Ω±(0.1%rdg+2dgts)
500.00 kΩ10 Ω±(0.1%rdg+2dgts)
5.0000 MΩ100 Ω±(0.3%rdg+6dgts)
50.000 MΩ1 kΩ±(2.0%rdg+6dgts)
99.99 nS0.01 nS±(2.0%rdg+10dgts)
CAPACITANCE
RangeResolutionAccuracy
50.00 nF10 pF±(0.8%rdg+3dgts)
500.0 nF100 pF±(0.8%rdg+3dgts)
5.000 mF1 nF±(1.5%rdg+3dgts)
50.00 mF10 nF±(2.5%rdg+3dgts)
500.0 mF100 nF±(3.5%rdg+3dgts)
5.000 mF1 mF±(5.0%rdg+5dgts)
25.00 mF10 mF±(6.5%rdg+5dgts)
AUDIBLE CONTINUITY TESTER
Audible thresholdbetween 20W and 200W
Response time<100ms
DIODE TESTER
Range2.0000V
Accuracy1% + 1d
Test Current (Typical)0.4mA
Open Circuit Voltage<3.5V DC
Hz LOGIC LEVEL FREQUENCY
RangeAccuracy
5.000Hz ~ 1.0000MHz0.002% + 4d
T1-T2 DUAL TYPE-K TEMPERATURE
RangeAccuracy
-50.0C to 1000.0C0.3% + 1.5
-58.0F to 1832.0F0.3% + 3.0F °C
