Metravi Pro Solar-5 TRMS AC/DC Clamp Meter
Click To Zoom
Metravi Pro Solar-5 TRMS AC/DC Clamp Meter
Metravi Pro Solar-5 TRMS AC/DC Clamp Meter
4000 Counts, 3 3/4 digits, Backlit LCD. Jaw Opening 35mm. TRMS 1000A AC, DC 1000A, TRMS 1000V AC, 1500V DC, Frequency, Resistance, Capacitance, NCV, LPF, Diode, Continuity Test. Automatic Polarity, Data Hold,Min/Max, Zero, Flashlight. Overload Protection. CAT IV 1000V. Made in Germany.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
₹ 9,029.00
(GST inclusive price) i₹12,150.00
( - 26% OFF )
Description

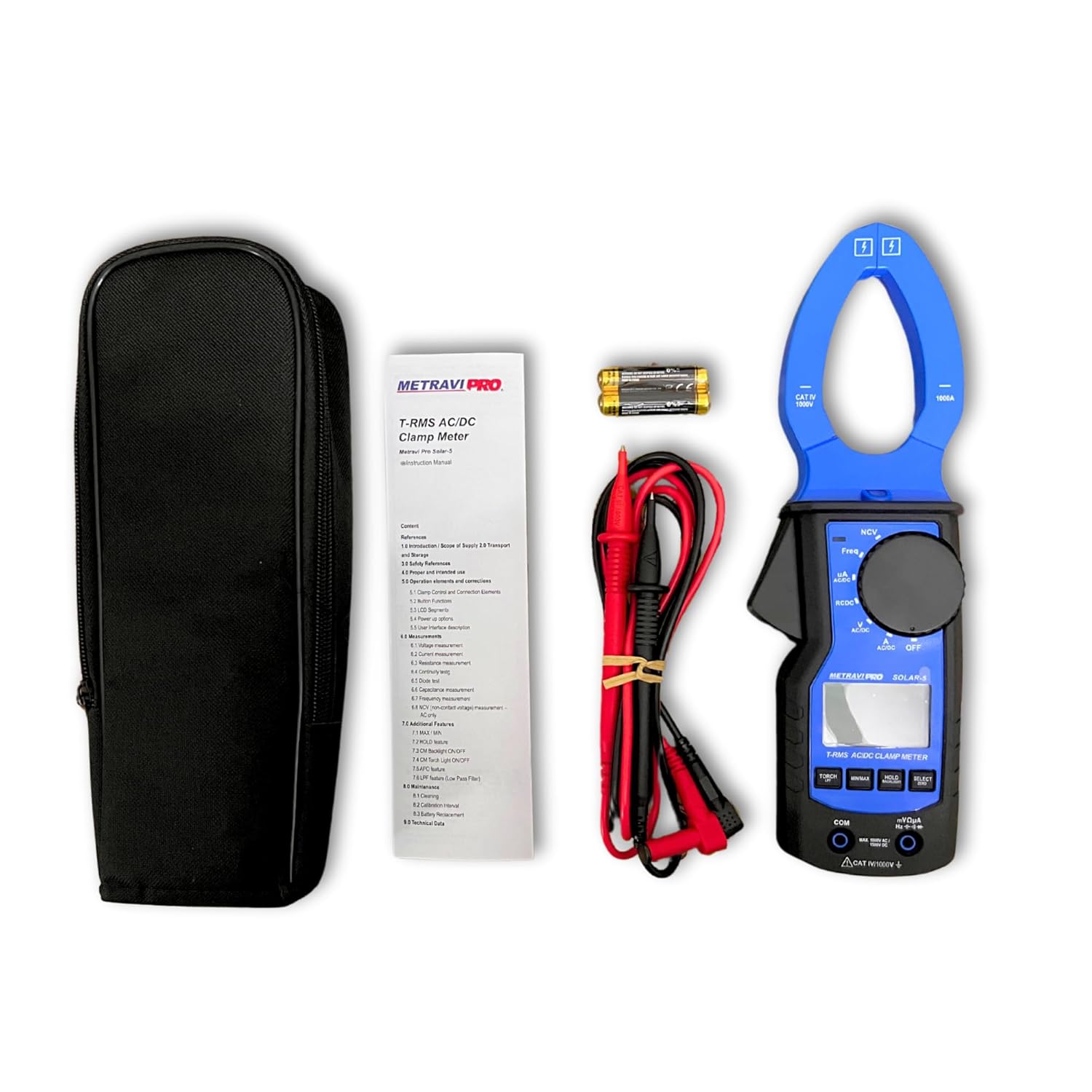

What's in the box?
|
Rating & Reviews
Rating
| Display | 3-3/4 digit, 4000 Counts LCD |
| Polarity display | Automatic |
| Battery status display | Empty battery symbol appears (<2.5V) |
| Measurement category | CAT IV 1000V |
| Pollution degree | 2 |
| Power supply | Batteries, 2 x 1.5V, AAA |
| Dimensions | Approx. 255 x 81 x 43 mm |
| Weight | Approx. 300 g (without batteries) |
| Zero Function | Yes |
| Operating Temperature | 0 to 50°C (0-80% rel. humidity) |
| Storage Temperature | -10 to 60°C (0-80%RH) (without batteries) |
| Height above sea level | Up to 2000 m |
| Overload Protection | Yes |
| Flashlight | Bright white LED built-in |
| NCV | Yes (Non-contact Voltage Detection) |
| LPF | Yes (Low Pass Filter), 3dB freq. 1kHz |
| Auto Power Off | Yes |
| Data Hold | Yes |
| DC Current (Jaws) | |
| Range | Accuracy |
| 40A | ±(2% of meas. val. + 5 digits) |
| 350A | |
| 1000A | |
| DC Current (Jacks) | |
| Range | Accuracy |
| 400uA | ±(1.5% of meas. val. + 5 digits) |
| AC Current (Jaws) | |
| Range | Accuracy |
| 40A | ±(2% of meas. val. + 5 digits) |
| 350A | |
| 1000A | |
| AC Current (Jacks) | |
| Range | Accuracy |
| 400 uA | ±(1.5% of meas. val. + 5 digits) |
| DC Voltage | |
| Range | Accuracy |
| 400 m | ±(1.5% of meas. val. + 5 dgts) |
| 4 V | ±(1% of meas. val. + 3 digits) |
| 40 V | |
| 400 V | |
| 1500 V | ±(1% of meas. val. + 3 digits) |
| AC Voltage | |
| Range | Accuracy |
| 400 m | ±(1.5% of meas. val. + 5 dgts) |
| 4 V | ±(1% of meas. val. + 5 digits)
|
| 40 V | |
| 400 V | |
| 1500 V | |
| Resistance | |
| Range | Accuracy |
| 400 Ω | ±(1.5% of meas. val. + 3 dgts) |
| 4 kΩ | |
| 40 kΩ | |
| 400 kΩ | |
| 4 MΩ | |
| 40 MΩ | |
| Capacitance | |
| Range | Accuracy |
| 51.2nF | ±10% typically |
| 512.0nF | ±(1.5% of measurement val. + 5 digits) |
| 5.120uF | ±10% typically |
| 51.2uF | |
| 100uF | |
| Frequency | |
| Range | Accuracy |
| 5.000 Hz | ± 0.1% + 1D |
| 50.00 Hz | |
| 500.0 Hz | |
| 5.000 kHz | |
| 50.00 kHz | |
| 500.00 kHz | |
| 5.000 MHz | |
| Feature | Range |
| Continuity Buzzer Switching Point | <10-15 Ω |
| Diode Test | 0-1 V |
