Metravi OM-40 Handheld Oscilloscope
Click To Zoom
Metravi OM-40 Handheld Oscilloscope
Metravi OM-40 Handheld Oscilloscope

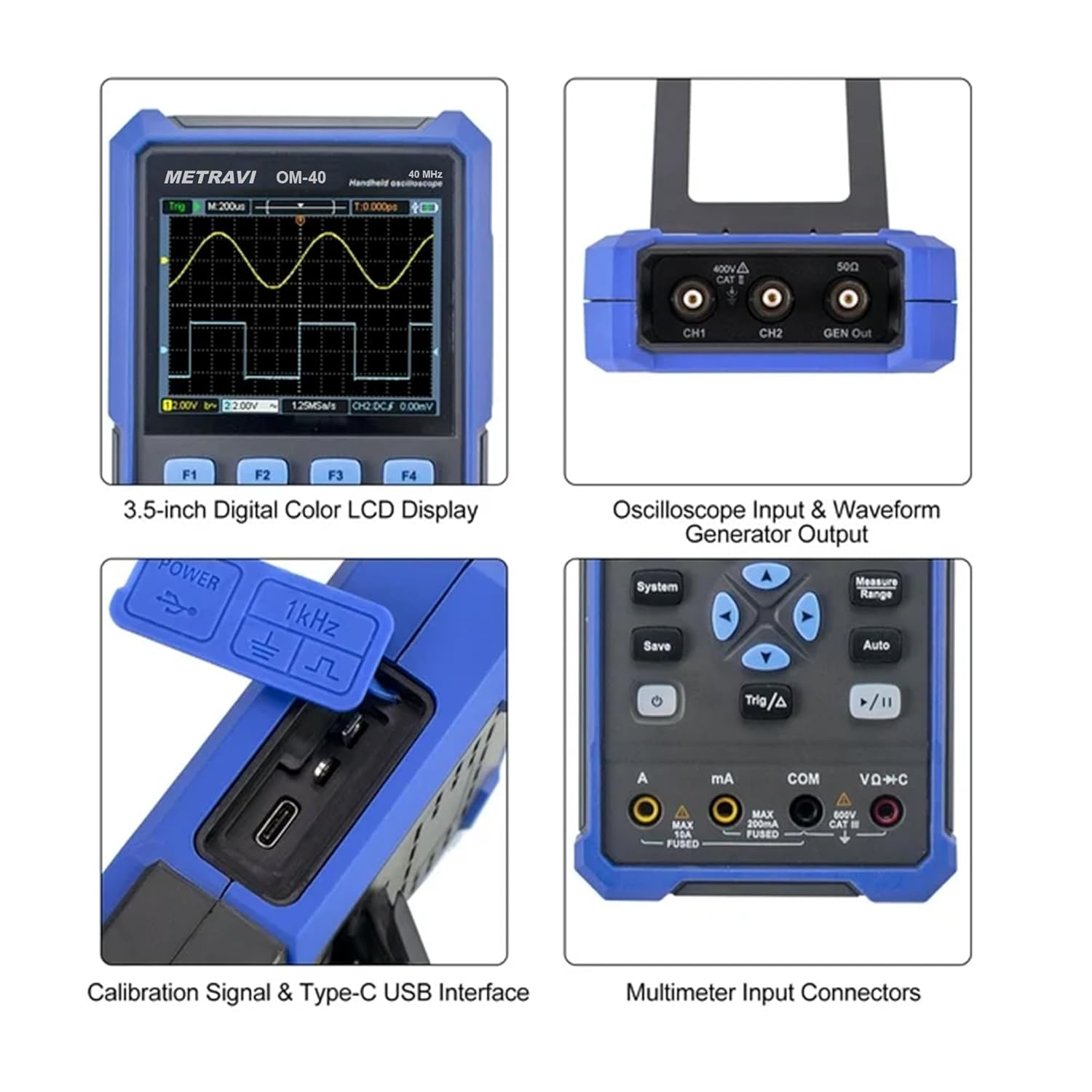

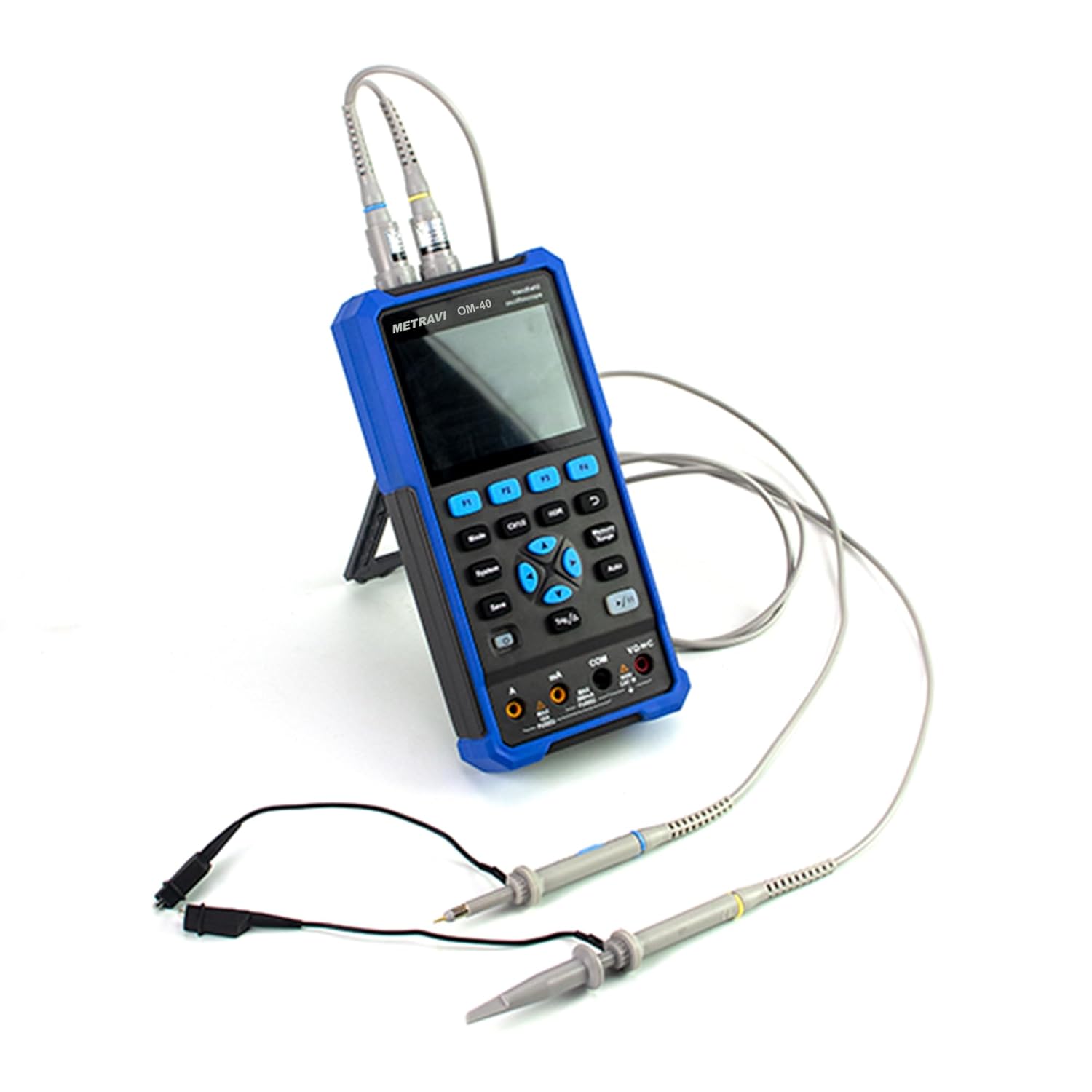

Handheld Oscilloscope, 40 Mhz bandwidth, 250MSa/s Sampling Rate, offers simultaneous monitoring and comparison of two signals, clear & vibrant display, with built-in Multimeter, Data Logging, 1X, 10X, 100X, 1000X, 10000X Probe Attentuation, USB Interface.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 18,049.00
(GST inclusive price) i₹24,300.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| DISPLAY | |
| Type | 3.5-inch color LCD display |
| Resolution | 320 horizontal × 240 vertical pixels |
| Colour | 65536 colors |
| Contrast | Adjustable |
| POWER SUPPLY | |
| Power Supply | 100 - 240 VACRMS, 50/60 Hz, CAT Ⅱ DC INPUT: 5VDC, 2A |
| Power Consumption | <5W |
| Battery | 2200mAh*2（3.7V,18650） |
| ENVIRONMENT | |
| Operating Temperature | Working temperature: 0° to 40°C |
| Storage Temperature | Storage temperature: -20°C to 60°C |
| Humidity | ≤90% |
| Height | Operating: 3,000 meters; Non-operating: 15,000 meters |
| Cooling Method Natural cooling | Natural cooling |
| MECHANICAL SPECIFICATIONS | |

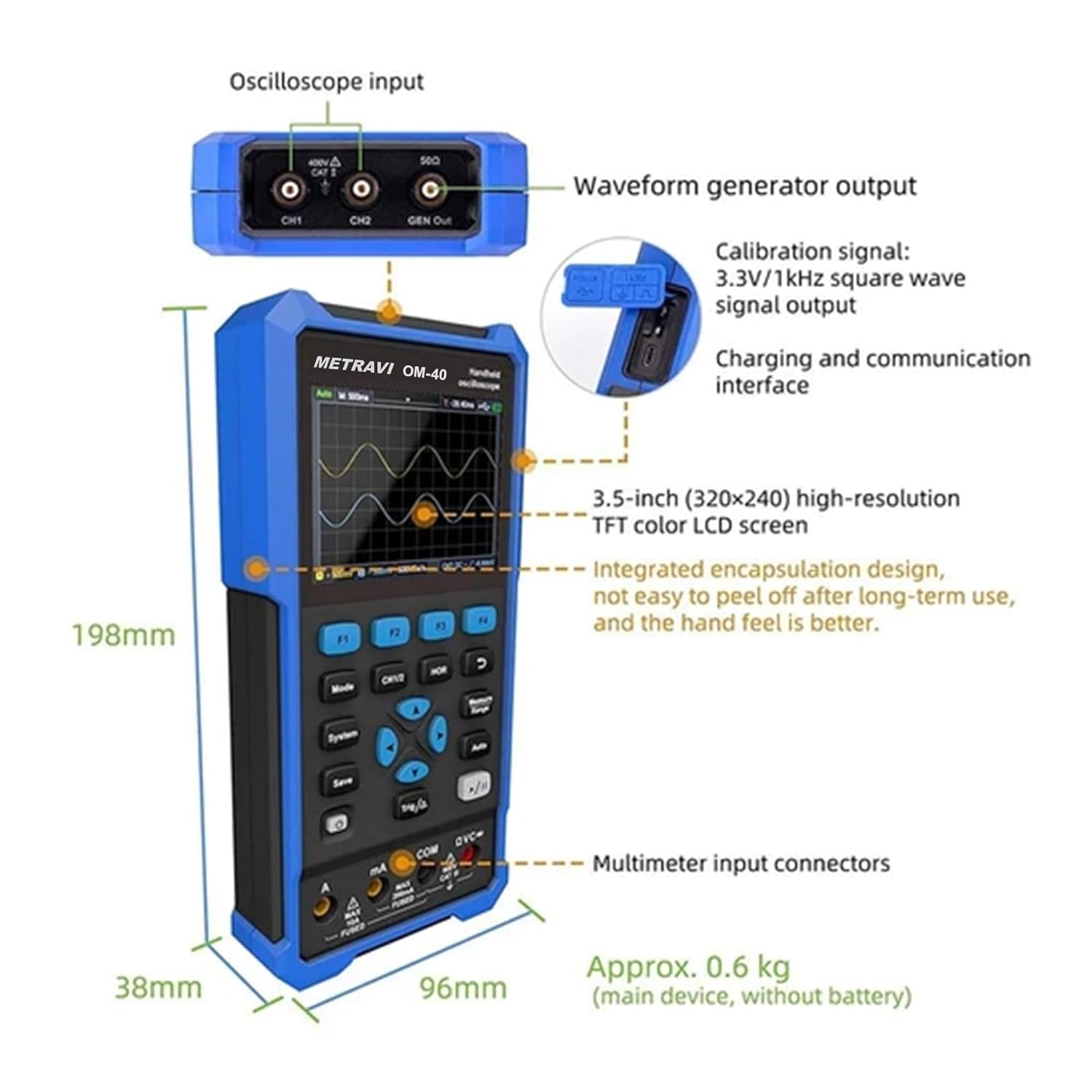

| Dimensions | 198 mm (length) × 96mm (height) × 38 mm (width) |
| Weight | About 0.6 kg (main unit, without battery) |
| CALIBRATION | |
| Calibration Interval | Recommended calibration interval is one year |
| Bandwidth | 40MHz |
| Channels | 2-CH Oscilloscope |
| Sample Rate | 250MSa/s |
| Acquisition Model | Normal, Peak detect |
| Record Length | 8K |
| Display | 3.5-inch LCD |
| Waveform Refresh Rate | 10,000 wfrms/s |
| Input Coupling | DC, AC and Ground |
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF |
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X |
| Max. Input Voltage | 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) |
| Bandwidth Limit (Typical) | 20MHz |
| Horizontal Scale | 5ns/div - 1000s/div, step by 1-2-5 |
| Vertical Sensitivity | 10mV/div - 10V/div |
| Vertical Resolution | 8 bits |
| Trigger Type | Edge |
| Trigger Modes | Auto, Normal, Single |
| Automatic Measurement | Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
| Cursor Measurement | ΔV, ΔT, ΔT & ΔV between cursors |
| Communication Interface | USB Type-C |
| MULTIMETER | |
| Max. Resolution | 20,000 counts |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode and Continuity test |
| Input Impedance | 10MΩ |
| Max Input Voltage | AC 750V, DC 1000V |
| Max Input Current | DC:10A AC:10A |
| Diode | 0-2V |
| DC Current | ||
| Range | Min. Resolution | Accuracy |
| 200.00mA | 0.01mA | ±(0.8%+10 dig) |
| 10.000A | 1mA | ±(2.5%+10 dig) |
| AC Current | ||
| Range | Min. Resolution | Accuracy |
| 200.00mA | 0.01mA | ±(1%+10 dig) |
| 10.000A | 1mA | ±(2.8%+10 dig) |
| DC Voltage | ||
| Range | Min. Resolution | Accuracy |
| 200.00mV | 0.01mV | ±(0.3%+10 dig) |
| 2.0000V | 0.1mV | ±(0.3%+5 dig) |
| 20.000V | 1mV | |
| 200.00V | 0.01V | |
| 1000.0V | 0.1V | |
| AC Voltage | ||
| Range | Min. Resolution | Accuracy |
| 200.00mV | 0.01mV | ±(0.8%+10 dig) |
| 2.0000V | 0.1mV | ±(1%+10 dig) |
| 20.000V | 1mV | |
| 200.00V | 0.01V | |
| 750.0V | 0.1V | |
| Resistance | ||
| Range | Min. Resolution | Accuracy |
| 200.00Ω | 0.01Ω | ±(0.8%+10 dig) |
| 2.0000kΩ | 0.1Ω | ±(0.8%+5 dig) |
| 20.000kΩ | 1Ω | ±(0.8%+3 dig) |
| 200.00kΩ | 10Ω | |
| 2.0000MΩ | 0.1kΩ | |
| 20.000MΩ | 1kΩ | ±(1%+3 dig) |
| 100.00MΩ | 0.01MΩ | ±(1%+3 dig) |
| Capacitance | ||
| Range | Min. Resolution | Accuracy |
| 20.000nF | 1pF | ±(3.0%+10 dig) |
| 200.00nF | 10pF | |
| 2.0000µF | 0.1nF | |
| 20.000µF | 1nF | |
| 200.00µF | 10nF | |
| 2.0000mF | 0.1uF | |
| Others | |
| Range | Min. Resolution |
| On/Off Test | ✔ (<50Ω) |
| Diode Test | ✔ (<0-2V) |
| Auto Range | ✔ |
| TRMS | ✔ |
