Metravi PRO TTRS-1 Transformer Turns Ratio Tester
Click To Zoom
Metravi PRO TTRS-1 Transformer Turns Ratio Tester
Metravi PRO TTRS-1 Transformer Turns Ratio Tester
Transformer Turns Ratio Set with Software & App for Data Transfer. Measure actual transformer ratio 0.9~10000 & group test. Monitoring software, test line, communication line, with Rechargeable Battery, full colour large LCD Touchscreen display, port anti-overload function, Data Logging for 500 sets. CAT Ⅲ 600V.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 1,30,390
(GST inclusive price) i-
Base Value: ₹ 110500
-
GST: (18) % ₹ 19890
-
Total Value ₹ 130390
₹1,75,500.00
( - 26% OFF )
Description
Key Features

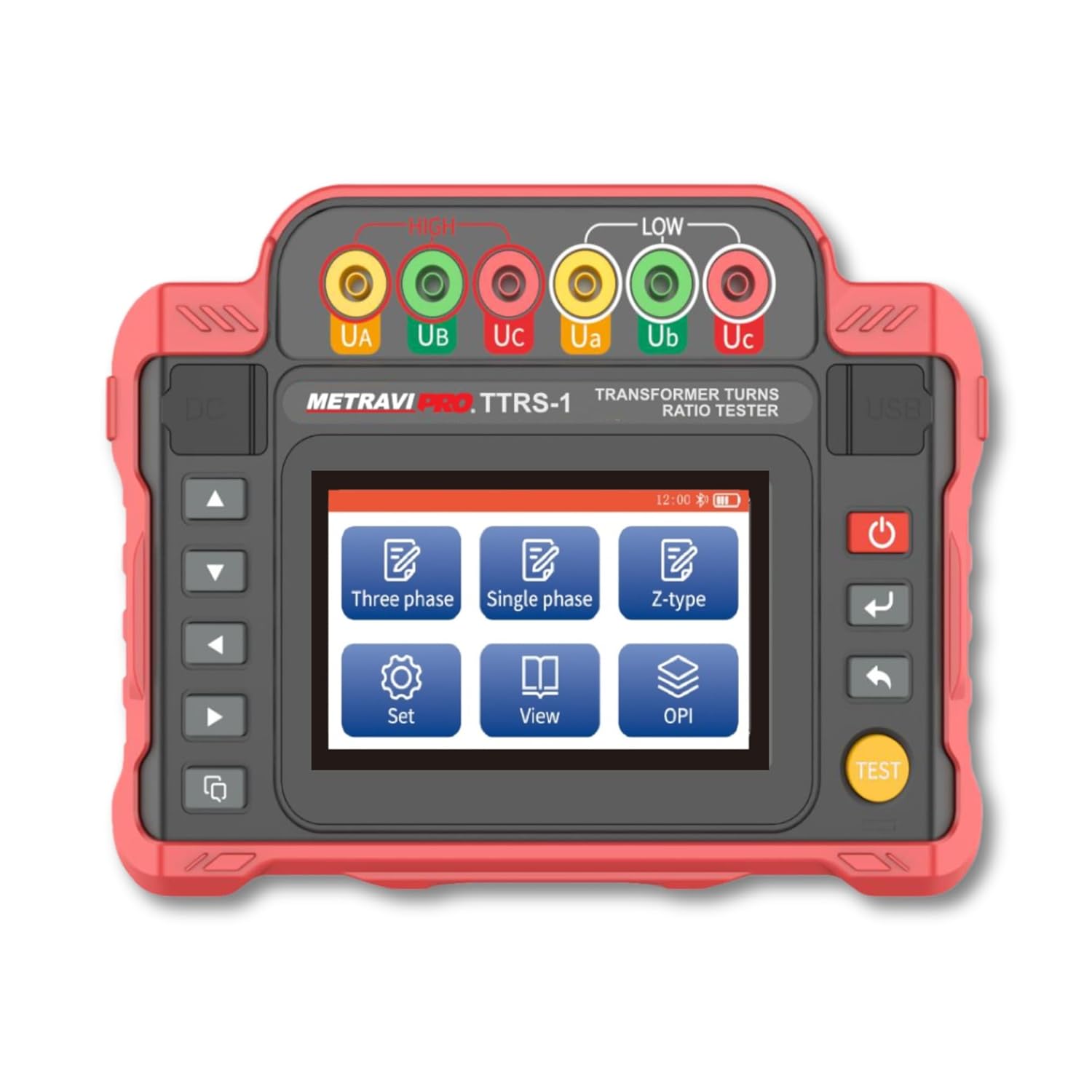

- Various test modes: single-phase test, three-phase test, three-phase blind test, Z-type test
- Large capacity storage: It can store 500 sets of test data
- Wide measurement range: variable ratio 0.9~10000
- Measurement accuracy: 0.2% when the variable ratio is 0.9 to 2000, and 0.5% from 2000 to 10000
- Max. resolution: 0.0001
- Support for computer-side control
- Support for Bluetooth control

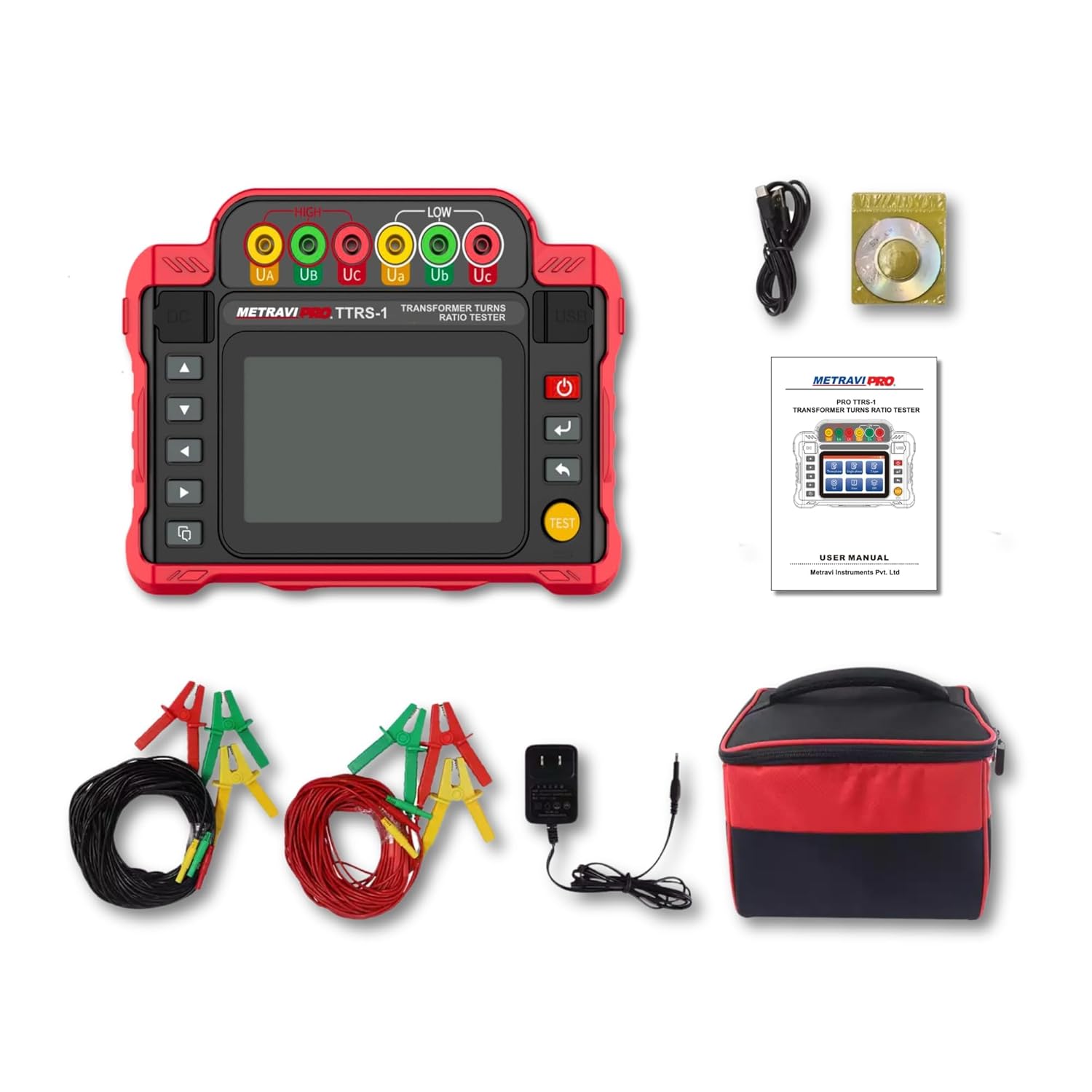

What's in the box?
|
Rating & Reviews
Rating
| Function | It is mainly used for transformer ratio and group test of three-phase transformer, transformer ratio and polarity test of single-phase transformer, PT and CT. This product can conduct blind test of three-phase transformer and change ratio and group test of Z-type transformer. |
| Type of test product | Single-phase transformer, three-phase transformer, Z-type transformer, PT, CT |
| Variable ratio range | 0.9~10000 |
| Overload protection | Yes |
| Power | DC9.6V 3800mAh Large capacity lithium battery |
| Charging function | Yes |

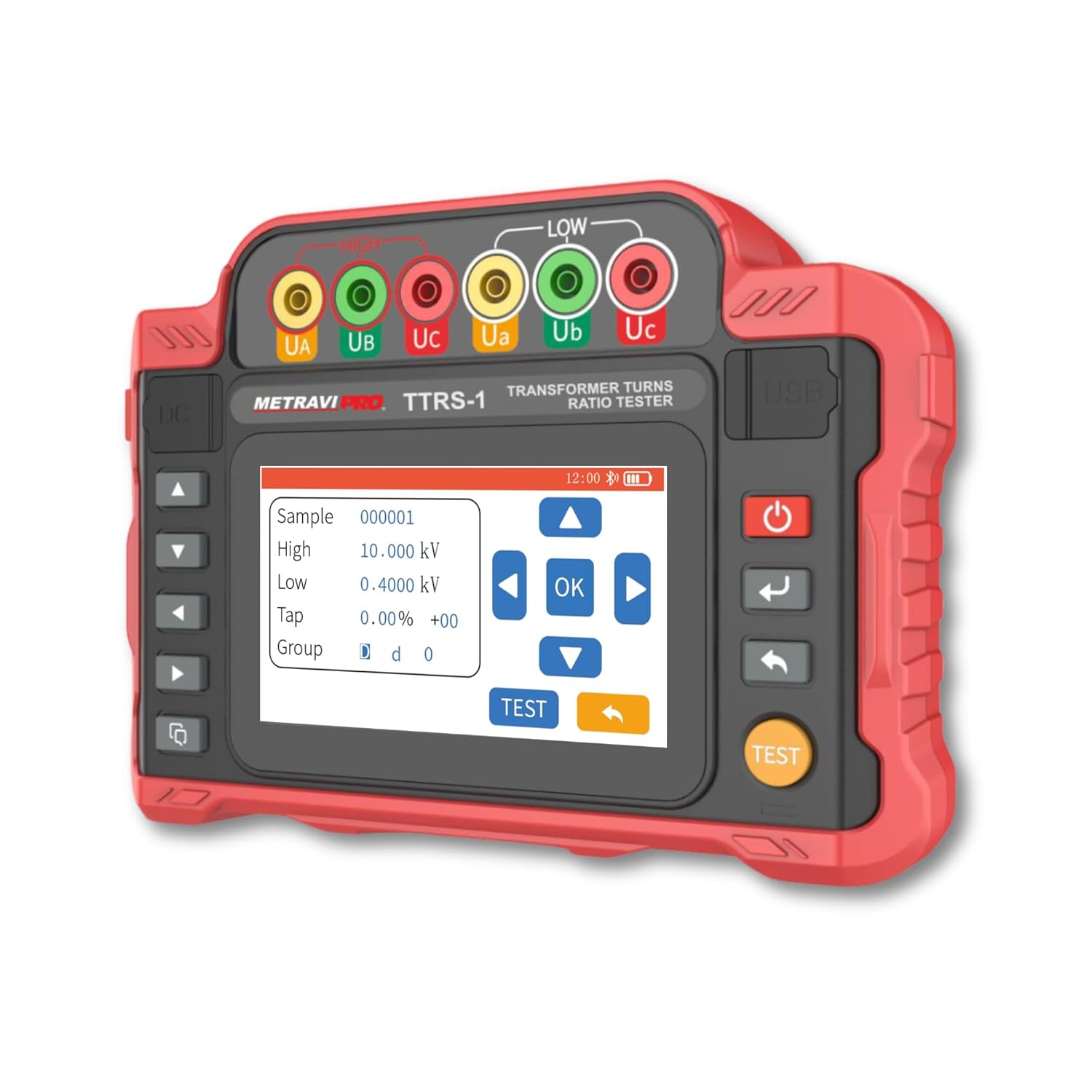

| Display mode | 5-inch touchscreen (854dots 480dots) full-colour LCD display |
| Interactive mode | Touch screen / button |
| LCD size | Length /width：108 mm×65mm |
| Instrument size | Length, width and height：229mm×166mm×74mm |
| Mobile APP | Yes, Bluetooth connection |
| Computer connect | Yes, the USB cable connection |
| Data storage | 500s ets |
| Data access | Data access function |
| Battery voltage | Real-time display of battery power indicates that the battery should be charged in time when the voltage is low |
| Auto shut off | Automatic shutdown can be set for 1 to 30 minutes |
| Power dissipation | Standby: about 2W (100% brightness) |
| Measured at: 12W Max | |
| Weight | Instrument: 1.5kg (including battery) |
| Test cables: 1.7kg | |
| Working temperature and humidity | -10°C～40°C；below 70%RH |
| Store temperature and humidity | -20°C～60°C；below 70%RH |
| Insulation resistance | Above 10 MΩ (500V between circuit and housing) |
| Withstand voltage | AC 3700V / rms (between circuit and enclosure) |
| Electromagnetic characteristics | IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m |
| Suitable for safety regulations | IEC61010-1、CAT Ⅲ 600V、Pollution grade 2 |
