Metravi DT-3250A Digital TRMS AC/DC Clamp Meter
Click To Zoom

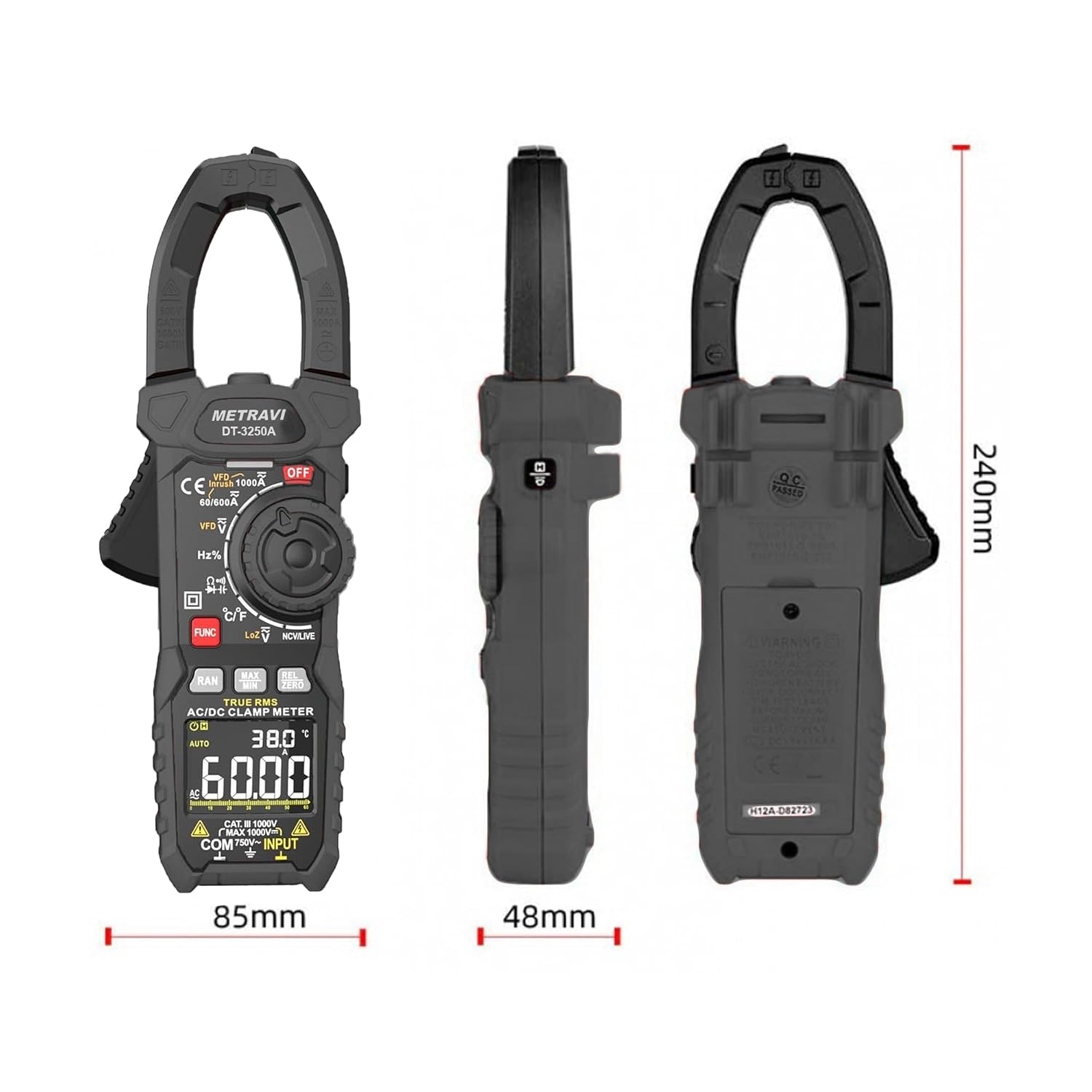

Metravi DT-3250A Digital TRMS AC/DC Clamp Meter
Metravi DT-3250A Digital TRMS AC/DC Clamp Meter

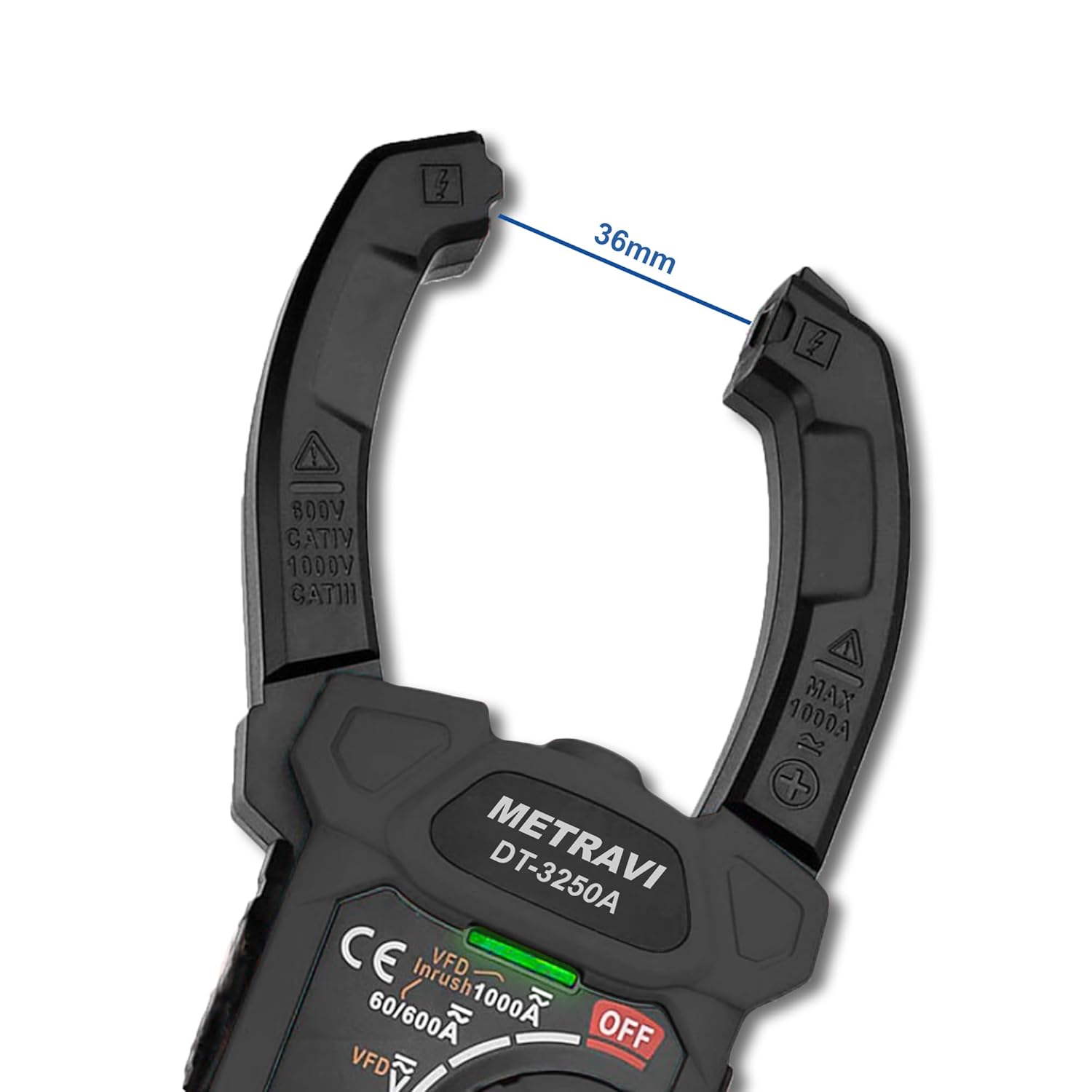

6000 Counts, Backlit LCD, Dual impedance, TRMS, 1000V DC, 750V AC, VFD Voltage, 1000A AC/DC, VFD Current, Frequency, Duty Ratio, Resistance 60MΩ, Capacitance 100mF, Temperature, Diode & Continuity Test, NCV, Inrush Current, 40mm Jaw, Auto Range mode, Live Line detection, High Input Impedance Voltage, Low Input Impedance Voltage (LoZ), Zero/REL, CAT III 1000V, CAT IV 600V, Auto power-off.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 5,199.00
(GST inclusive price) i₹7,020.00
( - 26% OFF )
Description

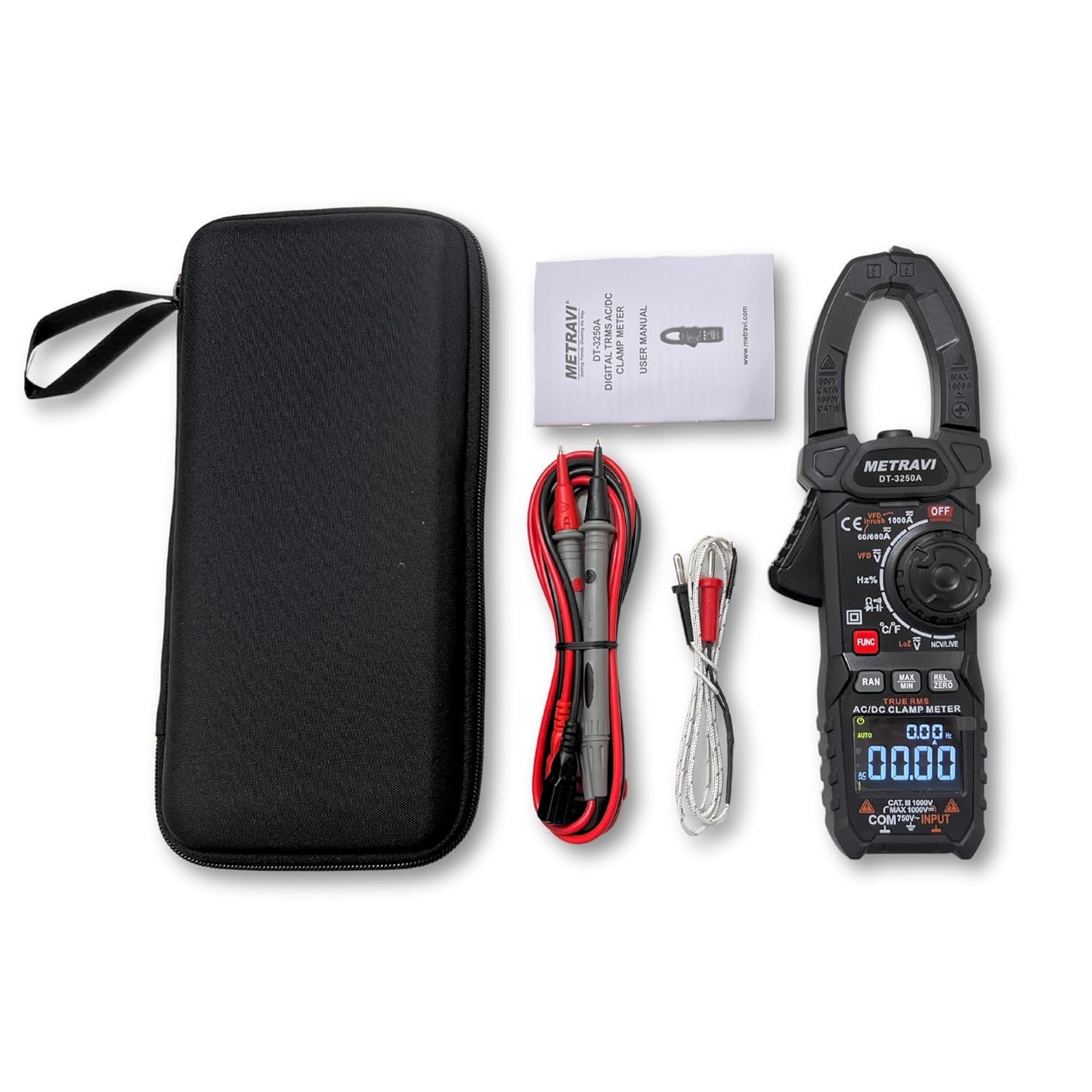

What's in the box?
|
Rating & Reviews
Rating
| DC CURRENT | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ± (2.5%reading+8) |
| 600A | 0.1A | |
| 1000A | 1A | |
| AC CURRENT (T-RMS) | ||
| Range | Resolution | Accuracy |
| 60A | 0.01A | ±(2.5%reading+8) VFD: ±(5.0% reading+10) INRUSH: ±(5.0% reading+10) |
| 600A | 0.1A | |
| 1000A | 1A | |
| DC VOLTAGE | ||
| Range | Resolution | Accuracy |
| 60mV | 0.01mV | ± (0.5%reading+5) |
| 6V | 0.001V | |
| 60V | 0.01V | |
| 600V | 0.1V | |
| 1000V | 1V | ± (0.8%reading+5) |
| AC VOLTAGE (T-RMS) | ||
| Range | Resolution | Accuracy |
| 60mV | 0.01mV | ± (0.8%reading+5) |
| 6V | 0.001V | |
| 60A | 0.01V | |
| 600A | 0.1V | |
| 750V | 1V | ± (1.0%reading+5) |
| VFD(750V) | 0.1V | ± (2.0%reading+5) |
| RESISTANCE | ||
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ± (1.0%reading+5) |
| 6kΩ | 0.001kΩ | |
| 60kΩ | 0.01kΩ | |
| 600kΩ | 0.1kΩ | |
| 6MΩ | 0.001MΩ | |
| 60MΩ | 0.01MΩ | |
| CAPACITANCE | ||
| Range | Resolution | Accuracy |
| 10nF | 0.001nF | ± (4.0%reading+5) |
| 100nF | 0.01nF | |
| 1000nF | 0.1nF | |
| 10μF | 0.001μF | |
| 100μF | 0.01μF | ± (5.0%reading+10) |
| 1000μF | 0.1μF | |
| 10mF | 0.001mF | |
| 100mF | 0.01mF | |
| FREQUENCY/DUTY | ||
| Range | Resolution | Accuracy |
| 10Hz | 0.001Hz | ± (1.0%reading+3) |
| 100Hz | 0.01Hz | |
| 1000Hz | 0.1Hz | |
| 10KHz | 0.001KHz | |
| 100KHz | 0.01KHz | ± (3.0%reading+3) |
| 1000KHz | 0.1KHz | |
| 10MHz | 0.001MHz | |
| 1~99% | 0.1% | |
| TEMPERATURE | |||
| Resolution | Range | Accuracy | |
| °C | 1°C | -20°C~ 0°C | ± 3°C |
| 0°C ~ 400°C | ± 1.0% or ± 2°C | ||
| 400°C ~ 1000°C | ± 2.0% | ||
| °F | 1°F | -4°F~ 32°F | ± 6°F |
| 32°F~ 752°F | ± 1.0% or ± 4°F | ||
| 752°F~ 1832°F | ± 2.0% | ||
