Metravi BT-900

Metravi BT-900
Metravi BT-900
Metravi BT-900
Metravi BT-900

Click To Zoom

Metravi BT-900

Metravi BT-900

(Based On 10 Reviews)

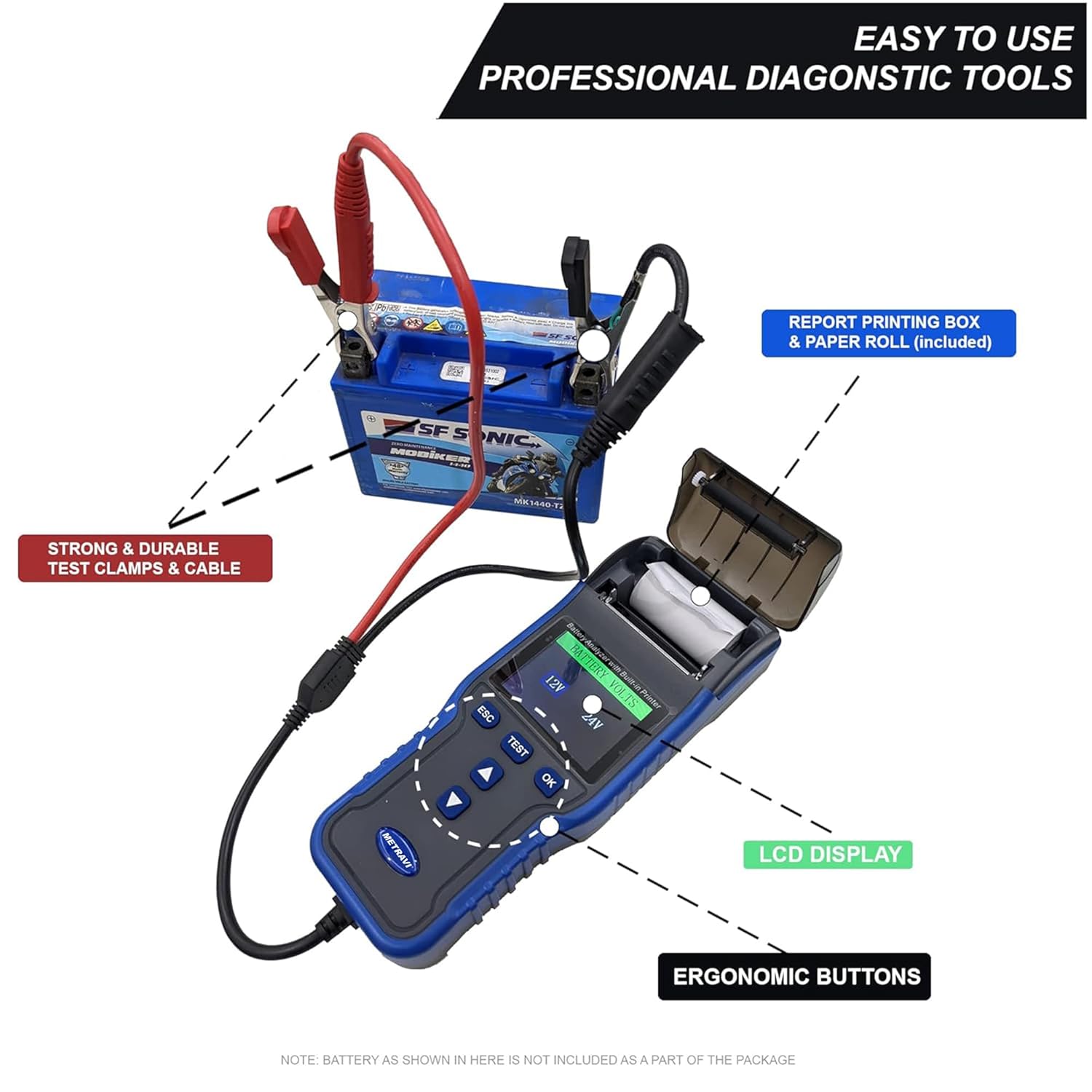

The Metravi BT-900 Battery Analyser with built-in Printer is suitable tools for testing the performance of Starting Automotive Battery (AGM/EFB) lead-acid battery, vehicle start process, charging process and power load process.The product is well designed and easy to operate. The instrument uses a high definition LCD screen with backlight, The test process is simple and the results are clear and intuitive. Test results can be instantly  printed using the built-in thermal printer.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL Products
100% ORIGINAL Products Details

100% ORIGINAL Products

SECURE Payments
SECURE Payments Details

SECURE Payments

₹ 9,430.00

(GST inclusive price) i
  • Base Value: ₹ 7991.5
  • GST: (18) % ₹ 1438.5
  • Total Value ₹ 9430

₹9,430.00

( - 0% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key features



  • Battery Voltage: 12V / 24V
  • Display: 16 bit Colour LCD
  • AGM/EFB Battery Start/Stop Test: Available
  • Real Time Voltage Waveform Test: Available
  • Measuring Range: 100CCA – 2000CCA
  • Operating Battery Capacity: 3Ah – 220Ah
  • Accuracy: ±5%
  • Measurement Mode: 4 Wire Kelvin Test Principle
  • Operating Voltage: 9V – 35V
  • Line Protection: Clamping the incorrect battery terminal will not burn the meter
  • Battery-Test: Voltage. Internal Resistance. Cold Start Current. SOC. HOC
  • Start-Load: Vehicle Starting Load Voltage Test
  • Run-Load: Battery Maximum Load Voltage Test
  • Charge-Sys: Vehicle to Battery Charging Voltage Test
  • Power: Powered by the battery under test
  • Operating Temperature: -20° to 60°C (-4° to 140°F)
  • Printer Paper: Thermal 30x57mm
  • Print Report: Can input License Plate Number VIN ID, Time and Date
  • Cold Starting Current Measurement Range: 100-2000




What's in the box?

  • Metravi BT-900

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

TECHNICAL SPECIFICATIONS
Display

16 bit Colour LCD

AGM/EFB Battery Start/Stop Test

Available

Real Time Voltage Waveform Test

Available

Measuring Range

100CCA – 2000CCA

Accuracy

≤±5%

Measurement Mode

4 Wire Kelvin Test Principle

Operating Voltage

9V – 35V

Line Protection

Clamping the incorrect battery terminal will not burn the meter

Battery-Test

Voltage. Internal Resistance. Cold Start Current. SOC. HOC

Start-Load

Vehicle Starting Load Voltage Test

Run-Load

Battery Maximum Load Voltage Test

Charge-Sys

Vehicle to Battery Charging Voltage Test

Power

Powered by the battery under test

Printer Paper

Thermal 30x57mm

Print Report

Can input License Plate Number, VIN ID, Time and Date

Operating Battery Capacity

3Ah – 220Ah
