Metravi BT-200 Battery Analyser
Click To Zoom
Metravi BT-200 Battery Analyser
Metravi BT-200 Battery Analyser

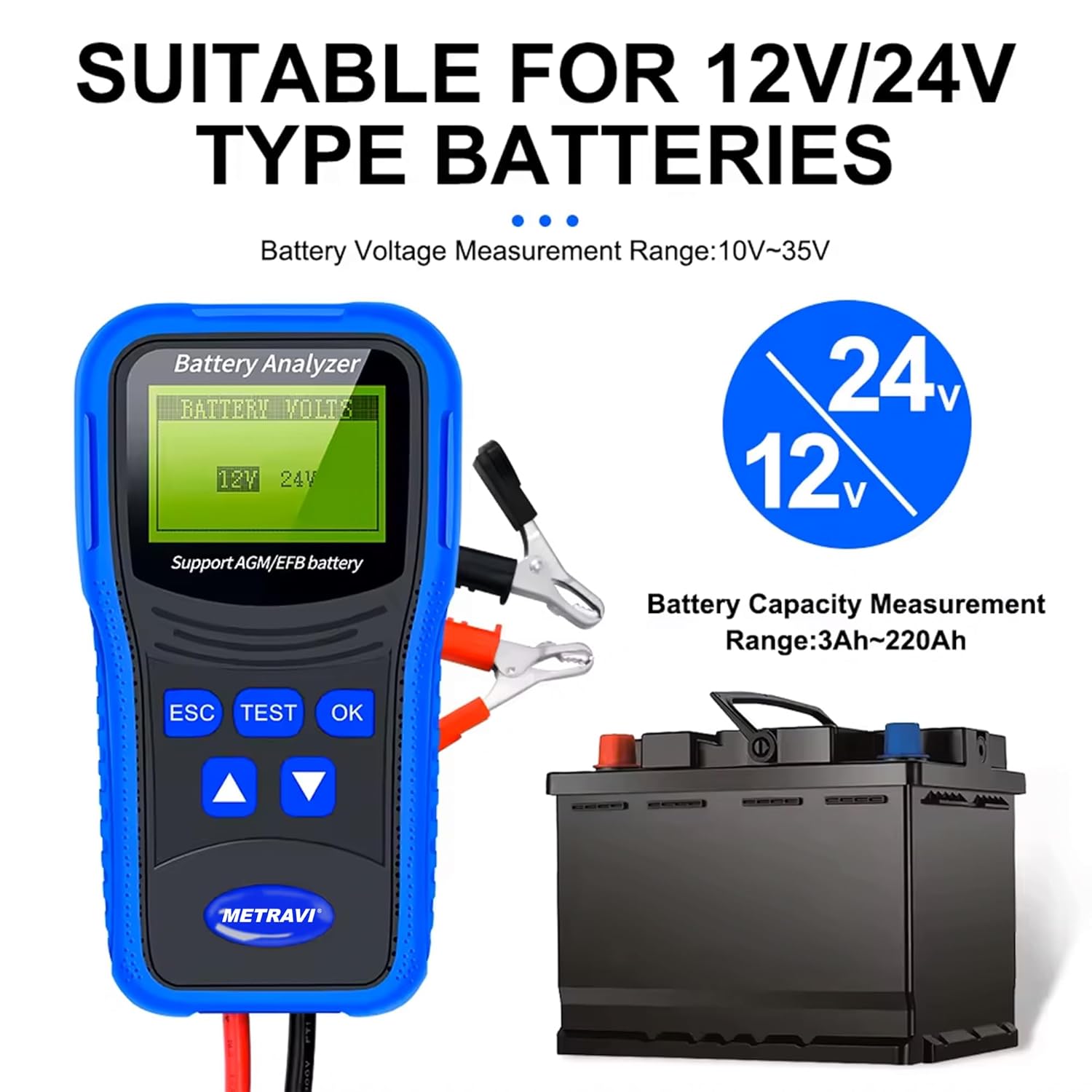

The Metravi BT-200 Battery Analyser is suitable tools for testing the performance of Starting Automotive Battery (AGM|EFB) lead-acid battery, vehicle start process, charging process and power load process.The product is well designed and easy to operate. The instrument uses a backlit LCD screen. The test process is simple and the results are clear and intuitive. It adopts a four-wire kelvin test connection test and is designed with protection measures for various incorrect operations, such as incorrect connection of input signal line input voltage overload and bad contact of test clamp etc., to ensure and convenient operations.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 2,310
(GST inclusive price) i-
Base Value: ₹ 1957.6
-
GST: (18) % ₹ 352.4
-
Total Value ₹ 2310
₹3,308.00
( - 30% OFF )
Description
Key Features
- Battery Voltage: 12V / 24V
- Display: Lattice Screen Backlit LCD
- AGM/EFB Battery Start/Stop Test: Available
- Measuring Range: 100CCA – 2000CCA
- Operating Battery Capacity: 3Ah – 220Ah
- Accuracy: ±5%
- Measurement Mode: 4 Wire Kelvin Test Principle
- Operating Voltage: 9V – 35V
- Line Protection: Clamping the incorrect battery terminal will not burn the meter
- Battery-Test: Voltage. Internal Resistance. Cold Start Current. SOC. HOC
- Start-Load: Vehicle Starting Load Voltage Test
- Charge-Sys: Vehicle to Battery Charging Voltage Test
- Power: Powered by the battery under test
- Operating Temperature: -20° to 60°C (-4° to 140°F)
- Cold Starting Current Measurement Range:
What's in the box?
|
Rating & Reviews
Rating
| TECHNICAL SPECIFICATIONS | |
| Display | Lattice Screen Backlit LCD |
| AGM/EFB Battery Start/Stop Test | Available |
| Real Time Voltage Waveform Test | – |
| Measuring Range | 100CCA – 2000CCA |
| Accuracy | ≤±5% |
| Measurement Mode | 4 Wire Kelvin Test Principle |
| Operating Voltage | 9V – 35V |
| Line Protection | Clamping the incorrect battery terminal will not burn the meter |
| Battery-Test | Voltage. Internal Resistance. Cold Start Current. SOC. HOC. |
| Start-Load | Vehicle Starting Load Voltage Test |
| Run-Load | Battery Maximum Load Voltage Test |
| Charge-Sys | Vehicle to Battery Charging Voltage Test |
| Power | Powered by the battery under test |
| Printer Paper | – |
| Print Report | – |
| Cold Starting Current Range ( CCA (SAE) ) | 100A-2000A |
| Cold Starting Current Range ( IEC ) | 100A-1000A |
| Cold Starting Current Range( EN ) | 100A-2000A |
| Cold Starting Current Range(DIN) | 100A-1000A |
| Cold Starting Current Range(JIS) | 26A17-245H52 |
| Battery Under Test | 12V/24V |
| Battery Type Under Test | AGM/EFB automobile batteries, Lead-acid |
| Operating Battery Capacity | 3Ah – 220Ah |
