Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester
.jpg "Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester")
Click To Zoom

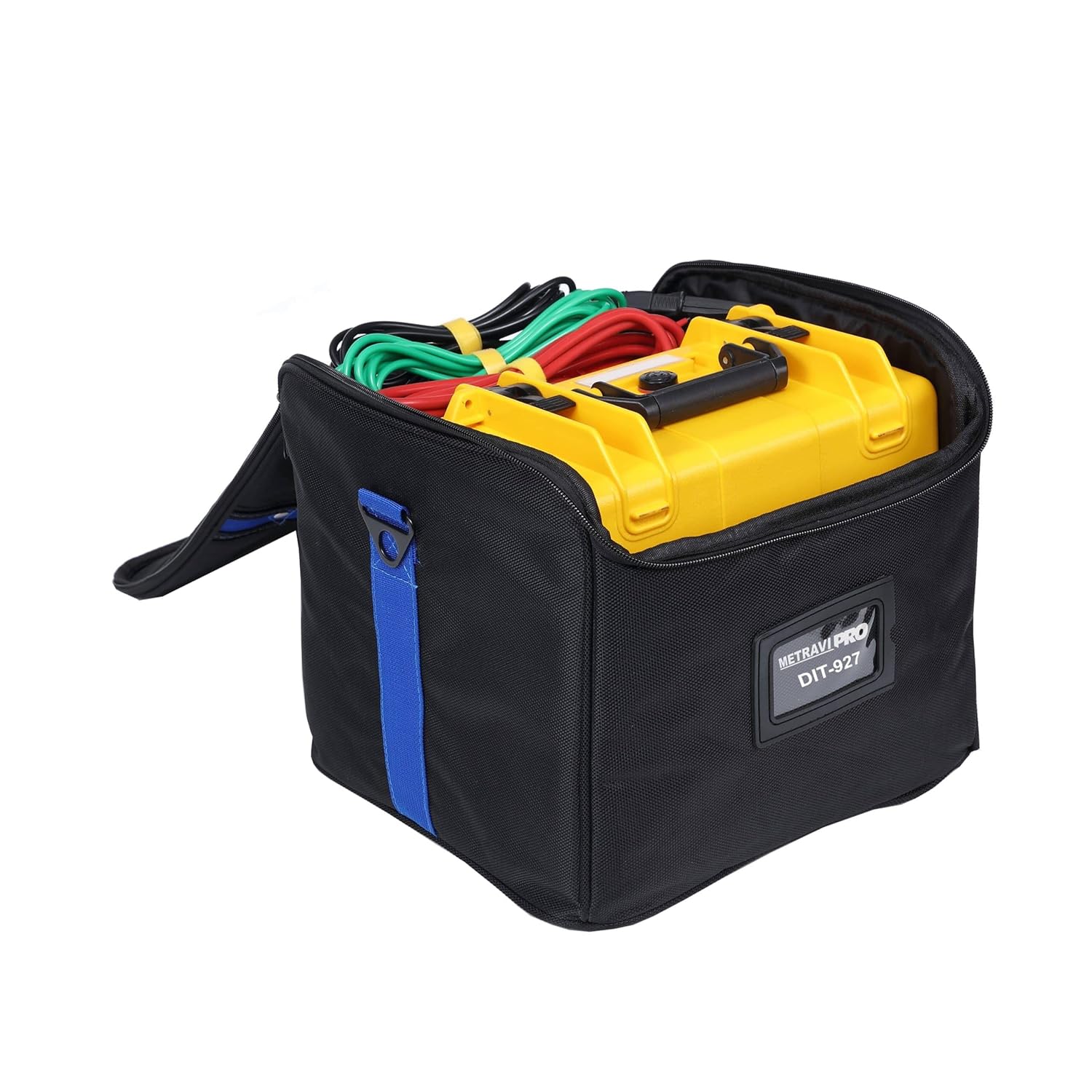

Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester
Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester
The Metravi PRO DIT-927 10kV High Voltage Insulation Resistance Tester is an intelligent, high-end insulation resistance tester, well-developed by METRAVI. The instrument comes with perfect test functions of various insulation resistance parameters and excellent anti-interference ability. It can be used in 220kV Sub-station and have no Corona effect.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 63,250
(GST inclusive price) i-
Base Value: ₹ 53601.7
-
GST: (18) % ₹ 9648.3
-
Total Value ₹ 63250
₹90,450.00
( - 30% OFF )
Description
Key Features
- Max Output Voltage 10KV
- Max Test Resistance 5T Ω
- Max Short Circuit Current 5mA
- Polarisation Index Test (PI)
- Dielectric Absorption Ratio Test (DAR)
- Ramp Test Mode (RAMP)
- Filtered Resistance Test Mode (FR)
- True Color Touch Screen: A combination of colour touchscreen, button and wave band knob makes the functioning perfect and can be directly tested with one button. Checking the inquiry records is simple and convenient.
- Rich display which displays multiple values and readings on the same screen: various test modes, insulation resistance value, output voltage, voltage of the test object, current, test time, test timing, battery power, operation help, etc.
- Double shell structure, firm and durable with protection level IP65
- Large Capacity Rechargeable Lithium Battery
- USB Data Upload Function
- Voltage monitor function – automatically monitor live voltage of the test object.
- Test timer function – automatically record test time.
- Automatic discharge function – after the test automatically releases the charge of the test object.
- Store function – automatically stores 1000 groups of real-time test data with test date, time and timing.
- Upload function – the recorded data can be uploaded to the computer using USB communication cable for data and statistical analysis.
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| Model | DIT-927 |
| Rated Voltage | 250V, 500V, 1000V, 2500V, 5000V, 10KV |
| Output Voltage Accuracy | (5% ~ 10%) ±10V |
| Insulation Resistance Range | 0.50MΩ ~ 10.00TΩ |
| Output Short Circuit Current | ≥5mA |
| Power Supply | Rechargeable lithium battery pack 5.2Ah |
| Polarization Index Test | Yes |
| Dielectric Absorption Ratio Test | Yes |
| Ramp Test Mode | The output voltage will start at 10% of the preset voltage and increase in steps of 10% until the preset voltage is reached |
| Filtered Resistance Test Mode | 10S ,20S, 30S, 40S (4 selection) |
| Voltage Test | Range: AC: 10V ~ 700V; DC: 10V ~ 1000V; Accuracy: ± 5%rdg ±3V |
| Current Test | Range: 0.01nA ~ 5 mA; Accuracy: ± 5%rdg ± 0.5mA |
| Voltage Monitor | Monitor the voltage of the measured object, and monitor discharge status after test, Forbidden to test when voltage is larger than 36V, protect instrument and operator. |
| Test Timer | Automatic record test time, time range: 0s~9999s |
| Storage Function | Automatically store the test data with test date and time, total of 1000 groups |
| Upload Function | Upload the stored data to computer with USB communication cable. |
| Battery Power Display | With battery power display, when battery voltage low will remind to replace the battery |
| Automatic Shutdown | After 15 minutes start up will shut down automatically without any operation |
| Meter Dimension | 280mm×260mm×160mm |
| Meter Weight | 4400g (include battery) |
| Test Wire | Red color high voltage test wire 1pcs (with alligator clip 1PCS and hook 1PCS), green color test wire 1PCS, black color test wire 1PCS |
| Protection Level | Closed case IP65, Open case IP40 |
| Working Environment | -20°C ~ 50°C; 80%RH |
| Insulation Resistance | 50MΩ (1000v) (between the test circuit and shell) |
| Withstand Voltage | AC 3Kv 50Hz 1min (between the test circuit and shell) |
| Suitable Safety Standard | IEC61010-1, IEC61326-1 |
| INSULATION RESISTANCE MEASUREMENT ACCURACY | |||||||
Rate Voltage | 250V | 500V | 1000V | 2500V | 5000V | 10KV | |
| Range and Accuracy | ±5% | 10.0GΩ | 20.0GΩ | 50.0GΩ | 100GΩ | 200GΩ | 500GΩ |
| ±10% | 50.0GΩ | 100GΩ | 200GΩ | 500GΩ | 1.00TΩ | 2.00TΩ | |
| ±20% | 100GΩ | 200GΩ | 500GΩ | 1.00TΩ | 5.00TΩ | 10.00TΩ | |
