METRAVI Pro TI-21 Thermal Imager
Click To Zoom

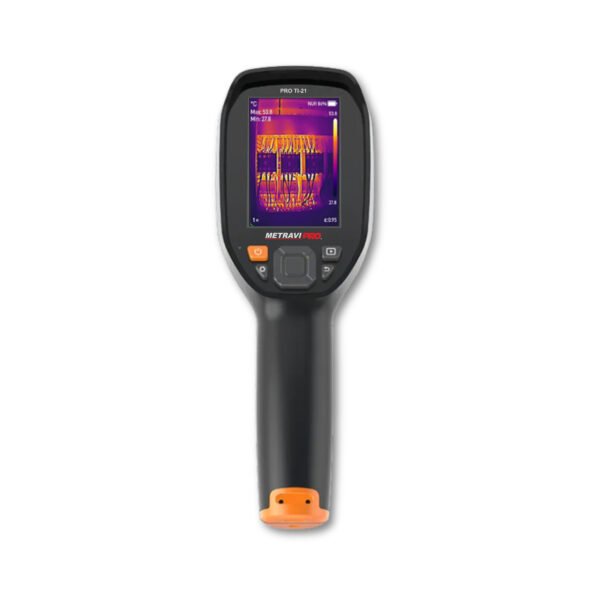

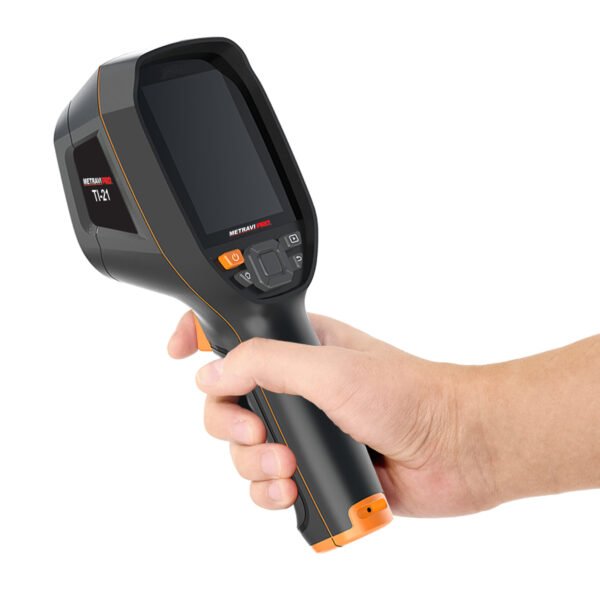

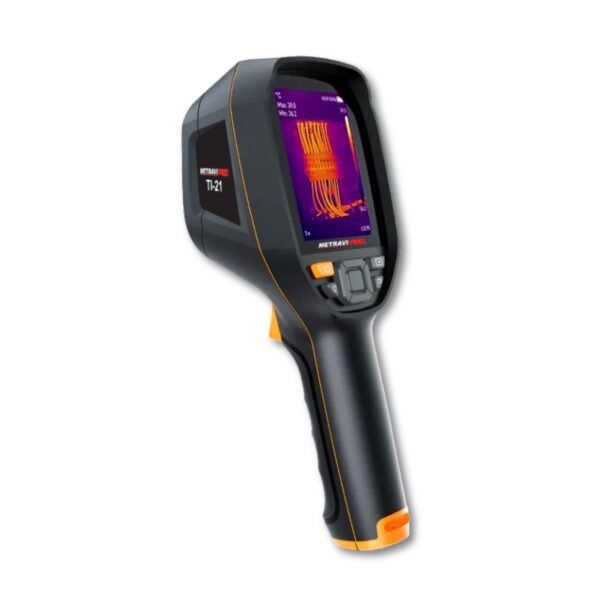

METRAVI Pro TI-21 Thermal Imager
METRAVI Pro TI-21 Thermal Imager
256×192px, Super Resolution 512×384px, 25Hz, 40mK, 40°×30° FoV, -20 to 550°C, 3.5in display, 2MP, 7 colour palettes, 2X & 4X digital zoom, Fusion mode, 32GB Internal Memory, WiFi & USB interface, Laser Rangefinder, Rechargeable Battery, IP54.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 39,650
(GST inclusive price) i-
Base Value: ₹ 33601.7
-
GST: (18) % ₹ 6048.3
-
Total Value ₹ 39650
₹56,700.00
( - 30% OFF )
Description
The Metravi Pro TI-21 Thermal Imager combines advanced thermal imaging technology, intelligent AI enhancement, and a superior user experience to deliver fast, accurate, and efficient thermal inspections.
Equipped with a 256 × 192 infrared detector and real-time AI Super- Resolution technology, the cameras enhance image quality to an impressive 512 × 384 resolution, allowing users to identify faults, hot spots, and temperature anomalies with exceptional clarity.
A large 3.5-inch HD display presents thermal images in vivid detail, while the upgraded laser pointer enables quick and accurate targeting of inspection points.
The Pro TI-21 further enhances productivity with an integrated laser rangefinder, providing precise distance measurement and 3D spatial positioning of thermal anomalies for faster and more effective inspections.

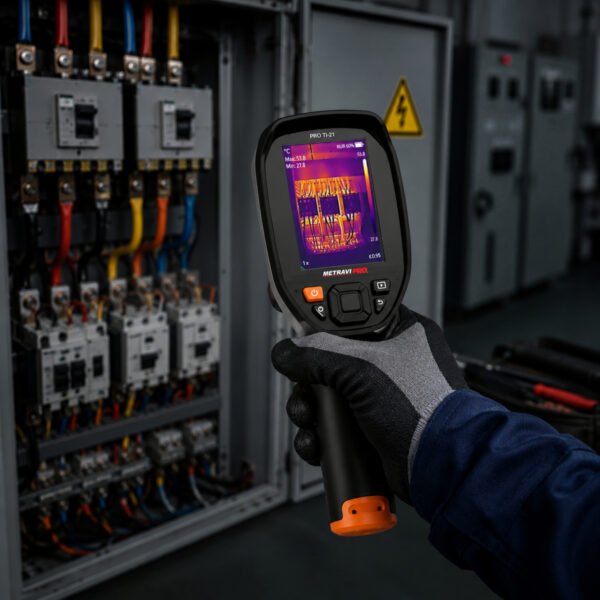

With a highly sensitive thermal detector offering a NETD as low as 40mK, the Pro TI-21 Thermal Imager can detect even the smallest temperature differences, making them ideal for electrical inspections, predictive maintenance, HVAC diagnostics, industrial troubleshooting, building inspections, solar PV testing, and mechanical condition monitoring.
Designed for field professionals, both the instruments features 18W fast charging, built-in Wi-Fi connectivity, UVC image transmission, and comprehensive analysis software for seamless image sharing, reporting, and advanced temperature analysis across mobile and PC platforms.
Features:
- High-Resolution Thermal Imaging with AI Enhancement: Sharper thermal images for improved fault identification & enhanced image detail without compromising inspection speed
- Exceptional Thermal Sensitivity: Detects minute temperature differences and early-stage faults & ideal for preventive maintenance and condition monitoring
- Large 3.5″ HD Display: Clear visualisation of thermal images and temperature data and improved usability in field environments
- Advanced Laser Targeting: Faster and more accurate fault localisation
- Exclusive Pro TI-21 Laser Rangefinder: Improves inspection efficiency and documentation accuracy
- Enhanced User Experience: Reduced downtime between inspections, designed for demanding professional application
- Wireless Connectivity: Seamless integration with computers and mobile devices
- Professional Analysis Software: Generate professional inspection reports quickly and efficiently
Applications:

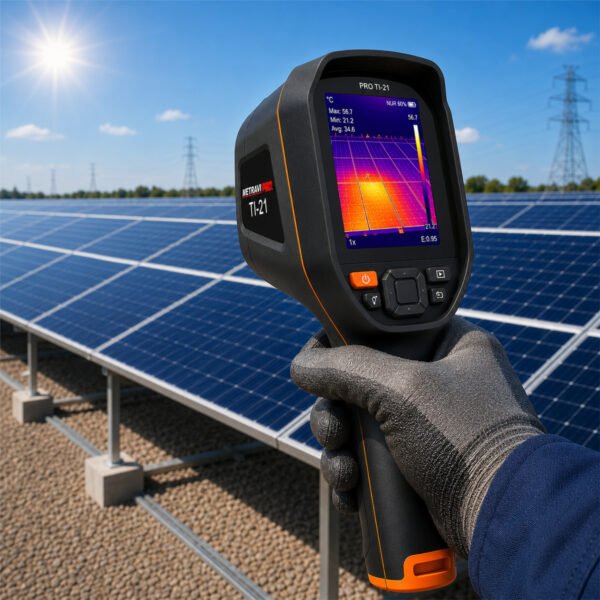

- Solar PV module and string performance testing
- Commissioning and maintenance of rooftop and utility- scale solar plants
- Fault detection, mismatch analysis, and degradation checks
- Performance comparison before and after cleaning or repairs
Rating & Reviews
Rating
- Detector Type: 12μm
- Infrared Resolution: 256×192 px
- Super Resolution: 512×384 px
- Spectral Band: 7.5-14μm
- NETD: <40mK
- Frame Rate: 25Hz
- Focal Length: 4.3mm
- FoV: 40°×30°
- Spectral Resolution (IFoV): 2.79mrad
- Focus Mode: Fixed
- Min. Imaging Distance: 0.7m
- Measurement Range:
- Low temperature range: -20°~150°C
- High temperature range: 100°~ 550°C
- Auto switching
- Accuracy: ±2% or ±2°C of readings, whichever is greater
- Display: 3.5-inch, 480×640 px resolution
- Visible Light Camera: 2 megapixels
- Digital Zoom: 2X, 4X
- Colour Palettes: 7
- Image Modes: Infrared, Fusion, PIP, Visible Light
- Temperature Wide Stretch: Automatic/Manual
- Analysis Functions:
- Central point
- Highest temperature point
- Lowest temperature point
- 6 custom points
- Temperature difference
- Laser Pointer: Built-in
- Laser Rangefinder: Class 1, Max detection range 4m
- Software: PC (Infrared Analysis Software) or Mobile (iOS/ Android APP)
- Storage: 32GB Internal Memory
- Temperature Alarms: Support full-frame highest/lowest temperature alarm; Automatic image capture at alarm time (with temperature data)
- Alarm Types:
- Image pop-ups
- Flash prompts
- Video Transmission: UVC (including full-frame temperature data) + Wi-Fi (excluding fullframe temperature data)
- Communication Interface: USB, Wi-Fi
- Power: Built-in rechargeable lithium-ion battery
- Charging Mode: USB Type-C
- Auto Power-off
- Battery Life: 6 hours approx. (single charge)
- Tripod-mountable
- Protection:
- IP54
- 2m drop-tested
- Shock: 25g (IEC 60068-2-27)
- Vibration: 2.5g (IEC 60068-2-6)
- Accessories: USB Cable, User Manual, Charger, Carrying Case
