TG-165-X
Click To Zoom
TG-165-X
TG-165-X

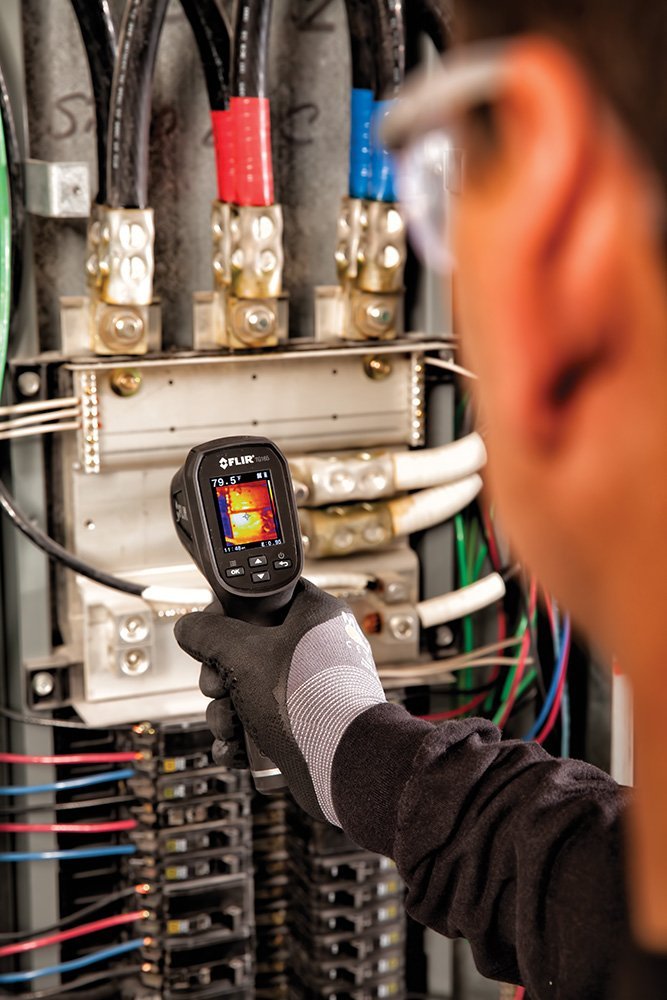

The Flir TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 7,00,000
(GST inclusive price) i-
Base Value: ₹ 593220.3
-
GST: (18) % ₹ 106779.7
-
Total Value ₹ 700000
₹8,00,000.00
( - 13% OFF )
Description
Key Features
- Accuracy is 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)"
- Field of view (FOV) 71° × 56°, adapts to the IR lens
- IR Resolution is 80 × 60 pixels
- Image Modes MSX® (Multi Spectral Dynamic Imaging), visual

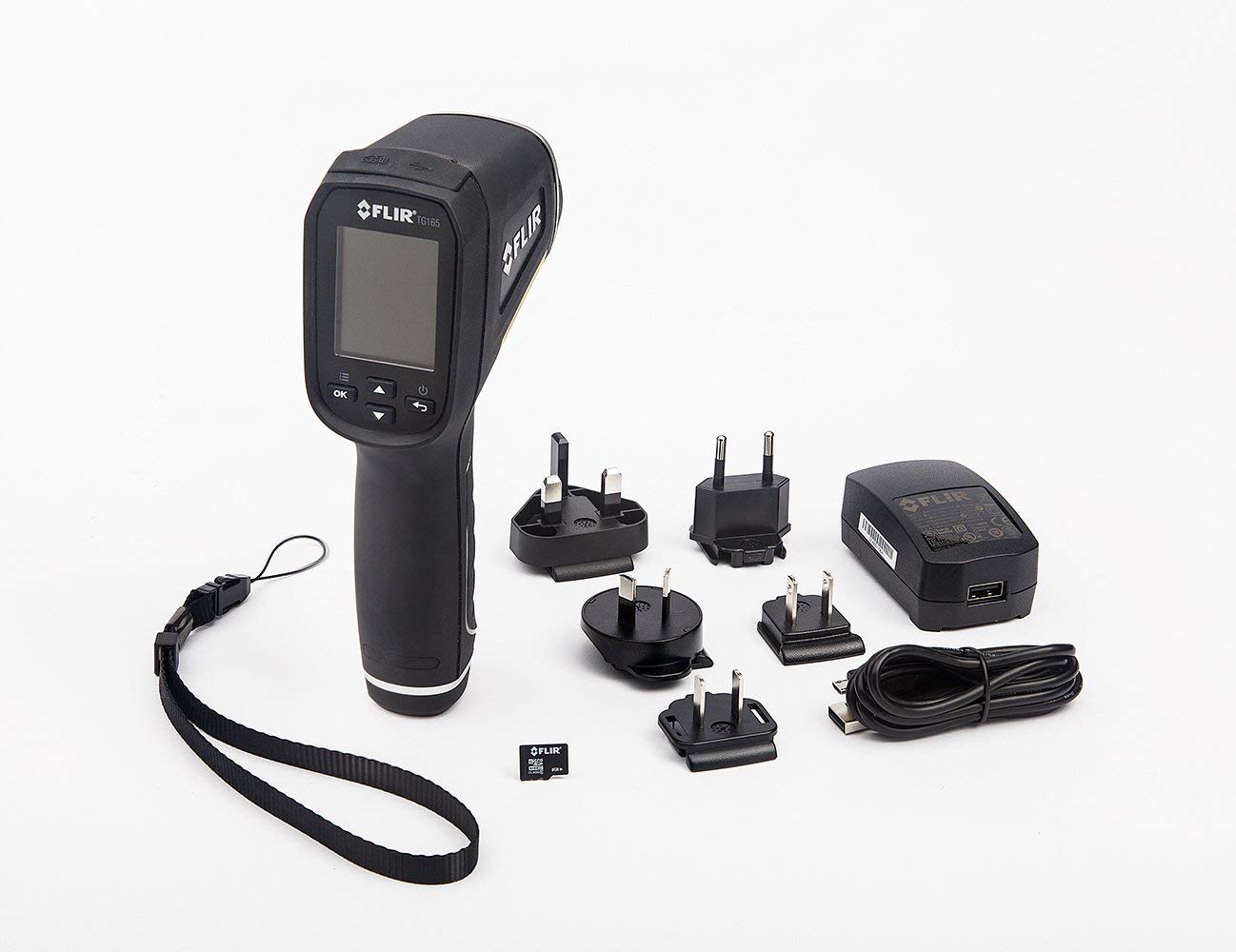

What's in the box ?
|
Rating & Reviews
Rating
Product Specifications
| Imagining & Optical | |
| Camera software update | Using USB cable or SD card |
| Colour Palettes | Iron, Rainbow, White-hot, Black hot, Arctic, Lava |
| Detector Pitch | 17 µm |
| Digital image enhancement | No |
| Display resolution | 320 × 240 pixels |
| Field of view (FOV) | 71° × 56°, adapts to the IR lens |
| Focal Plane Array (FPA) - Spectral range | Uncooled microbolometer/7.5–14 µm |
| Focus | Fixed |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), visual |
| IR Resolution | 80 × 60 pixels |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft.) |
| Resolution | 2 MP (1600 × 1200 pixels) |
| Thermal Sensitivity/NETD | <70 mK |
| Measurement & Anyalsis | |
| Accuracy | 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)" |
| Distance to Spot Ratio (D:S) | 24:1 |
| Emissivity Correction | Yes: 4 pre-set levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | -25°C to 300°C (-13°F to 572°F) |
| Set-up Commands | Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images |
| Spot Meter | Centre spot on/off |
| Communication & Data Storage | |
| Image Storage Capacity | 50.000 images |
| Interface | USB 2.0 |
| Storage Media | eMMC 4 GB |
| File Formats | JPEG with spot temp in meta tag |
| USB | USB Type-C: data transfer/power |
| USB - Standard | USB Type-C High Speed; data transfer/power |
| Power | |
| Battery charge time | 4 hours to 90%, 6 hours to 100% |
| Battery life | 30 days minimum |
| Battery operating time | 5 hours of scanning (LCM medium brightness); 4.5 hours with laser on (LCM medium brightness) |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Power Management | Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| General | |
| Flashlight | LED on/off |
| Form Factor | Pistol |
| Laser Pointer | Indicating the size of the measurement area |
| Light Output | 100 lumens |
| Size [L × W × H] | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Weight [battery included] | 0.394 kg (13.9 oz) |
