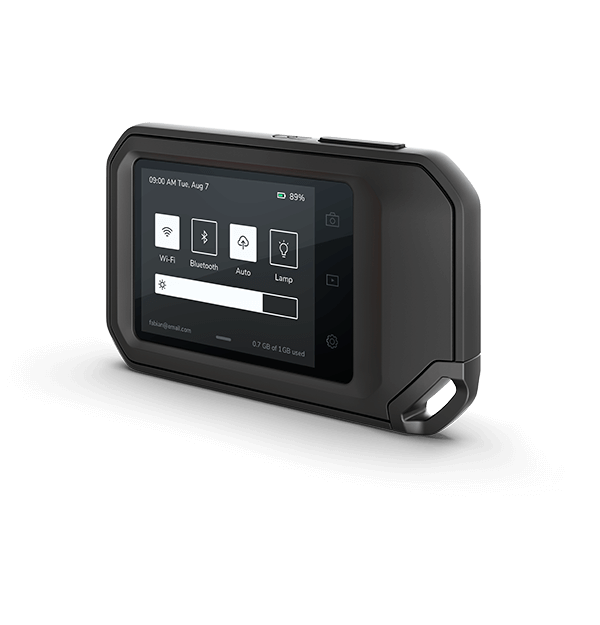

Flir C3-X
Flir C3-X
The FLIR C3-X makes it easier than ever to inspect for hidden problems, document repairs, and share evidence with customers. Featuring a 128 × 96 pixel thermal sensor, MSX® (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and LED flashlight, the C3-X is an affordable inspection tool for electrical/mechanical, building, and maintenance applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
B2B INVOICES
₹ 5,90,000
(GST inclusive price) i-
Base Value: ₹ 500000
-
GST: (18) % ₹ 90000
-
Total Value ₹ 590000
₹6,00,000.00
( - 2% OFF )
Description
Key Features
- IR Resolution 128 × 96 pixels
- Accuracy 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)]
- Image Modes Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
- Field of view (FOV) 53.6°
- Digital Camera 5 MP resolution
- Thermal Sensitivity/NETD <70 mK
- Storage Media Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
What's in the box ?
|
Rating & Reviews
Rating
| Imagining & Optical | |
| Auto orientation | Yes |
| Camera software update | Automatic over Wi-Fi, USB via computer |
| Colour Palettes | Iron, Gray, Rainbow, Rainbow HC |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array, uncooled microbolometer |
| Digital Camera | 5 MP resolution |
| Digital Camera FOV | 71.5° × 56° (84° diagonal) |
| Display resolution | 640 × 480 pixels |
| Image Frequency | 8.7 Hz |
| Image Modes | Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image) |
| IR Resolution | 128 × 96 pixels |
| Minimum Focus Distance | Thermal: 0.1 m (0.32 ft), MSX: 0.3 m (0.98 ft) |
| Spatial resolution (IFOV) | 7.9 mrad/pixel |
| Measurement & Analysis | |
| Accuracy | 0 to 100°C (32 to 212°F): ±3°C (±5.5°F); 100 to 300°C (212 to 572°F): ±3% [ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F)] |
| Object Temperature Range | -20 to 300°C (-4 to 572°F) |
| Camera size (L x W x H) | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Measurement Corrections | Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation |
| Communication & Data Storage | |
| Bluetooth | PAN |
| Image Storage | >5000 images |
| Storage Media | Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi) |
| File Formats | Standard JPEG, 14-bit measurement data included |
| USB | USB 2.0, Type-C connector |
| WiFi | 802.11 a/ac/b/g/n (2.4 and 5 GHz) |
| Power | |
| Battery charge time | 2 hours |
| Battery life | >500 cycles |
| Battery Type | Rechargeable built-in Lithium ion battery |
| Battery Voltage | 3.7 V |
| Charging Temperature | 35°C (95°F) |
| General | |
| Housing material | PC and ABS, partially covered with TPE; aluminum |
| Packaging Size | 160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in) |
| Packaging Weight | 0.52 kg (1.14 lb) |
| Size (L x W x H) | 138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in) |
| Form Factor | Phone |
| Enviornmental & Certifications | |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Drop test | 2 m (6.56 ft) |
| Relative Humidity | 95% relative humidity 25 to 40°C (77 to 104°F) non-condensing |
| Radio Spectrum | ETSI EN 300 328; EN 301 489; FCC Title 47 CFR Part 15; RSS-247 Issue 2 |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Shock | 25 g (IEC 60068-2-27) |
| Vibration | 2 g (IEC 60068-2-6) |
| Tripod Mounting | UNC ¼"-20 (built-in) |
