UNI-T UT25CL cable locator

UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator
UNI-T UT25CL cable locator

UNI-T UT25CL cable locator

Click To Zoom

UNI-T UT25CL cable locator

UNI-T UT25CL cable locator

(Based On 10 Reviews)

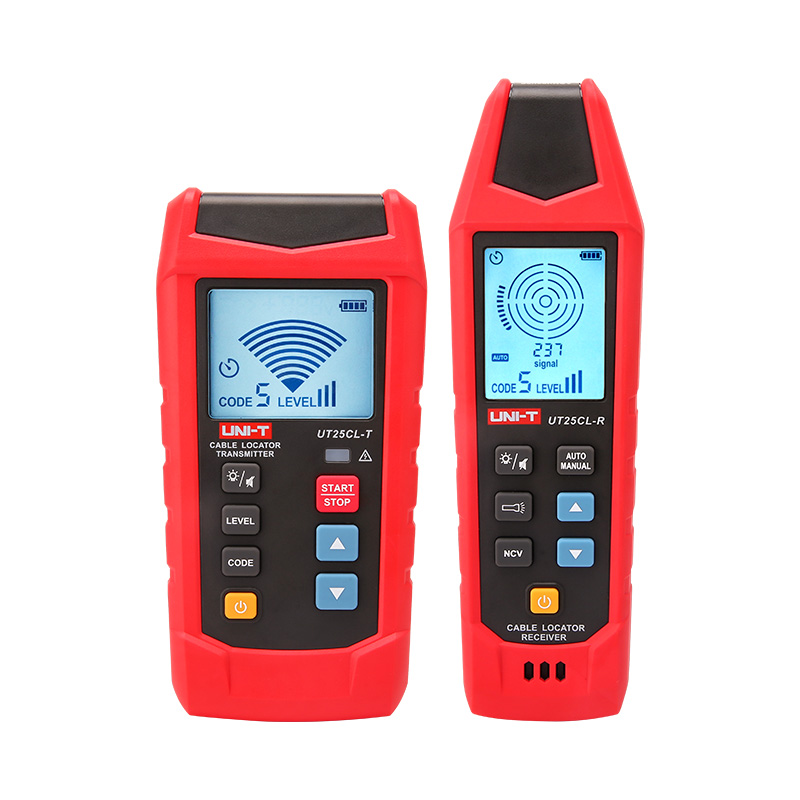

The UT25CL Cable Locator is a powerful device consisting of a transmitter and receiver. With state-of-the-art sensors, it effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 12,940

(GST inclusive price) i
  • Base Value: ₹ 10966.1
  • GST: (18) % ₹ 1973.9
  • Total Value ₹ 12940

₹17,420.00

( - 26% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Find conductors inside the wall, and detect conductor interruptions or short circuits
  • Trace the underground cable paths
  • Locate fuses and devices associated with the fuses
  • Identify short circuits and open circuits in the underfloor heating(metal)
  • Trace metal water pipes and metal heating pipelines
  • Adjust the sensitivity of the receiver automatically or manually (3 adjustable levels)
  • Flashlight and backlight functions
  • Automatic shutdown function
  • One receiver can support up to 8 transmitters
  • Energized wire detection: up to 480V(AC/DC)
  • LED and buzzer indications
  • CE, RoHS

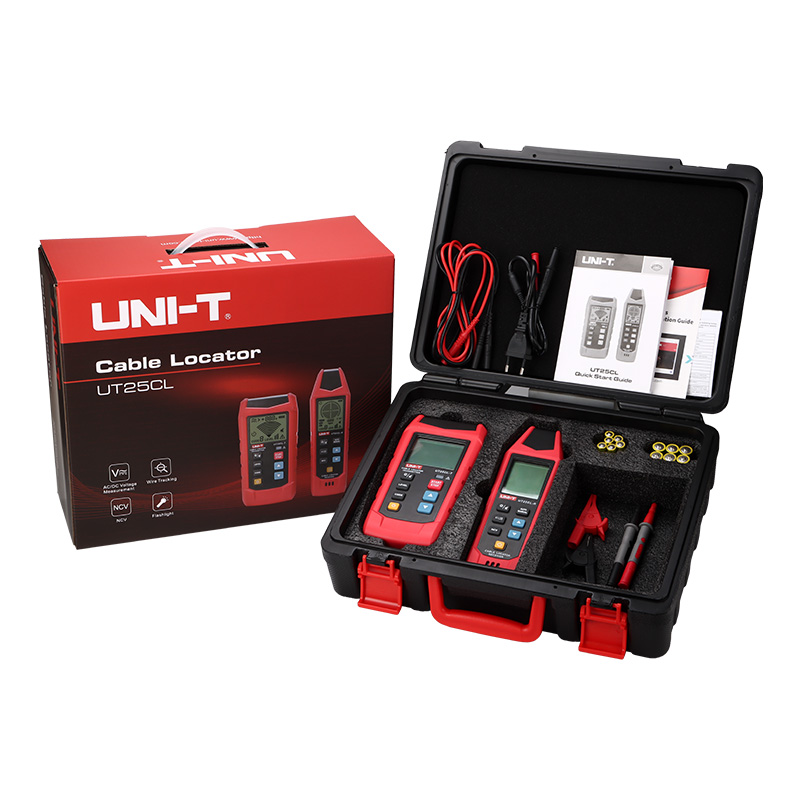

What's in the box?

  • UNI-T UT25CL cable locator

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Features1, Find conductors inside the wall, detect conductor interruptions or short circuits.
2, Trace the underground cable paths.
3, Locate fuses and devices associated with the fuses.
4, Identify short circuits and open circuits in the underfloor metal heating.
5, Trace metal water pipes and metal heating pipelines.
6, Adjustable sensitivity (Receiver: 3 levels; Transmitter: 9 levels)

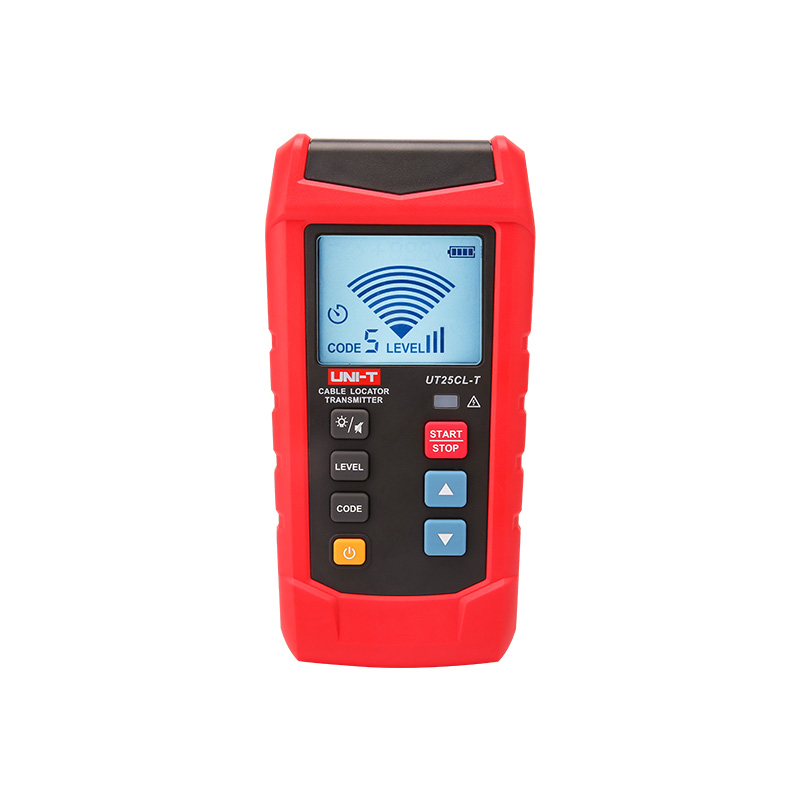

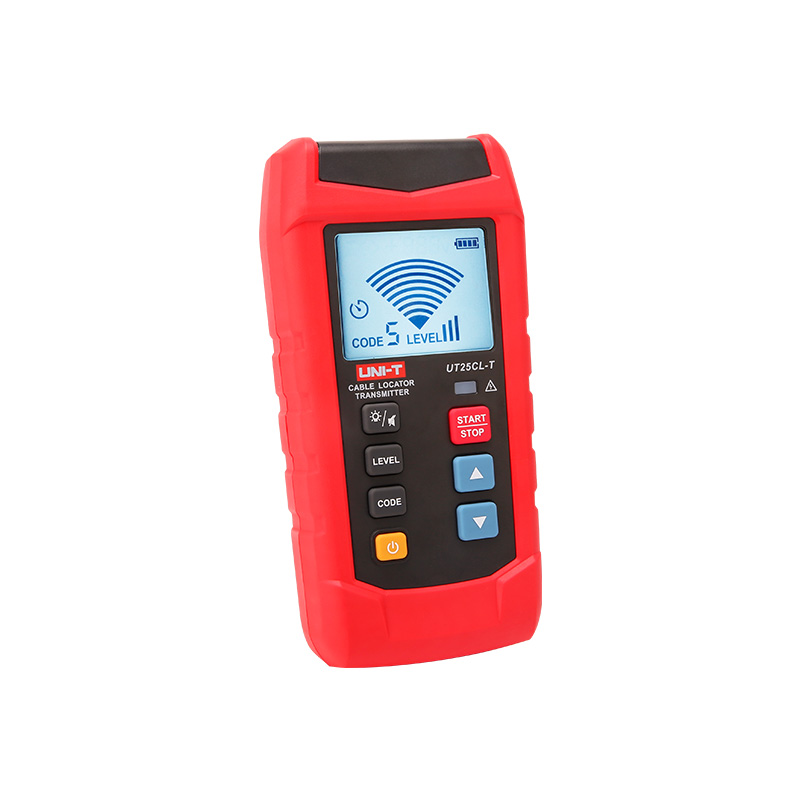

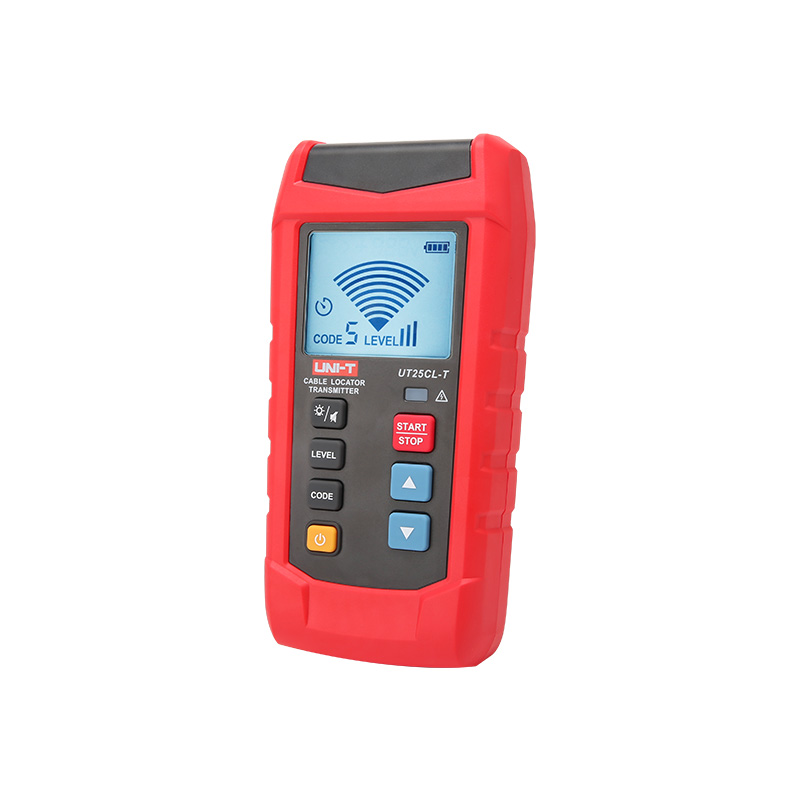

Transmitter
Output signal33KHZ
Energized wire voltage ragneAC/DC 8~480V;  AC: 50/60Hz/ 2.5% ±3deg
ScreenSegment code LCD (TN; Translucent )
Backlight√
Code value0,1,2,3,4,5,6,7
Signal strengththree level: 1, 2, 3
Unipolar test√(energized wire test, max voltage 480V)
Bipolar test√(energized wire test, max voltage 480V)
ELV LED indicator1. If the input voltage exceeds 25V, the ELV LED turns on.
2. As the voltage rises, the brightness of the ELV LED increases.
3. In any other case, the ELV LED will be dim or not illuminated.

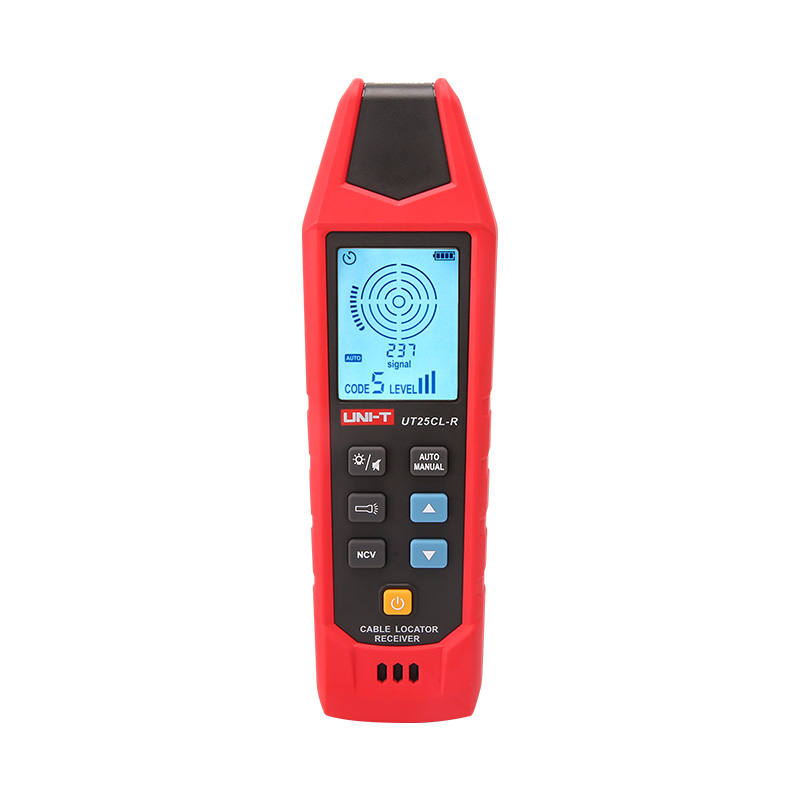

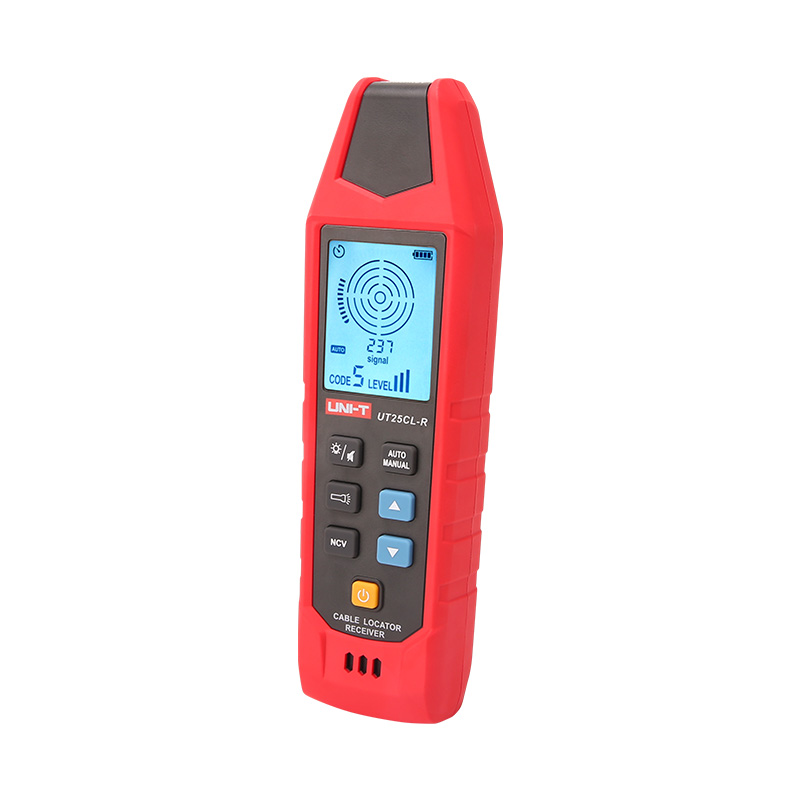

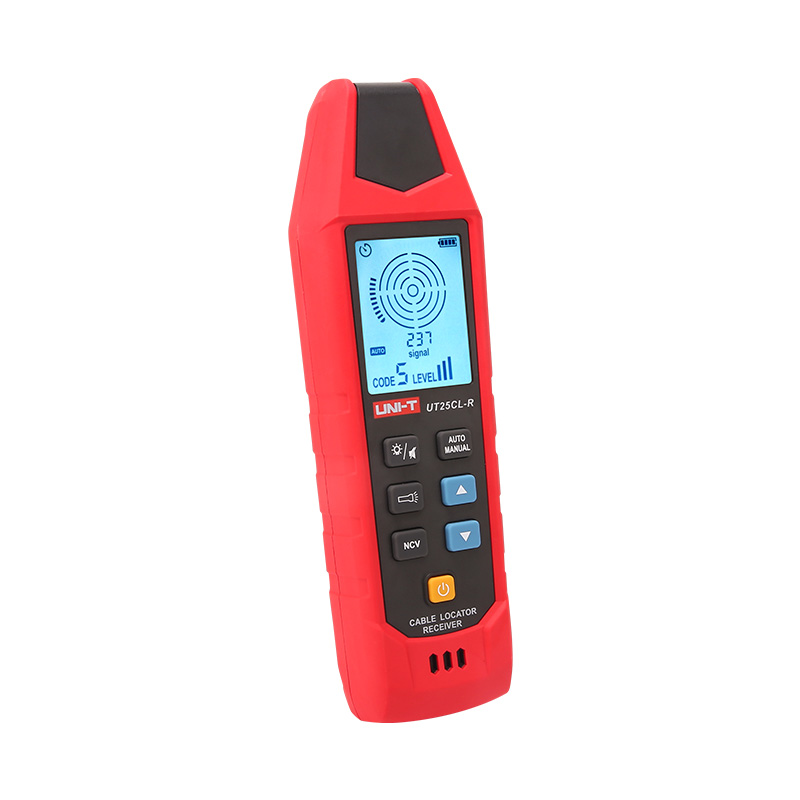

Receiver
Receiving frequency33KHz
Tracing depthAround 0~2.5m (unipolar mode; single-circuit: 2.5m)
Around 0~0.5m (bipolar mode)
NCV voltage range80V ~ 1000V, 50Hz/60Hz
Voltage detection depthAround 0~0.4 meters
Code value0,1,2,3,4,5,6,7
Signal strengththree level: 1, 2, 3
Multi-Transmitors compatibleUp to 8pcs
ScreenSegment code LCD (TN; Translucent )
Others
Flash light√
Backlight√
Manual sensitivity adjustment√
Over voltage categoryCAT III 480V
Pollution rating2
IP ratingIP54
CertificatesCE , RoHS
