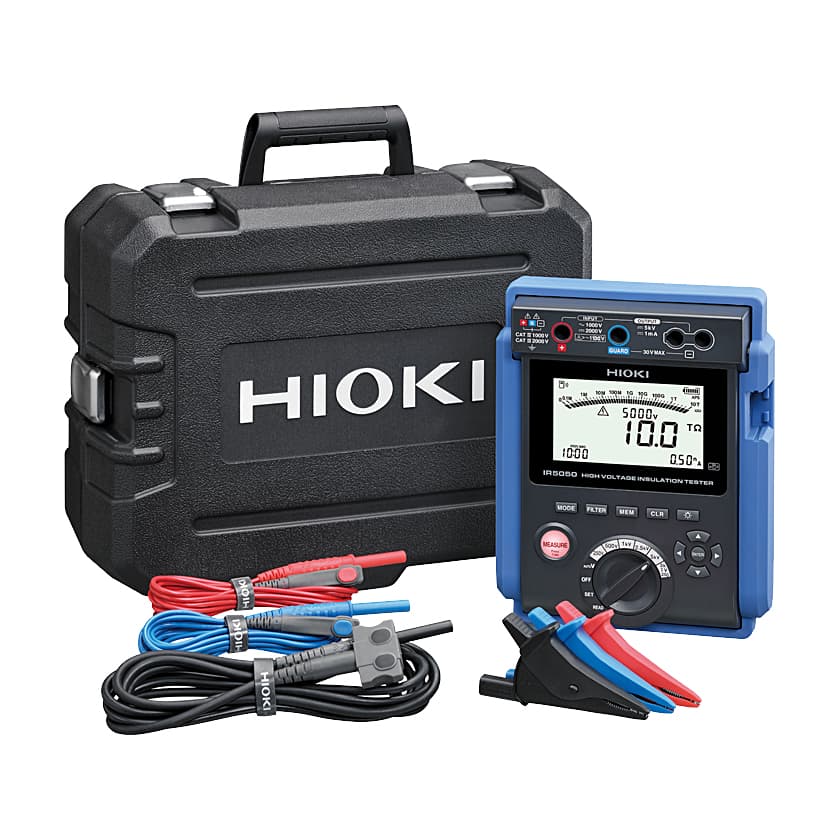

HIOKI IR5051 HIGH VOLTAGE INSULATION TESTER
Click To Zoom
HIOKI IR5051 HIGH VOLTAGE INSULATION TESTER
HIOKI IR5051 HIGH VOLTAGE INSULATION TESTER
The IR5051 is a compact, lightweight, high-voltage insulation resistance tester capable of outputting up to 5 kV. Its unique measurement technology enables stable measurements of up to 10 TΩ. In addition, the IR5051 is capable of testing the insulation resistance of solar PV systems during power generation, and has a CAT III 2000 V safety rating to allow testing of 2000 V PV systems.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 2,02,449.00
(GST inclusive price) i₹2,60,000.00
( - 22% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Measurement parameters | • Insulation resistance • Leakage current • Voltage • Capacitance (DD function) |
|---|---|
| Max. rated voltage to terminals | 1000 V AC, 2000 V DC |
| Max. rated voltage to ground | 1000 V (CAT IV), 600 V (CAT III) |
| Operating temperature and humidity range | -20°C to 50 °C (*1) (no condensation) |
| Storage temperature and humidity range | -25°C to 65°C (-13°F to 149°F), less than 80% RH (no condensation) |
| Dustproof/waterproof | IP40 (with protector attached, excluding terminals) IP65 (CARRYING CASE C0212) |
| Standards | EN61010 (safety), EN61326 (EMC), IEC 61557-1, IEC 61557-2 (Insulation resistance tester) |
| Power supply | • LR6 (AA) alkaline battery × 8 • HR6 (AA) nickel-metal hydride (NiMH) rechargeable battery × 8 |
| Continuous operating time (*2) | Approx. 5 hours without Z3210 installed; approx. 4 hours with Z3210 installed and using wireless communication |
| Dimensions and weight | 195 mm (7.68 in.) W × 254 mm (10 in.) H × 89 mm (3.50 in.) D, 1.7 kg (59.97 oz.) (including batteries) |
| Insulation diagnosis | PI, DAR, DD, SV, Ramp, Timer |
|---|---|
| Others | Battery charge indicator, live circuit indicator, automatic power save, automatic discharge, backlight, buzzer, manual recording, logging recording, temperature and humidity input, elapsed time display, clock, filter, hardware filter, data-hold, system reset, USB communication (only when DT4900-01 is installed), wireless communication (only when Z3210 is installed), comparator, resistance gauge display, switching of insulation diagnosis function, breakdown cut-off. |
| Test voltage range | DC 250 V to 5.20 kV DC | ||||
|---|---|---|---|---|---|
| User-set test voltage | 250 V to 1 kV: in 10 V increments; 1 kV to 5 kV: in 25 V increments | ||||
| Test voltage preset | 250 V | 500 V | 1000 V | 2500 V | 5000 V |
| Guaranteed accuracy range (1) | 0.00 MΩ〜2.50 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜5.00 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜10.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜25.0 GΩ ±5% rdg ±5 dgt | 0.00 MΩ〜50.0 GΩ ±5% rdg ±5 dgt |
| Guaranteed accuracy range (2) | 2.51 GΩ〜500 GΩ ±20% rdg | 5.01 GΩ〜1.00 TΩ ±20% rdg | 10.1 GΩ〜2.00 TΩ ±20% rdg | 25.1 GΩ〜5.00 TΩ ±20% rdg | 50.1 GΩ〜10.00 TΩ ±20% rdg |
| Rated current | 1 mA to 1.2 mA | ||||
| Short-circuit current | 2 mA or less | ||||
| Possible number of measurements | 200 times or more on one set of fully-charged batteries | ||||
| Measurement range (auto) | 10 nA | 100 nA | 1000 nA | 10 μA | 100 μA | 1 mA |
|---|---|---|---|---|---|---|
| Display range | 0.00 nA to 9.99 nA | 9.0 nA to 99.9 nA | 90 nA to 999 nA | 0.90 μA to 9.99 μA | 9.0 μA to 99.9 μA | 90 μA to 999 μA (*3) 0.90 mA to 3.00 mA (*4) |
| Resolution | 0.01 nA | 0.1 nA | 1 nA | 0.01 μA | 0.1 μA | *3: 1 μA *4: 0.01 mA |
| Guaranteed accuracy range | 30 V to 1,000 V AC (45 Hz to 65 Hz), ±10 V to ±2,000 V DC |
|---|---|
| Accuracy | ±3% rdg. ±3 dgt. |
| Input resistance | 500 kΩ or more (DC, 45 Hz to 65 Hz) |
| Overload protection | 1100 V AC (1 min., between +/- terminals) 2200 V DC (1 min., between +/- terminals) |
| Accuracy | ±10% rdg. ±5 nF (guaranteed accuracy range: 10.0 nF to 25.0 µF) | ||
|---|---|---|---|
| Measurement range | 100 nF | 1000 nF | 10 μF |
| Display range | 0.0 nF to 99.9 nF | 100 nF to 999 nF | 1.00 μF to 9.99 μF (*5) 10.0 μF to 25.0 μF (*6) |
| Resolution | 0.1 nF | 1 nF | *5: 0.01 μF *6: 0.1 μF |
