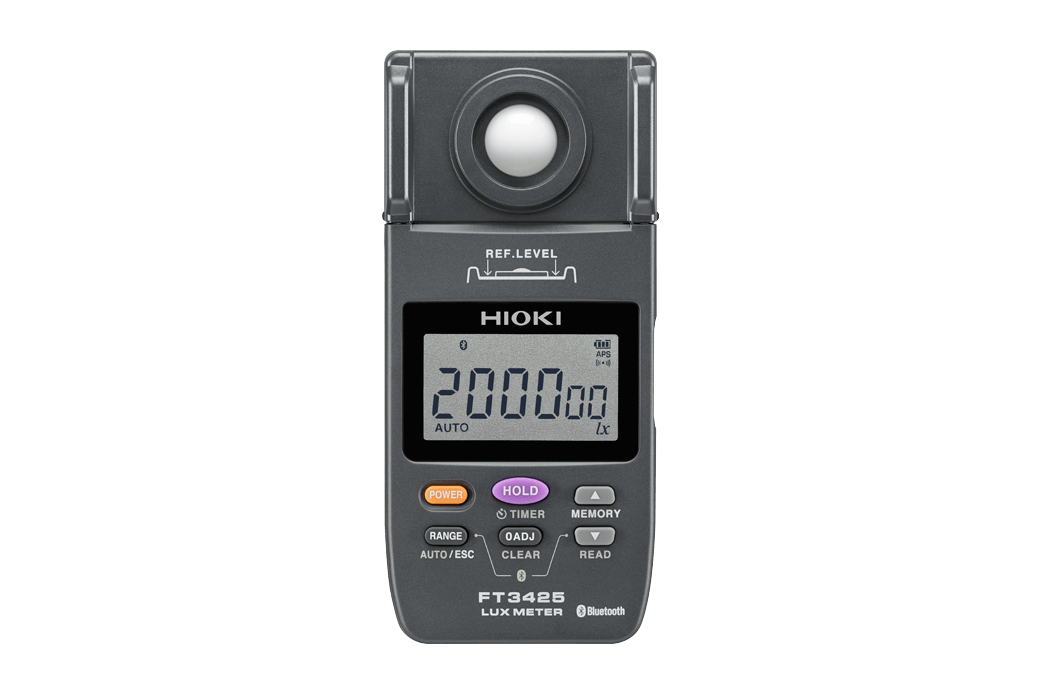

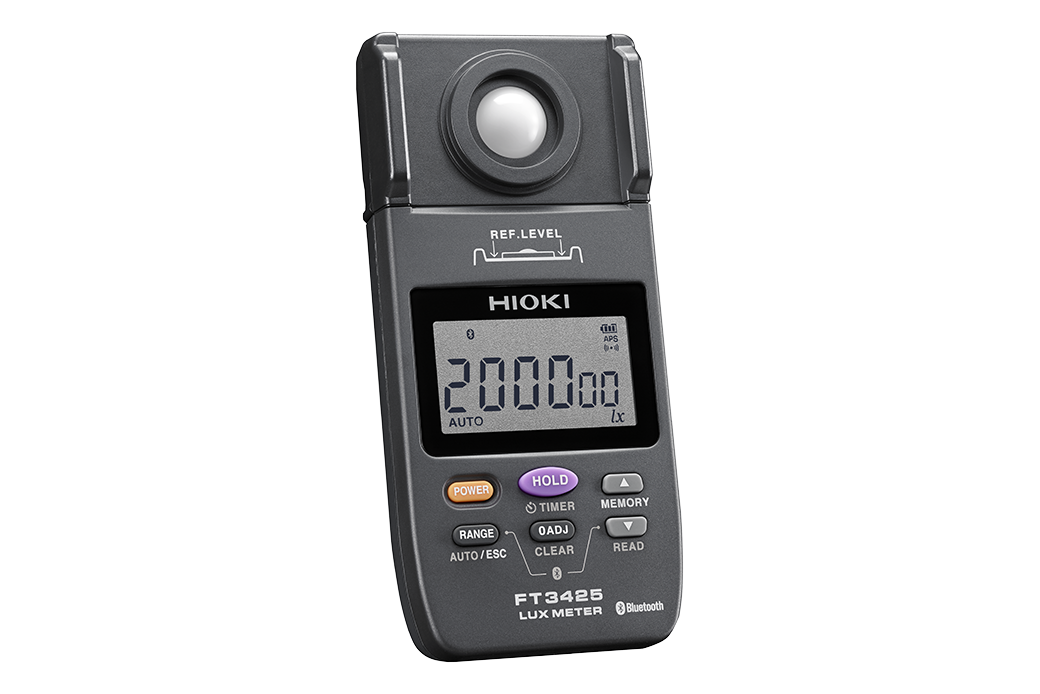

HIOKI FT3425 LUX METER
Click To Zoom
HIOKI FT3425 LUX METER
HIOKI FT3425 LUX METER
The FT3425 is a light meter designed for an extensive range of applications involving illumination equipment, lighting work and facility management. Capable of testing even LED lighting, the FT3425 provides five measurement ranges, 20 lx to 200 000 lx, to support a wide range of luminance levels, and comes built in with Bluetooth® wireless technology.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 74,119
(GST inclusive price) i-
Base Value: ₹ 62812.7
-
GST: (18) % ₹ 11306.3
-
Total Value ₹ 74119
₹92,647.00
( - 20% OFF )
Description
Key Features
- Dramatically reduce illuminance testing work times
- Instantly create reports by a free app (GENNECT Cross)
- Repeated measurements are a breeze since there’s no need to squat down!
- Measure illuminance free of the effects of shadows
- Support for measurement of 1 lx makes the FT3424 ideal for low-illuminance measurement
- Memory function makes multipoint measurement a breeze
What's in the box?
|
Rating & Reviews
Rating
| Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
|---|---|
| Light receiving element | Silicon photo diode |
| Range selection | Auto/ Manual |
| Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
| Accuracy guarantee for temperature and humidity | 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing) |
| Response time | Auto range: within 5 seconds, Manual range: within 2 seconds |
| D/A output | Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count) |
| Functions | Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off , Buzzer sound, Backlight, Zero adjustment |
| Interfaces | USB 2.0 (FT3424/FT3425), Bluetooth® 4.0LE (FT3425 only) |
| Power supply | LR6 Alkaline battery ×2, Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) |
| Continuous battery operation time | 300 hours (when using LR6 batteries, with Bluetooth® OFF), 80 hours (when using LR6 batteries, with Bluetooth® ON) |
| Dimensions and mass (including the batteries) | 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz, FT3424) / 320 g (11.3 oz, FT3425) |
| Range | Measurement range |
| 20 lx | 0.00 lx to 20.00 lx |
| 200 lx | 0.0 lx to 200.0 lx |
| 2000 lx | 0 lx to 2000 lx |
| 20000 lx | 00 lx to 20000 lx |
| 200000 lx | 000 lx to 200000 lx |
