HIOKI FT6041 EARTH TESTER
Click To Zoom

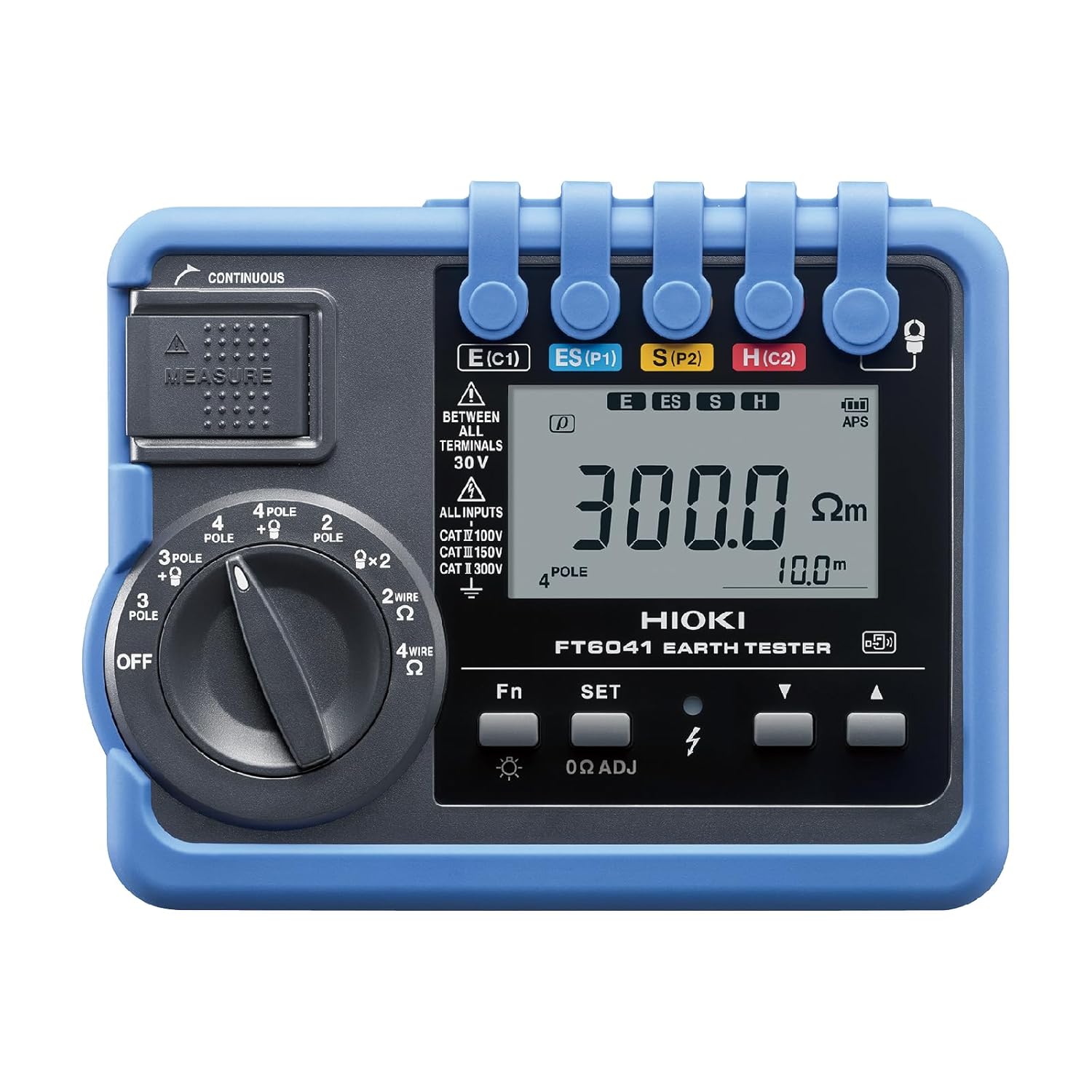

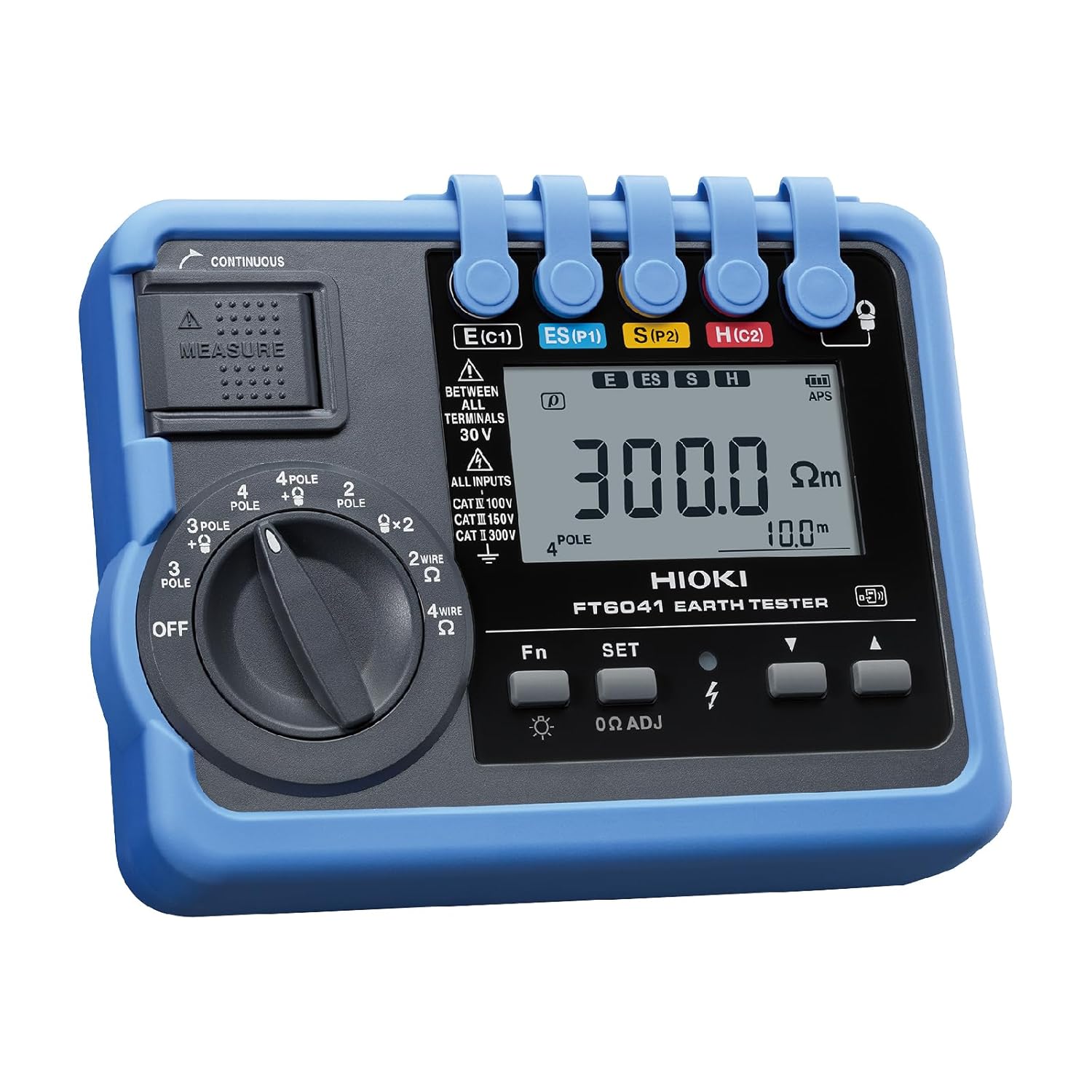

HIOKI FT6041 EARTH TESTER
HIOKI FT6041 EARTH TESTER
Field-capable, Fast-working Extensive measurement functionality
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
B2B INVOICES
₹ 1,75,440
(GST inclusive price) i-
Base Value: ₹ 148678
-
GST: (18) % ₹ 26762
-
Total Value ₹ 175440
₹3,75,000.00
( - 53% OFF )
Description
Key Features
- 2-pole, 3-pole, 4-pole, MEC & continuity tests.
- MEC function – measure without disconnecting earth.
- Soil resistivity measurement (4-pole).

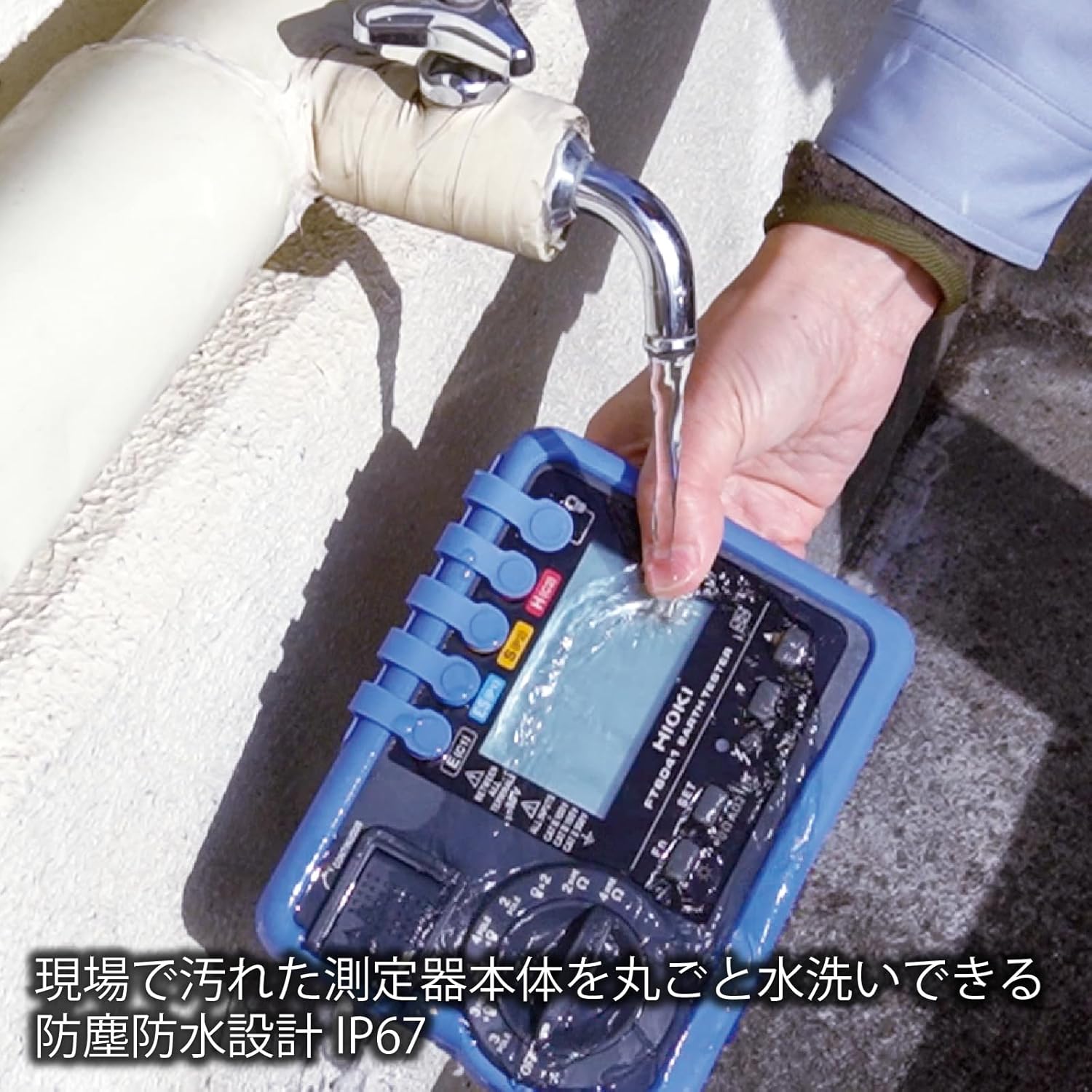

- Rugged: IP67, −25°C to 65°C, 1 m drop-proof.

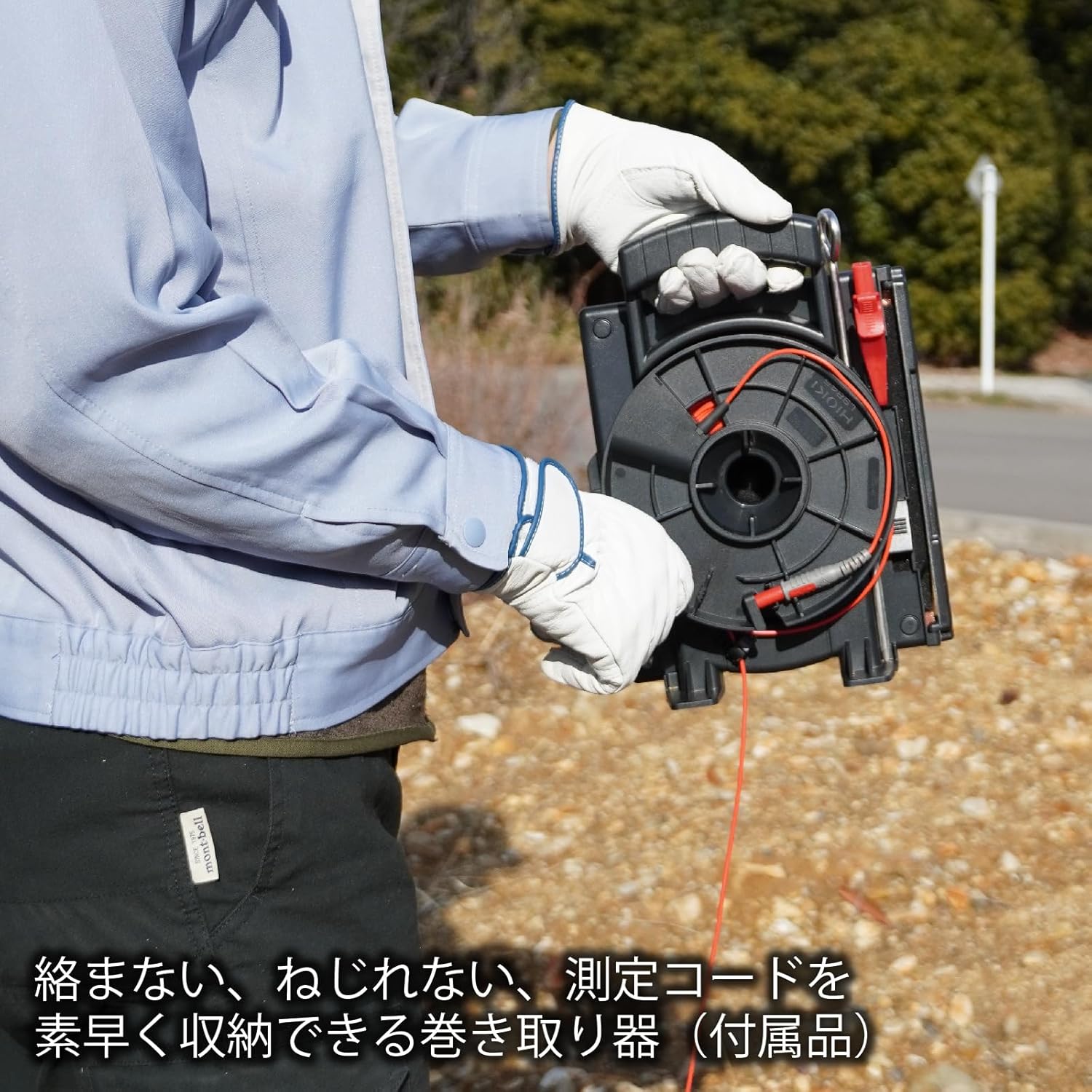

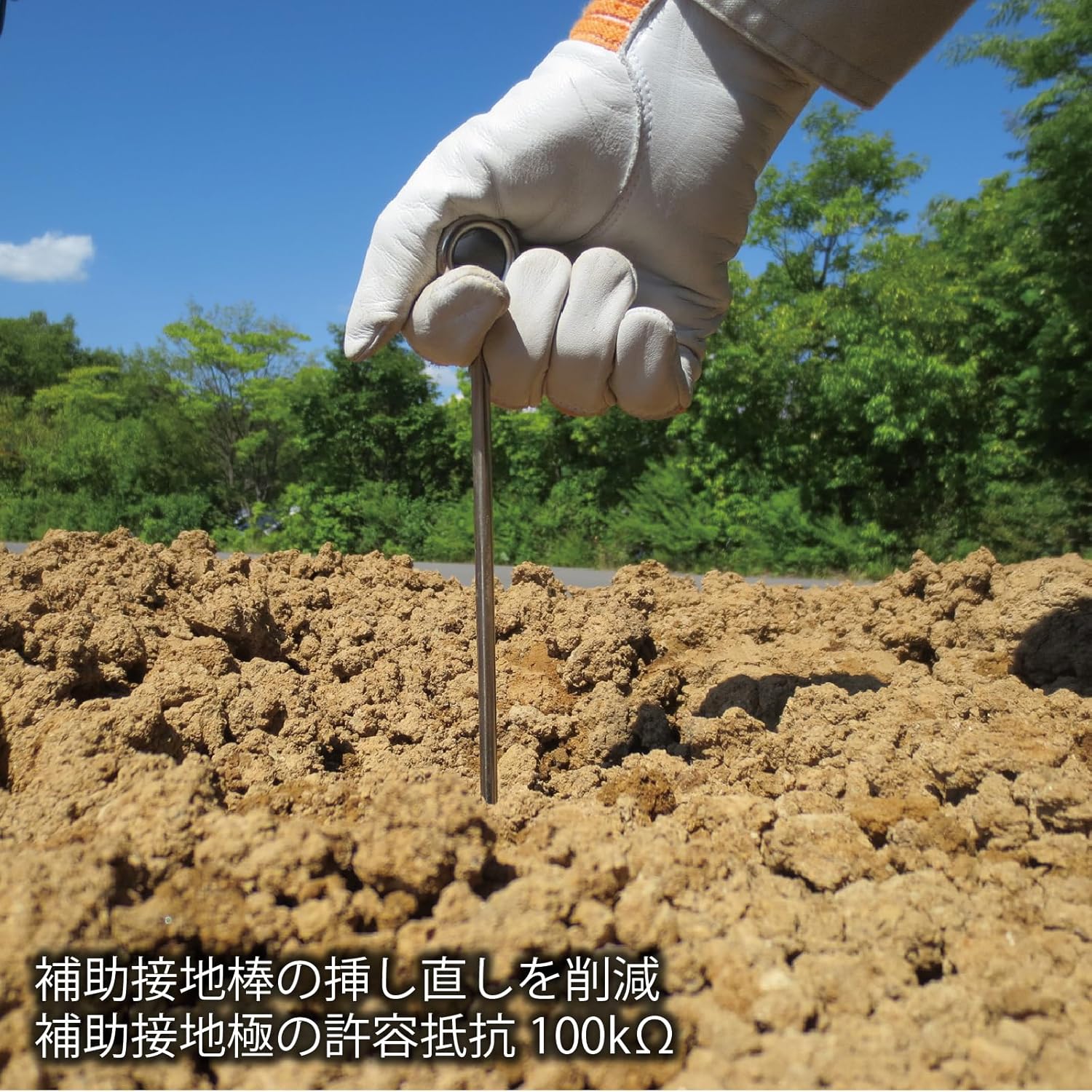

- Fast (~6s), easy cable winding, fewer rod re-inserts.

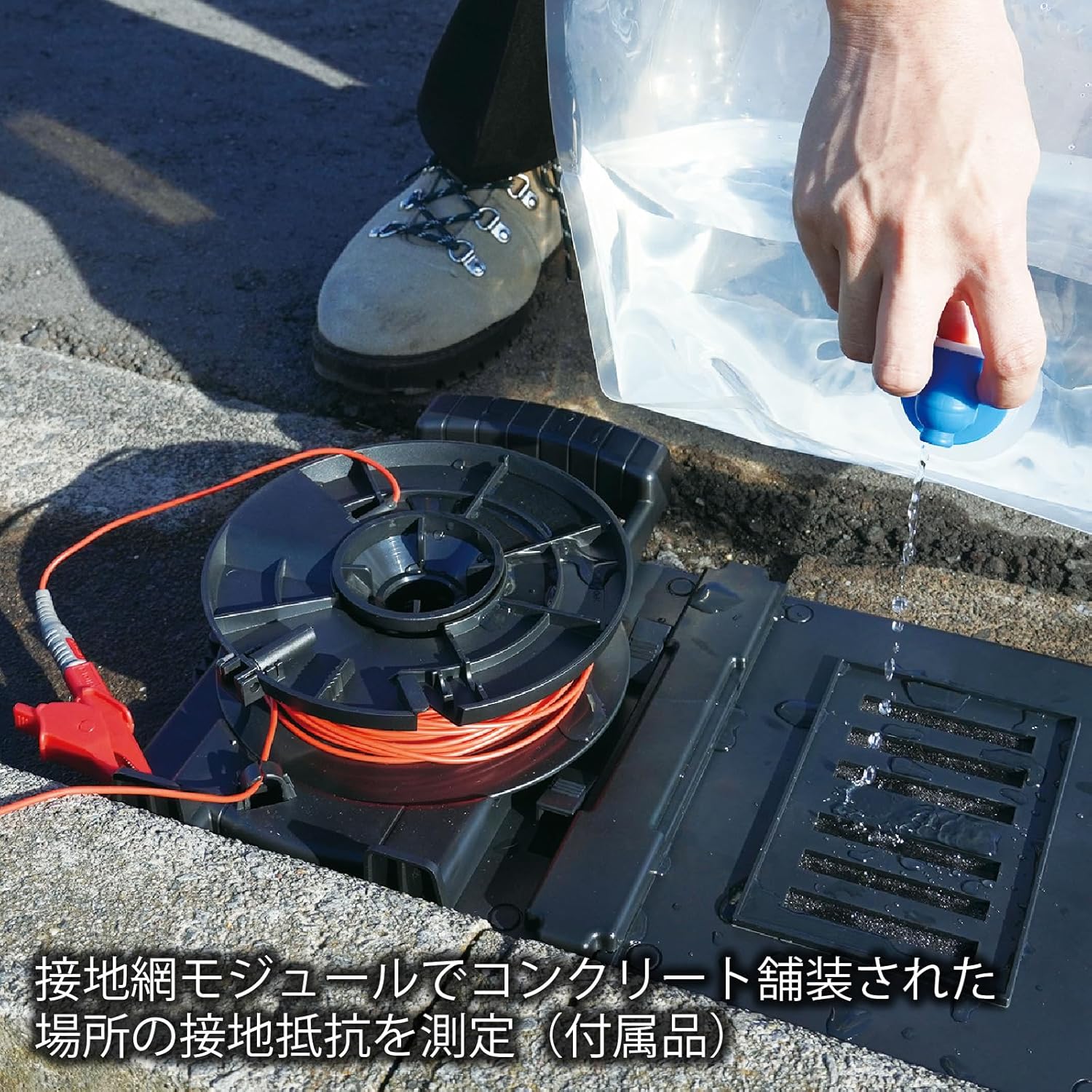

- Can test on concrete with optional module.
- Clamp sensors for tight spaces.
- Wireless data transfer (Z3210 + GENNECT Cross).
- Functions: live-wire warning, auto-hold, comparator.
- High noise resistance & IEC safety compliance.
What's in the box?
|
Rating & Reviews
Rating
Product Specifications
| Measurement parameters | • Ground resistance measurement: 4-pole method, 3-pole method, 2-pole method, MEC function, clamp-on measurement (two clamps) • Soil resistivity measurement: 4-pole method • Low-resistance measurement: 4-terminal method, 2-terminal method • Ground potential measurement |
|---|---|
| Ground potential | 0 to 30.0 V RMS, accuracy: ±2.3% rdg. ±8 dgt. (50/60 Hz), ±1.3% rdg. ±4 dgt. (DC) |
| Functions | Live wire warning, auto power save, soil resistivity display (4-pole method only), zero-adjustment, auto-hold, continuous measurement mode, wireless communication (only when Z3210 is connected), buzzer sound, comparator, switching the display, ground potential overload display (when measuring ground resistance) |
| Operating temperature and humidity | -25°C to 65°C (*1) (non-condensing) |
| Storage temperature and humidity | -25°C to 65°C: 80% RH or less (non-condensing) |
| Dustproof and waterproof | IP65, IP67 (EN60529) |
| Standards | EN61010 (safety), EN61326 (EMC), EN61557-1/EN61557-10/EN61557-14 (low-resistance measurement, earth testers), EN61557-5 (earth testers) |
| Power supply | HR6 nickel-metal hydride battery x 4 or LR03 alkaline battery × 4 |
| Number of measurements per battery charge (*2) | 500 times (3-pole method, without Z3210 installed) 400 times (3-pole method, with Z3210 installed and using wireless communication) |
| Dimensions and weight | Approx. 189 mm (7.44 in.)W × 148 mm (5.83 in.) H × 48 mm (1.89 in.) D, approx. 765 g (26.98 oz.) (including battery, protector) |
| Measurement principle | Apply voltage and measure voltage and current (measures effective resistance by synchronous detection) |
| Ground resistance range | 3 Ω (0 to 3.000 Ω) |
| Accuracy | — |
| Allowable resistance of auxiliary grounding electrode | 5 kΩ |
| Allowable ground potential | 30 V RMS or 42.4 V peak |
| Measurement principle | Apply voltage and measure voltage and current (measures effective resistance by synchronous detection) |
| Ground resistance range | 30 Ω (0.00 to 30.00 Ω) |
| Accuracy | ±5% rdg. ±6 dgt. |
| Measurement principle | Apply voltage and measure voltage and current (measures effective resistance by synchronous detection) |
| Ground resistance range | 20 Ω (0.02 Ω to 20.00 Ω) |
| Accuracy | ±7% rdg. ±3 dgt. |
| Open-circuit voltage | 4.0 V to 6.9 V |
| Measuring current | 200 mA or more |
| Measurement range | 30 Ω (0.00 to 30.00 Ω) |
| Accuracy | ±3 dgt. (0.00 to 0.19 Ω) ±2% rdg. ±2 dgt. (0.20 Ω to 10.00 Ω) |
