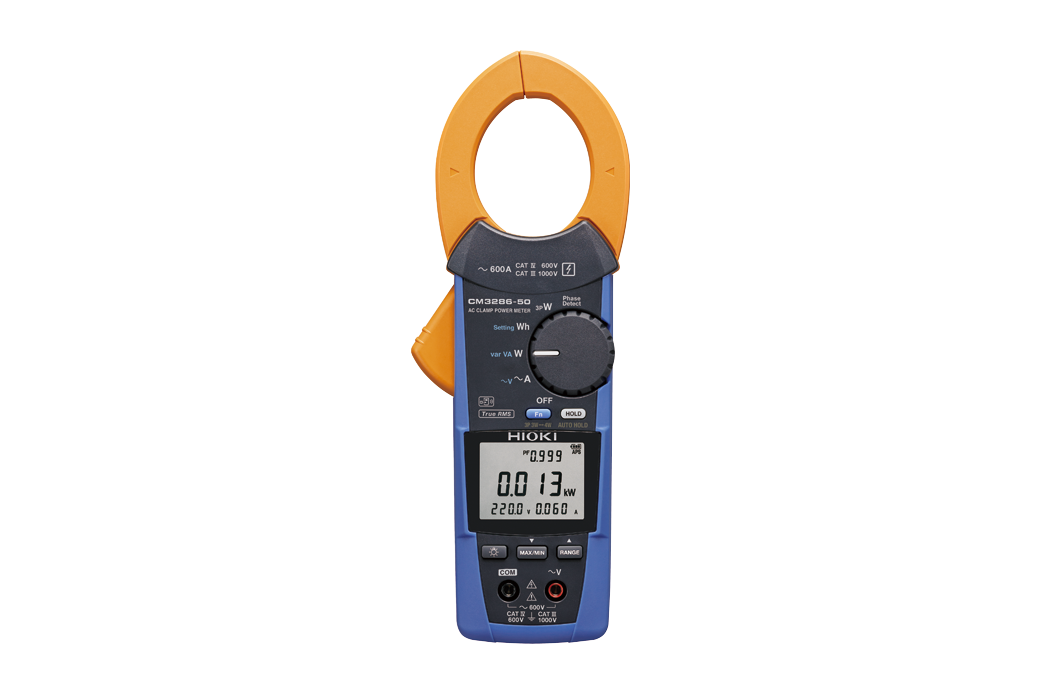

HIOKI CM3286-50 AC CLAMP POWER METER
Click To Zoom
HIOKI CM3286-50 AC CLAMP POWER METER
HIOKI CM3286-50 AC CLAMP POWER METER
Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286-50 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 52,289
(GST inclusive price) i-
Base Value: ₹ 44312.7
-
GST: (18) % ₹ 7976.3
-
Total Value ₹ 52289
₹69,716.00
( - 25% OFF )
Description
Key Features
- True-RMS for accurate readings.
- Measures 60 mA to 600 A.
- Power range: 5 W to 360 kW.
- Measures V, A, W, PF, Hz, phase, etc.
- Displays 4 parameters at once.
- MAX/MIN/AVG & peak capture.
- Supports unbalanced 3-phase.
- Safety rated CAT IV 600 V / CAT III 1000 V.
- Wireless data transfer via adapter.
- Backlit display, easy field use.
What's in the box?
|
Rating & Reviews
Rating
| Measurement line | Single-phase, Three-phase (balanced with no distortion) |
|---|---|
| Measurement items | Voltage, Current, Voltage/Current peak, Active/Reactive/Apparent power, Power factor, Phase angle (*1), Frequency, Simple Active Energy Consumption (Single-phase) [With Z3210 installed (*2)] Voltage/Current harmonics |
| AC voltage range | [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45-66 Hz: ±0.7% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| AC current range | [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy 45-66 Hz: ±1.3% rdg. ±3 dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| Power range | [Single phase] 0.005 kW to 360.0 kW Basic accuracy: ±2.0% rdg. ±7 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 3-wire] 0.020 kW to 623.5 kW Basic accuracy: ±3.0% rdg. ±10 dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 4-wire] 0.040 kW to 1080 kW Basic accuracy: ±2.0% rdg. ±3 dgt. (50/ 60 Hz, Power factor=1) |
| Harmonic levels | [With Z3210 installed (*2)] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Other functions | [Phase angle (*1)] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, MAX/MIN/AVG value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc. |
| Dustproof and waterproof | IP20 (Voltage measurement in a completely dry condition. When jaw closes) IP50 (While in storage) |
| Power supply | LR03 Alkaline battery ×2 Continuous use: approx. 25 hr (without Z3210 installed), approx. 18 hr. (with Z3210 installed and using wireless communications) Other conditions: 100 A AC measurement, backlight off, 23°C reference value |
| Core jaw dia. | φ 46 mm (1.81 in), Jaw dimensions: 92 mm (3.62 in) W x 18 mm (0.71 in) D mm |
| Dimensions and mass | 65 mm (2.56in) W × 241 mm (9.49in) H × 35 mm (1.38in) D, 450 g (15.9 oz) |
