Metravi PRO 7 Auto-ranging Digital TRMS Multimeter
Click To Zoom
Metravi PRO 7 Auto-ranging Digital TRMS Multimeter
Metravi PRO 7 Auto-ranging Digital TRMS Multimeter

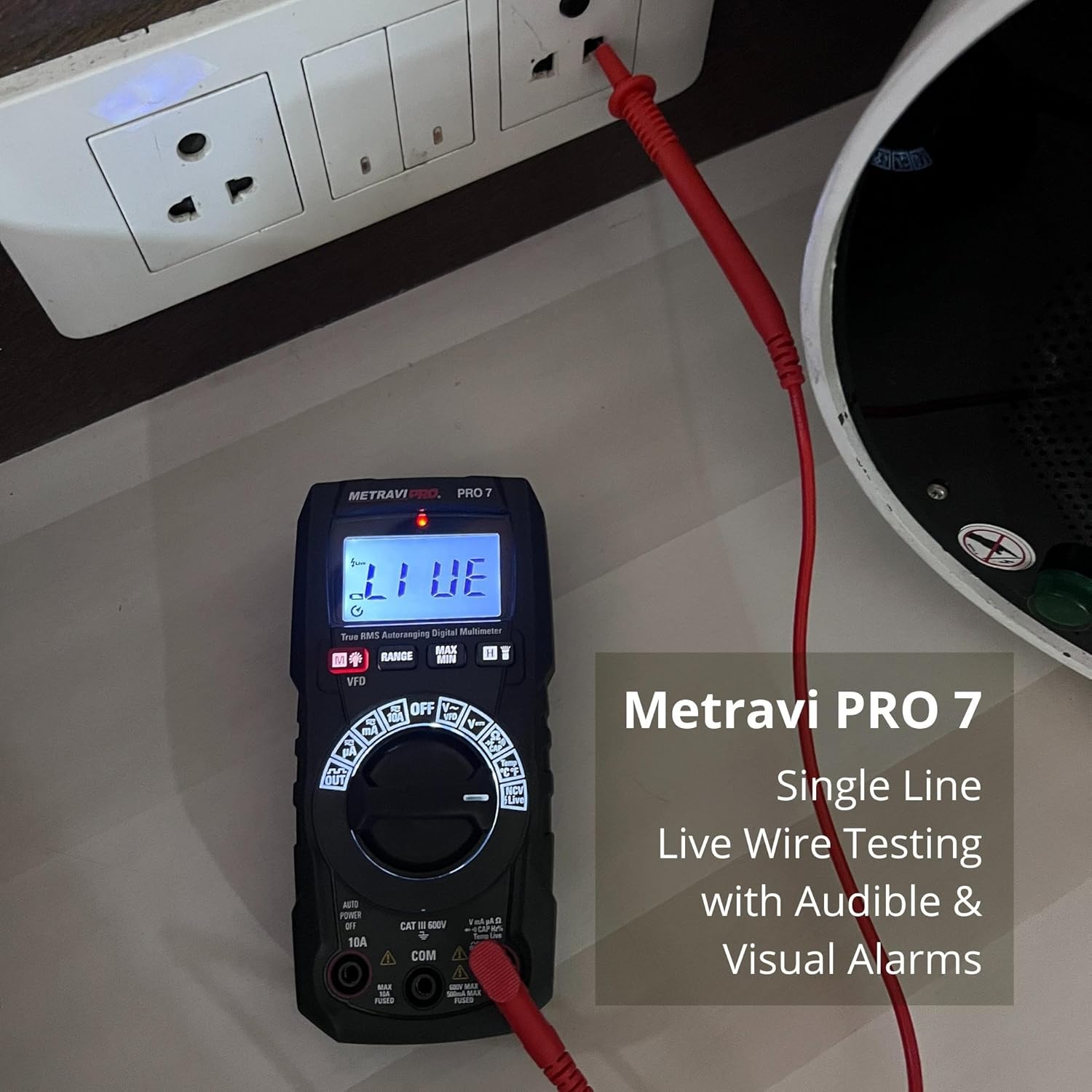

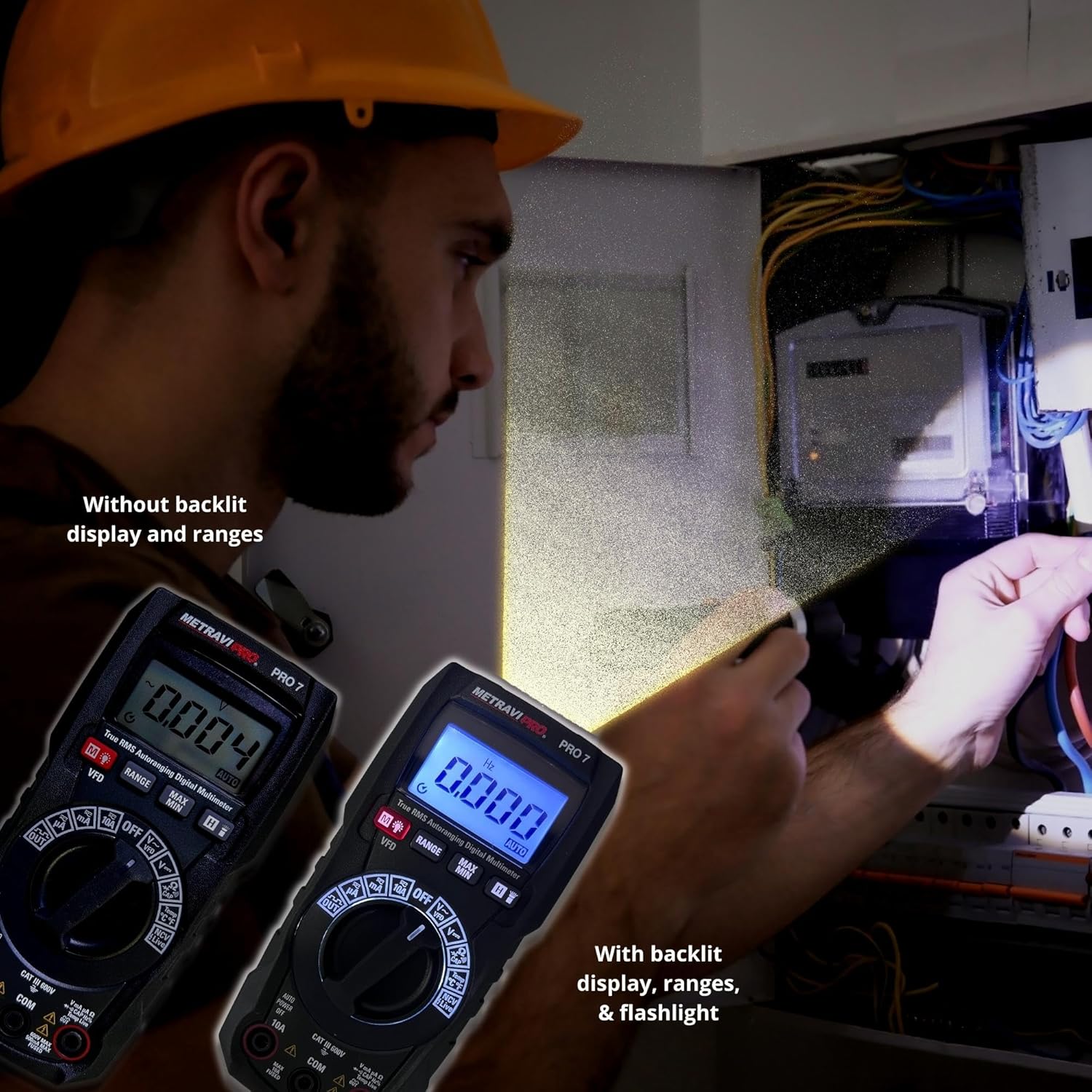

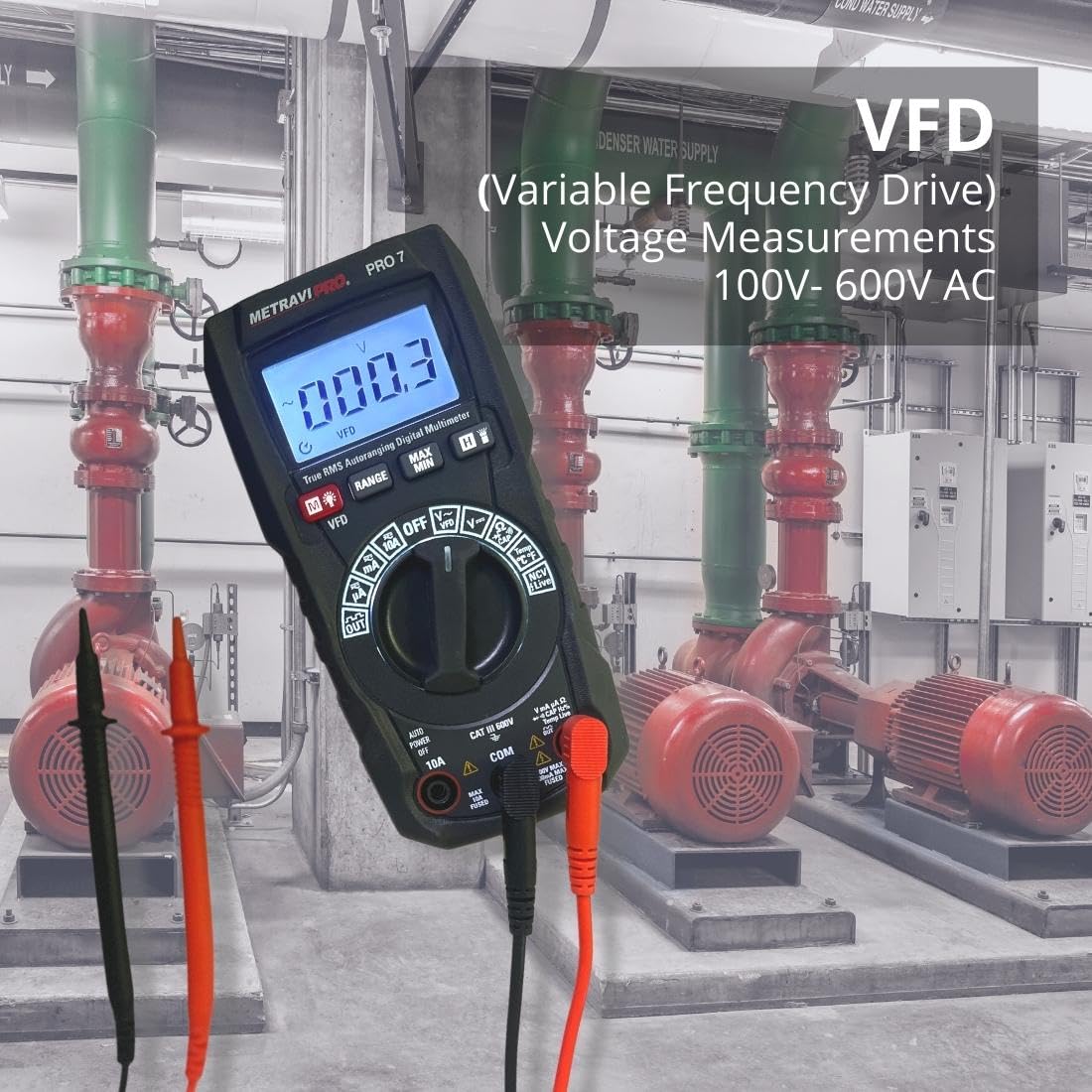

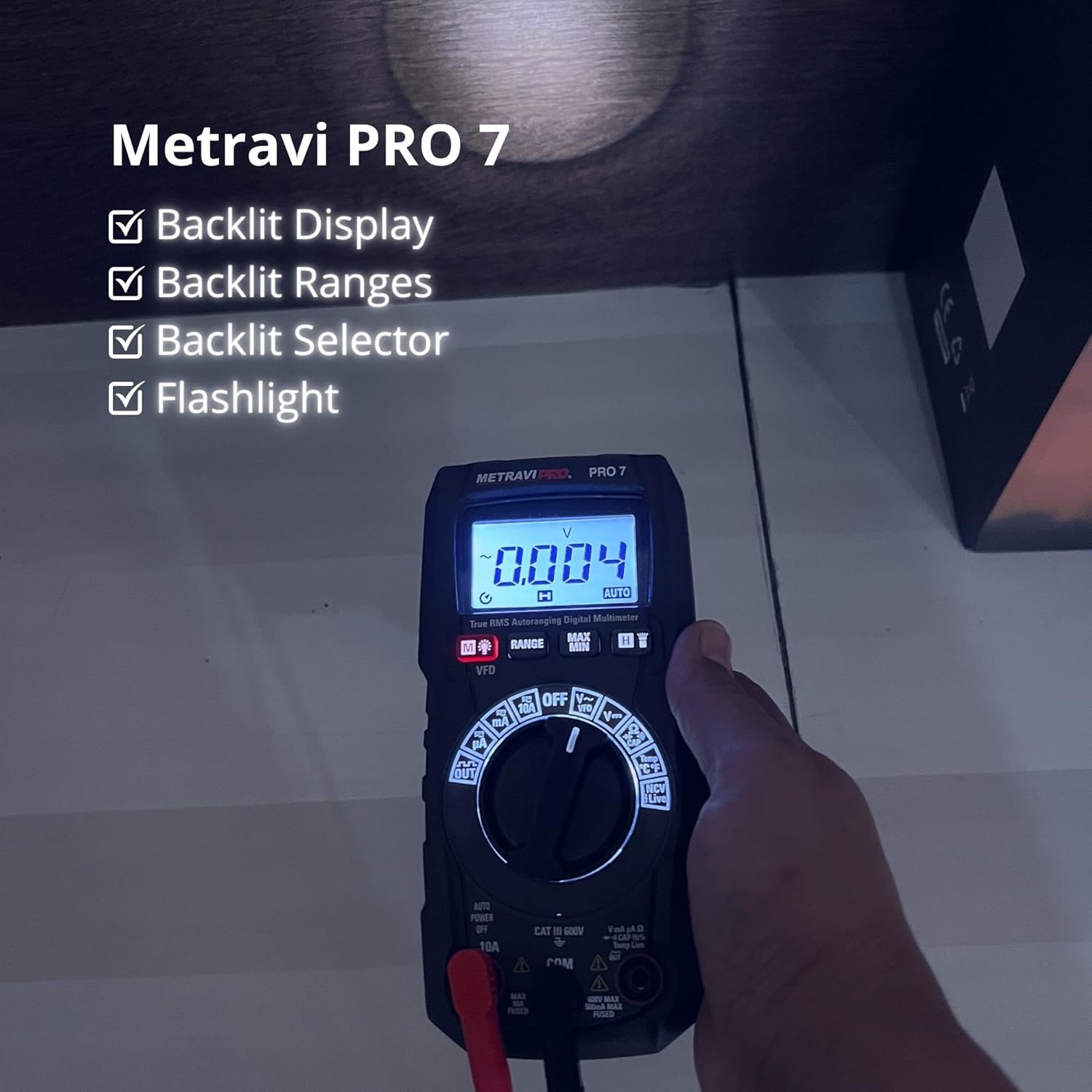

Digital TRMS auto-ranging multimeter with backlit display, backlit switch as well as backlit ranges. AC/DC Voltage, VFD Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode & Continuity Test, NCV detection, Live Line test & Square Wave Output. Heavy-duty, rugged design with double-injection moulding. Built-in Flashlight. Confirms to CATIII 600V. Data Hold, MAX/MIN, Auto Power Off.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
 bl.png)
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,709.00
(GST inclusive price) i₹4,995.00
( - 26% OFF )
Description

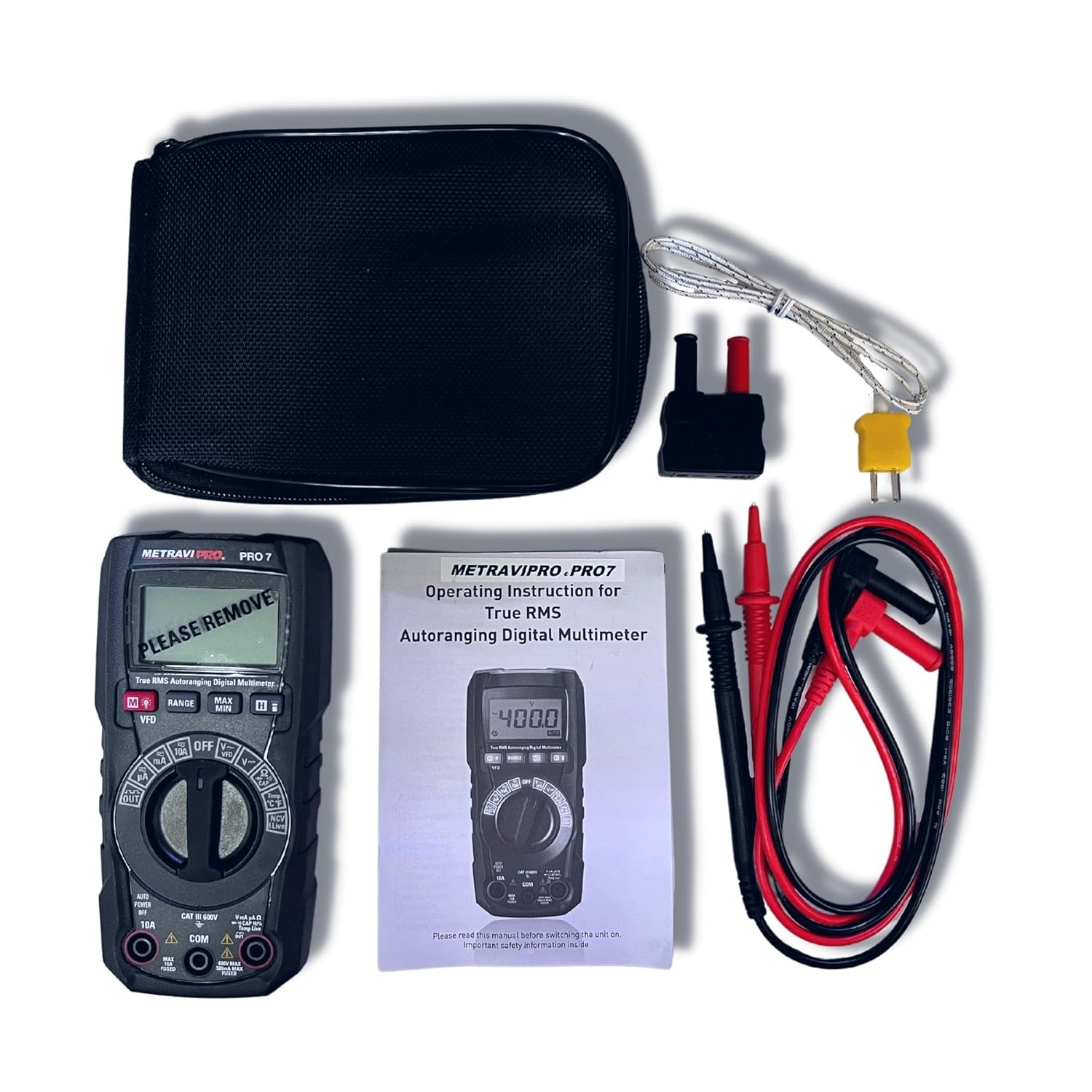

What's in the box?
|
Rating & Reviews
Rating
| Enclosure | Double- moulded |
| Shock (Drop Test) | 1 |
| Input Impedance | >10MW VDC & >10MW VAC |
| Response | TRMS |
| ACV Bandwidth | 50/60Hz (All wave); 45Hz to 1000Hz (Sine wave) |
| Crest Factor | 3 at full scale up to 300V, decreasing linearly to ≤1.5 at 600V |
| Display | 4000 Counts Positive Display |
| Over Range Indication | “OL” is displayed |
| Auto Power Off | 15 minutes (approximately) with disabling feature |
| Polarity | Automatic (No indication for positive): Minus (-) sign for negative |
| Measurement Rate | 3 times per second, nominal |
| Battery | 1.5V AAA x 2 battery |
| Fuses | mA/µA ranges: 0.5A 600V ceramic fast blow A range; 10A/600V ceramic fast blow |
| Operating Temperature | 5 to 40°C (41 to 104°F) |
| Storage Temperature | 20 to 60°C (-4 to 140°F) |
| Operating Humidity | Max 80% up to 31°C (87°F) decreasing linearly to 50% at 40°C (104°F) |
| Storage Humidity | <80% |
| Operating Altitude | 7000 ft. (2000 meters) maximum |
| Safety | This meter is intended for origin of installation use and protected by double insulation per EN61010-1:2010 and EN61010-031:2015, EN61010-2-033:2012 to CATIII 600V; Pollution Degree 2 |
DC VOLTAGE
Range | Resolution | Accuracy |
| 400mV | 0.1mV |
±(1.0% + 3 digits) |
| 4V | 0.001V | |
| 40V | 0.01V | |
| 400V | 0.1V | |
| 600V | 1V |
AC Voltage (50Hz to 400Hz)
Range | Resolution | Accuracy |
| 4V | 0.001V |
±(1.0% + 3 digits) |
| 40V | 0.01V | |
| 400V | 0.1V | |
| 600V | 1V |
AC Current (50Hz to 60Hz)
Range | Resolution | Accuracy |
| 400μA | 0.1µA |
±(1.2% + 3 digits) |
| 4000μA | 1µA | |
| 40mA | 0.01mA | |
| 400mA | 0.1mA | |
| 4A | 0.001A | ±(1.8% + 5 digits) |
| 10A | 0.01A |
DC Current
Range | Resolution | Accuracy |
| 400μA | 0.1µA |
±(1.0% + 3 digits) |
| 4000μA | 1µA | |
| 40mA | 0.01mA | |
| 400mA | 0.1mA | |
| 4A | 0.001A | ±(1.2% + 3 digits) |
| 10A | 0.01A |
Resistance
Range | Resolution | Accuracy |
400W | 0.1W |
±(1.5% + 5 digits) |
4kW | 0.001kW | |
40kW | 0.01kW | |
400kW | 0.1kW | |
4MW | 0.001MW | |
40MW | 0.01MW | ±(2.5% + 20 digits) |
Capacitance
Range | Resolution | Accuracy |
99.99nF | 0.01nF | ±(4.5% + 20 digits) |
999.9nF | 0.1nF | ±(4.5% + 10 digits) |
| 9.999μF | 0.001µF |
±(3.0% + 5 digits) |
| 99.99μF | 0.01µF | |
| 999.9μF | 0.1µF | |
| 9.999mF | 1µF | ±(5% + 5 digits) |
| 99.99mF | 10µF |
