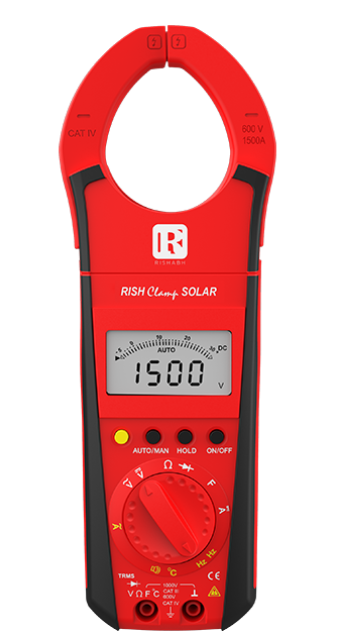

Rishabh Rish Clamp Solar Digital Clamp meter
Click To Zoom
Rishabh Rish Clamp Solar Digital Clamp meter
Rishabh Rish Clamp Solar Digital Clamp meter
RISH Clamp SOLAR has DC voltage measurement upto 1500V DC, to measure inverter input voltage at solar power plants and current measurement upto 1500 A AC/DC. It also measures AC Voltage(TRMS), Capacitance, Resistance & Continuity, Frequency & Duty cycle and temperature measurement.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 15,999.00
(GST inclusive price) i₹27,300.00
( - 41% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
Measuring function |
Measuring range |
Resolution |
Input impedance | Intrinsicerror of digital display ± (…% of rdg + …digit) at reference condition | Over load capacity 1) | |
Over load value | Overload duration | |||||
V DC | 30.00 mV | 10 µV | >10 GΩ // <40pF | 0.5 + 3 2) |
1500 V DC 1000 V AC eff / rms Sine wave |
Continuously |
300.0 mV | 100 µV | >10 GΩ // <40pF | 0.5 + 3 | |||
3.000 V | 1 mV | 11 MΩ // <40pF | 0.25 + 3 | |||
30.00 V | 10 mV | 10 GΩ // <40pF | 0.25 + 3 | |||
300.0 V | 100 mV | 10 GΩ // <40pF | 0.25 + 3 | |||
1500 V |
1 V |
10 GΩ // <40pF | 0.35 + 3 (upto 1000V) | |||
0.5 + 3 (1000 V to 1500V) | ||||||
V ~ | 3.000 V | 1 mV | 10 GΩ // <40pF |
0.75 + 2 (10….300 Digit) 0.75 + 1 ( >300 Digit) | ||
30.00 V | 10 mV | 10 GΩ // <40pF | ||||
300.0 V | 100 mV | 10 GΩ // <40pF | ||||
1000 V | 1V | 10 GΩ // <40pF | ||||
Ω | No load voltage | |||||
30.00 Ω | 10 mΩ | Max. 3.2 V | 0.5 + 3 2) |
1500 V DC 1000 V AC eff / rms Sine wave |
10 Sec | |
300.0 Ω | 100 mΩ | Max. 3.2 V | 0.5 + 3 | |||
3.000 KΩ | 1Ω | Max. 1.25 V | 0.4 + 1 | |||
30.00 KΩ | 10 Ω | Max. 1.25 V | 0.4 + 1 | |||
300.0 KΩ | 100 Ω | Max. 1.25 V | 0.4 + 1 | |||
3.000 MΩ | 1 KΩ | Max. 1.25 V | 0.6 + 1 | |||
30.00 MΩ | 10 KΩ | Max. 1.25 V | 2.0 + 1 | |||
Diode | 2.000 V | 1 mV | Max. 3.2 V | 0.2 + 3 | ||
A AC/DC | 300.0 A | 0.1 A | - | 2 % + 0.5 A |
1600 A |
Continuously |
1500 A |
1 A |
- | 2 % + 5 A (upto 1200A) | |||
2.2 % + 5 A (1200A to 1500A) | ||||||
Measuring Function |
Measuring range |
Resolution |
Discharge resistance |
U0 max. | Intrinsic error of digital display ± (…% of rdg + …digit) at reference condition | Over load capacity 1) | ||
Over load value | Overload duration | |||||||
F | 30.00 nF | 10 pF | 250 KΩ | 2.5 V | 1.0 + 3 2) |
1500 V DC 1000 V AC eff / rms Sine wave |
10 Sec | |
300.0 nF | 100 pF | 250 KΩ | 2.5 V | 1.0 + 3 | ||||
3.000 µF | 1nF | 15 KΩ | 2.5 V | 1.0 + 3 | ||||
30.0 µF |
10 nF |
15 KΩ |
2.5 V | 3.0 + 3 | ||||
300.0 µF |
100 nF | 15 KΩ |
2.5 V |
5.0 + 6 | ||||
Hz | f min V DC | f min V ~ | ||||||
300.0 Hz | 0.1 Hz | 1 Hz | 45 Hz | 0.5 + 3 3) |
3 kHz 1000 V 30 kHz 300 V 100 kHz 30 V |
Continuously | ||
3.000 KHz | 1 Hz | 1 Hz | 45 Hz |
0.5 + 1 3) | ||||
30.00 KHz | 10 Hz | 10 Hz | 45 Hz | |||||
100.0 KHz | 100 Hz | 100 Hz | 100 Hz | |||||
% | 2.0... 98.0% | 0.1% | 2 Hz | - | 2 Hz… 1kHz ± 5 Digit 4) 1 kHz … 10 kHz;± 5 Digit / kHz4) | |||
ºC | Pt 100 | 200.0… +200.0 ºC | 0.1 ºC |
- |
- | 2 Kelvin+ 5 Digit 5) |
1500 V DC 1000 V AC eff / rms Sine wave |
10 Sec |
200.0… +850.0 ºC | 0.1 ºC | 1.0 + 5 5) | ||||||
Pt 1000 | 100.0… +200.0 ºC | 0.1 ºC |
- |
- | 2 Kelvin+ 2 Digit 5) | |||
200.0… +850.0 ºC | 0.1 ºC | 1.0 + 2 5) | ||||||
