Fluke 805 FC Vibration Meter
Click To Zoom

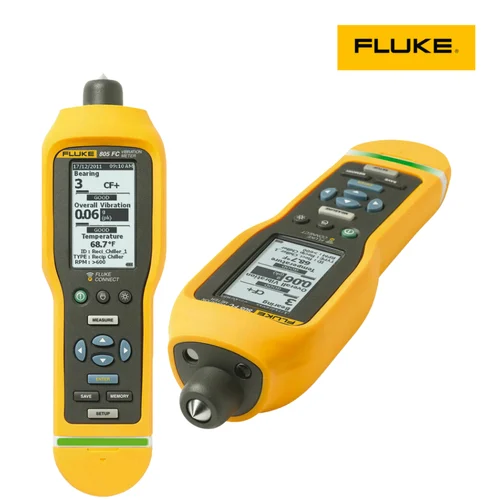

Fluke 805 FC Vibration Meter
Fluke 805 FC Vibration Meter
Make go or no-go maintenance decisions with confidence. The Fluke 805 FC Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration, bearing health and machine health.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
1 YEAR WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 3,44,729
(GST inclusive price) i-
Base Value: ₹ 292143.2
-
GST: (18) % ₹ 52585.8
-
Total Value ₹ 344729
₹4,63,995.00
( - 26% OFF )
Description
Key Features
- Innovative sensor design minimizes measurement variations caused by device angle or contact pressure
- Consistent data quality at both low and high frequency ranges
- Four-level severity scale assesses urgency of problems for overall vibration and bearing condition

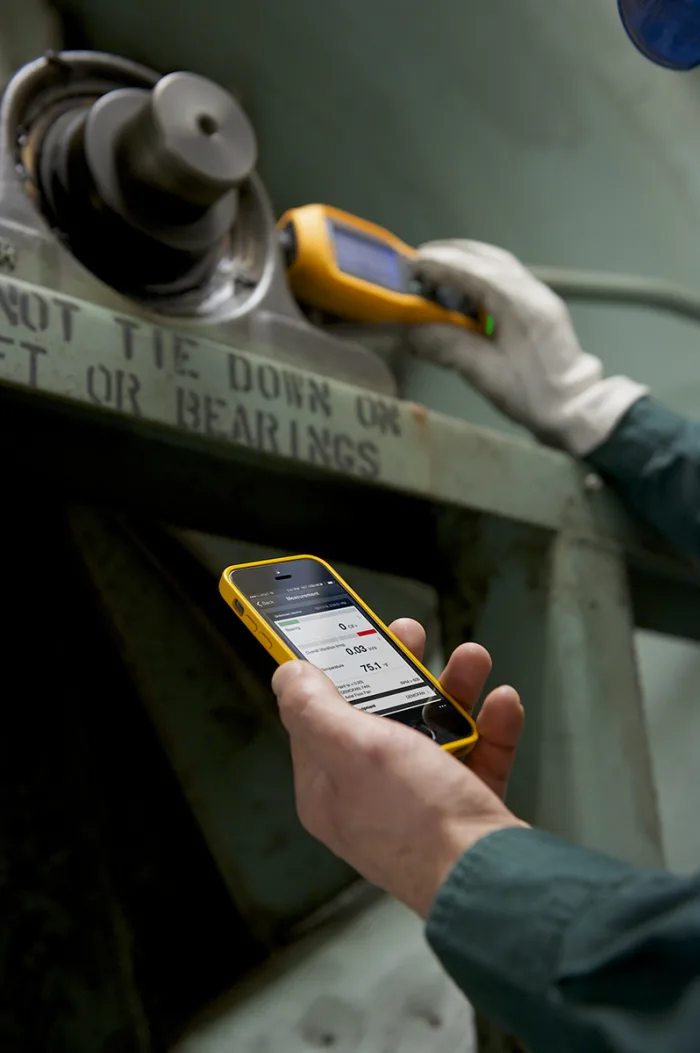

- Exportable data via USB or wirelessly, through the Fluke Connect® mobile app
- Trending in Microsoft® Excel using pre-built templates
- Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines
- Crest Factor+ technology provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
- Get authorization to take next steps in an instant if machine health is at risk via Fluke Connect® mobile app
- Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements

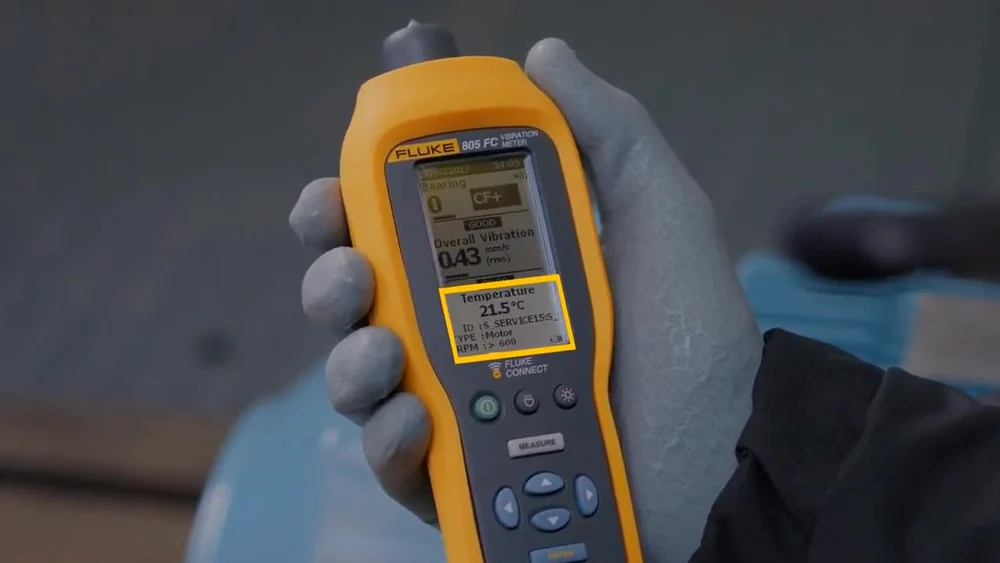

- Temperature measurement with Spot IR Sensor increases diagnostic capabilities
- On-board memory holds and saves up to 3,500 measurements
- External accelerometer (optional) support for hard to reach locations
- Flashlight for viewing measurement locations in dark areas
- Large screen with high resolution for easy navigation and viewing
What's in the box?
|
Rating & Reviews
Rating
GENERAL
| Battery type | AA (2) Lithium Iron Disulfide |
| Battery life | 250 measurements |
| Size (L x W x H) | 25.72 cm x 16.19 cm x 9.84 cm (10.13 in x 6.38 in x 3.875 in) |
| Weight | 1.16 kg (2.55 lb) |
| Fluke Connect® mobile app compatible* | Yes |
| Connectors | USB mini-B 7-pin, external sensor jack (SMB connector) |
TECHNICAL
| Vibration meter | |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
| Severity levels | Good, Satisfactory, Unsatisfactory,Unacceptable |
| Vibration limit | 50 g peak (100 g peak-peak) |
| A/D converter | 16-bit |
| Signal to noise ratio | 80 dB |
| Sampling rate | |
| Sampling rate | |
| Low frequency | 20,000 Hz |
| High frequency | 80,000 Hz |
| Real time clock backup | Coin battery |
| Sensor | |
| Sensitivity | 100 mV / g ± 10% |
| Measurement range | 0.01 g to 50 g |
| Low frequency range (overall measurement) | 10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) | 4,000 Hz to 20,000 Hz |
| Resolution | 0.01 g |
| Accuracy | At 100 Hz ± 5 % of measured value |
| Amplitude units | |
| Acceleration | g, m/sec2 |
| Velocity | in/sec, mm/sec |
| Displacement | mils, mm |
| Infrared thermometer (temperature measurement) | |
| Range | -20 °C to 200 °C (-4 °F to 392 °F) |
| Accuracy | ± 2 °C (4 °F) |
| Focal length | Fixed, at ~3.8 cm (1.5 in) |
| External sensor (optional accessory) | |
| Frequency range | 10 Hz to 1,000 Hz |
| Bias voltage (to supply power) | 20 V dc to 22 V dc |
| Bias Current (to supply power) | Maximum 5 mA |
| Firmware | |
| External interfaces | USB 2.0 (full speed) communication |
| Data capacity | Database on internal flash memory |
| Upgrade | through USB |
| Memory | Up to 3,500 measurements |
| Radiated emission | |
| Electrostatic discharge: Burst | Standard EN 61000-4-2 |
| Electromagnetic interference | Standard EN 61000-4-3 |
| RE | Standard CISPR 11, Class A |
| Firmware | |
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Storage temperature | -30 °C to 80 °C (-22 °F to 176 °F) |
| Operating humidity | 10 % to 95 % RH (non-condensing) |
| Operating/Storage altitude | Sea Level to 3,048 meters (10,000 feet) |
| IP rating | IP54 |
| Vibration limit | 500 g peak |
| Drop test | 1 meter |
