KYORITSU 3005A DIGITAL INSULATION / CONTINUITY TESTER
Click To Zoom

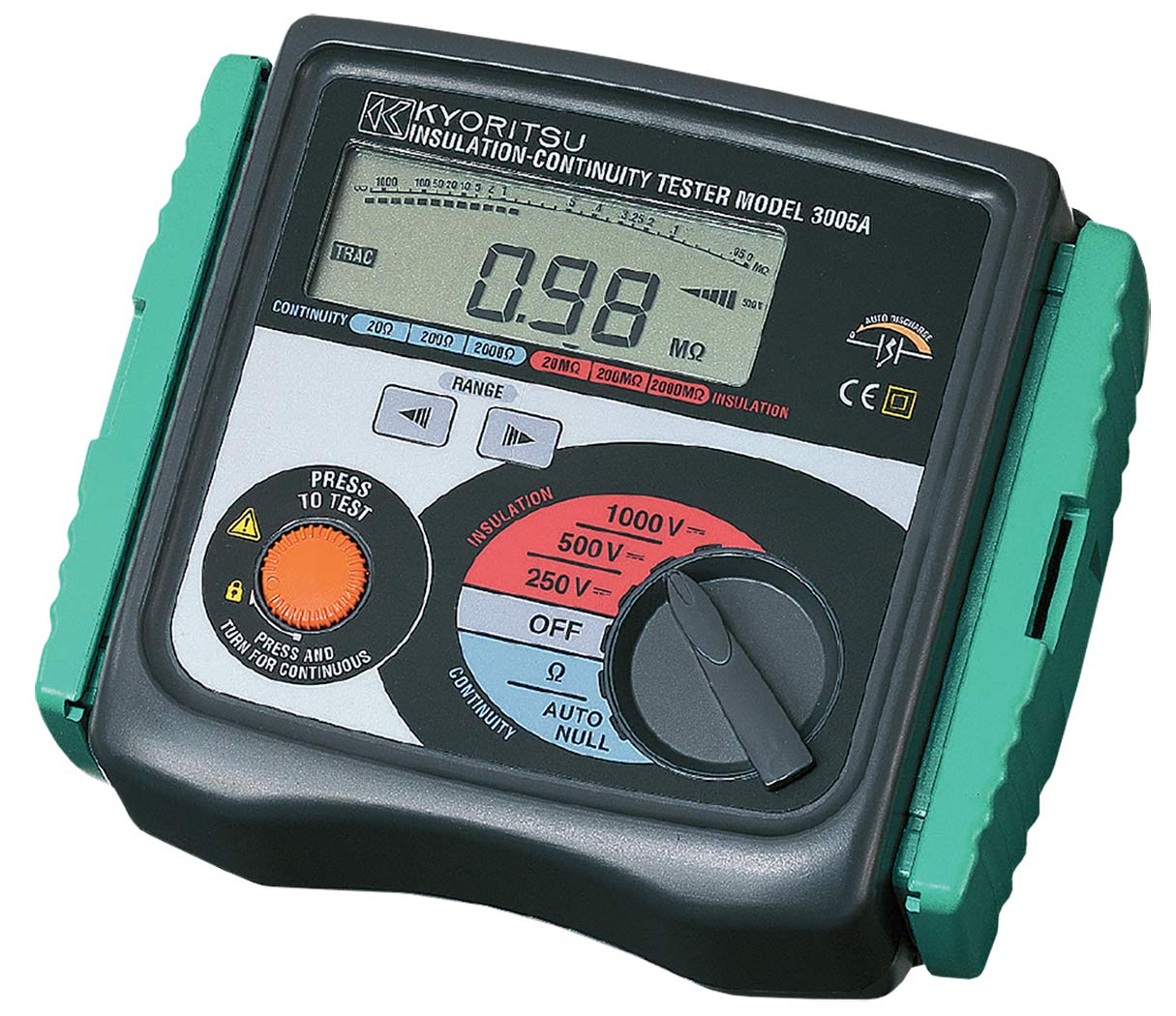

KYORITSU 3005A DIGITAL INSULATION / CONTINUITY TESTER
KYORITSU 3005A DIGITAL INSULATION / CONTINUITY TESTER
The KEW 3005A is a digital insulation and continuity tester used to measure the insulation resistance of electrical equipment and the continuity of electrical circuits.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 30,739
(GST inclusive price) i-
Base Value: ₹ 26050
-
GST: (18) % ₹ 4689
-
Total Value ₹ 30739
₹44,741.00
( - 31% OFF )
Description
Key Features
- Bar graph to display insulation resistance
- Displays the value of external AC voltage with flashing symbol
- Auto null function to automatically subtract the test lead resistance before displaying the real continuity resistance value
- Live circuit warning buzzer
- Releasing the test button automatically discharges the charges stored in the circuit under test
- 200mA measuring current on continuity testing
What's in the box?
|
Rating & Reviews
Rating
| Insulation Resistance | |
| Test voltage | 250/500/1000V |
| Measuring ranges (Mid-scale value) | 20/200/2000MΩ |
| Output voltage on open circuit | Rated test voltage +20%, -0% |
| Nominal current | 1mA DC min. |
| Output short circuit current | 1.5 mA DC approx. |
| Accuracy | ±1.5%rdg±5dgt (20/200MΩ) ±10%rdg±3dgt (2000MΩ) |
| Continuity Test | |
| Measuring ranges (Mid-scale value) | 20/200/2000Ω |
| Output voltage on open circuit | 7 - 12V DC |
| Measuring current | 200mA DC min. |
| Accuracy | ±1.5%rdg±5dgt (20Ω) ±1.5%rdg±3dgt (200/2000Ω) |
| AC Voltage | |
| AC voltage range | 0 - 600V AC |
| Accuracy | ±5%rdg±3dgt |
| General | |
| Safety Standard | IEC 61010-1 CAT III 300V Pollution Degree 2 IEC 61010-2-031, IEC 61010-2-034, IEC 61557-1,2,4 |
| IP Rating | IEC 60529-IP54 |
| EMC Standard | IEC 61326-1 |
| Power source | R6 (AA) (1.5V) × 8 |
| Dimension | 167(L) × 185(W) × 89(D)mm |
| Weight | Approx. 970g |
