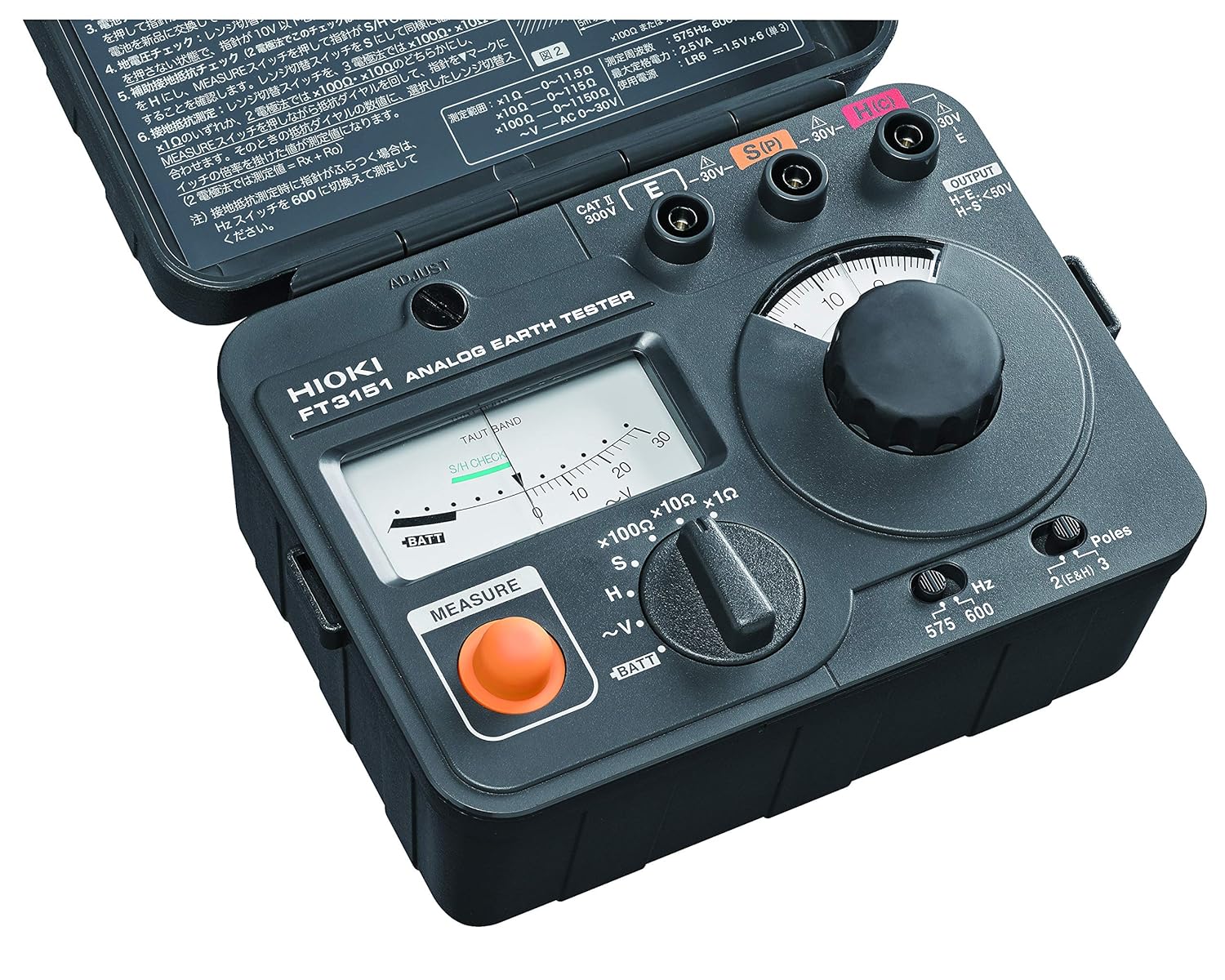

Hioki FT3151 Analog Earth Tester
Click To Zoom
Hioki FT3151 Analog Earth Tester
Hioki FT3151 Analog Earth Tester
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT3151 Analog EarthTester uses the AC phase differential system to measure earthing resistance, which assures that accurate measurements are unaffected by earth voltage and auxiliary earthing resistance. New innovate cord winders make clean up a breeze.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 35,181
(GST inclusive price) i-
Base Value: ₹ 29814.4
-
GST: (18) % ₹ 5366.6
-
Total Value ₹ 35181
₹49,690.00
( - 29% OFF )
Description
Key Features
- Three-electrode method, Two-electrode method (Simple Measurement)
- Wide measurement range for 0 to 1150 Ω, based on EN standard
- Switchable measurement frequency to reduce the effects of power supply harmonics
- Dramatically faster setup: Comes with improved earthing rods and cord winders
What's in the Box?
|
Rating & Reviews
Rating
| Measurement system | AC potentiometer method, Three-electrode method/ two-electrode method (switchable) Measuring frequency: 575 Hz/ 600 Hz Measurement current: Three-electrode method: 15 mA rms or less; Two-electrode method: 3 mA rms or less Open circuit voltage: 50 V AC rms or less |
| Measurement range | 10 Ω (0 to 11.5 Ω), 100 Ω (0 to 115 Ω), 1000 Ω (0 to 1150 Ω) |
| Nominal Deviation | ±0.25 Ω, ±2.5 Ω, ±25 Ω |
| Functions | Auxiliary earth resistance check S (P)/ H(C) |
| Earth potential measurement | 0 to 30 V, Nominal Deviation: ±3.0 % f.s. |
| Power supply | LR6 (AA) Alkaline battery ×6, 1100 times operation (at 30 sec. measurement/ 30 sec. rest cycle) |
| Dimensions and mass | 164 mm (6.46 in)W × 119 mm (4.69 in)H × 88 mm (3.46 in)D, 760 g (26.8 oz) |
