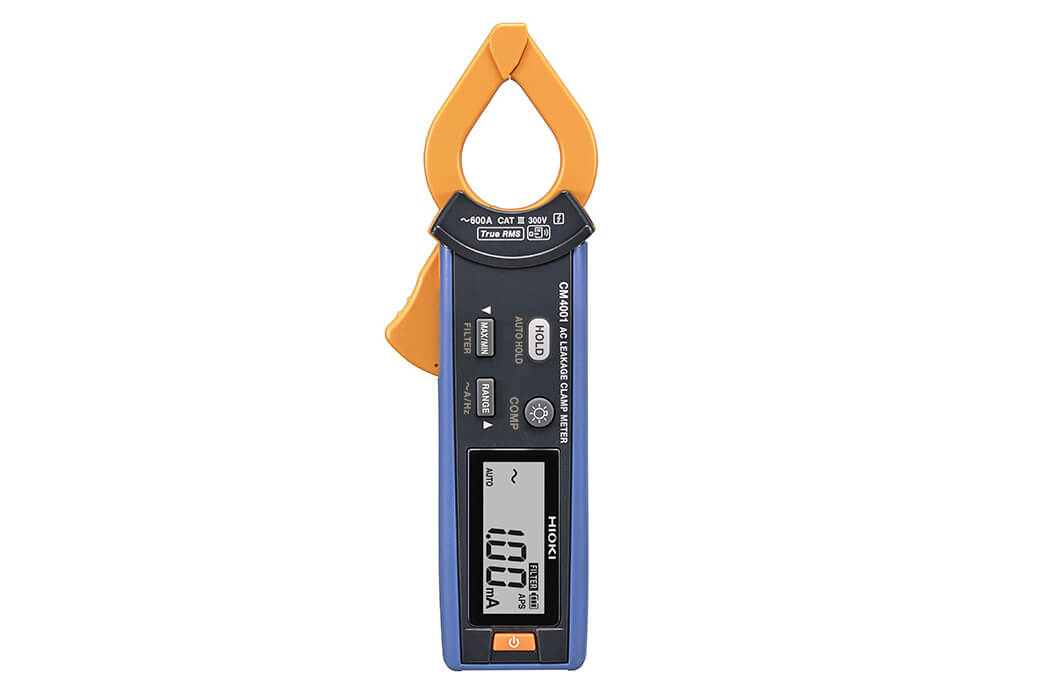

HIOKI CM4001 AC LEAKAGE CLAMP METER

HIOKI CM4001 AC LEAKAGE CLAMP METER
HIOKI CM4001 AC LEAKAGE CLAMP METER
HIOKI CM4001 AC LEAKAGE CLAMP METER

HIOKI CM4001 AC LEAKAGE CLAMP METER

Click To Zoom

HIOKI CM4001 AC LEAKAGE CLAMP METER

HIOKI CM4001 AC LEAKAGE CLAMP METER

(Based On 10 Reviews)

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

₹ 31,745

(GST inclusive price) i
  • Base Value: ₹ 26902.5
  • GST: (18) % ₹ 4842.5
  • Total Value ₹ 31745

₹44,850.00

( - 29% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
  • Slim jaws let you work with ease
  • Measure everything from leakage to load
  • Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
  • Find issues faster with comparator function

What's in the Box?

  • HIOKI CM4001  AC LEAKAGE CLAMP METER
  • Carrying case × 1
  • Strap × 1
  • Instruction manual ×1
  • Operating Precautions × 1
  • LR03 alkaline battery × 1

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

AC Current range60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS) Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A)Guaranteed accuracy: from 0.60 mA to 600.0A
AC Voltage rangeN/A
Frequency range    40.0 Hz to 999.9 Hz
Crest factor4.5 (4000 counts or less) 3 (more than 4000 counts, 6000 counts or less)
Filter functionCut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output functionN/A
Harmonic levels[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio
*Harmonics can be displayed with our free app GENNECT Cross.
Other functions    Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
DisplayDisplay refresh rate: 5 times/s
Power supplyLR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)

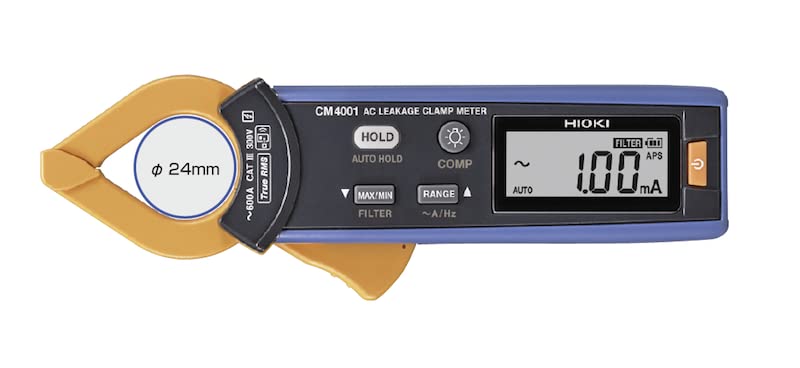

Core jaw diameterφ 24 mm (0.94 in)
Dimensions and mass37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz.)
