HIOKI IR4057-50 DIT INSULATION TESTER
Click To Zoom
HIOKI IR4057-50 DIT INSULATION TESTER
HIOKI IR4057-50 DIT INSULATION TESTER
Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4057-50 is a 5-range, 50 V to 1000 V digital insulation resistance tester with bargraph, and delivers efficient functions and features to help shorten work time associated with field insulation testing.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
₹ 25,210
(GST inclusive price) i-
Base Value: ₹ 21364.4
-
GST: (18) % ₹ 3845.6
-
Total Value ₹ 25210
₹35,600.00
( - 29% OFF )
Description
Key Features
- Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary).
- 5-range testing voltage of 50 V/100 MΩ to 1000 V/4000 MΩ.
- Digital bar graph.
- Stable & high-speed digital readings, 0.3 second response time for PASS/ FAIL decisions.
- Drop proof onto concrete from 1m (3.28 feet).
- Bright LED, luminous LCD, test lead with bright LED lamp to illuminate near hand (Option L9788-11 or L9788-10).
- Continuity check via 200 mA testing.
- Built in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
What's in the Box?
|
Rating & Reviews
Rating
| Rated output voltage | 50 V DC, 125 V DC, 250 V DC, 500 V DC, 1000 V DC |
| Effective maximum indicated value | 100 MΩ, 250 MΩ, 500 MΩ, 2000 MΩ, 4000 MΩ |
| Accuracy 1st effective measuring range MΩ | ±2 % rdg. ±2 dgt. 0.200 - 10.00, ±2 % rdg. ±2 dgt. 0.200 - 25.0, ±2 % rdg. ±2 dgt. 0.200 - 50.0, ±2 % rdg. ±2 dgt.0.200 - 500, ±2 % rdg. ±2 dgt.0.200 - 1000 |
| Lower limit resistance | 0.05 MΩ, 0.125 MΩ, 0.25 MΩ, 0.5 MΩ, 1 MΩ |
| Overload protection | 600 V AC (10s), 660 V AC (10s) |
| DC voltage range | 4.2 V (0.001 V resolution) to 600 V (1 V resolution), 4 ranges, Accuracy: ±1.3% rdg. ±4 dgt., Input resistance: 100 kΩ or higher |
| AC voltage range | 420 V (0.1 V resolution) / 600 V (1 V resolution), 2 ranges, 50/60 Hz, Accuracy: ±2.3% rdg. ±8 dgt., Input resistance: 100 kΩ or higher, Average rectifier |
| Low resistance range | For checking the continuity of ground wiring, 10 Ω (0.01 Ω resolution) to 1000 Ω (1 Ω resolution), 3 ranges, Basic accuracy: ±3 % rdg. ±2 dgt., testing current 200 mA or more (at 6 Ω or less) |
| Display | Semi-transmissive FSTN LCD with back lighting, bar-graph indicator |
| Response time | Approx. 0.3 second for PASS/FAIL decision (based on in-house testing) |
| Dimensions and mass | 159 mm (6.26 in) W × 177 mm (6.97 in) H× 53 mm (2.09 in) D, 640 g (22.6 oz) (including batteries, excluding test leads) |
| Other functions | Indicate MΩ measurement value after a lapse of one minute, Live circuit indicator, Automatic electric discharge, Automatic DC/AC detection, Comparator, Drop proof, Auto power save |
| Power supply | LR6 (AA) alkaline batteries × 4, Continuous use: 20 hours (based on in-house testing) Number of measurements: 1000 times (at 5 s ON, 25 s OFF cycle, insulation measurement of lower limit resistance value to maintain nominal output voltage) |
Rating & Reviews
Rating
Similar Products
CEM
CEM DT-6605 Digital High Voltage Insulation Tester
₹ 23,100
₹ 35,240
Add To Cart
Mextech

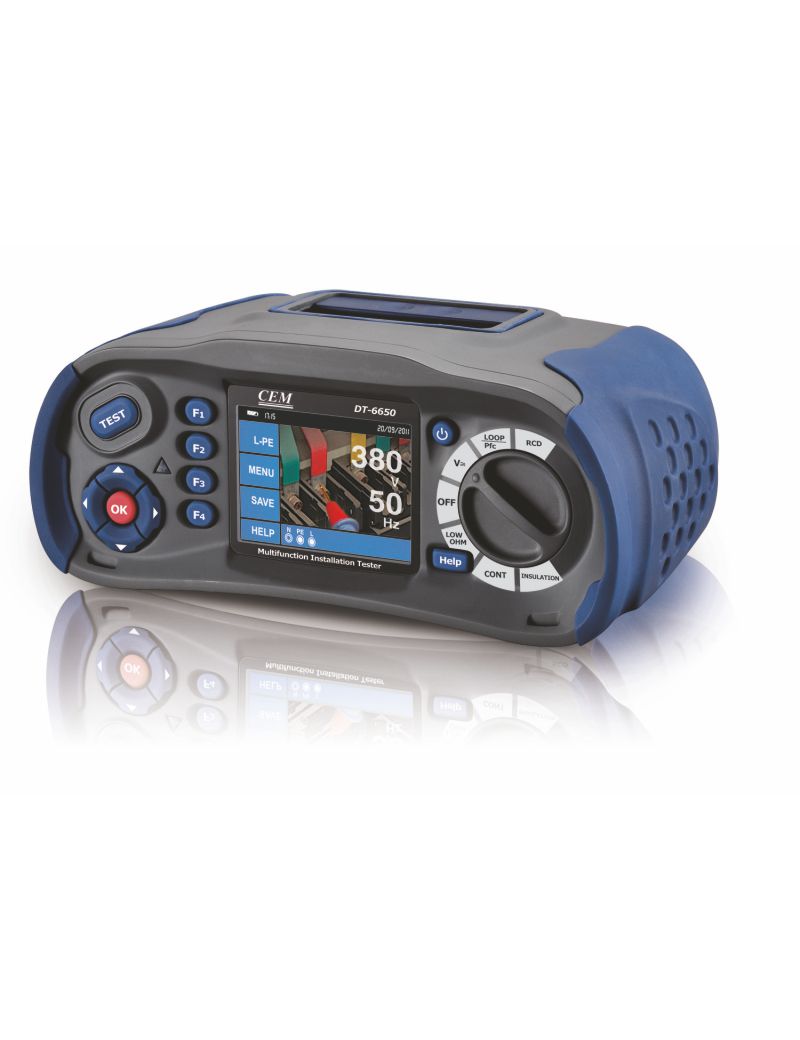

MEXTECH DT-6650 MULTIFUNCTION INSTALLATION TESTER
