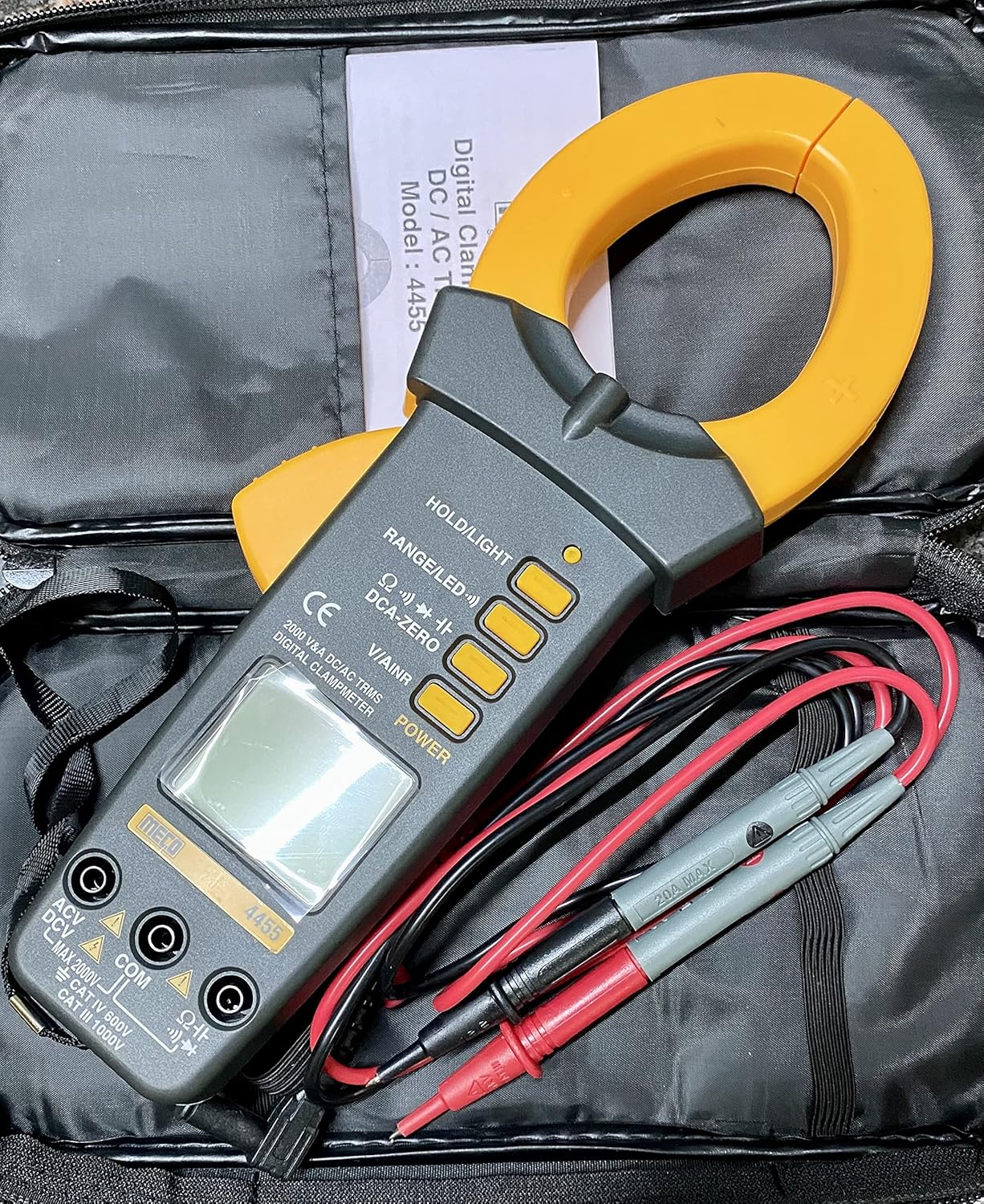

MECO 4455 Auto / Manual Ranging Digital Clamp meters
Click To Zoom
MECO 4455 Auto / Manual Ranging Digital Clamp meters
MECO 4455 Auto / Manual Ranging Digital Clamp meters
The MECO 4455 is a 3½ digit (1999 counts) True RMS digital clamp meter for AC/DC current and voltage measurement up to 2000A and 2000V respectively. It features auto/manual ranging, resistance and capacitance measurement, audible continuity, diode test, inrush current measurement, data hold, backlight, torch light, auto power off, and low battery indication with a 55mm jaw opening.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 8,054.00
(GST inclusive price) i₹10,665.00
( - 24% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Function | Range |
| DC Current | 20A, 200A, 2000A (Auto & Manual Ranging) |
| Accuracy | ±(1.90%rdg+10dgts] |
| Overload | 2000 A DC/AC RMS max. for 1 min |
| AC Current | 20A, 200A, 2000A [Auto & Manual Ranging) |
| Accuracy | ±(1.90%rdg + 10dgt) |
| AC Response | AC Conversion Type: TRUE RMS responding, Calibrated readings consistent with sinusoidal waveform RMS. Frequency Range: 50-60Hz |
| Overload | 2000A DC/AC RMS max. for 1 min |
| DC Voltage | 2V, 20V, 200V, 2000V (Auto & Manual Ranging) |
| Accuracy | ±(0.50%rdg + 5dgts] on all rages except ±[2.00% rdg + 5dgts] on 2000V |
| AC Voltages | 2V, 20V, 200V, 2000V (Auto & Manual Ranging) |
| Accuracy | ±(0.80% rdg + 10 dgts) 2V ±(0.80% rdg + 5 dgts) 20V, 200V ±(2.0% rdg + 5 dgts) 2000V |
| AC Response | Frequency: 10Hz - 1KHz (200V: 10Hz to 400Hz), Display: TRUE RMS (Sinusoidal waveform RMS Calibration |
| Resistance | 200Ω, 2kΩ, 20kΩ, 200Ω, 2ΜΩ, 20ΜΩ (Auto & Manual Ranging) |
| Accuracy | ±(1.00%rdg + 5dgt) on 200Ω ±(0.80%rdg + 5dgt) on 2kΩ -2ΜΩ ±[1.50%rdg + 5dgt) on 20ΜΩ |
| Capacitance | 20nF, 200nF, 2µF, 20µF, 200μF, 2000µF (Auto Ranging) |
| Accuracy | ±(3%rdg + 10dgtl on all ranges except ±(5%rdg + 10dgt) on 2000µF |
| Special Function | Audible Continuity, Diode Test function |
| Protection | 220VDC or AC RMS overload protection in Capacitance, Diode, Ohms, Continuity |
| Power | One 9V Battery |
| Battery Life | 150 hours (typical) |
| Dimensions | 270 x 100 x 46 mm (approx.) |
| Weight | 460gms Including Battery (approx.) |
| Jaw Opening | Cable Dia 55mm max. |
