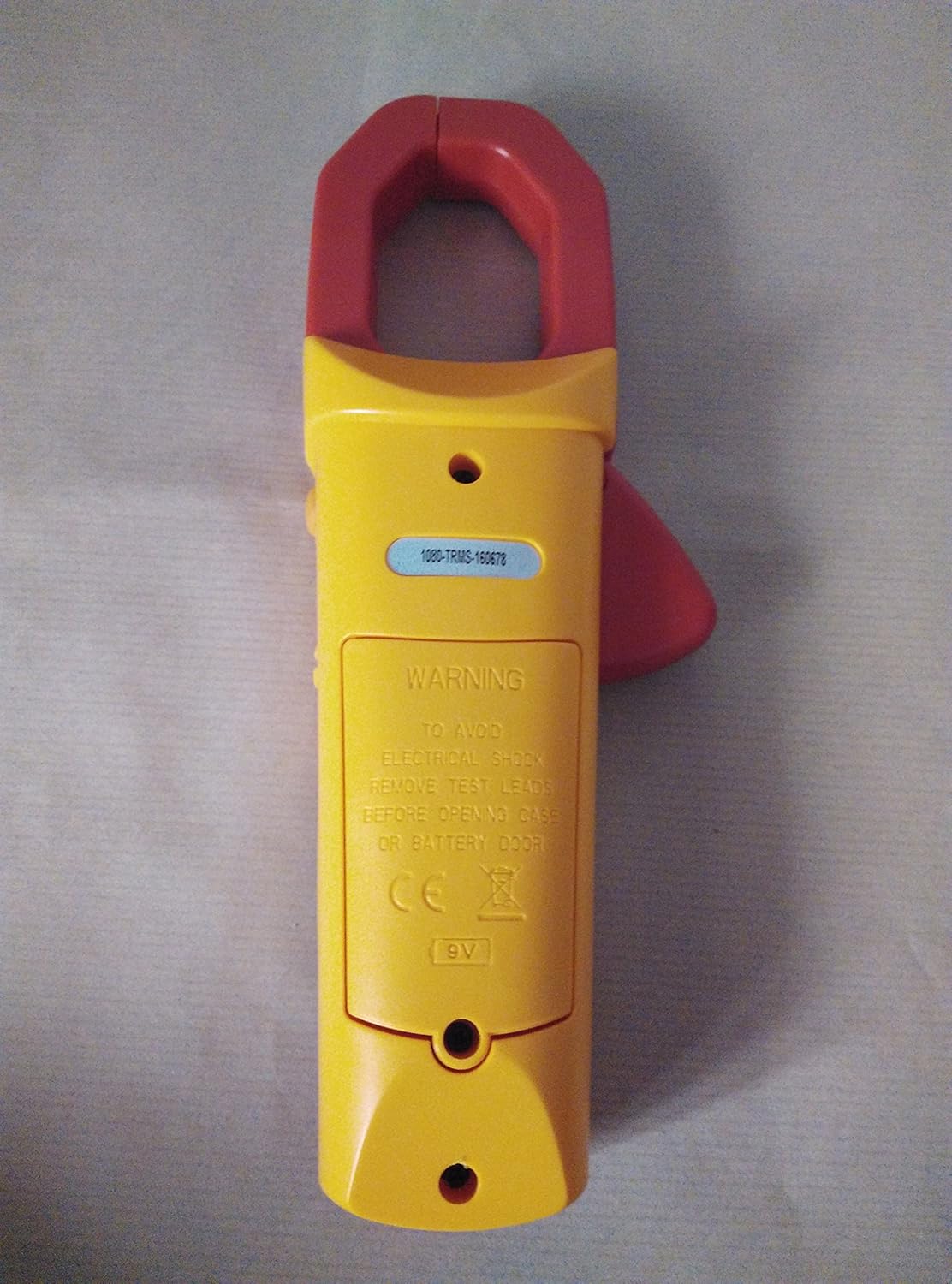

MECO 1080-TRMS Auto Ranging Digital Clamp meter
Click To Zoom
MECO 1080-TRMS Auto Ranging Digital Clamp meter
MECO 1080-TRMS Auto Ranging Digital Clamp meter
1200A DC/AC TRMS Auto / Manual, 3 Digit, 6000 Counts LCD with Backlight, APO, Capacitance, Frequency, Duty Cycle & Temperature
Request Callback
Order In Bulk
Generate Quote
₹ 5,373.00
(GST inclusive price) i₹5,373.00
( - 0% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Function | Range |
| DC Voltage | 600mV / 6 / 60 / 600 / 1000V |
| Accuracy | ± (0.5%rdg + 3dgt) |
| AC Voltage | 6 / 60 / 600 / 750V |
| Accuracy | ± (1.0% rdg + 5dgt) |
| AC Response | 40Hz~1000Hz |
| DC Current | 600 / 6000 A / 60 / 600 / m 1200A |
| Accuracy | ± (1.2% rdg + 10dgt) on 600 / 6000 Am ± (2.0% rdg + 30dgt) on 60 / 600 / 1200A |
| Overload | 1200A DC Max. for 1min. for A |
| AC Current | 600 / 6000μA / 60 / 600 / 1200A |
| Accuracy | ± (2.0% rdg + 30dgt) |
| AC Response | 40 Hz~1000Hz |
| Overload | 1200A AC Max. for 1min. for A |
| Resistance | 600 / 6 / 60 / 600k / 6 / V V 60MV |
| Accuracy | ± (0.8% rdg + 5dgt) on 600V ± (0.8% rdg + 3dgt) on 6 / 60 / 600k / 6M V V ± (1.0% rdg + 25dgt) on 60MV |
| Capacitance | 9.999 / 99.99 / 999.9nF / 9.999 / 99.99 / 999.9μF / 9.999mF |
| Accuracy | ± (3.5% rdg + 60dgt) on all ranges except ± (5.0% rdg + 10dgt) on 9.999mF |
| Frequency | 99.99Hz~10.00MHz |
| Accuracy | ± (0.01% rdg + 3dgt) |
| Duty Cycle | 0.1%~99.9% |
| Accuracy | ± (0.01% rdg + 3dgt) |
| Temperature | -20°C~1000°C / |
| Accuracy | ± (1% rdg + 5dgt) on - 20°C~400°C |
| μA Measurement for HVAC Flame Sensors | 600.0μA / 6000μA |
| Accuracy | ± (1% rdg + 20 dgt) |
| Sp. Function | Diode Test, Audible Continuity, Data Hold |
| Power | One 9V Battery |
| Low Battery | is indicated |
| Battery Life | 200 hours typical |
| Dimension | 238 x 90 x 48mm (approx.) |
| Weight | 320gms Including Battery (approx.) |
| Jaw Opening | 30mm |
| Measuring Category | CAT IV 600V |
