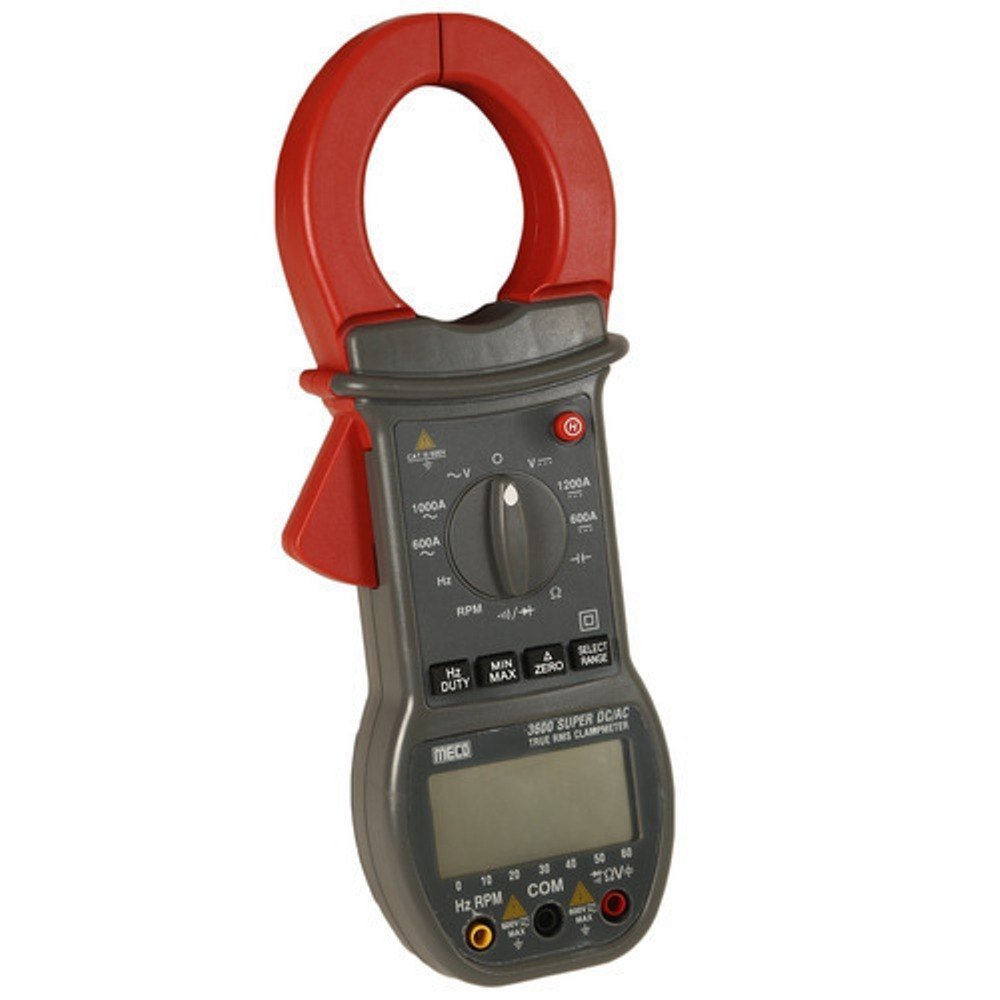

MECO 3600+ Auto Ranging Digital Clamp meter

MECO 3600+ Auto Ranging Digital Clamp meter
MECO 3600+ Auto Ranging Digital Clamp meter
MECO 3600+ Auto Ranging Digital Clamp meter
MECO 3600+ Auto Ranging Digital Clamp meter

MECO 3600+ Auto Ranging Digital Clamp meter

Click To Zoom

MECO 3600+ Auto Ranging Digital Clamp meter

MECO 3600+ Auto Ranging Digital Clamp meter

(Based On 10 Reviews)

The MECO 3600+ is a 3¾ digit (4200 counts) True RMS digital clamp meter for AC/DC current (up to 1200A DC/1000A AC) and voltage (up to 1000V DC/750V AC) measurement.  It features auto-ranging, temperature and frequency measurement, capacitance, resistance, duty cycle, MAX/MIN/ΔREL, data hold, a backlit display, and a 55mm jaw opening.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 4,549

(GST inclusive price) i
  • Base Value: ₹ 3855.1
  • GST: (18) % ₹ 693.9
  • Total Value ₹ 4549

₹6,291.00

( - 28% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3¾ Digits
  • 4200 Counts
  • TRMS
  • Auto Ranging
  • DC Voltage upto 1000V
  • AC Voltage upto 750V
  • DC Current upto 1200A
  • AC Current upto 1000A
  • Resistance upto 40MΩ
  • Capacitance up to 40µF
  • Frequency up to 9.999MHz
  • Duty Cycle 10% ~ 90%
  • Temperature
  • Diode Test
  • Audible Continuity
  • MAX / MIN
  • Δ REL
  • Data Hold
  • Auto Power Off
  • Low Battery Indication
  • Jaw Opening: Cable Dia. 55mm (max.

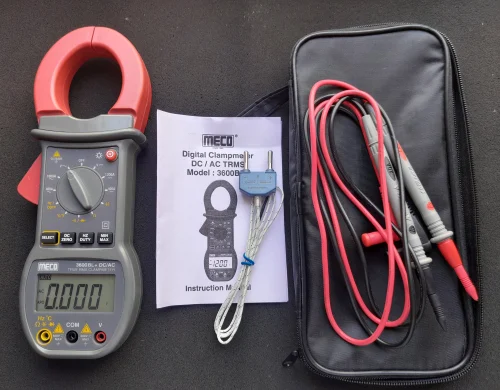

What's in the box?

  • MECO 3600+ Auto Ranging Digital Clamp meter
  • Test Leads x 1 Pair
  • 1.5V 'AAA' Battery x 2 Pcs
  • Instruction Manual x 1 Pc
  • K Type Thermocouple (upto 260° C) x 1 Pair
  • Carrying Case x 1 Pc

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

FunctionRange
DC Current 400A, 1200A
Accuracy Â±(3.0%rdg+8dgts]
Overload 1200A DC/AC RMS max. 1 min
AC Current 400A, 1000A
Accuracy Â±(3.0%rdg + 8dgt] 50-60Hz ±(3.5%rdg + 8dg) 40Hz-1KHz
Overload 1200A DC/AC RMS max. 1 min
DC Voltage 400mV, 4V, 40V, 400V, 1000V [Autol
Accuracy Â±(0.8%rdg + 5dgts]
AC Voltages 4V, 40V, 400V, 750V (Auto)
Accuracy

±(1.5%rdg + 5dgt) 50-60Hz

±(2.0%rdg + 8dgtl 40Hz-1KHz

Resistance 400Ω, 4kΩ, 40kΩ, 400ΚΩ, 4ΜΩ, 40ΜΩ (Auto]
Accuracy

±(1.5%rdg + 5dgt) on 400V

±(1.5%rdg + 3dgt) on 4k0-400kΩ

±[2.0%rdg + 5dgt) on 4MΩ , 40ΜΩ

Capacitance 4nF, 40nF, 400nF, 4µF, 40µF (Auto)
Accuracy

±(3%rdg+ 10dgt) on all ranges except

±(4%rdg + 40dgt) on 4nF

±[4%rdg + 10dgt) on 40nF Note: on 4nF (Use A REL)

Frequency 9.999, 99.99, 999.9Hz, 9.999, 99.99, 999.9KHz, 9.999MHz [Auto]
Accuracy Â±(0.5%rdg + 4dgts]
Duty Cycle 10-90%
Accuracy Â±(0.5%rdg + 4dgts)
Temperature20°C-750°C/-4°F-1400°F
Accuracy

±(1.0%rdg + 5dgts) on -20°C-400°C/-4°F-650°F

±(1.5%rdg + 5dgts) on 401°C-750°C/651°F-1400°F

Sp. Function Audible Continuity, Diode Test
Protection 600VDC or AC RMS overload protection in Capacitance, Diode, Ohms-Hz, Duty Cycle, Continuity, Temperature
Power Two 1.5V "AAA" Battery
Battery Life 150 hours (typical)
Weight 386gms Including Battery (approx.)
Jaw Opening Cable Dia 55mm max.
Dimensions 250 x 100 x 46 mm (approx
