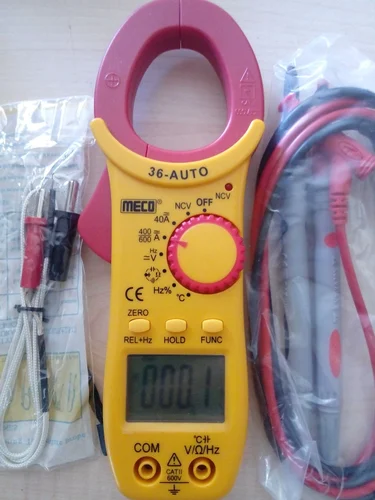

MECO 36-AUTO BL Auto ranging Digital Clamp meters

MECO 36-AUTO BL Auto ranging Digital Clamp meters
MECO 36-AUTO BL Auto ranging Digital Clamp meters
MECO 36-AUTO BL Auto ranging Digital Clamp meters

MECO 36-AUTO BL Auto ranging Digital Clamp meters

Click To Zoom

MECO 36-AUTO BL Auto ranging Digital Clamp meters

MECO 36-AUTO BL Auto ranging Digital Clamp meters

(Based On 10 Reviews)

The MECO 36-AUTO BL is a 3 5/6 digit (6000 counts) True RMS digital clamp meter for AC/DC current (up to 600A) and voltage (up to 600V).  It features auto-ranging, temperature and frequency measurement, capacitance, resistance, duty cycle, data hold, NCV detection, a backlit display, and a torch light for the clamp.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

COD AVAILABLE
CASH ON DELIVERY

COD AVAILABLE

₹ 3,535

(GST inclusive price) i
  • Base Value: ₹ 2995.8
  • GST: (18) % ₹ 539.2
  • Total Value ₹ 3535

₹4,869.00

( - 24% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3 5/6 Digits
  • 6000 Counts
  • TRMS
  • Auto Ranging
  • AC Current upto 600A
  • DC Current upto 600A
  • AC Voltage upto 600V
  • DC Voltage upto 600V
  • Capacitance upto 60mF
  • Frequency upto 1MHz
  • Duty Cycle 0.1% ~ 99.9%
  • Resistance upto 60MΩ
  • Temperature
  • Audible Continuity
  • Diode Test
  • Data Hold
  • Backlight Display
  • Torch Light for Clamp
  • NCV (LED, Buzzer & EF Strength)
  • Auto Power Off
  • Low Battery Indication
  • Jaw Opening : Cable Dia. 25mm (max.)



What's in the box?

  • MECO 36-AUTO BL Auto ranging Digital Clamp meters
  • Test Leads x 1 Pair
  • 1.5V 'AAA' Battery x 2 Pcs
  • Instruction Manual x 1 Pc
  • K Type Thermocouple (upto 260° C) x 1 Pair
  • Carrying Case x 1 P

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

FunctionRange
DC Current 60A/600A
Accuracy Â±[3%rdg+3dgt]
Overload 600A DC max. for 1 min.
AC Current 60A/600A
Accuracy

±[2.5%rdg+8dgt) on 60A

±[2.5%rdg+5dgt) on 600A

AC Response 40Hz-1KHz
Overload 600A AC max. for 1 min.
DC Voltage 600mV, 6V, 60V, 600V [Auto]
Accuracy Â±(0.8%rdg+3dgt)
AC Voltage 6V, 60V, 600V (Auto]
Accuracy +(1.2%rdg+3dgt)
AC Response 40Hz-1KHz
Resistance 600Ω, 6ΚΩ, 60ΚΩ, 600ΚΩ, 6ΜΩ, 60ΜΩ (Auto)
Accuracy Â±[1%rdg+3dgt]
Capacitance 60nF, 600nF, 6µF, 60µF. 600µF, 6mF, 60mF (Auto)
Accuracy Â±(4%rdg+3dgt)
Frequency 60Hz, 600Hz, 6KHz, 60KHz, 600KHz, 1MHz (Auto)
Accuracy Â±10.5%rdg+2dgt]
Duty Cycle 0.1%-99.9%
Accuracy Â±(0.5%rdg+2dgt)
Temperature -20°C to 750°C/-4°F to 1382°F
Accuracy Â±[3%rdg+5dgt)
Safety Standard CAT II 600V
Audible Continuity 30Ω (approx.)
Diode Test 1.0 ±0.6mA (approx.)
Power Two 1.5V 'AAA' Battery
Battery Life 200 Hours Typical
Dimension 185 x 65 x 28 mm (approx.)
Weight 170gms Including Battery lapprox.)
Jaw OpeningCable Dia. 25mm (max.)
