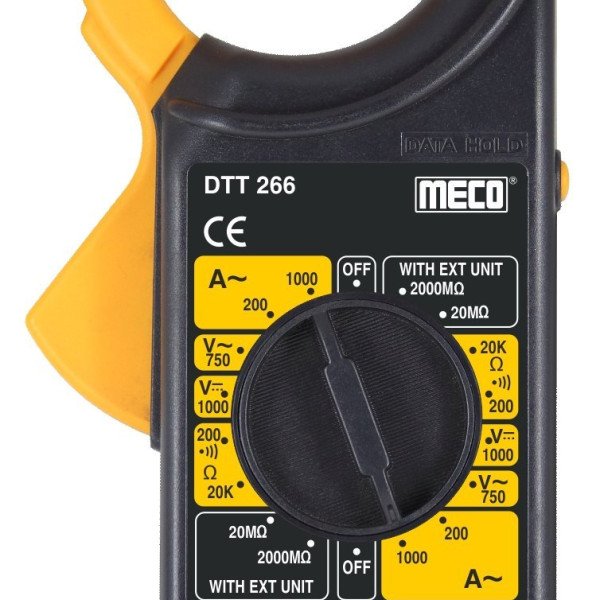

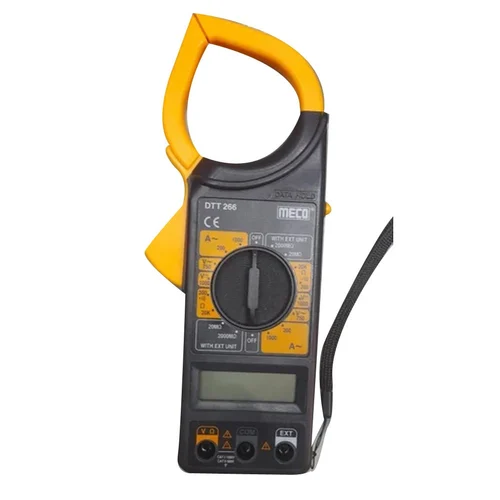

MECO DTT 266 Auto ranging Digital Clamp meters

MECO DTT 266 Auto ranging Digital Clamp meters
MECO DTT 266 Auto ranging Digital Clamp meters
MECO DTT 266 Auto ranging Digital Clamp meters
MECO DTT 266 Auto ranging Digital Clamp meters

MECO DTT 266 Auto ranging Digital Clamp meters

Click To Zoom

MECO DTT 266 Auto ranging Digital Clamp meters

MECO DTT 266 Auto ranging Digital Clamp meters

(Based On 10 Reviews)

The MECO DTT 266 is a 3½ digit (2000 counts) manual ranging digital clamp meter for AC current up to 1000A and AC/DC voltage up to 750/1000V. It measures resistance up to 20kΩ and features data hold, audible continuity, overload protection, and low battery indication.

Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

COD AVAILABLE
CASH ON DELIVERY

COD AVAILABLE

₹ 739

(GST inclusive price) i
  • Base Value: ₹ 626.3
  • GST: (18) % ₹ 112.7
  • Total Value ₹ 739

₹1,161.00

( - 33% OFF )

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • 3½ Digits
  • 2000 Counts
  • Manual Ranging
  • AC Current upto 1000A (50Hz ~ 60Hz)
  • AC Voltage upto 750V (45Hz ~ 450Hz)
  • DC Voltage upto 1000V
  • Resistance upto 20KΩ
  • Over Load Protection
  • Over Volt Protection
  • Audible Continuity
  • Data Hold
  • Low Battery Indication
  • Jaw Opening : Cable Dia. 53mm (max.)



What's in the box?

  • MECO DTT 266 Auto ranging Digital Clamp meters
  • Test Leads x 1 Pair
  • 9V Battery x 1 Pc
  • Instruction Manual x 1 Pc
  • Carrying Case x 1 P

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

Specifications
AC Current 200A, 1000A
Accuracy

±12.5%+ 13dgt) on 200A

±(2.5% 8dgtl upto 800A

Above 800A the reading are only for reference

Overload 1200A AC max. for 1 min.
AC Response 50-60Hz
DC Voltage 1000V
Accuracy Â±1%rdg+5dgtl
AC Voltage 750V
Accuracy Â±[1.2%rdg+5dgt
AC Response 45-450Hz
Resistance 200Ω, 20ΚΩ
Accuracy

±(1.0%rdg+10dgt] on 200Ω

= [1.0%rdg+4dgt] on 20ΚΩ

Over volt protection250V DC/220V AC RMS
Audible Cont300 ± 200 (approx.]
Insulation test20ΜΩ, 2000ΜΩ (With Optional Unit)
Accuracy Â± [2% of rdg + 2 dgt) on 20ΜΩ ± (4% of rdg + 2 dgt) upto 500ΜΩ
± (5% of rdg + 2 dgt) above 500MΩ
Dimension 230 x 68 x 37mm (approx.)
Weight 240gms Including Battery lapprox.)
Jaw Opening Cable Dia. 53mm (max.)
