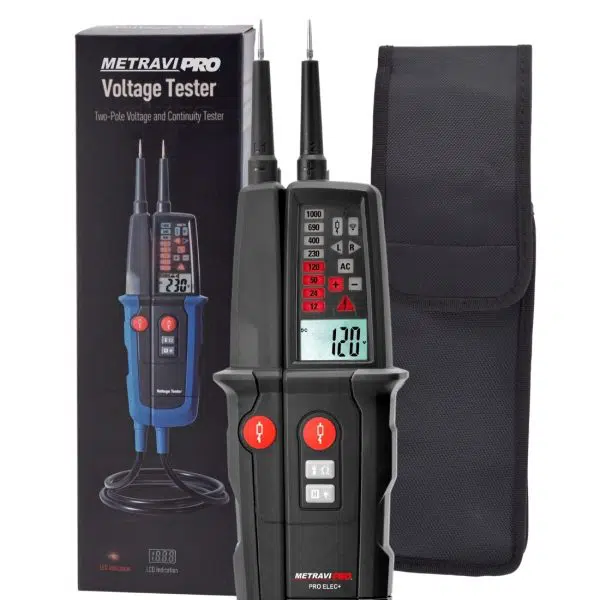

Metravi PRO ELEC+ Voltage Detector and Electrical Tester
Click To Zoom
Metravi PRO ELEC+ Voltage Detector and Electrical Tester
Metravi PRO ELEC+ Voltage Detector and Electrical Tester

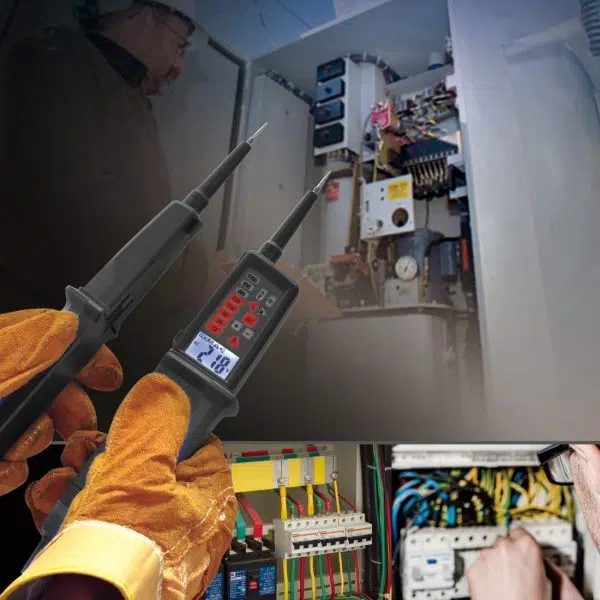

The PRO ELEC+ is a two-pole Voltage Detector and Electrical Tester. It features an LCD display and LED signalling. It serves as an ideal device that should be part of every electrician’s instrument kit. It can also be used as a single-pole voltage tester.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL Products
SECURE Payments
₹ 6,519.00
(GST inclusive price) i₹8,775.00
( - 26% OFF )
Description
What's in the box?
|
Rating & Reviews
Rating
| Technical Specification | |
| LEDS | |
| LED Voltage Range | 12V to 1000V AC/DC |
| LED Resolution | ±12, 24, 50, 120, 230, 400, 690, 1000V AC/DC |
| Tolerances | Complies with EN 61243-3:2014 |
| Frequency Range | 0/40Hz to 400Hz |
| Response Time | ≤1 second |
| Auto Power On | Auto power on ≥12V AC/DC |
| LCD | |
| LCD Display | 1999 counts (3 1/2 digit) LCD display with barograph & backlight |
| Voltage Range | 6V to 1000V AC/DC |
| Resolution | 1V AC/DC |
| Tolerances | ±3.0% of reading ±5 digit |
| Frequency Range | 0/40Hz to 400Hz |
| Response Time | ≤1 second |
| Auto Power On | Auto power on ≥6V AC/DC |
| Voltage Detection | Automatic |
| Polarity Detection | Full Range |
| Range Detection | Automatic |
| Internal Basic Load Impedance Peak Current | Maximum 3.5 mA at 1000 V 350 kΩ / Is<3.5 mA (no RCD tripping) |
| Operation Time | Duration Time = 30 seconds |
| Recovery Time | Recovery Time = 240 seconds |
| Switchable Load | ~7KΩ |
| Peak Current | Is (load) = 150mA |
| RCD Tripping | ~30mA@ 230V |
| Continuity Test | 0 to 400 kΩ |
| Accuracy | Nominal Resistance ±50% |
| Test Current | ≤5 μA |
| Resistance Measurement | 0Ω to 1999Ω |
| Resolution | 1Ω |
| Tolerance | ± (5% rdg +10 digits) @ 20°C |
| Temperature Co-efficient | ± 5 digits / 10 K |
| Test Current | ≤30 μA |
| Single-pole Phase Test | 100V to 1000V AC |
| Frequency Range | 50Hz to 400Hz |
| Rotary Field Indication | |
| Voltage Range (LEDs) | 100V ~ 1000V |
| Frequency Range | 50/60Hz |
| Measurement Principle | Double-pole and contact electrode |
| Safety Standards | EN61243-3:2014 |
| Agency Approvals | TUV Rheinland -GS |
| Over Voltage Protection | 1000V AC/DC |
| Measurement Category | CATIII 1000V / CATIV 600V |
| Protection Degree | IP64 |
| Power Supply | 2x1.5V “AAA” Batteries |
| Power Consumption | Max.30mA / Approx. 250mW |
| Temperature Range | -10°C up to 55°C |
| Humidity | Max.85% relative humidity |
