Mextech DT-117 Digital Multimeter

Mextech DT-117 Digital Multimeter
Mextech DT-117 Digital Multimeter
Mextech DT-117 Digital Multimeter
Mextech DT-117 Digital Multimeter
Mextech DT-117 Digital Multimeter

Mextech DT-117 Digital Multimeter

Click To Zoom

Play Video

Mextech DT-117 Digital Multimeter

Mextech DT-117 Digital Multimeter

(Based On 10 Reviews)

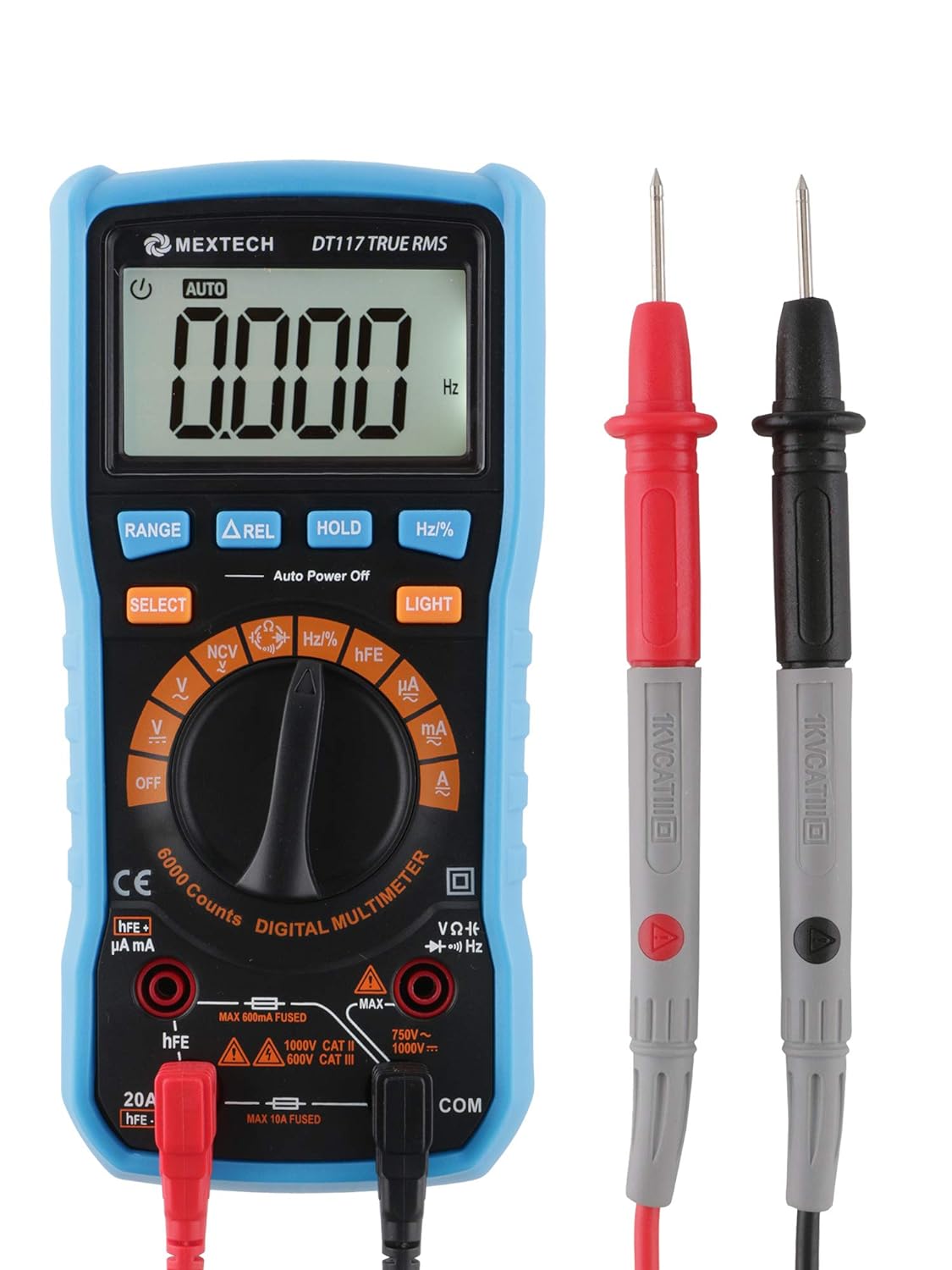

This is a 3¾ Digits True RMS Multimeter with Backlight. This instrument can be used to measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Diode, Continuity Test, Non-Contact Voltage detection and other parameters. It is an ideal tool for the Electricians, Engineers & Factories, Industries, Laboratories, Students, Household.




Request Callback

Order In Bulk

Generate Quote

100% ORIGINAL PRODUCTS
Your source for authentic goods. No fakes, just the real deal.

100% ORIGINAL PRODUCTS

SECURE PAYMENTS
Risk-free Transactions

SECURE PAYMENTS

1 YEAR WARRANTY
1 Year Warranty Against Any Manufacturing Defects.

1 YEAR WARRANTY

AUTHORIZED DISTRIBUTOR
Get genuine products and full manufacturer support. We are an authorized distributor for Fluke, Meco, Metravi, Mextech, Lutron & SEW.

AUTHORIZED DISTRIBUTOR

B2B INVOICES
Enter your GSTIN at the time of checkout for claiming GST input.

B2B INVOICES

₹ 1,999

(GST inclusive price) i
  • Base Value: ₹ 1694.1
  • GST: (18) % ₹ 304.9
  • Total Value ₹ 1999

₹2,599.00

( - 23% OFF )

Add Calibration

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

8920884830

Description

Key Features

  • Display : 3¾ Digits with 5999 Counts With Backlight.
  • Over Range Indication,
  • Overload Protection
  • Data Hold Function
  • Auto/Manual Range Selection
  • Non-Contact AC Voltage Detector.
  • Sampling Time 0.4 Seconds
  • Auto Power off
  • Operating Temperature & Humidity : 0°C To 40°C, <75%RH
  • Storage Temperature & Humidity : -10°C To 50°C, <75%RH
  • Power supply : 1 X 9 Volt Battery
  • Display Size : 62 X 35 mm
  • Dimension: 185×85×52mm
  • Weight : 368gm Excluding Battery

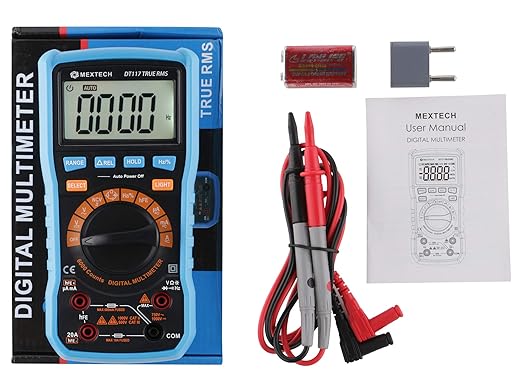

What's in the box?

  • Instruction Manual
  • 9V Battery
  • 1Set Test lead
  • 1 pc 9V Battery

Rating & Reviews

4.5
(Based On 10 Reviews)

Rating

0

0

0

0

0
Review Image

Product Specifications

FunctionRangesAccuracy
AC Voltage6V/60V/600V/750V± 1.0%
DC Voltage600mV/6V/60V/600V/1000V± 0.5%
AC Current6mA/60mA/600mA/10A± 1.5%(up to 600mA), ± 3.0%(in A Range)
DC Current600µA/6mA/60mA/600mA/10A± 1.0%(up to 600mA), ± 2.0%(in A Range)
Resistance600Ω/6kΩ/60kΩ/600kΩ/6mΩ/60MΩ± 0.8%
Capacitance100mF (Auto Range)± 3.0%
Temp.-20℃ To 1000℃± 1.5%
Frequency10mHZ± 1.5%
Transistor, HFE0 to 1000
Duty Cycle1% to 99%
NCV90 – 1000V AC
DiodeYes
ContinuityYes
