Fluke 566 Thermal Gun Infrared & Contact Thermometer
.jpg "Fluke 566 Thermal Gun Infrared & Contact Thermometer")
.jpg "Fluke 566 Thermal Gun Infrared & Contact Thermometer")
.jpg "Fluke 566 Thermal Gun Infrared & Contact Thermometer")
.jpg "Fluke 566 Thermal Gun Infrared & Contact Thermometer")
Click To Zoom

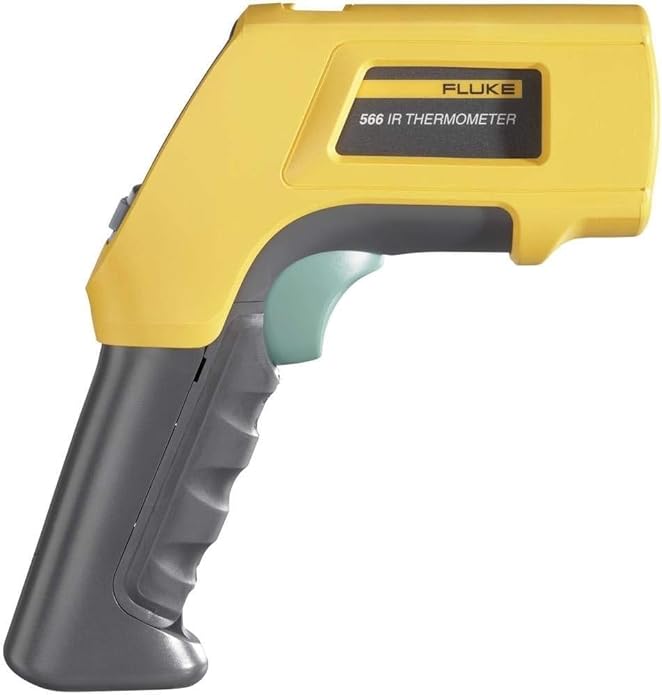

Fluke 566 Thermal Gun Infrared & Contact Thermometer
Fluke 566 Thermal Gun Infrared & Contact Thermometer
The 566 IR and contact thermometer features a simple, three-button, on-screen menu interface (in 6 languages) to make it easier than ever to measure temperature. You can quickly navigate advanced features to adjust emissivity, start data logging, or turn alarms on and off with just a few pushes of a button. And with its rugged, easy-to-use, ergonomic design, the Fluke 566 can stand up to tough industrial, electrical, and mechanical environments. These tools go beyond other IR thermometers (or pyrometers), helping you work more efficiently in more applications.
Request Callback
Order In Bulk
Generate Quote
100% ORIGINAL PRODUCTS
SECURE PAYMENTS
2.png)
2 YEARS WARRANTY
AUTHORIZED DISTRIBUTOR
B2B INVOICES
₹ 75,049
(GST inclusive price) i-
Base Value: ₹ 63600.8
-
GST: (18) % ₹ 11448.2
-
Total Value ₹ 75049
₹99,750.00
( - 25% OFF )
Description
Key Features
- Two-in-one IR and contact thermometer with a 30:1 distance-to-spot ratio
- Measures temperatures from -40°C to 650°C (40°F to 1202°F)
- Makes it easy to access advanced features with the soft-key buttons and graphical display
- Features rugged, ergonomic design that stands up to tough industrial, electrical, and mechanical environments
- Works with most K-type thermocouples
Other Useful Features:
- Adjustable emissivity that allows you to confidently measure a wide variety of surfaces
- Up to 20 points of data for downloading and recalling later
- Two levels of backlight on the display
- Included Type-K thermocouple bead probe
- Features audible and visual alarms to instantly alert you to measurements outside of your set limits
- Provides MAX, MIN, DIF and AVG functions to quickly identify problems
What's in the box?
|
Rating & Reviews
Rating
| Product Specifications | ||
| Infrared temperature range | -40°C to 650°C (-40°F to 1202°F) | |
| Infrared accuracy | < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); | |
| > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater | ||
| Display resolution | 0.1°C / 0.1°F | |
| Infrared spectral response | 8 µm to 14 µm | |
| Infrared response time | < 500 msec | |
| Thermocouple Type-K input temperature range | -270°C to 1372°C (-454°F to 2501°F) | |
| Thermocouple Type-K input accuracy | -270°C to -40°C | ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) |
| -40°C to 1372°C | ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater | |
| D:S (distance to measurement spot size) | 30:1 | |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm | |
| Minimum spot size | 19 mm (0.75 in) | |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 | |
| Data storage with date/time stamp | 20 points | |
| PC interface and cable | None | |
| Hi/Low alarms | Audible and two-color visual | |
| Min/Max/Avg/Dif | Yes | |
| Display | Dot matrix 98 x 96 pixels with function menus | |
| Backlight | Two levels, normal and extra bright for darker environments | |
| Trigger lock | Yes | |
| Switchable Celsius and Fahrenheit | Yes | |
| Power | 2 AA/LR6 Batteries | |
| Battery life | If used continuously | Laser and backlight on, 12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage temperature | -20°C to 60°C (-40°F to 140°F) | |
| Bead thermocouple Type-K range | -40°C to 260°C (-40°F to 500°F) | |
| Bead thermocouple Type-K accuracy | ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F) | |
